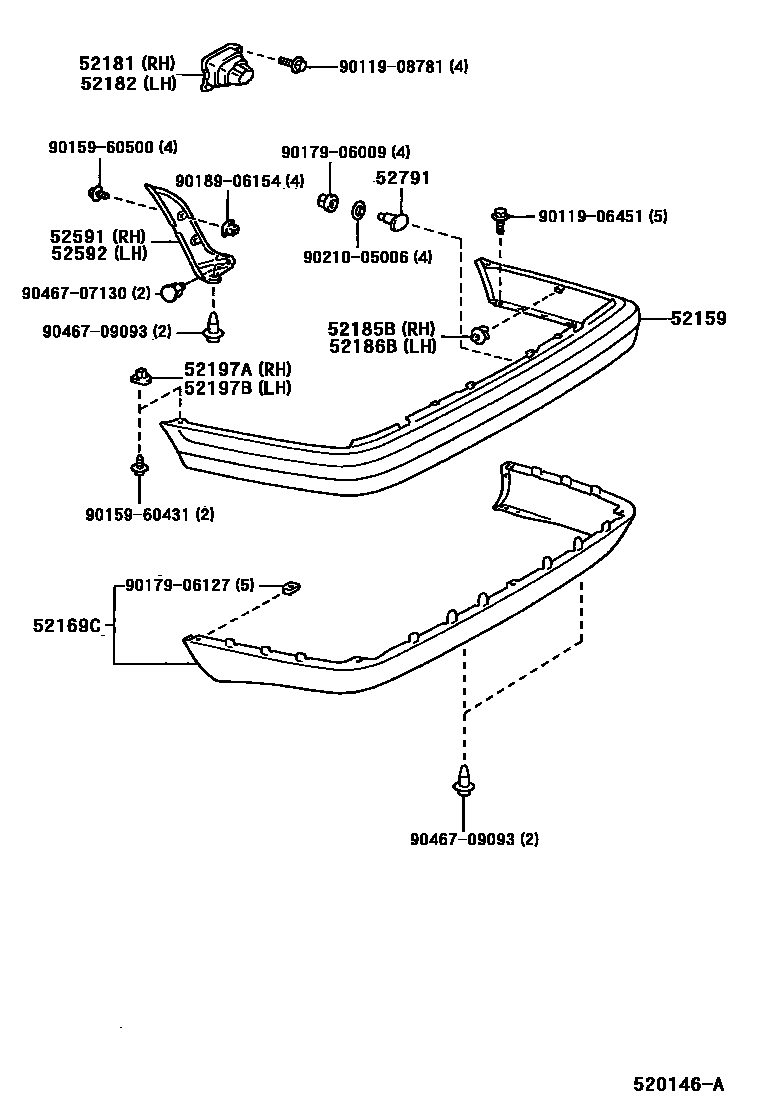

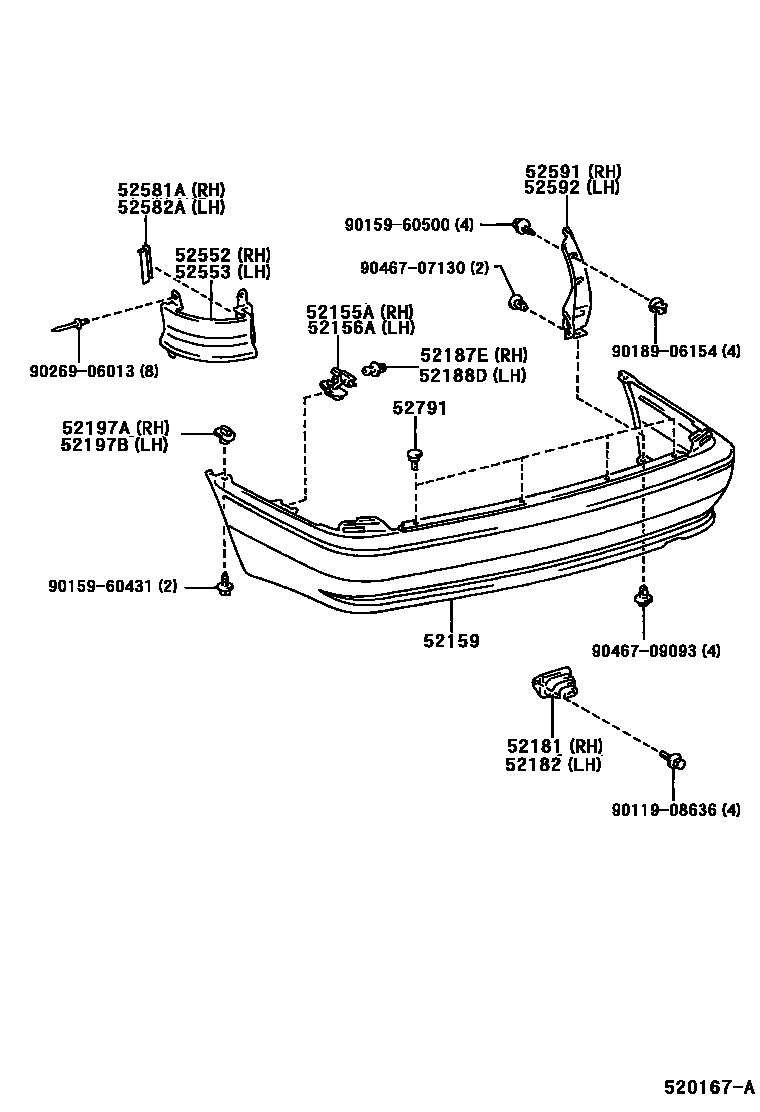

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52155A | Rear bumper right side bracket | 52155-16130 |
| 52156A | Rear bumper left bracket | 52155-16130 |
| 52159 | rear bumper cover | 52159-1A650 · 52159-1A800 |
| 52169C | Rear bumper lower cover | 52169-12040 |
| 52181 | Rear bumper right arm | 52181-12400 |
| 52182 | Rear bumper left arm | 52182-12320 |
| 52185B | Installation support on the right side of the rear bumper | 52185-12230 |
| 52186B | Rear bumper left side mounting support | 52185-12230 |
| 52187E | Rear bumper right positioning guide rod | 52187-16070 |
| 52188D | Rear bumper left positioning guide rod | 52187-16070 |
| 52197A | Rear bumper right seal support | 52197-16020 |
| 52197B | Rear bumper left seal support | 52197-16020 |
| 52552 | Arc filler on the right side of the rear bumper | 52552-12070 |
| 52553 | Rear bumper left curved filler | 52553-12070 |
| 52581A | Rear bumper curved filler protector | 52581-12110 |
| 52582A | Rear bumper left curved filler protection piece | 52582-12050 |
| 52591 | Rear bumper right seal | 52591-12100 · 52591-12110 |
| 52592 | Rear bumper left seal | 52592-12020 · 52592-12030 |
| 52791 | Bumper protection strip No. 1 fixing bolt | 52791-12010 · 52791-12030 |
