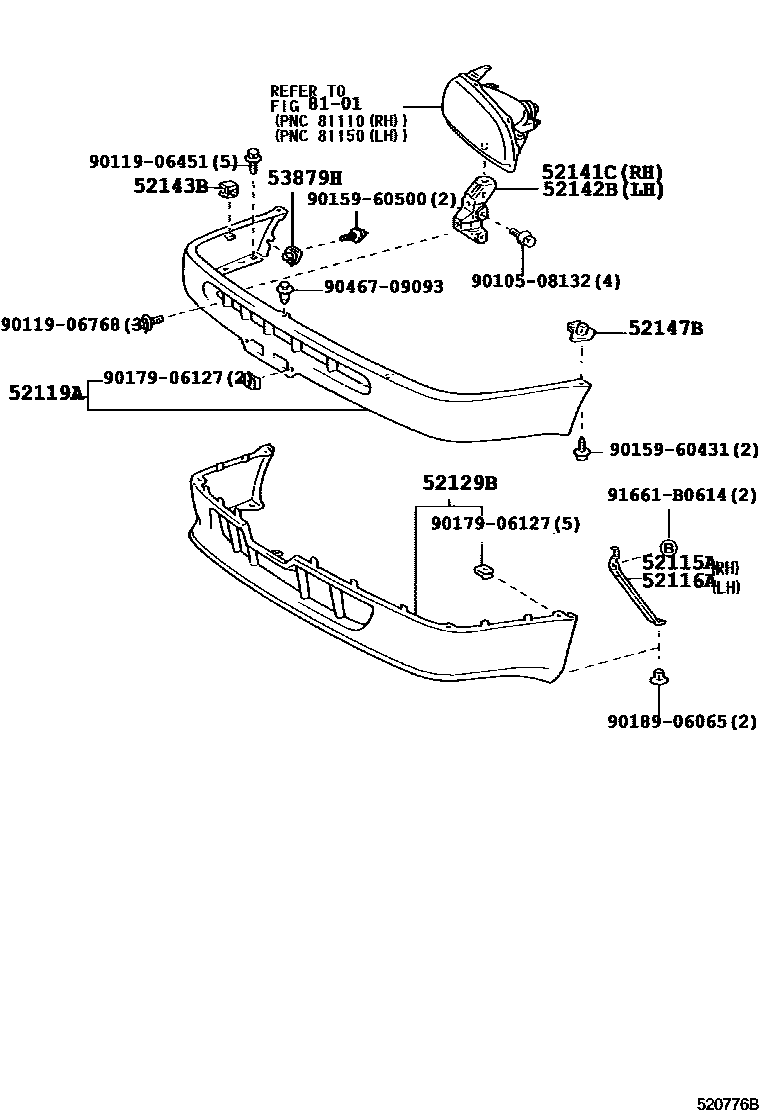

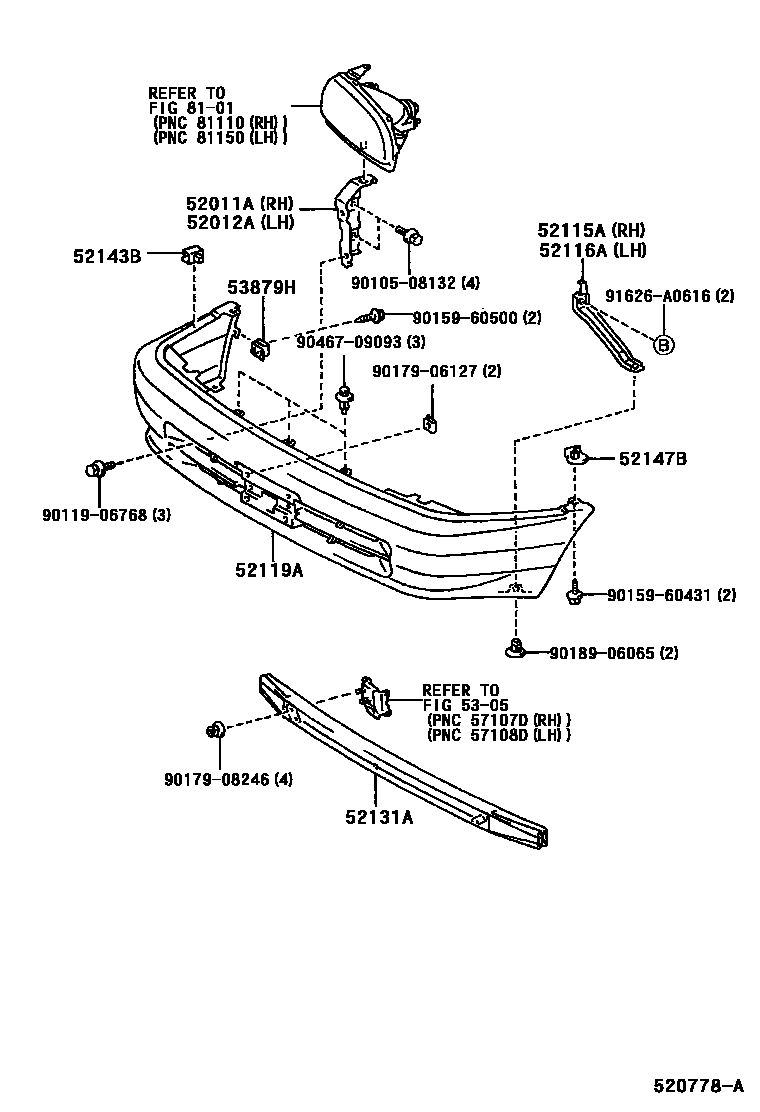

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52141-12440 |
| 52012A | Front bumper left arm sub-assembly | 52142-12370 |
| 52115A | Front bumper right side bracket | 52115-12320 |
| 52116A | Front bumper left bracket | 52116-12290 |
| 52119A | front bumper cover | 52119-1E330 |
| 52129B | Front bumper lower cover | 52129-12040 |
| 52131A | Front bumper reinforcement | 52131-12180 |
| 52141C | Front bumper right arm | 52141-12420 |
| 52142B | Front bumper left arm | 52142-12350 |
| 52143B | Front bumper side bracket | 52143-12340 |
| 52147B | Front bumper mounting bracket | 52147-16080 |
| 53879H | Front fender lining fixing parts | 53879-12010 |
