Toyota COROLLA 制动助力器和真空管 — Figure 4703

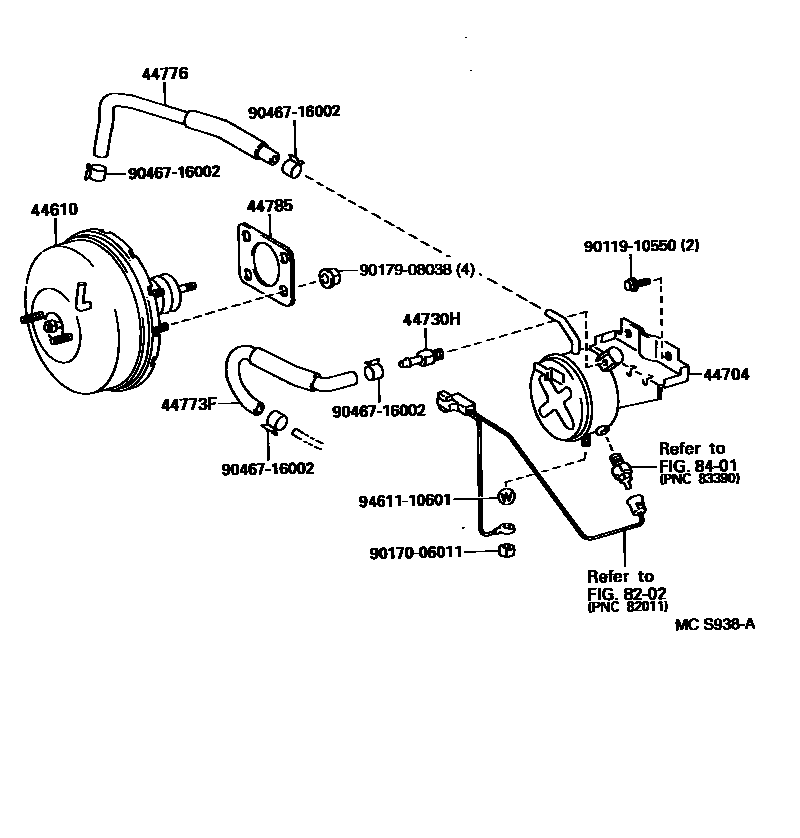

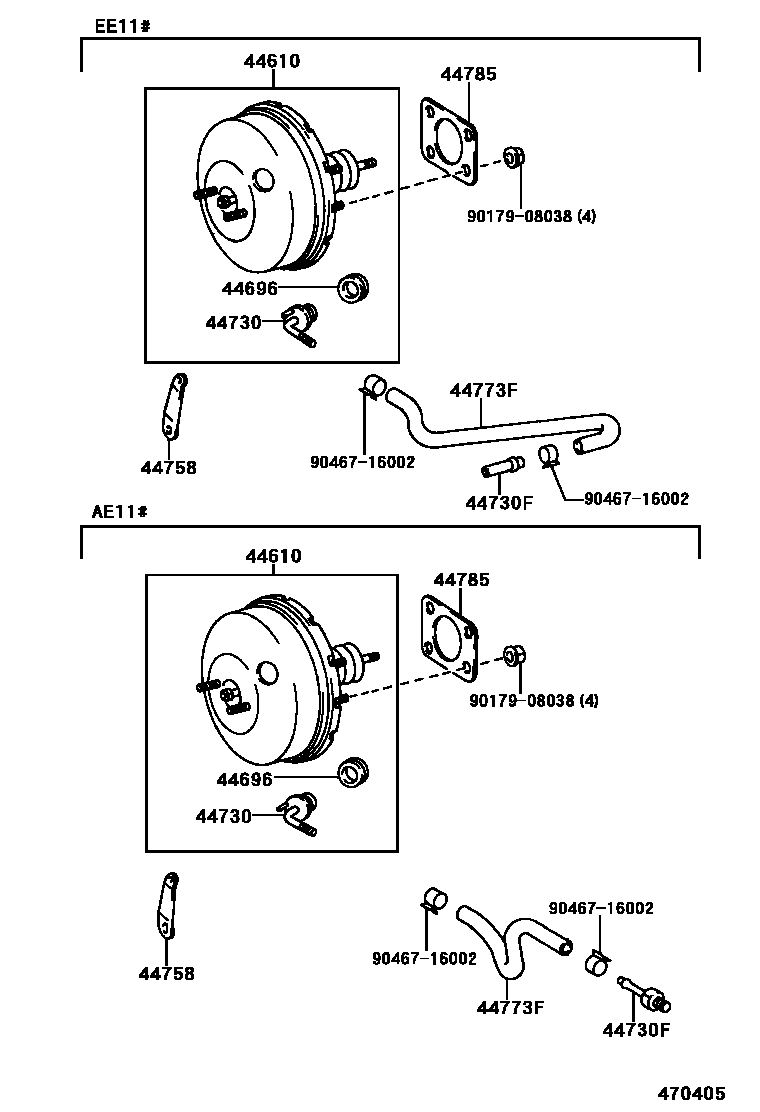

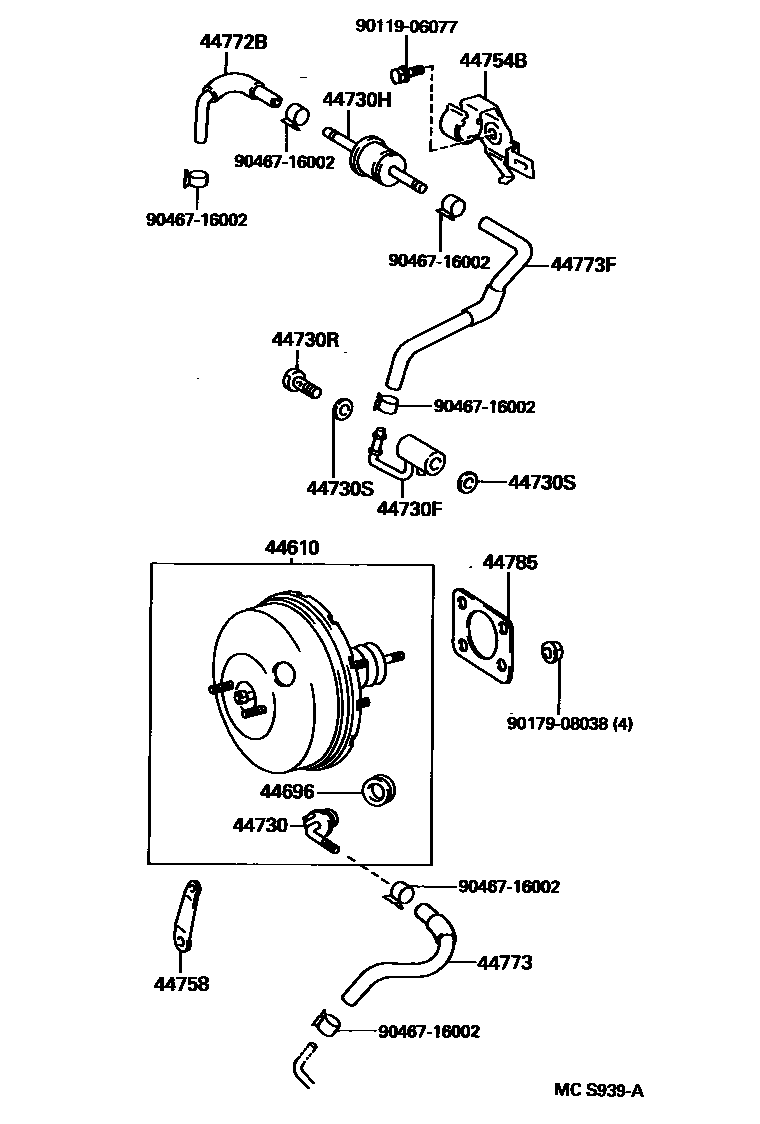

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-1A270 · 44610-1A390 · 44610-1A630 · 44610-1E180 · 44610-1E190 · 44610-1E230 · 44610-1E250 |
| 44696 | One-way valve seal | 90480-24439 · 90480-24517 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-12070 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-12040 · 44730-12050 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51319 · 90405-09162 · 90406-09006 |
| 44730H | Vacuum check valve assembly (for vacuum reservoir) | 44730-20120 · 44730-60050 |
| 44730R | Connector bolts (for vacuum hose connectors) | 90401-10054 |
| 44730S | Gasket (for vacuum hose coupling) | 90430-10015 |
| 44754B | Vacuum tube holder | 44758-12310 |
| 44758 | Vacuum check valve bracket | 44758-12300 |
| 44772B | Hoses (check valve to brake booster) | 44772-12420 |
| 44773 | No. 2 vacuum hose | 44773-12631 |
| 44773F | Hoses (connector to check valve) | 44773-12530 · 44773-12570 · 44773-12580 · 44773-12600 · 44773-12610 |
| 44776 | brake booster hose | 44776-12120 |
| 44785 | brake booster pad | 44785-20020 |
