Toyota COROLLA 车轮和车轮盖 — Figure 4103

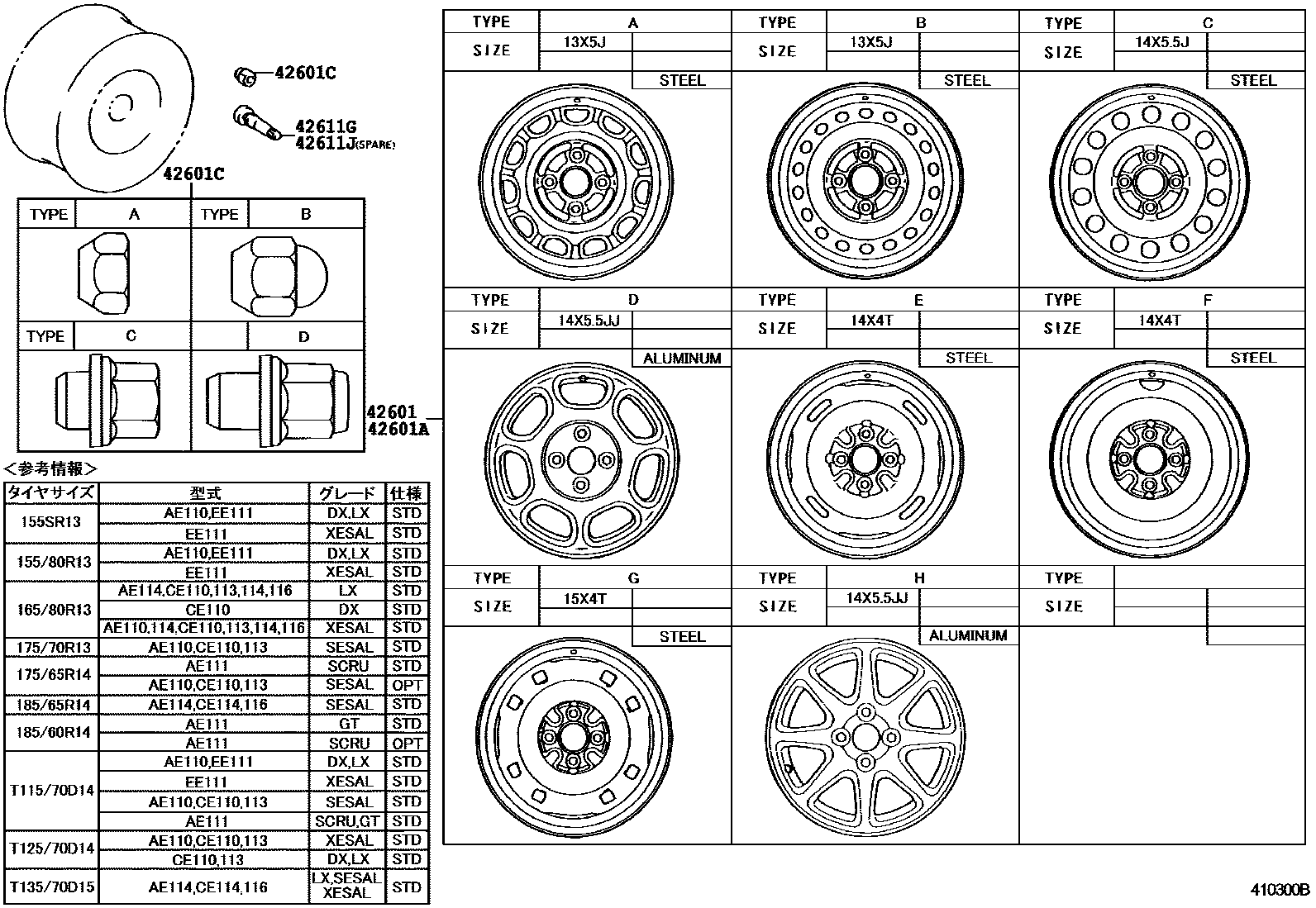

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-1A160 · 42611-1A270 · 42611-1A380 |
| 42601A | Spoke wheel (for spare tire) | 42611-16200 · 42611-1A010 · 42611-1A270 · 42611-1A330 · 42611-1A380 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 · 90942-01062 |

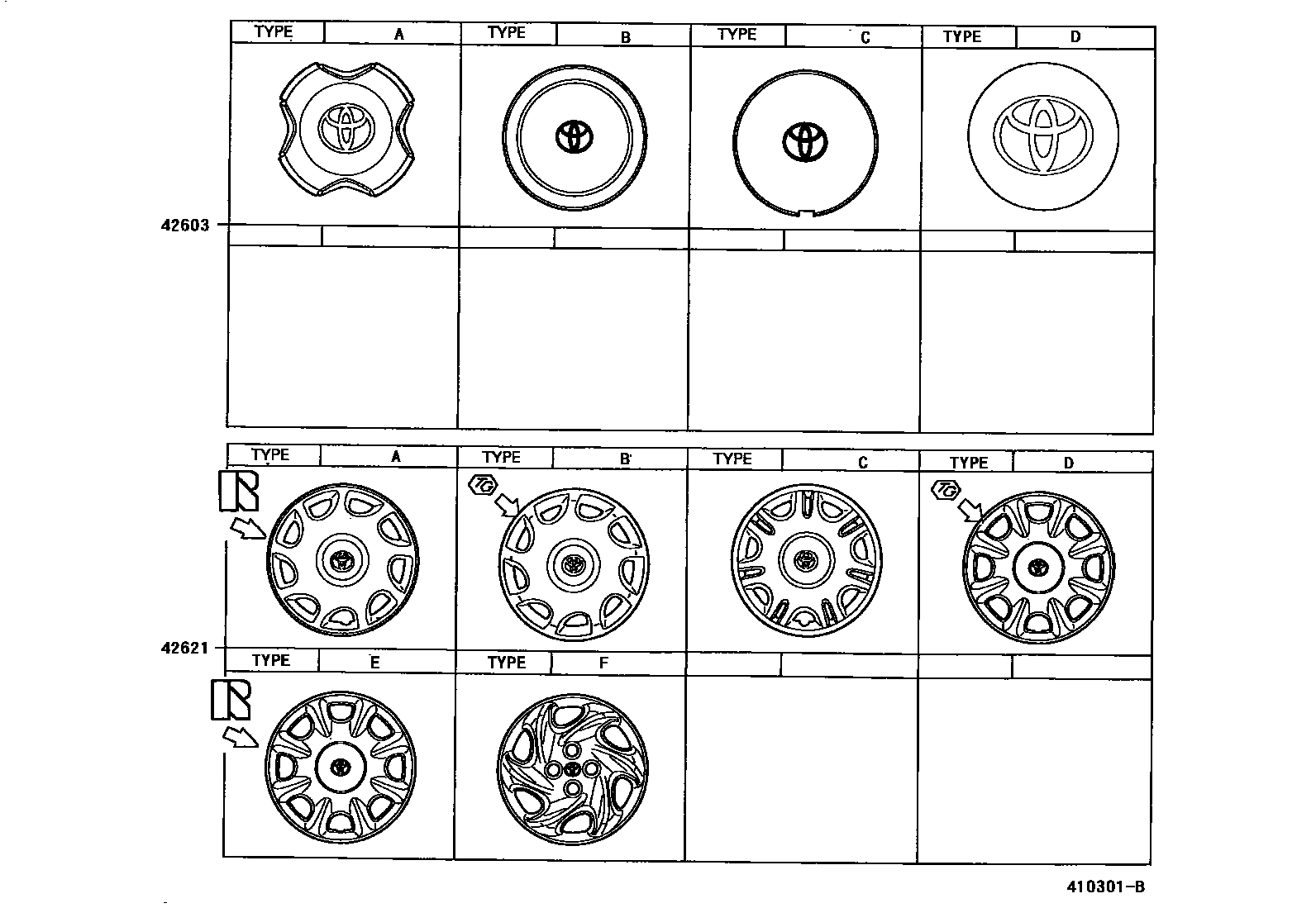

| 42603 | Wheel hub decorative parts sub-assembly | 42603-12540 · 42603-12650 · 42603-12660 · 42638-12290 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-12340 · 42602-12410 · 42602-12430 · 42602-12470 · 42602-12480 · 42602-12510 · 42602-12520 · 42602-12530 · 42602-12570 · 42602-12580 |
