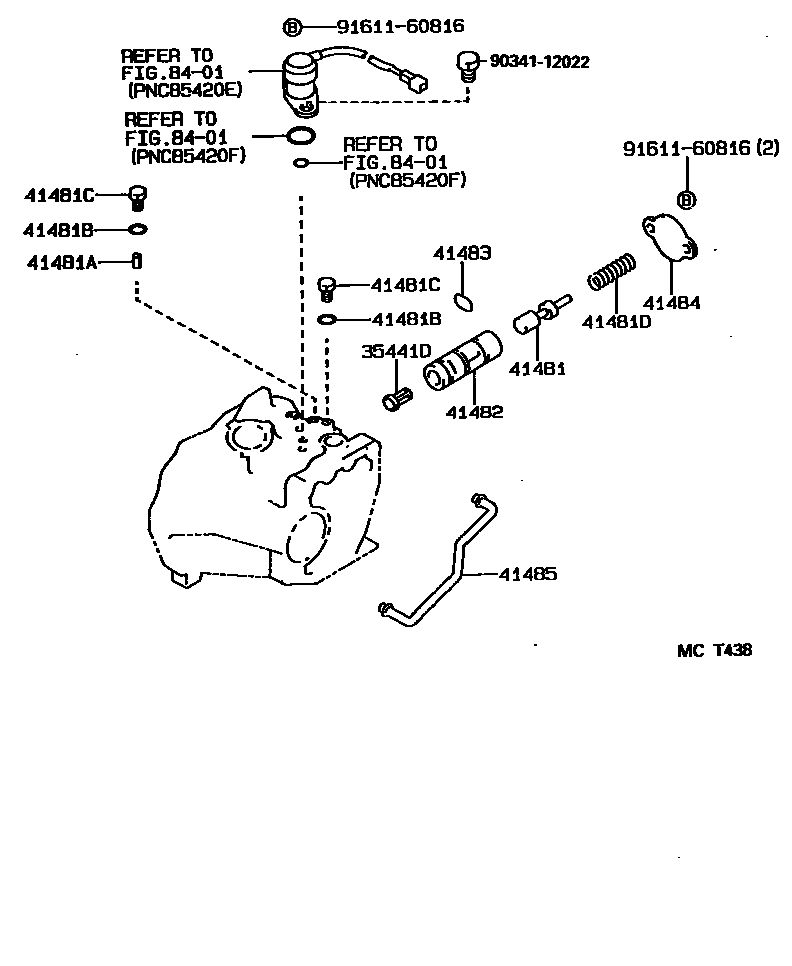

Toyota COROLLA 分动器阀体和阀杆 — Figure 3615
Toyota COROLLA EPC diagram 3615, 分动器阀体和阀杆, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35441D | Center differential lockup clutch control oil filter | 35441-12010 |
| 41481 | Differential lock clutch control valve | 41481-12010 |
| 41481A | Direct sales (for differential control valve) | 90250-04065 |
| 41481B | O-ring (for differential lock clutch control valve) | 90301-06196 |
| 41481C | Plug (for differential lock clutch control valve) | 90341-08001 |
| 41481D | Compression spring (for differential control valve) | 90501-08099 |
| 41482 | Differential lock clutch control valve sleeve | 41482-12010 |
| 41483 | Differential lock clutch control valve spring seat | 41483-12010 |
| 41484 | Differential lock clutch control valve sleeve cover | 41484-12010 |
| 41485 | Differential lock clutch pressure supply pipe | 41485-12010 |
