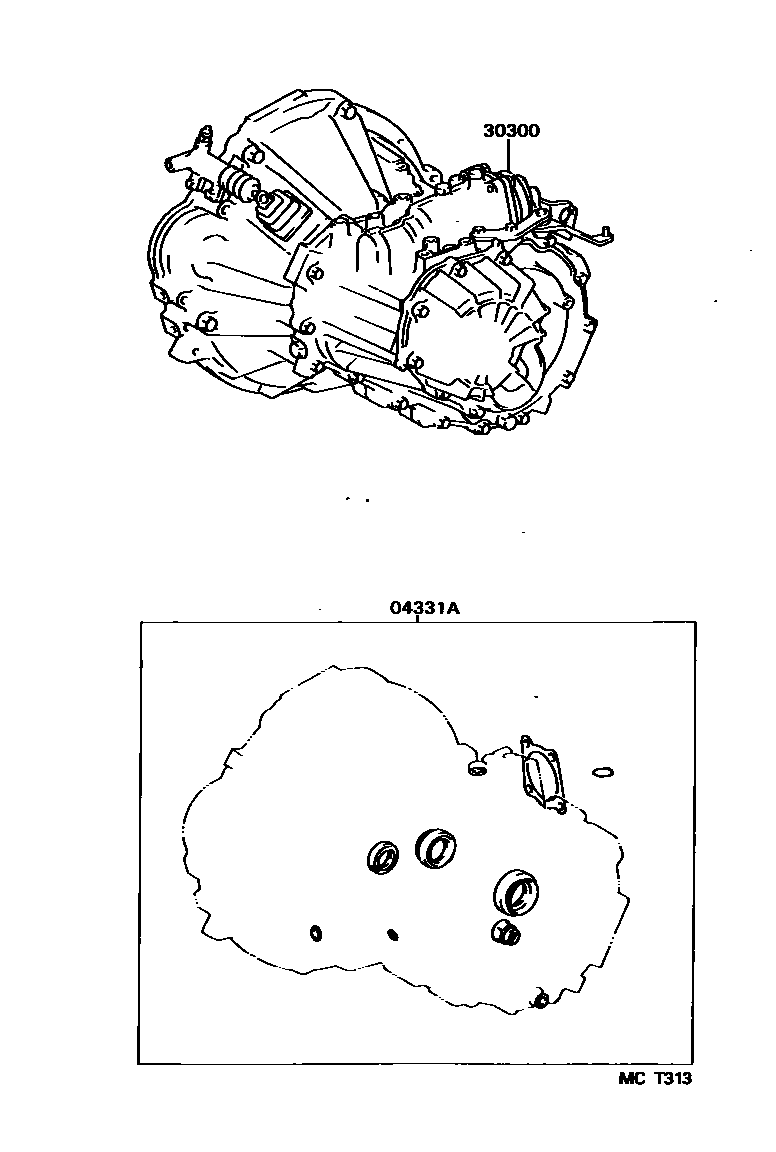

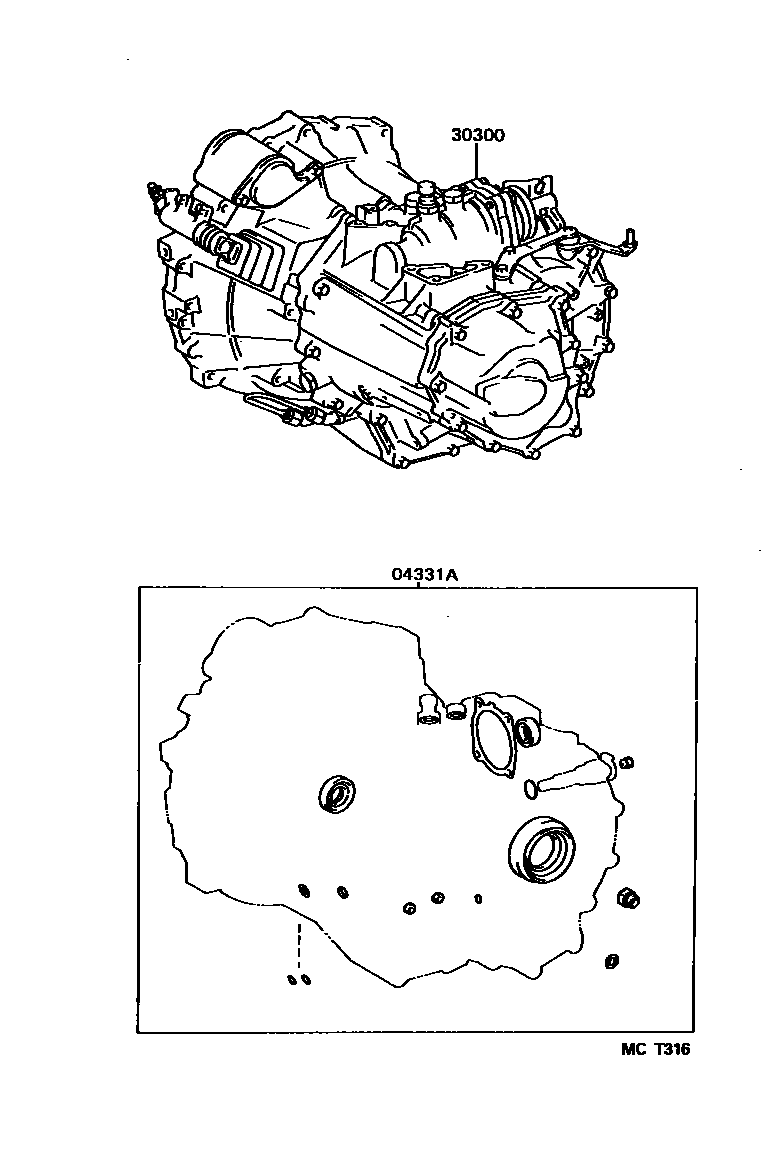

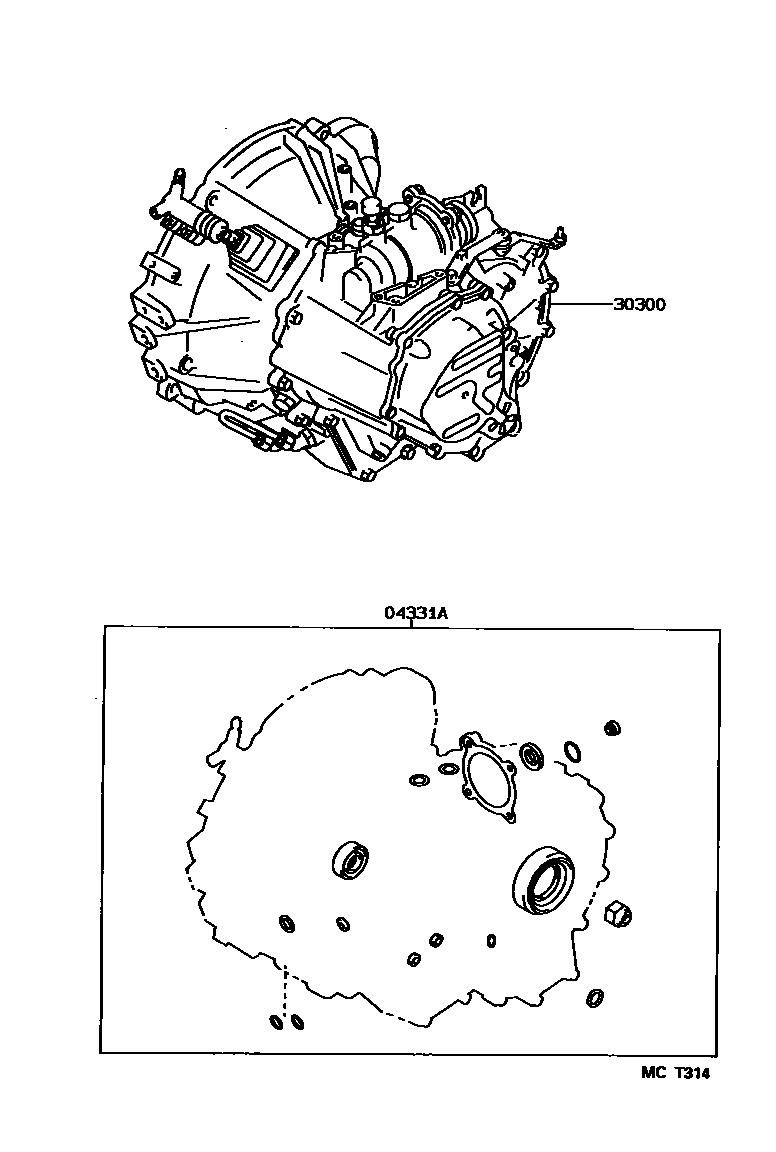

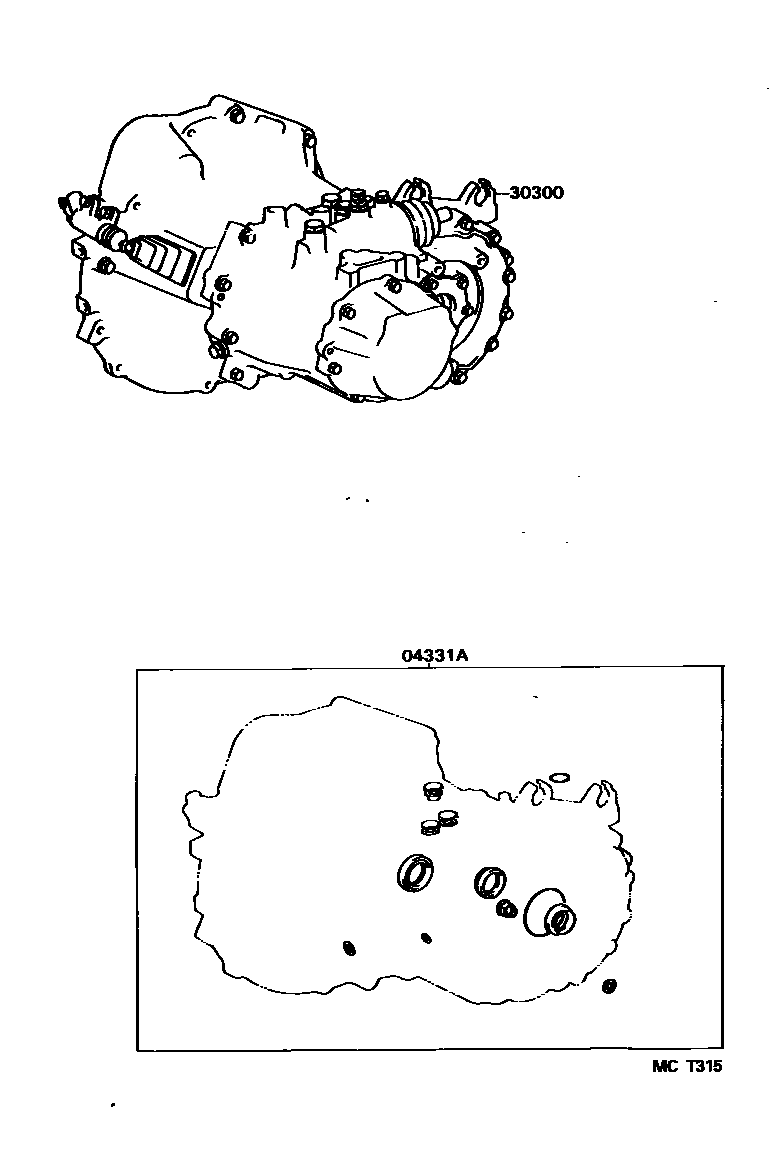

Toyota COROLLA 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota COROLLA EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 4 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04331A | Transaxle overhaul pad assembly (MTM) | 04331-12101 · 04331-12110 · 04331-12130 · 04331-32011 · 04331-32040 |
| 30300 | Manual transmission axle assembly | 30300-12762 · 30300-12791 · 30300-12880 · 30300-12890 · 30300-1A010 · 30300-1A050 · 30300-1A120 · 30300-1A250 · 30300-1A280 · 30300-1A290 · 30300-1A320 · 30300-1A330 · 30300-1A340 · 30300-1A620 · 30300-1A630 · 30300-1A640 |
