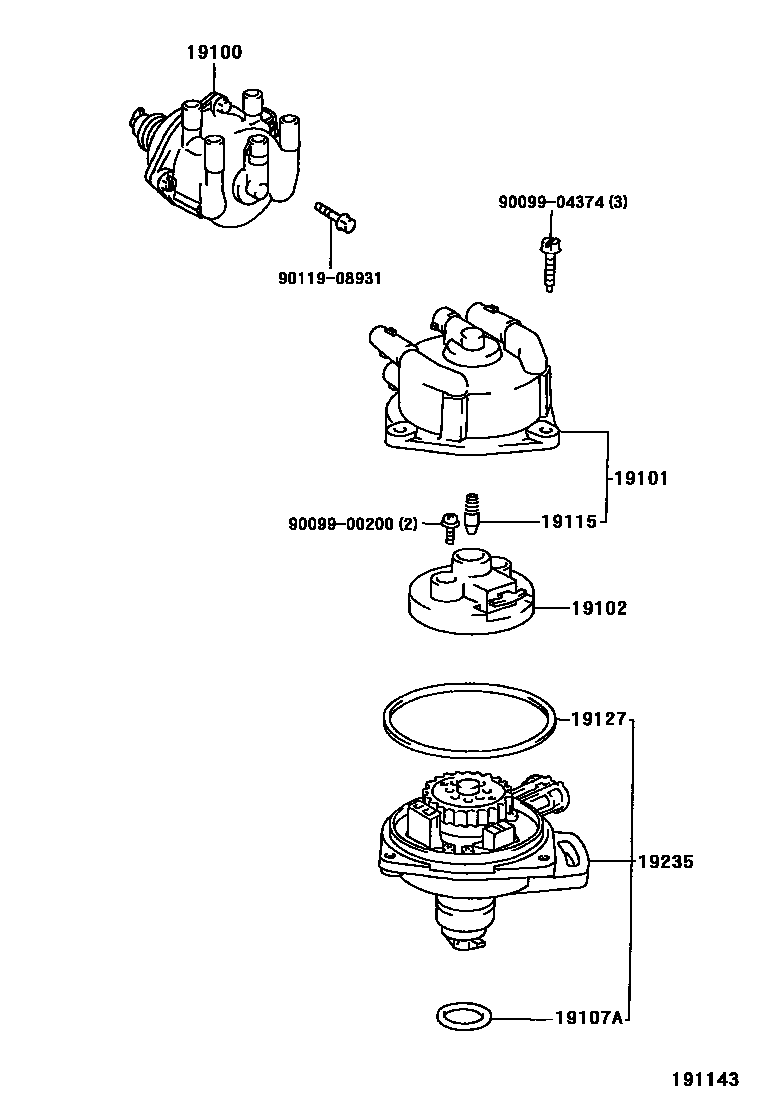

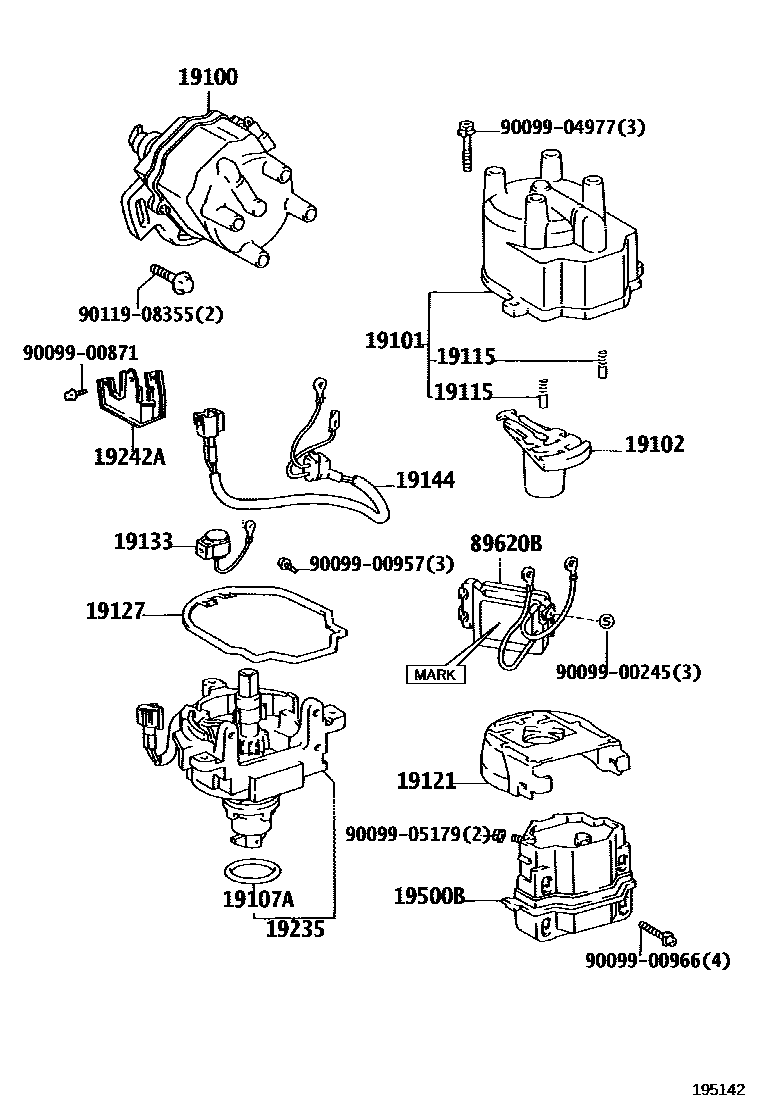

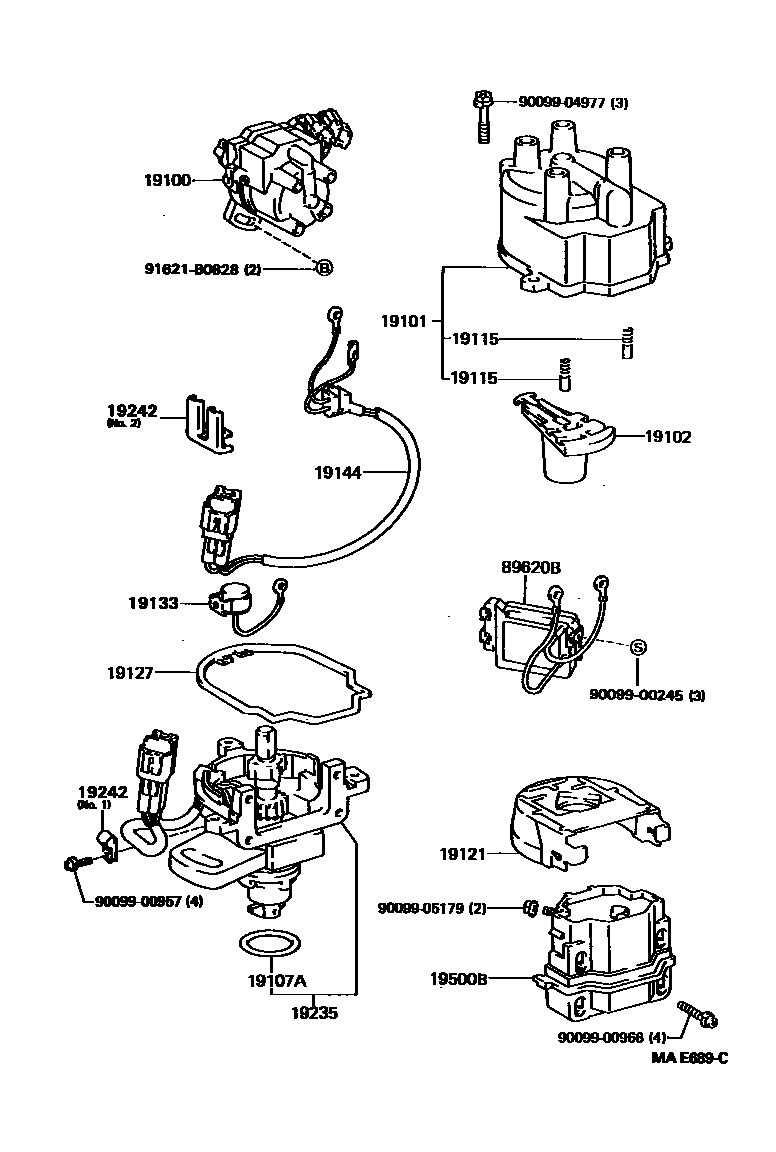

Toyota COROLLA 分电器 — Figure 1902
Toyota COROLLA EPC diagram 1902, 分电器, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19020-11340 · 19020-11380 · 19020-15180 · 19020-16250 · 19020-16260 · 19100-16270 |
| 19101 | Distributor cover sub-assembly | 19101-11060 · 19101-16010 |
| 19102 | Distributor flame head sub-assembly | 19102-11031 · 19102-11370 · 19102-74040 |
| 19107A | Distributor housing O-ring | 90099-14088 · 90099-14127 |
| 19115 | Distributor cover center piece | 19115-63010 · 19115-88280 |
| 19121 | dust cover | 19121-11080 |
| 19127 | Dust seal | 19127-15120 · 19127-74040 |
| 19133 | Distributor capacitor | 19133-16240 |
| 19144 | Distributor breaker lead | 19144-11350 · 19144-16020 |
| 19235 | Distributor housing | 19235-11340 · 19235-16060 · 19235-16120 · 19235-16270 |
| 19242 | Cable clip | 19242-11190 · 19242-11350 |
| 19242A | Cable No. 2 | 19242-15180 |
| 19500B | Ignition coil assembly | 90919-02164 |
| 89620B | Ignition assembly | 89620-12420 · 89620-12440 · 89620-16260 |
