Toyota COROLLA vacuum tube — Figure 1708

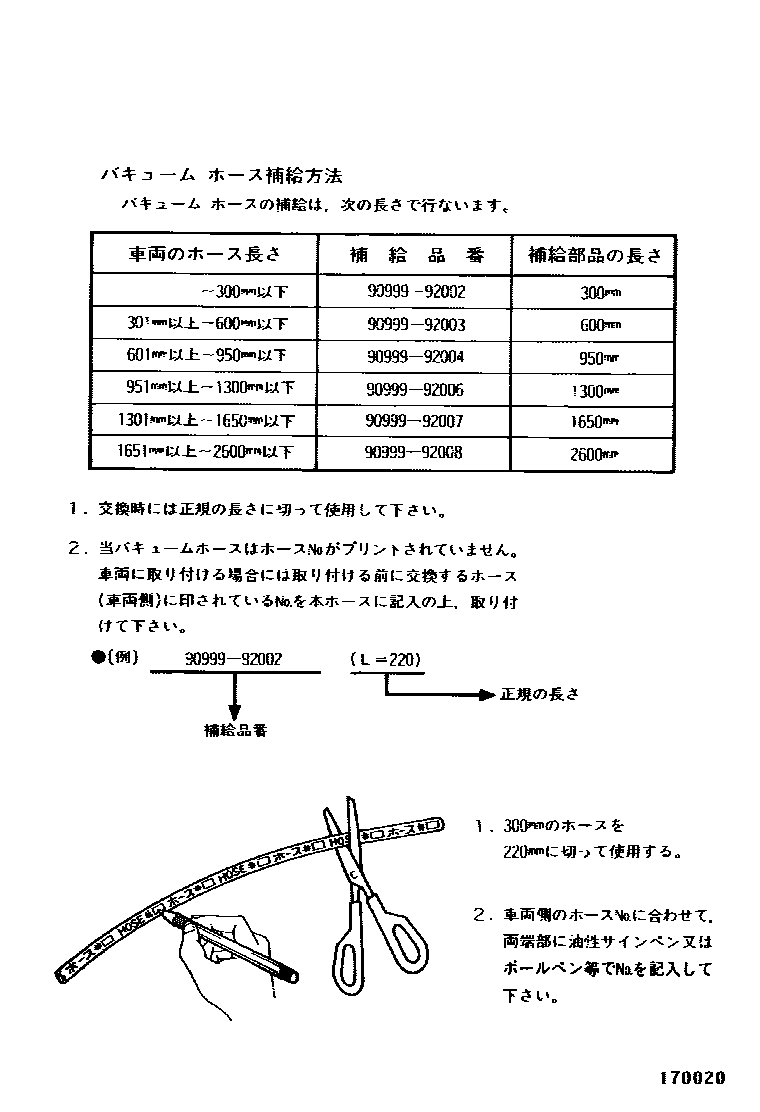

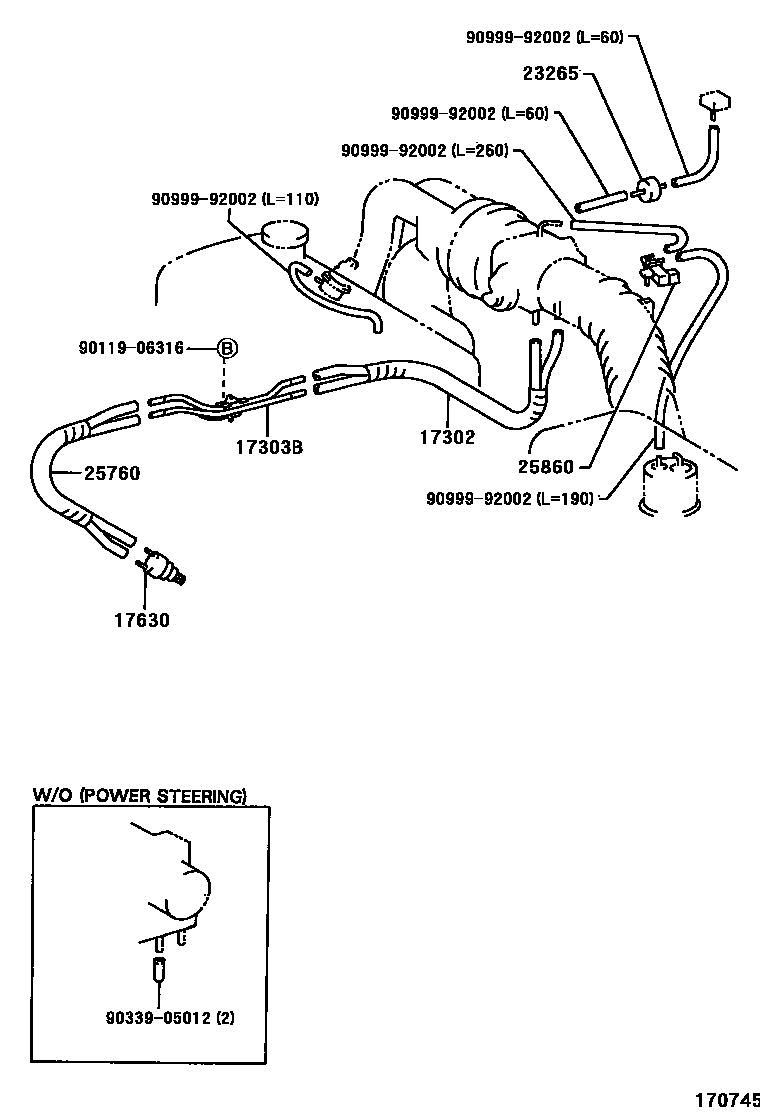

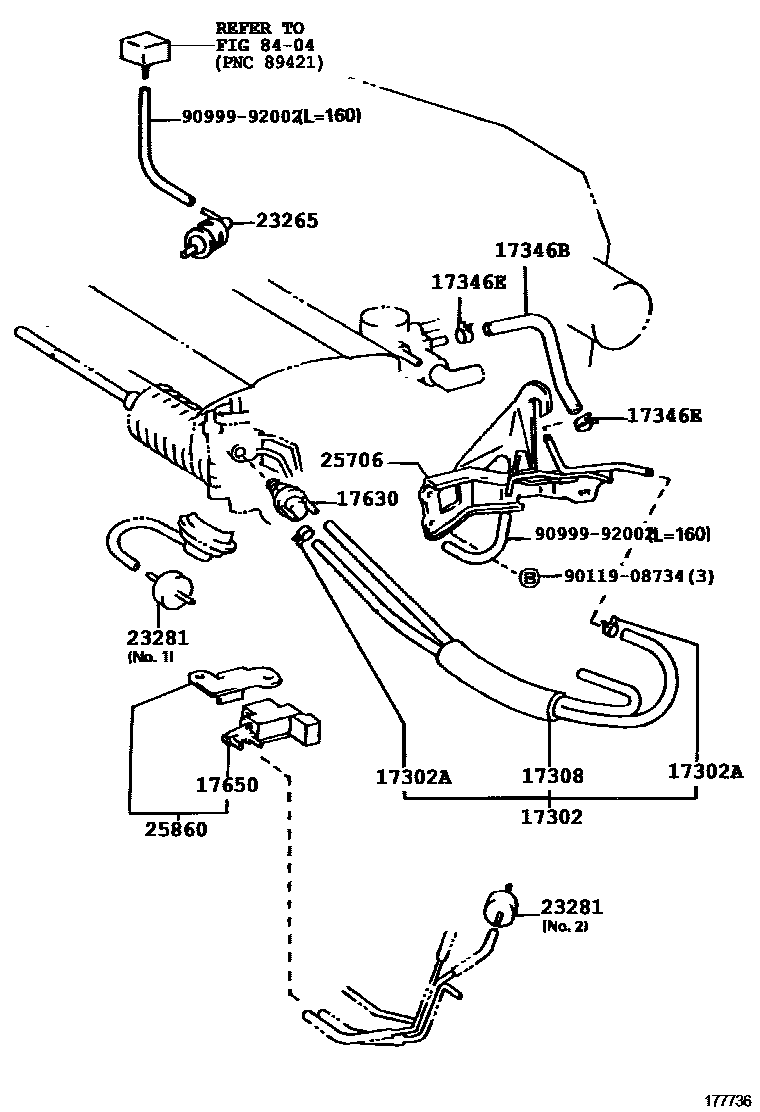

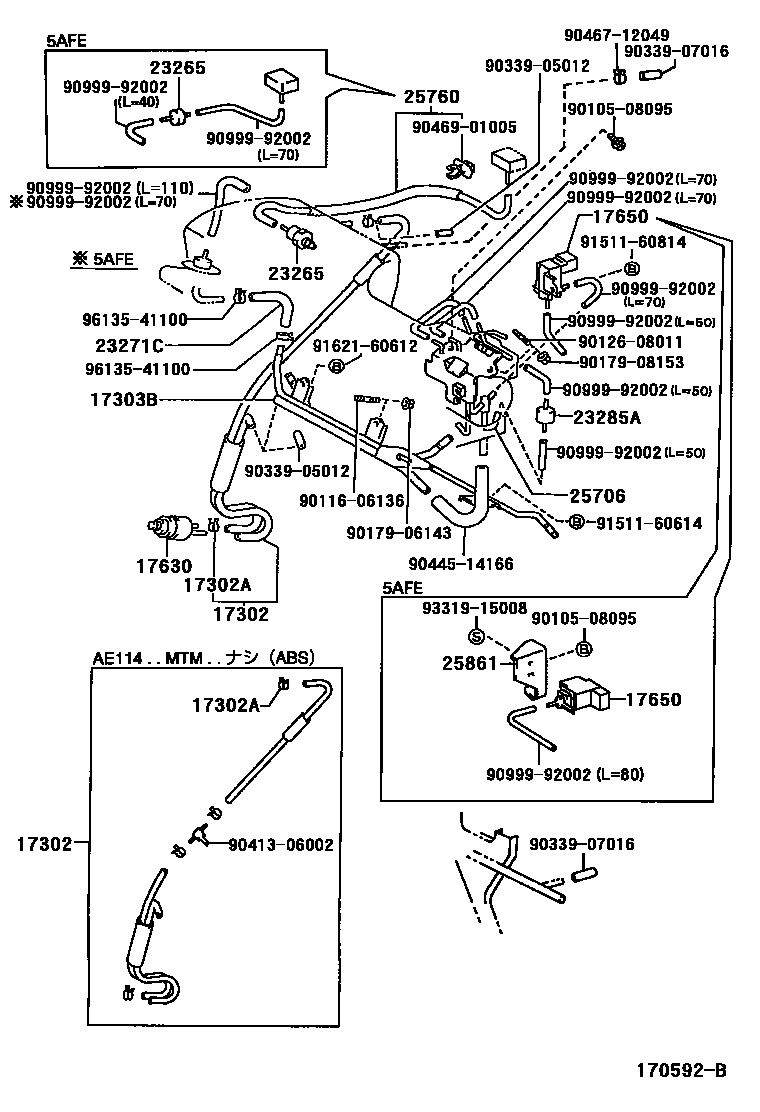

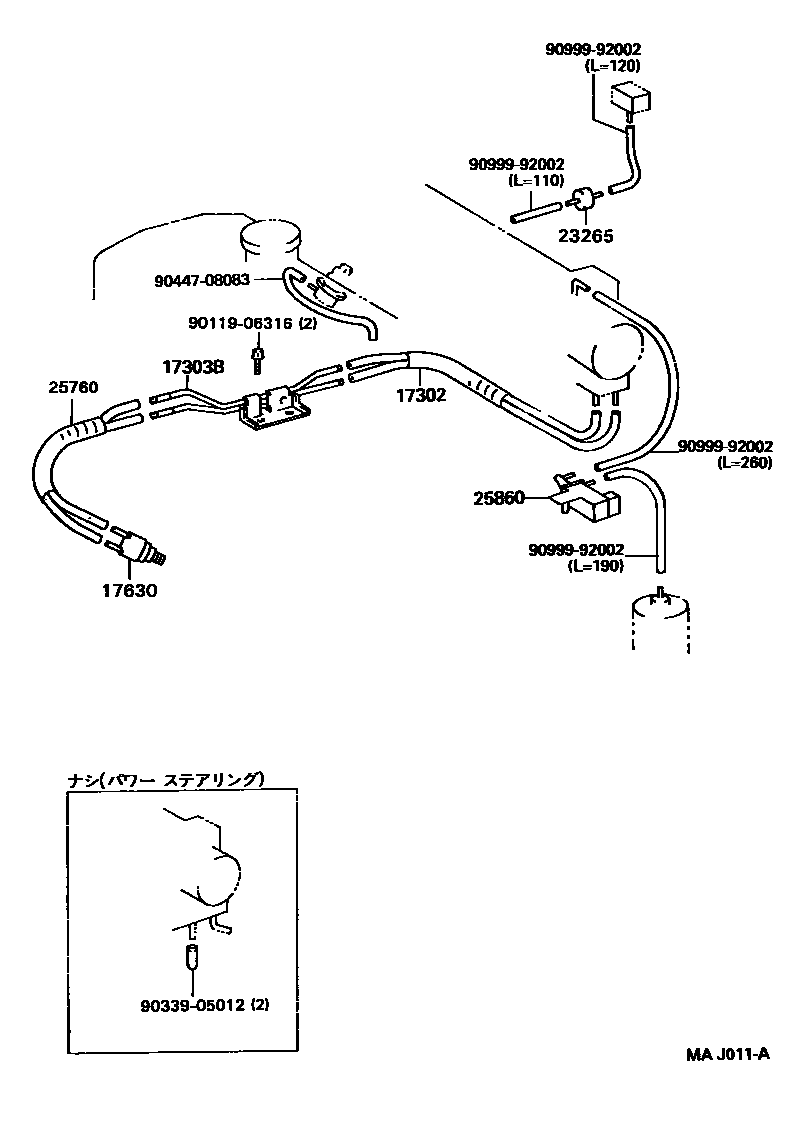

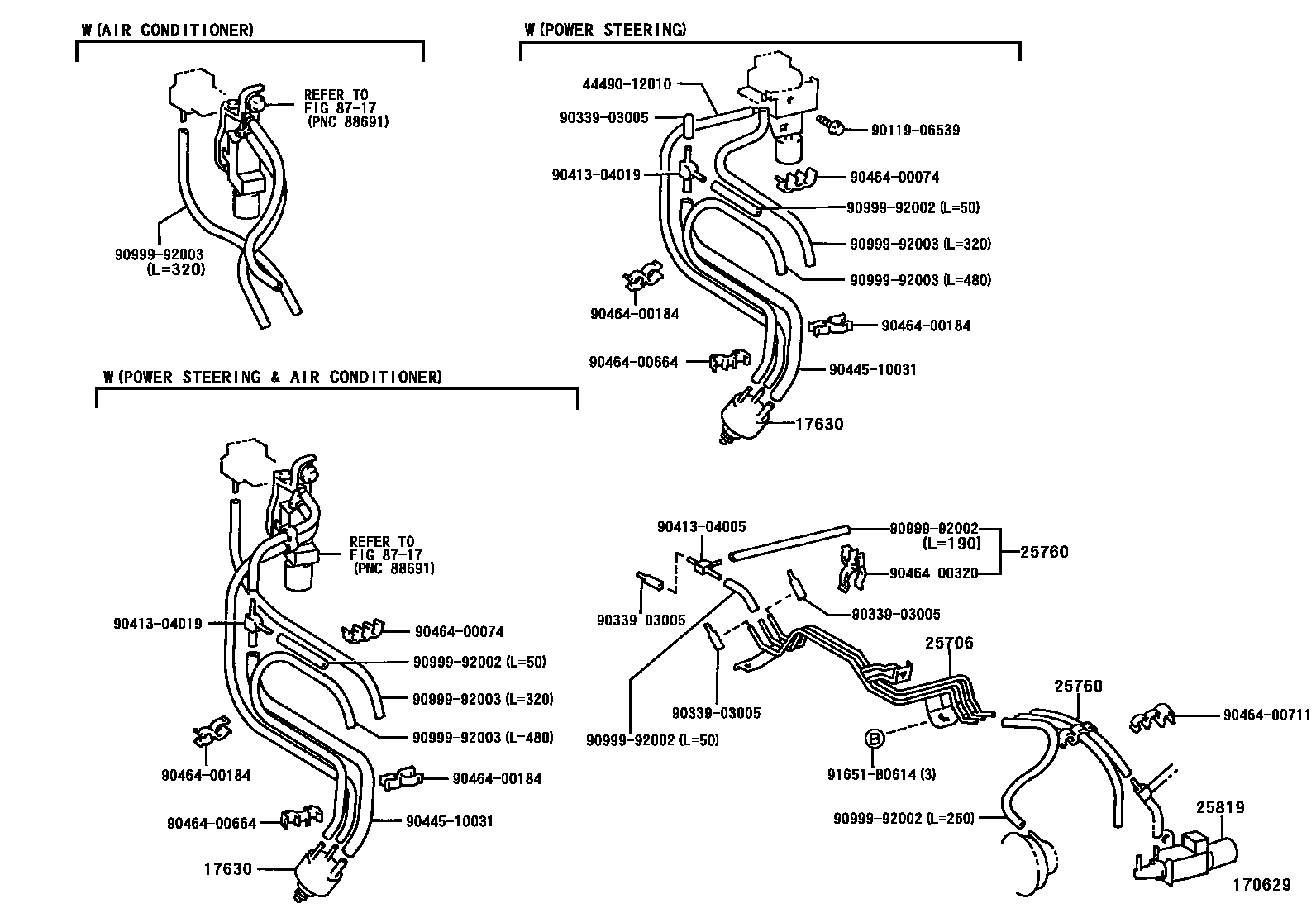

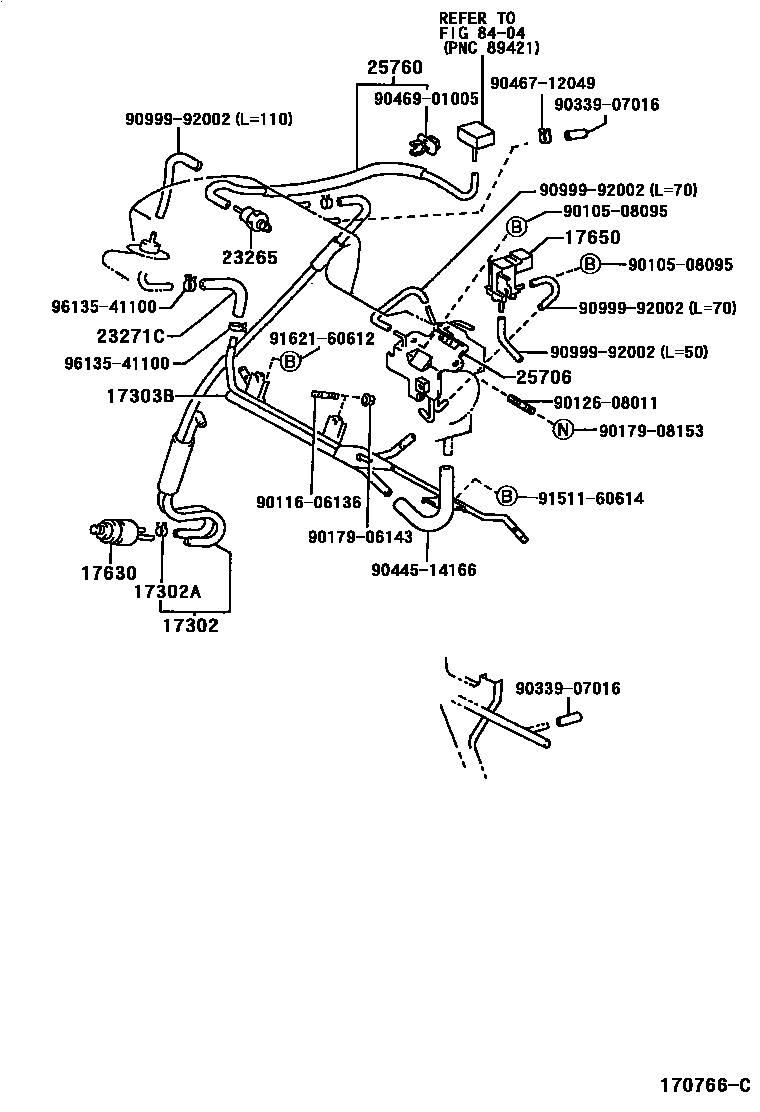

Toyota COROLLA EPC diagram 1708, vacuum tube, with 8 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17302 | Air hose sub-assembly | 17302-11050 · 17302-11100 · 17302-15010 · 17302-16040 · 17302-16050 |
| 17302A | Hose clip | 96132-51000 |
| 17303B | No. 1 air pipe sub-assembly | 17303-11700 · 17303-11880 · 17303-15060 · 17303-15070 · 17303-15090 |
| 17308 | Vacuum hose sub-assembly (for idle boost) | 17308-16040 |
| 17346B | No. 6 air hose | 17346-16020 |
| 17346E | Clamp (for No. 6 air hose) | 90467-10099 · 96132-41000 |
| 17630 | Air control valve assembly | 17630-11060 · 17630-15080 · 17630-16040 · 17630-64010 |
| 17650 | Vacuum switch valve assembly | 90910-12110 · 90910-12119 · 90910-12143 · 90910-12169 · 90910-12218 |
| 23265 | No. 1 gas filter | 90917-11009 · 90917-11022 · 90917-11030 |
| 23271C | fuel hose | 90910-05214 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01091 · 90925-01095 |
| 23285A | No. 1 one-way valve | 90917-10080 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-15230 · 25706-16420 · 25706-16430 · 25706-64070 |
| 25760 | Vacuum transfer hose assembly | 25760-11260 · 25760-15020 · 25760-64060 · 25760-64120 · 25760-64250 |
| 25760A | Vacuum transfer hose assembly | 25760-64280 |
| 25819 | Vacuum regulating valve assembly | 25819-64030 · 25819-64150 · 90910-12089 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-11320 · 25860-16141 · 25860-16142 |
| 25861 | Vacuum switch valve bracket | 25861-15020 |
