Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 10 images and 37 PNC and OE references.

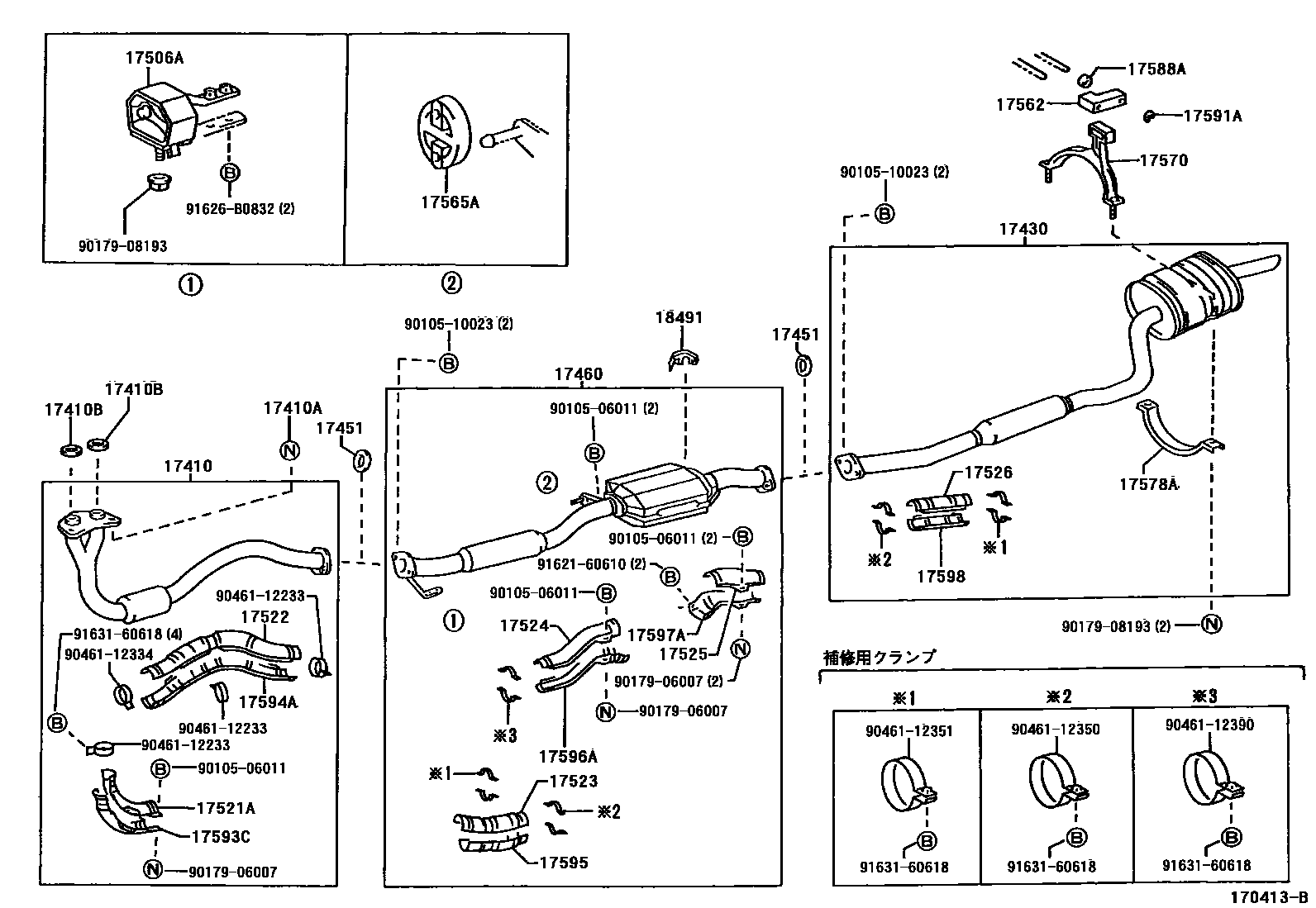

Toyota COROLLA Exhaust Pipe EPC diagram — 170413B
Exhaust Pipe — 170413B (199505 – 199704)

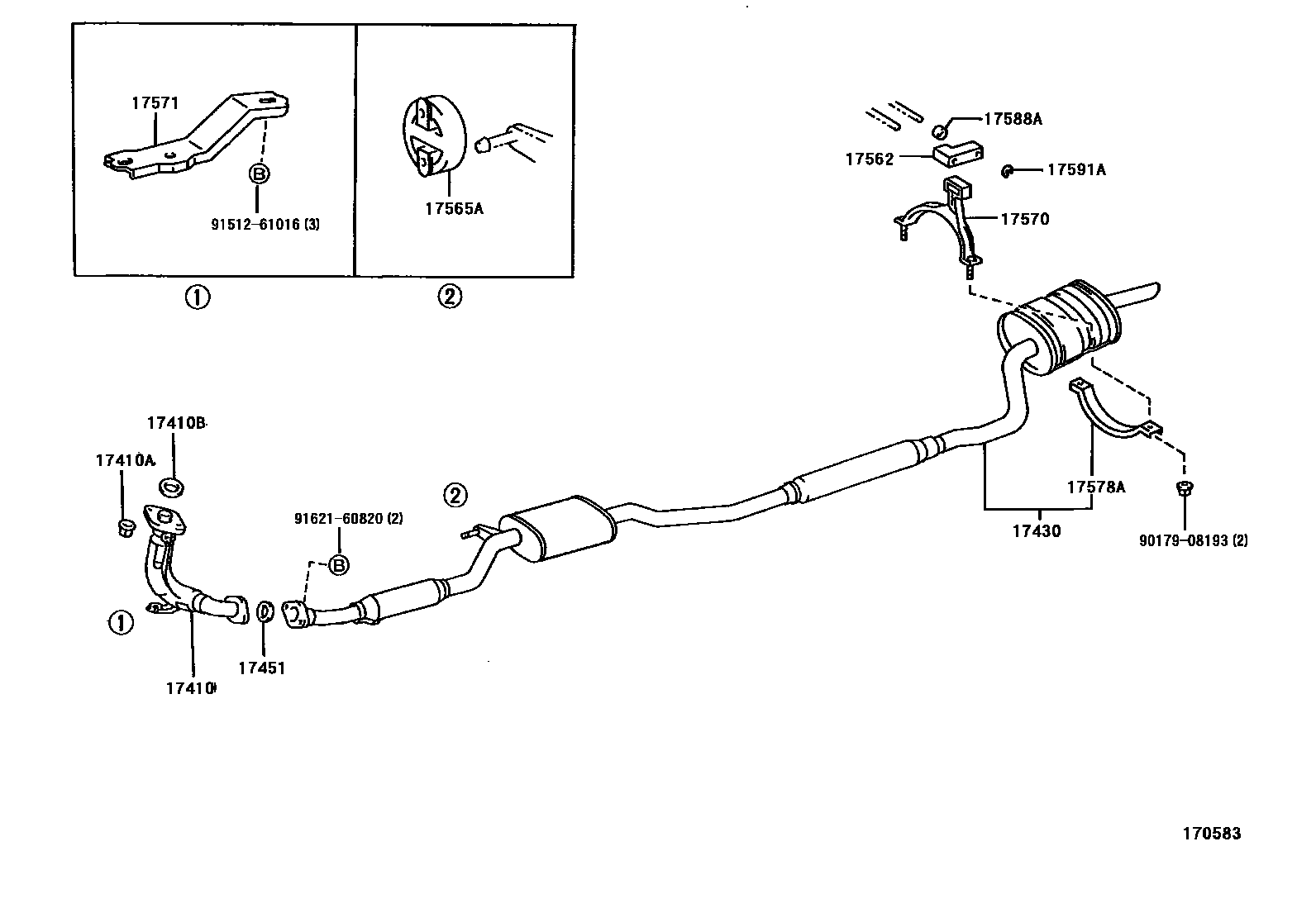

Toyota COROLLA Exhaust Pipe EPC diagram — 170583
Exhaust Pipe — 170583 (199505 – 199804)

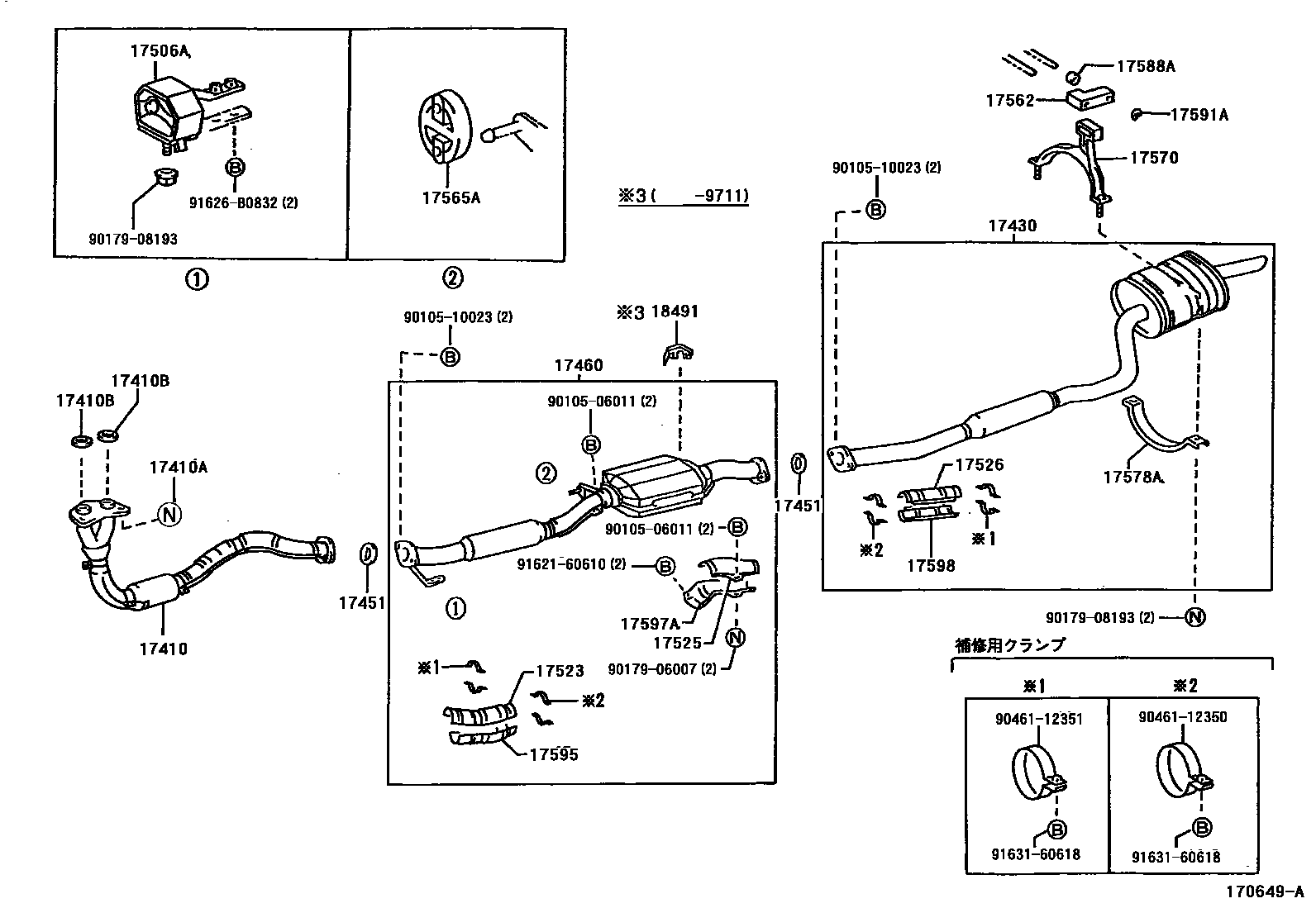

Toyota COROLLA Exhaust Pipe EPC diagram — 170649A
Exhaust Pipe — 170649A (199704 – 999999)

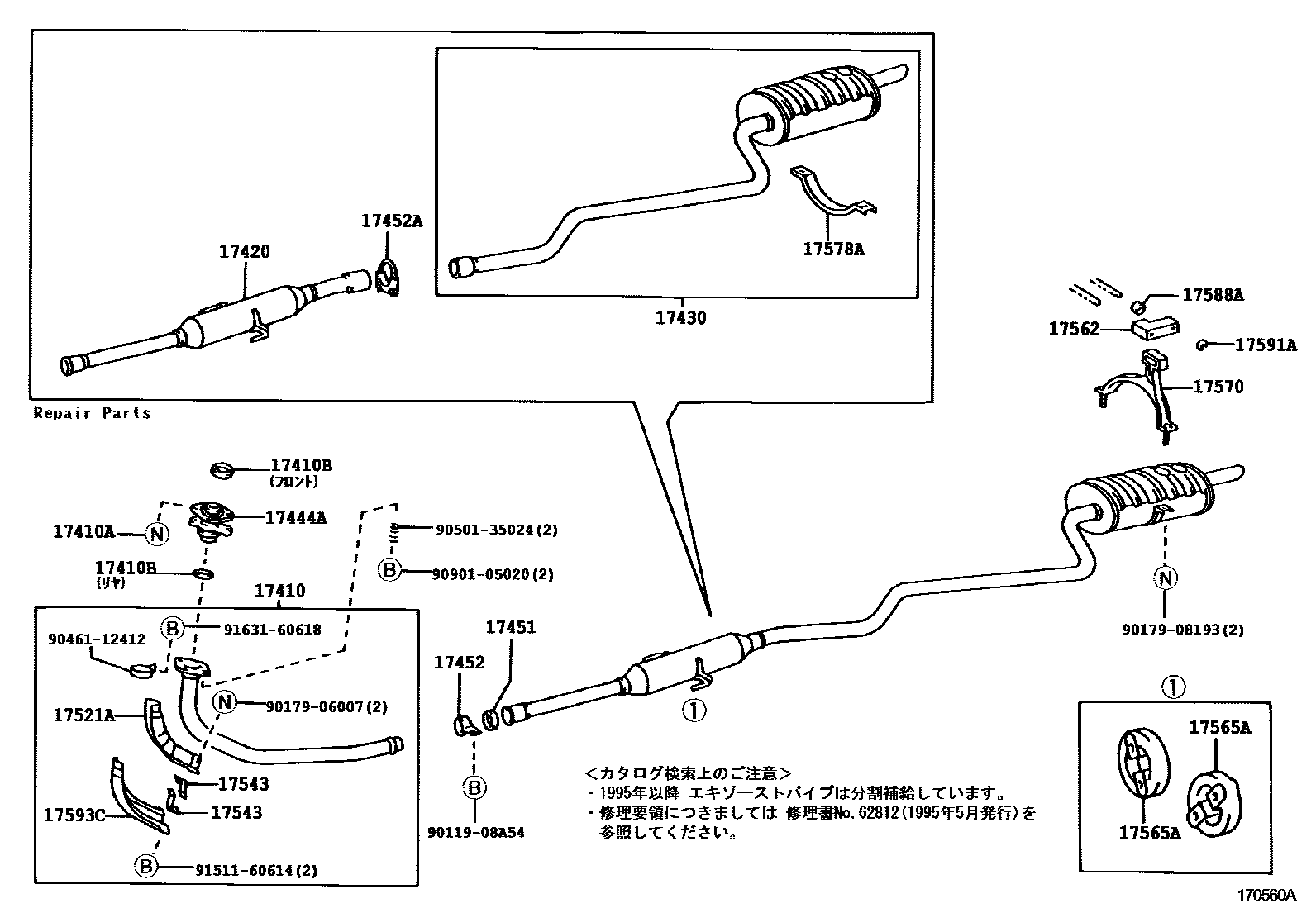

Toyota COROLLA Exhaust Pipe EPC diagram — 170650A
Exhaust Pipe — 170650A (199704 – 199804)

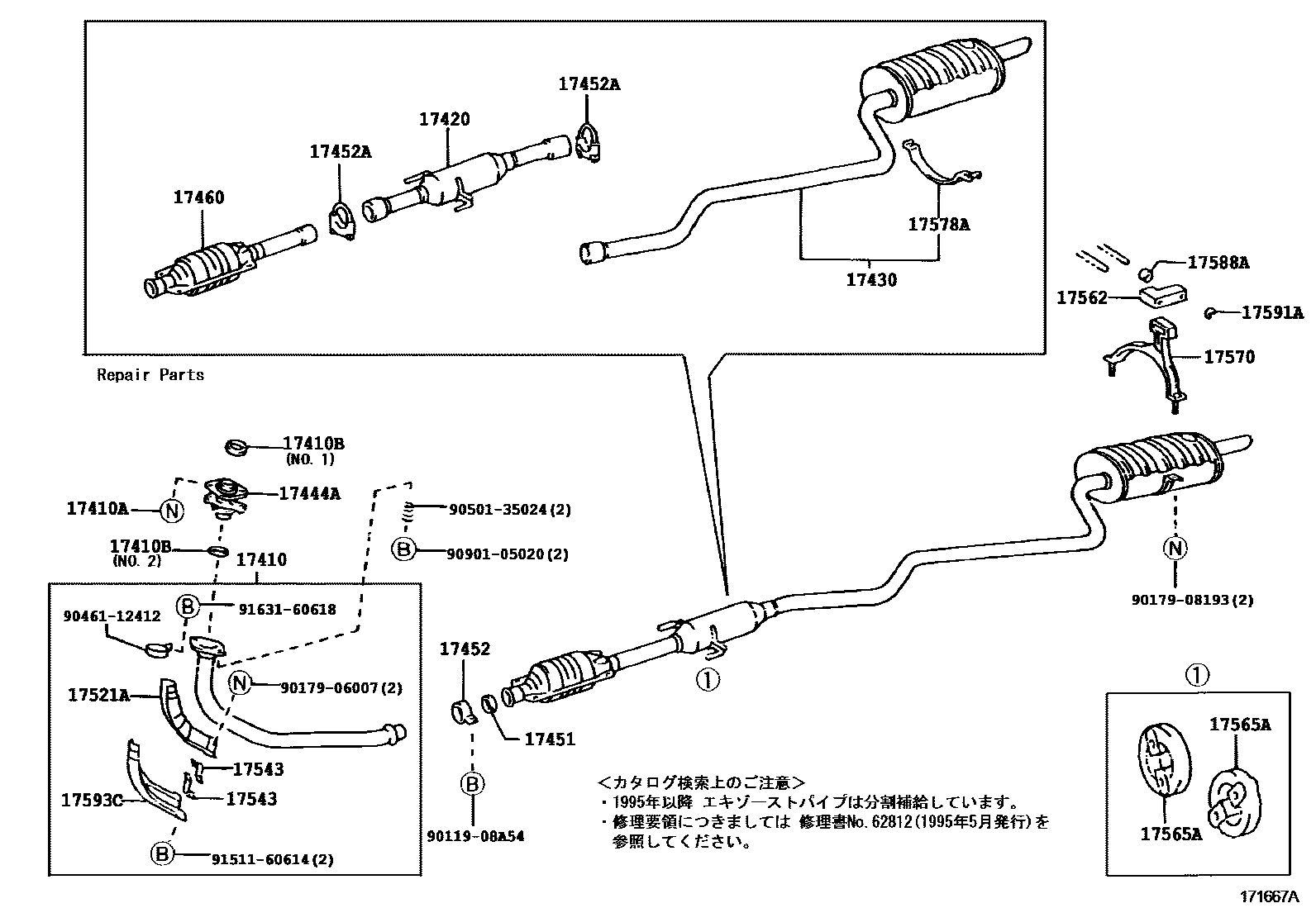

Toyota COROLLA Exhaust Pipe EPC diagram — 171667A
Exhaust Pipe — 171667A (199804 – 999999)

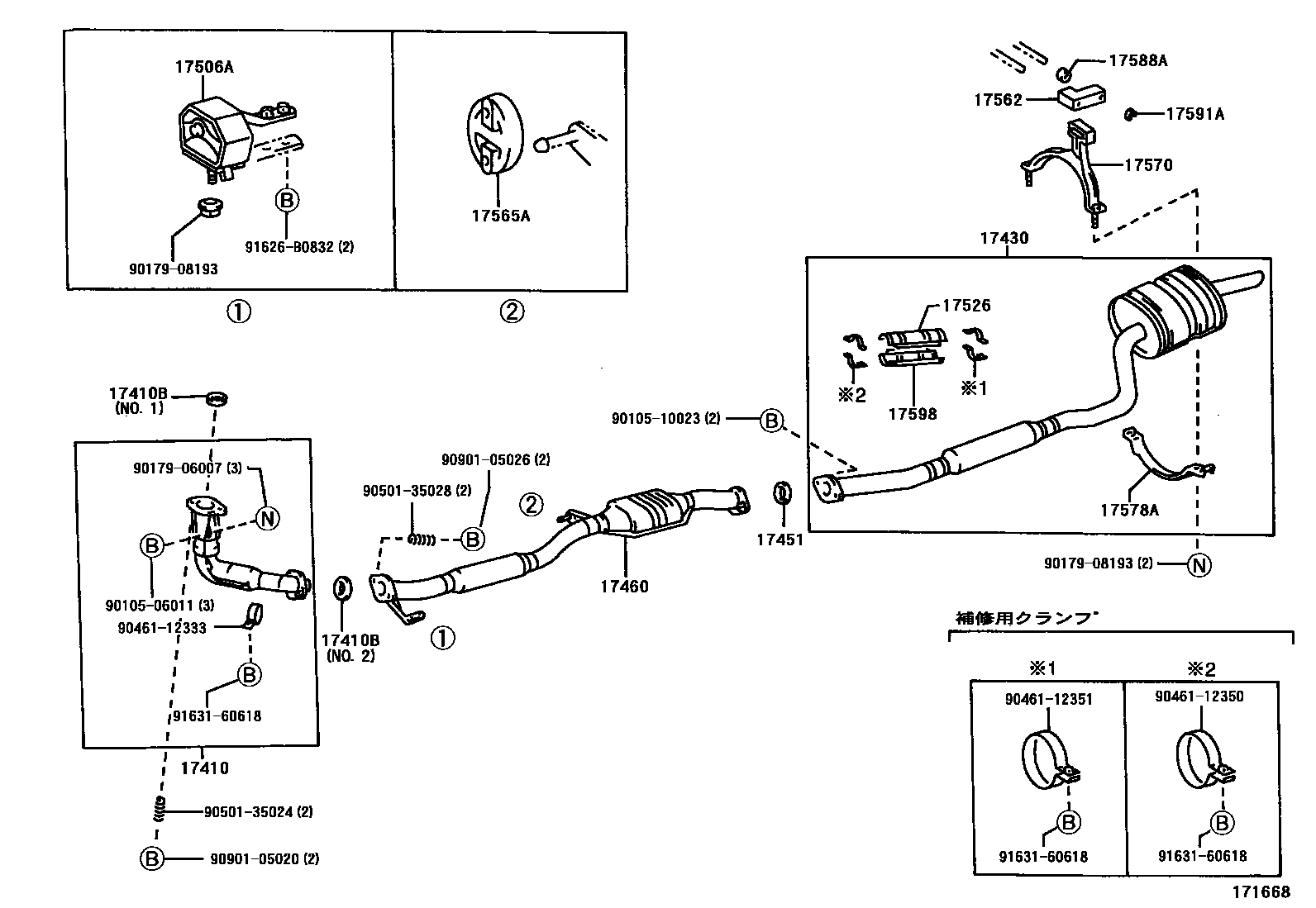

Toyota COROLLA Exhaust Pipe EPC diagram — 171668
Exhaust Pipe — 171668 (199804 – 999999)

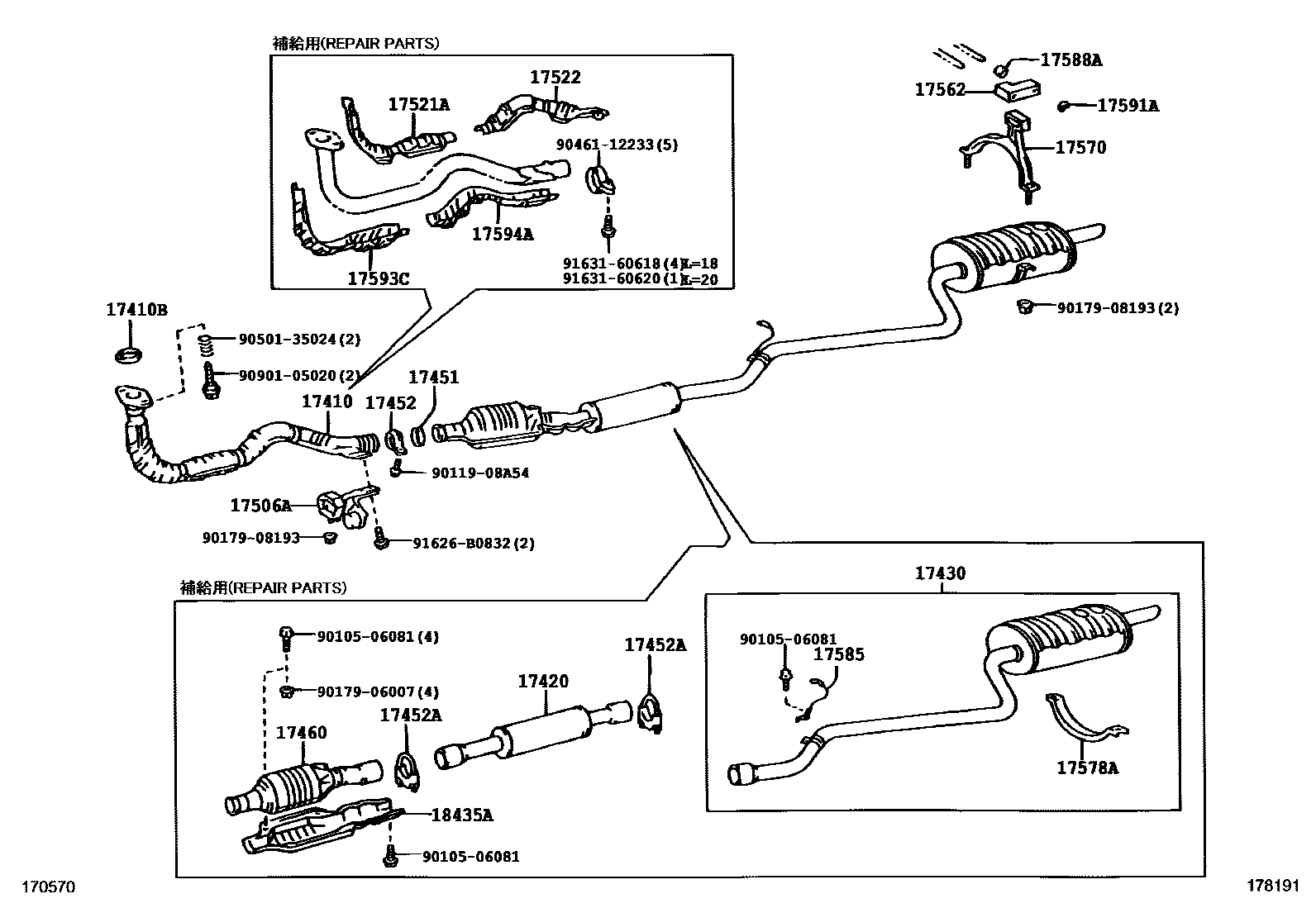

Toyota COROLLA Exhaust Pipe EPC diagram — 178191A
Exhaust Pipe — 178191A (199505 – 999999)

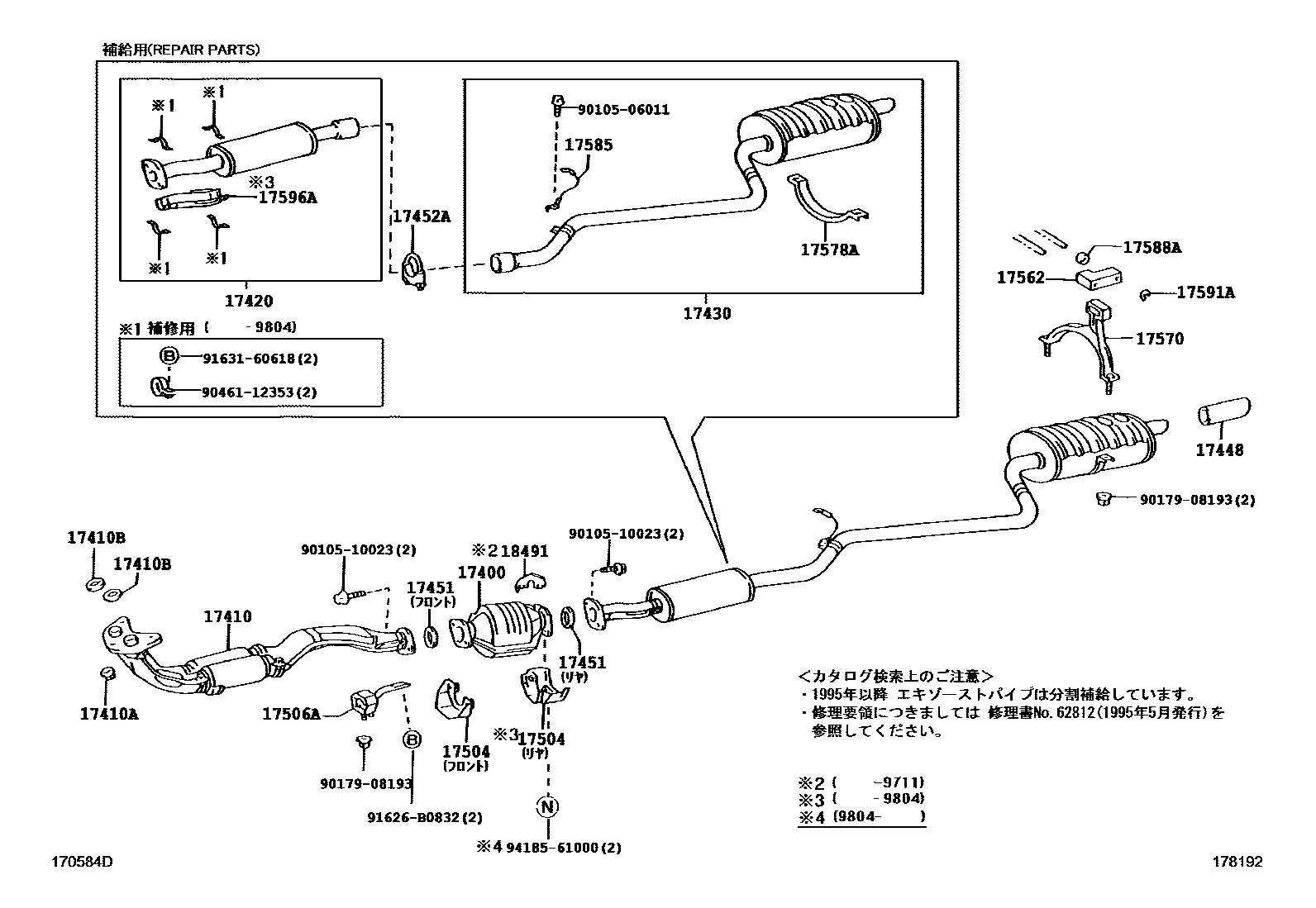

Toyota COROLLA Exhaust Pipe EPC diagram — 178192
Exhaust Pipe — 178192 (199704 – 999999)

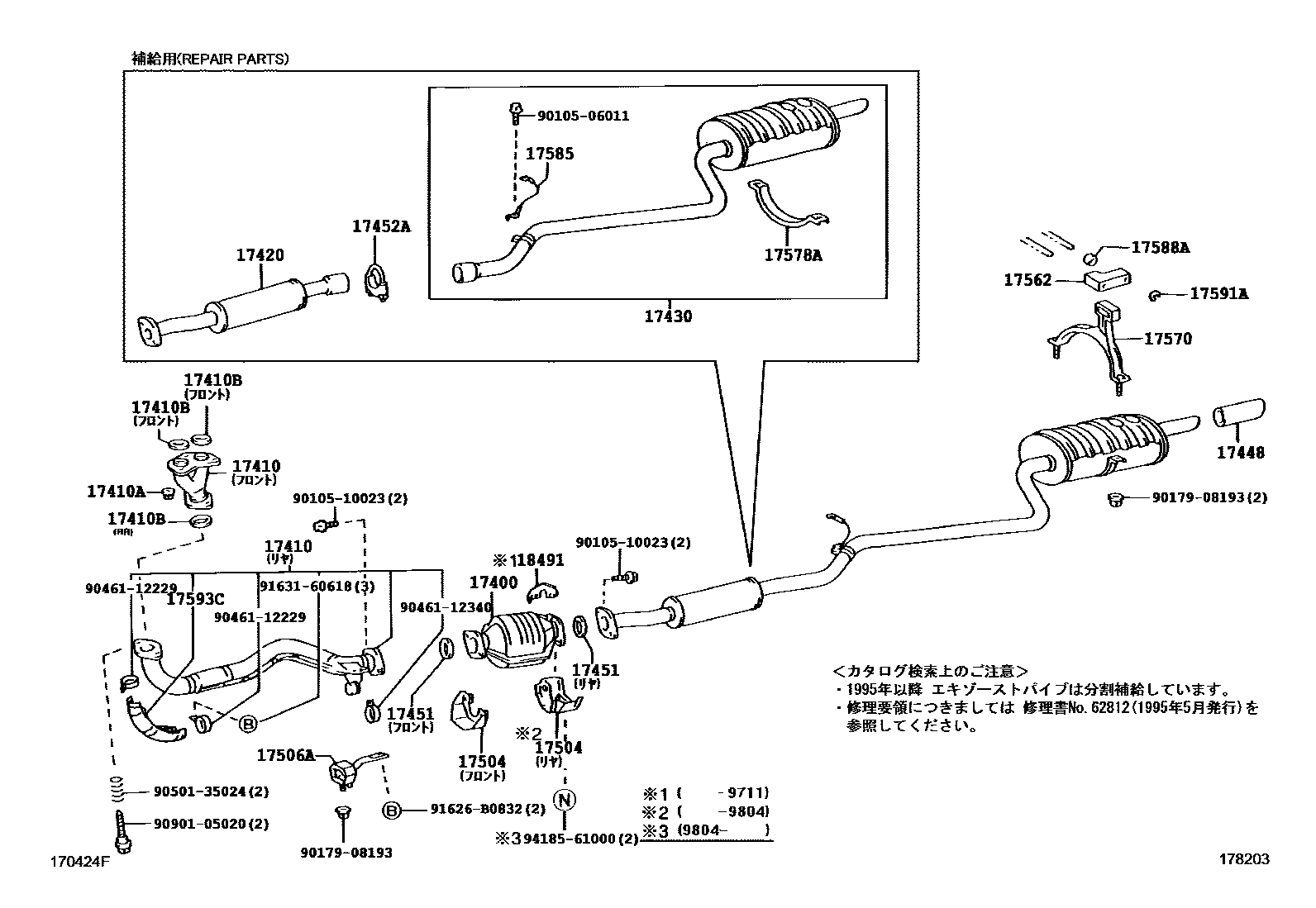

Toyota COROLLA Exhaust Pipe EPC diagram — 178203
Exhaust Pipe — 178203 (199505 – 199704)

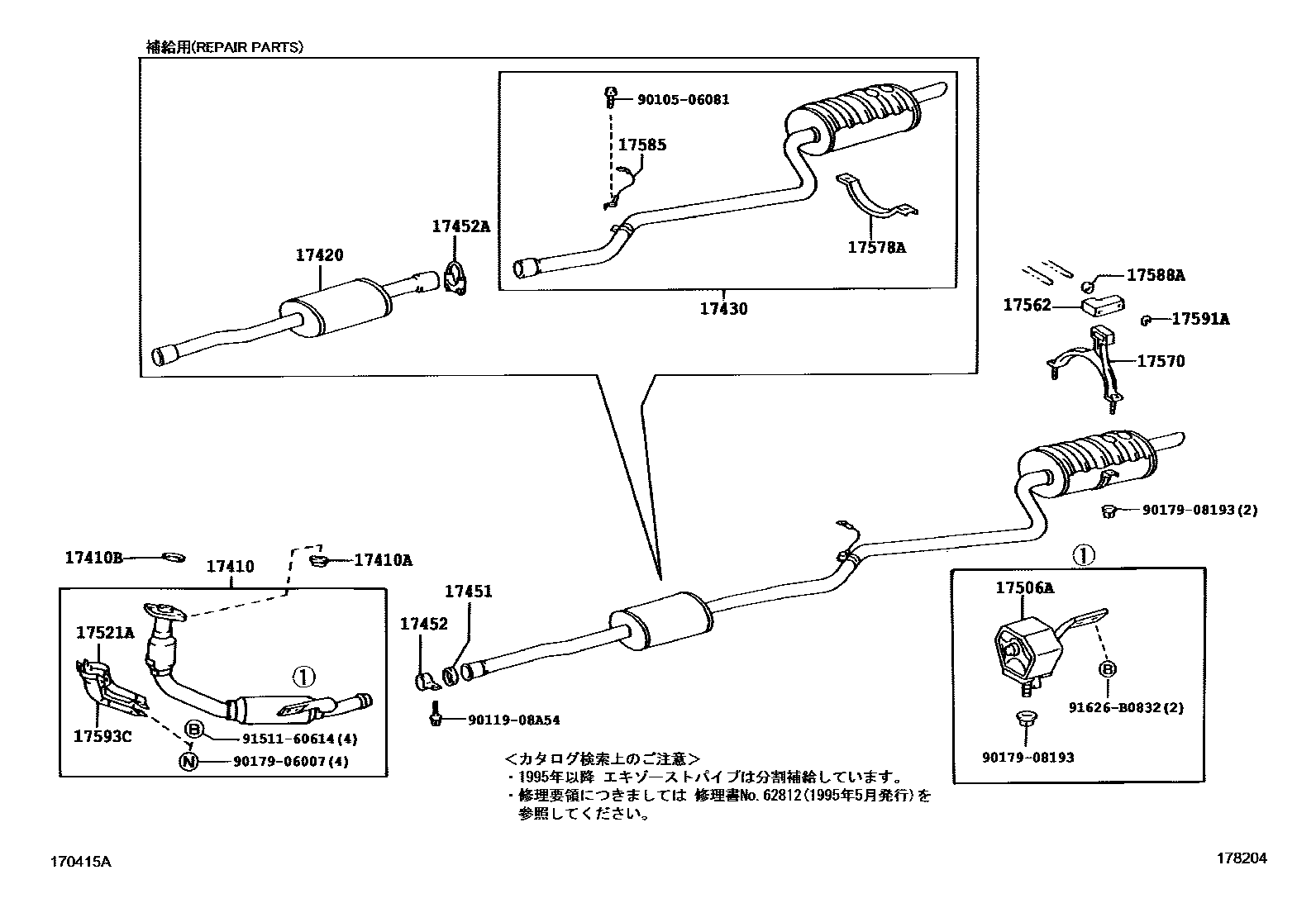

Toyota COROLLA Exhaust Pipe EPC diagram — 178204
Exhaust Pipe — 178204 (199505 – 199704)

PNC and OE references

PNCPart nameOE numbers
17400Three-way catalytic converter assembly with catalyst18450-16650 · 18450-16700 · 18450-1A020
17410Front exhaust pipe assembly17410-11790 · 17410-11860 · 17410-1A220 · 17410-1A230 · 17410-1A240 · 17410-1A330 · 17410-1A520 · 17410-64691 · 17410-64700 · 17410-64780 · 17410-64830 · 17410-64840
17410AExhaust pipe fixing studs and nuts90179-10070
17410BExhaust pipe gasket17451-16030 · 17451-64030 · 90917-06061 · 90917-06064 · 90917-06077 · 90917-06080
17420Central exhaust pipe assembly17420-15160 · 17420-16640 · 17420-16650 · 17420-16651 · 17420-64270 · 17420-64290 · 17420-64330
17430Exhaust tailpipe assembly17430-15590 · 17430-15620 · 17430-15621 · 17430-1A530 · 17430-1A531 · 17430-1A580 · 17430-1A780 · 17430-1A781 · 17430-6A110 · 17430-6A120 · 17430-6A230 · 17430-6A330 · 17430-6A331 · 17430-6A360 · 17430-6A361
17444Afront exhaust pipe spacer17444-64030
17448Exhaust pipe tail throat17408-16020 · 17448-43010
17451Exhaust pipe gasket90917-06039 · 90917-06043 · 90917-06054 · 90917-06057 · 90917-06082
17452Exhaust pipe clamp17452-16110 · 90461-15013
17452AExhaust pipe clamp17452-15020 · 17452-16120 · 17452-16140
17460Three-way catalytic converter assembly with tube17460-15040 · 17460-15060 · 17460-16100 · 17460-16160 · 17460-16210 · 17460-64010 · 17460-64020
17504Three-way catalytic converter bracket sub-assembly17504-16030 · 17504-16040
17506ANo. 1 exhaust pipe bracket sub-assembly17506-11100 · 17506-15080 · 17506-16110 · 17506-16120 · 17506-16150
17521ANo. 1 upper exhaust pipe protection device17521-11180 · 17521-16350 · 17521-64120 · 17521-64170
17522No. 2 upper exhaust pipe protection device17522-11120 · 17522-16260
17523No. 3 upper exhaust pipe protection device17523-16210 · 17523-16220
17524No. 4 upper exhaust pipe protection device17524-16050
17525No. 5 upper exhaust pipe protection device17525-16020
17526No. 6 upper exhaust pipe protection device17526-16050
17543No. 3 exhaust pipe protection device stay17543-26010
17562No. 2 exhaust pipe lifting lug17562-16240
17565ANo. 4 exhaust pipe lifting lug17565-11160
17570Exhaust pipe bracket assembly17570-16010 · 17570-16020
17571No. 1 exhaust pipe bracket17571-64170
17578Amuffler clip17578-11020 · 17578-11030 · 17578-16020 · 17578-16030 · 17578-16050 · 17578-64010
17585Exhaust pipe hanger17585-16060
17588AExhaust pipe hanger spacer17588-16020
17591AExhaust pipe bracket block17591-16020
17593CNo. 1 lower exhaust pipe protection device17593-11260 · 17593-16310 · 17593-16360 · 17593-64110 · 17593-64140
17594ANo. 2 lower exhaust pipe protection device17594-11300 · 17594-16320
17595No. 3 lower exhaust pipe protection device17595-16350 · 17595-16380
17596ANo. 4 lower exhaust pipe protection device17596-16150 · 17596-16160
17597ANo. 5 lower exhaust pipe protection device17597-16060
17598No. 6 lower exhaust pipe protection device17598-16040
18435AIntegrated three-way catalytic converter protection device18435-15060
18491Thermal sensor air inlet flange18491-16010 · 18491-16020
