Toyota COROLLA Manifold — Figure 1701

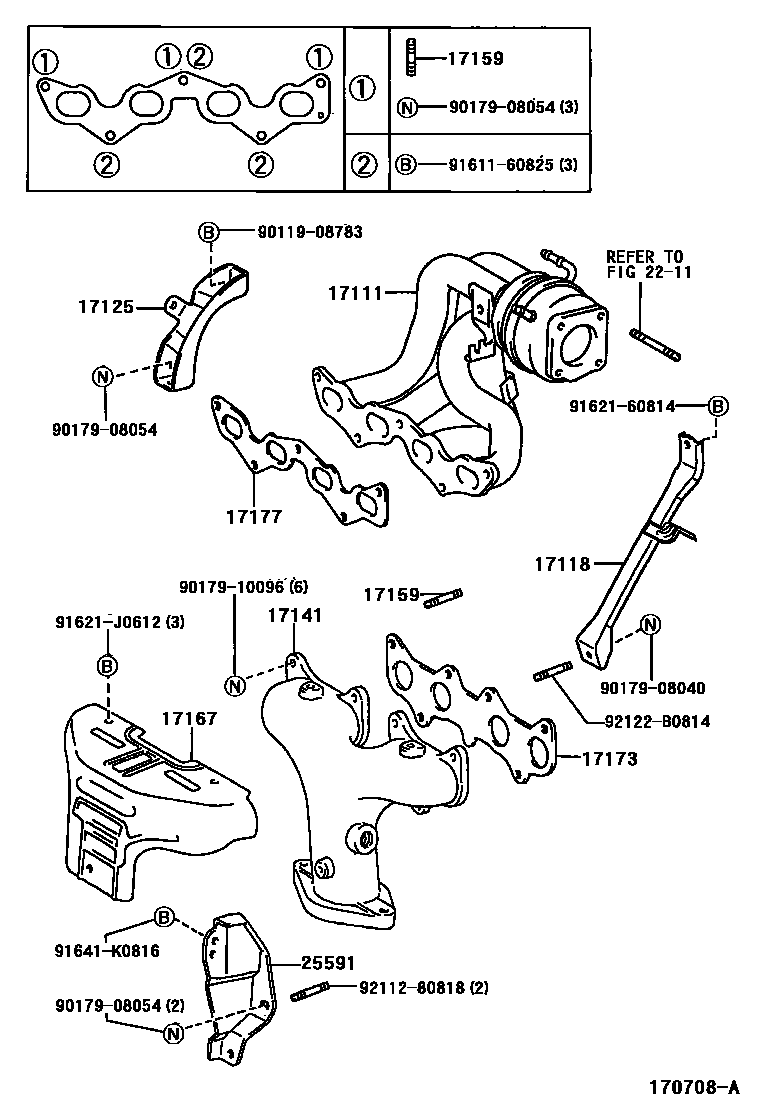

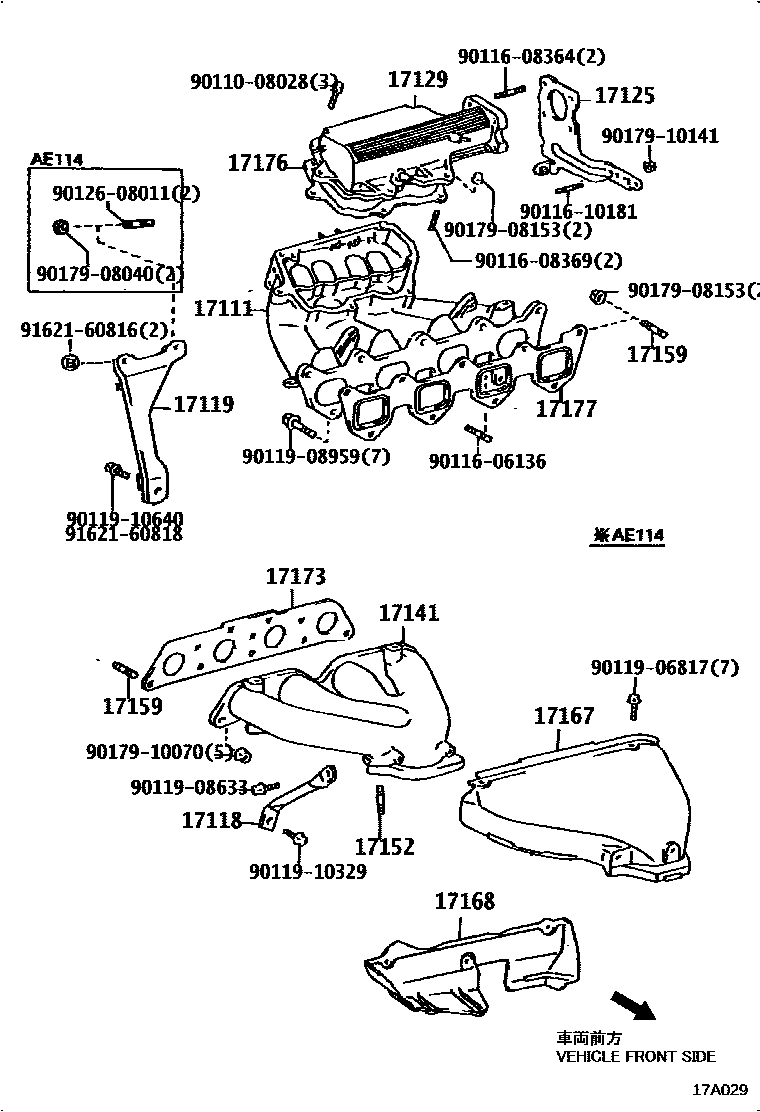

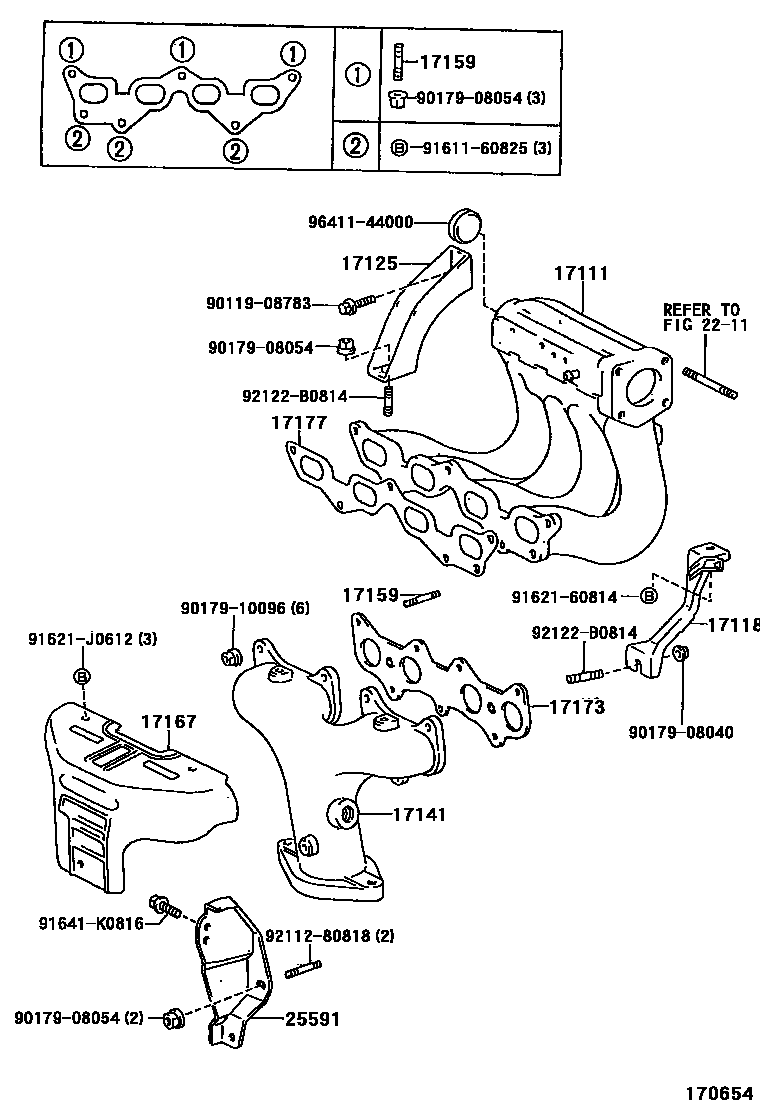

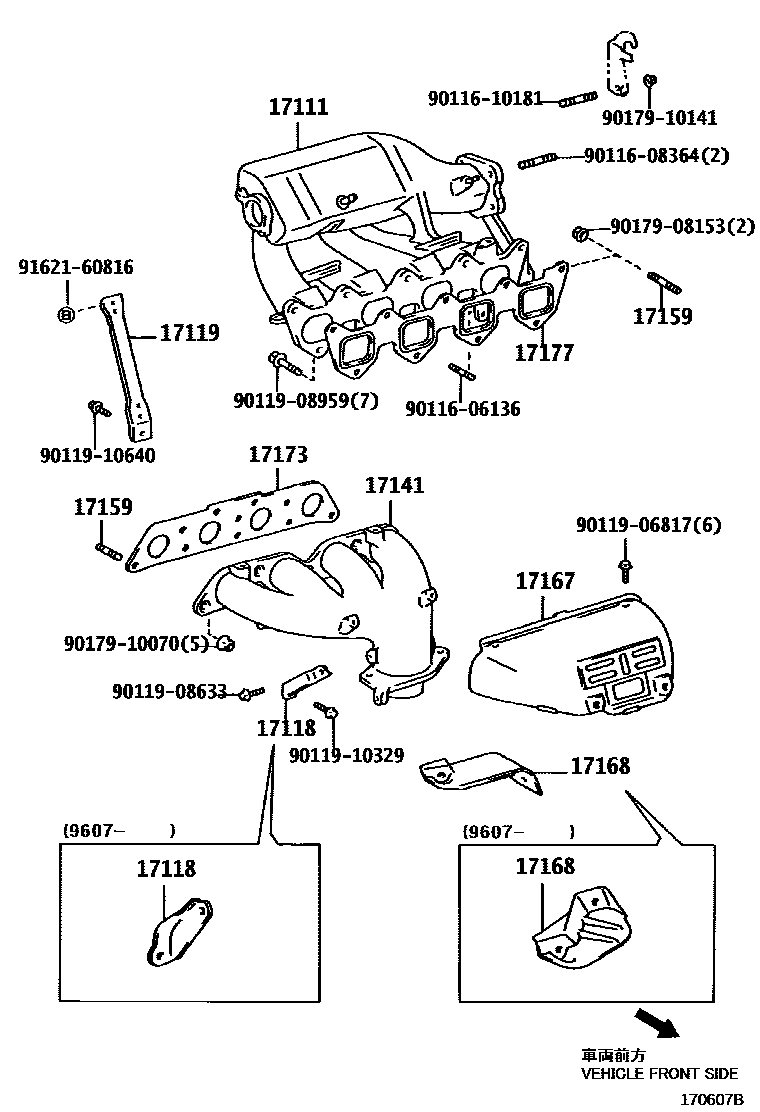

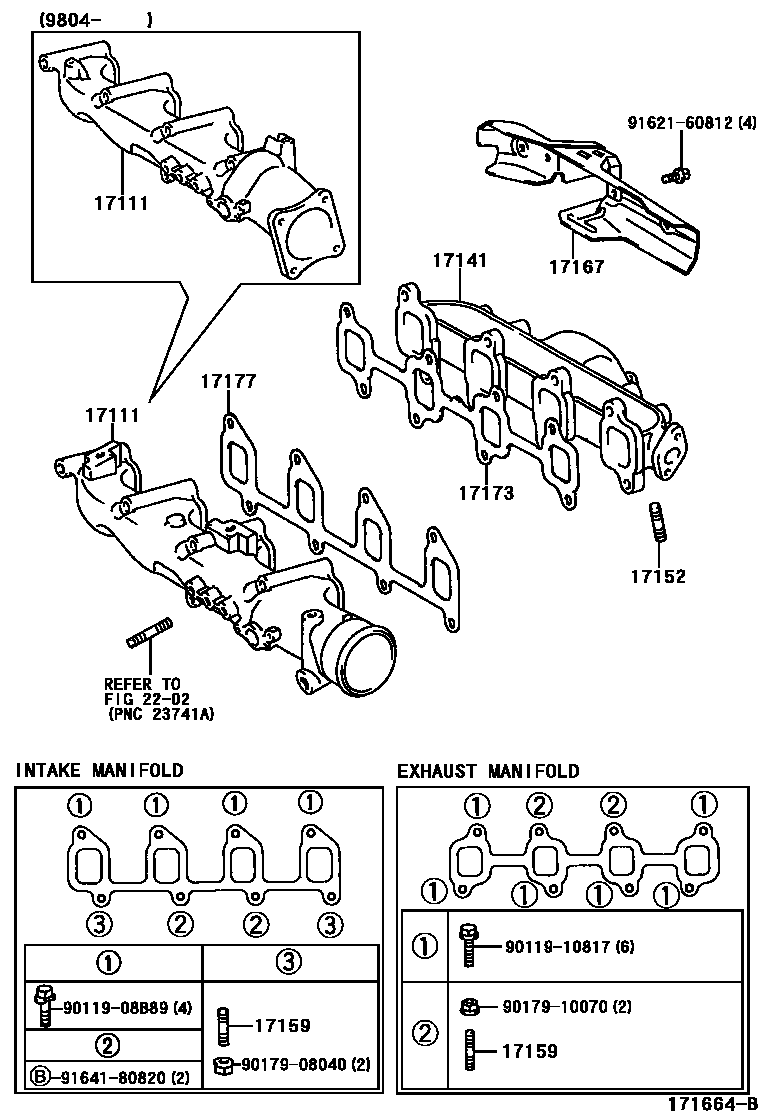

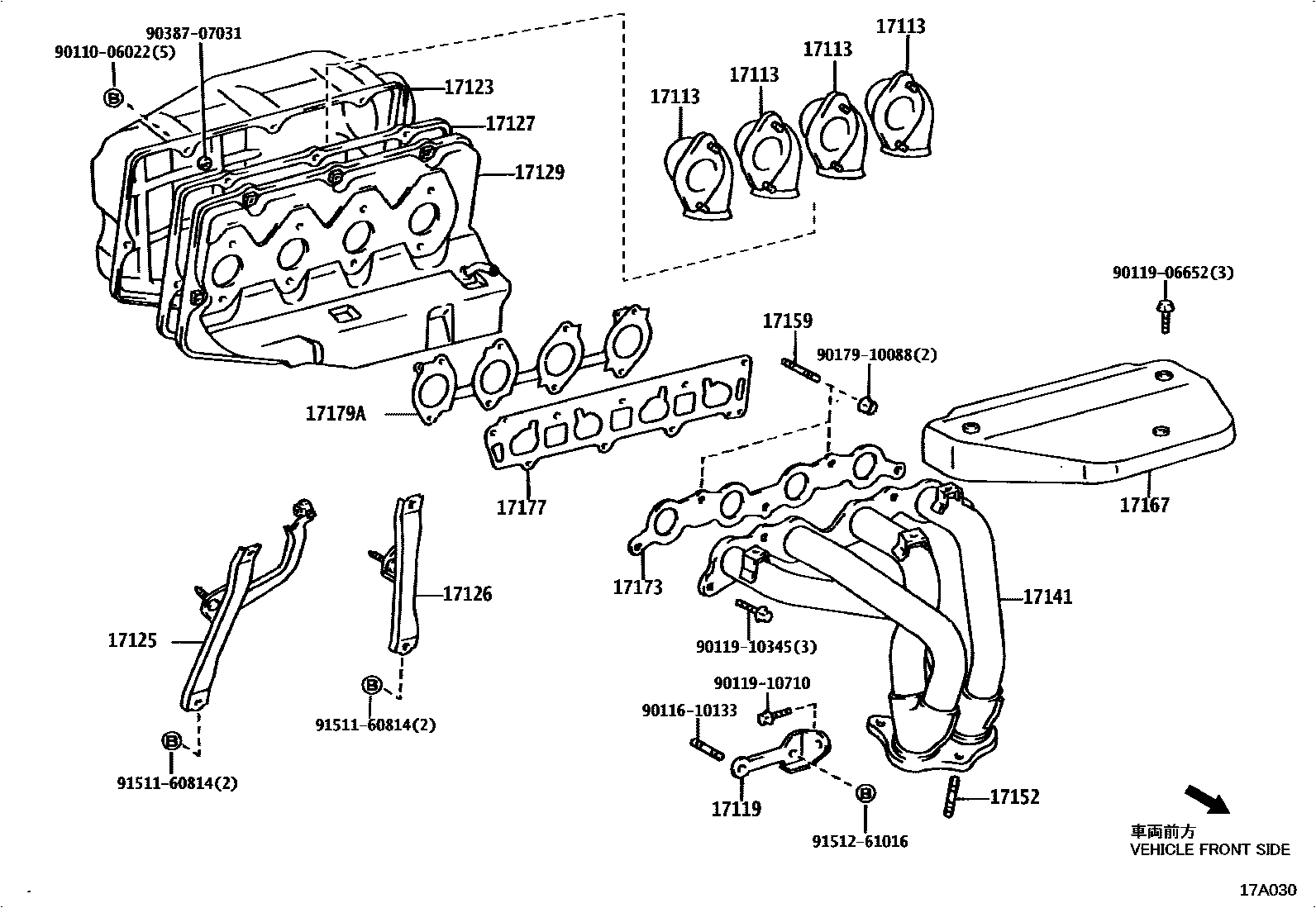

Toyota COROLLA EPC diagram 1701, Manifold, with 6 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17101-11321 · 17101-11370 · 17101-15070 · 17101-16190 · 17111-64180 · 17111-64290 |
| 17113 | intake pipe | 17113-16020 |
| 17118 | Manifold stays | 17118-11260 · 17118-11340 · 17118-15080 · 17118-15081 · 17118-16050 |
| 17119 | No. 2 manifold stay | 17012-15010 · 17012-16010 · 17118-16090 · 17139-15050 |
| 17123 | Pressure tank cover | 17123-16030 |
| 17125 | No. 1 pressure tank stay | 17125-11050 · 17125-11060 · 17125-16070 · 17125-16080 |
| 17126 | No. 2 pressure tank stay | 17126-16010 |
| 17127 | Pressure tank cover gasket | 17127-16020 |
| 17129 | Intake pressure tank | 17109-15010 · 17129-16030 |
| 17141 | exhaust manifold | 17141-11300 · 17141-15150 · 17141-15151 · 17141-16300 · 17141-16360 · 17141-64180 · 17141-64181 · 17141-64200 · 17141-64280 |
| 17152 | Studs (for manifold to exhaust) | 90116-10146 |
| 17159 | Studs (for manifold to cylinder head) | 90116-10037 · 90116-10095 · 90116-10196 · 90126-10017 · 92112-60825 · 92112-61028 · 92122-60820 · 92132-60825 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-11310 · 17167-15090 · 17167-16150 · 17167-16190 · 17167-64090 · 17167-64120 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-15030 · 17168-15031 · 17168-16100 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-11040 · 17173-15040 · 17173-16030 · 17173-64060 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-15010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-15030 · 17177-11070 · 17177-16030 · 17177-64020 |
| 17179A | No. 2 intake manifold gasket | 17179-16030 |
| 25591 | Manifold bracket | 25591-11080 |
