Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603

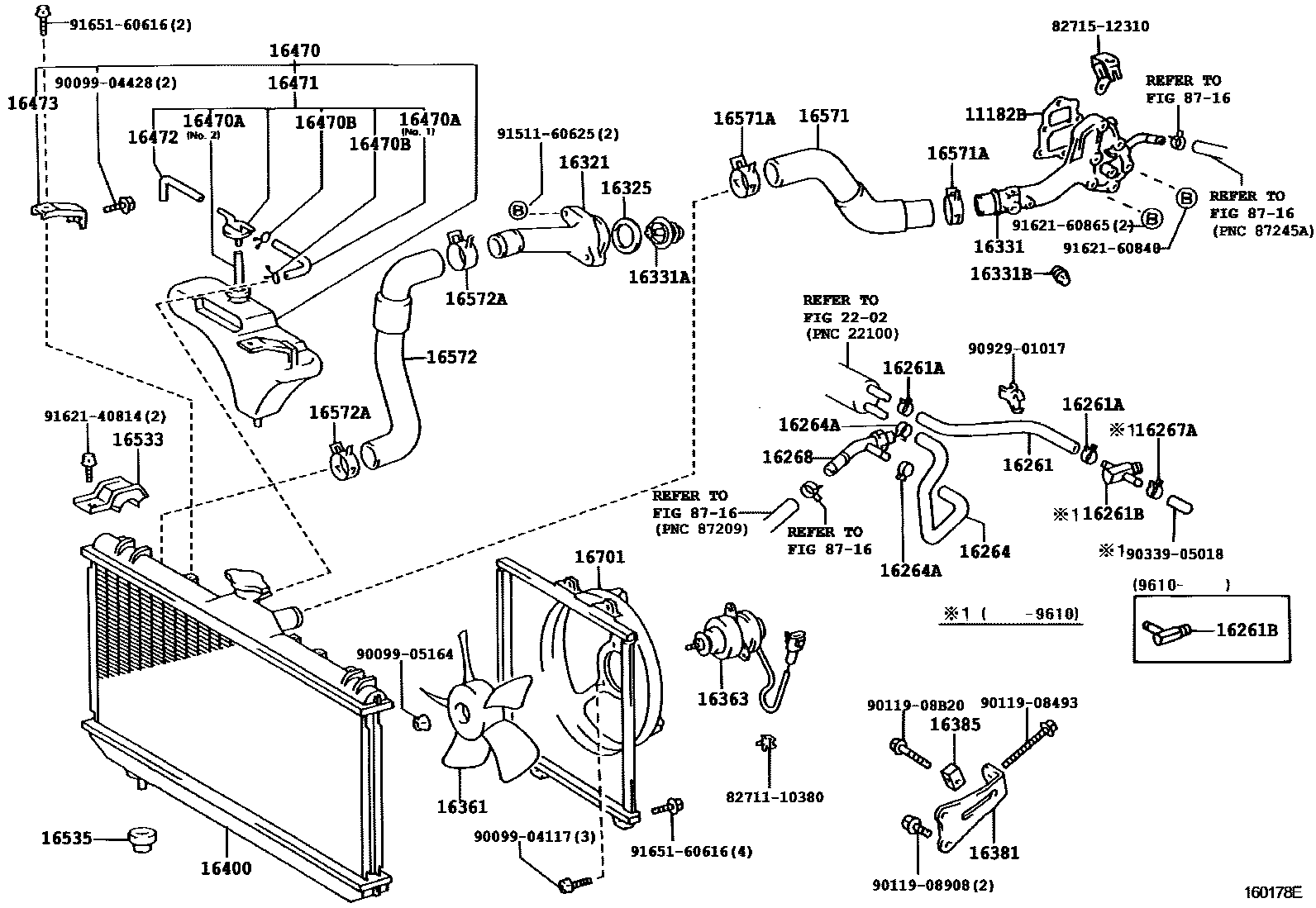

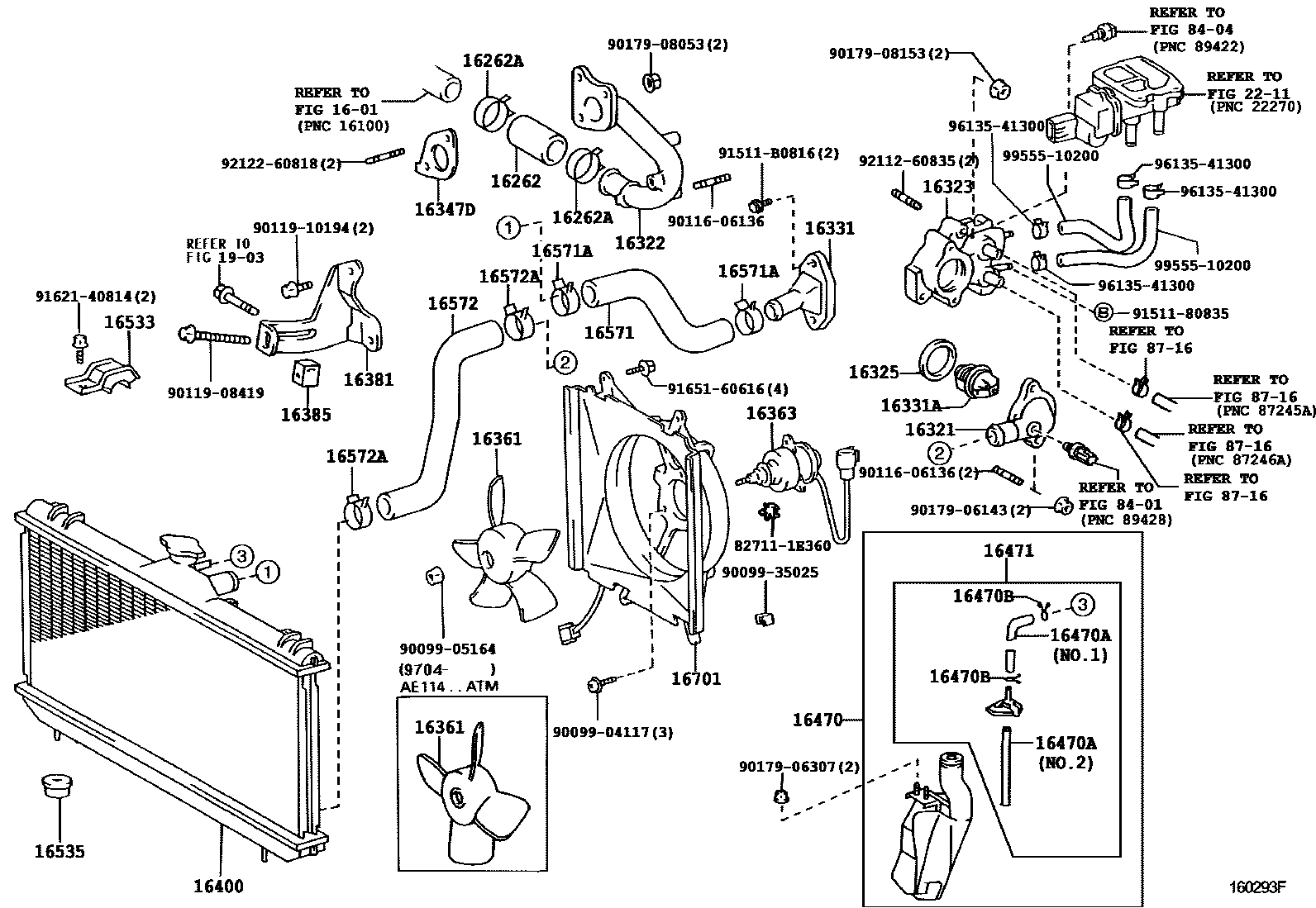

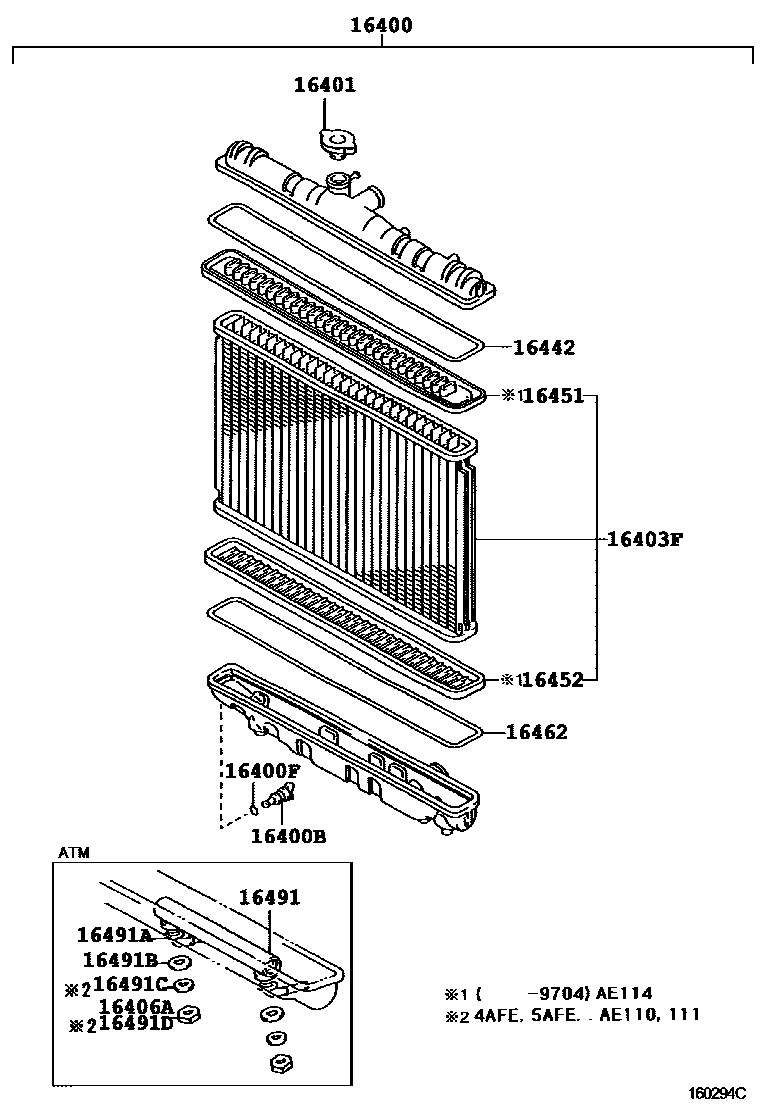

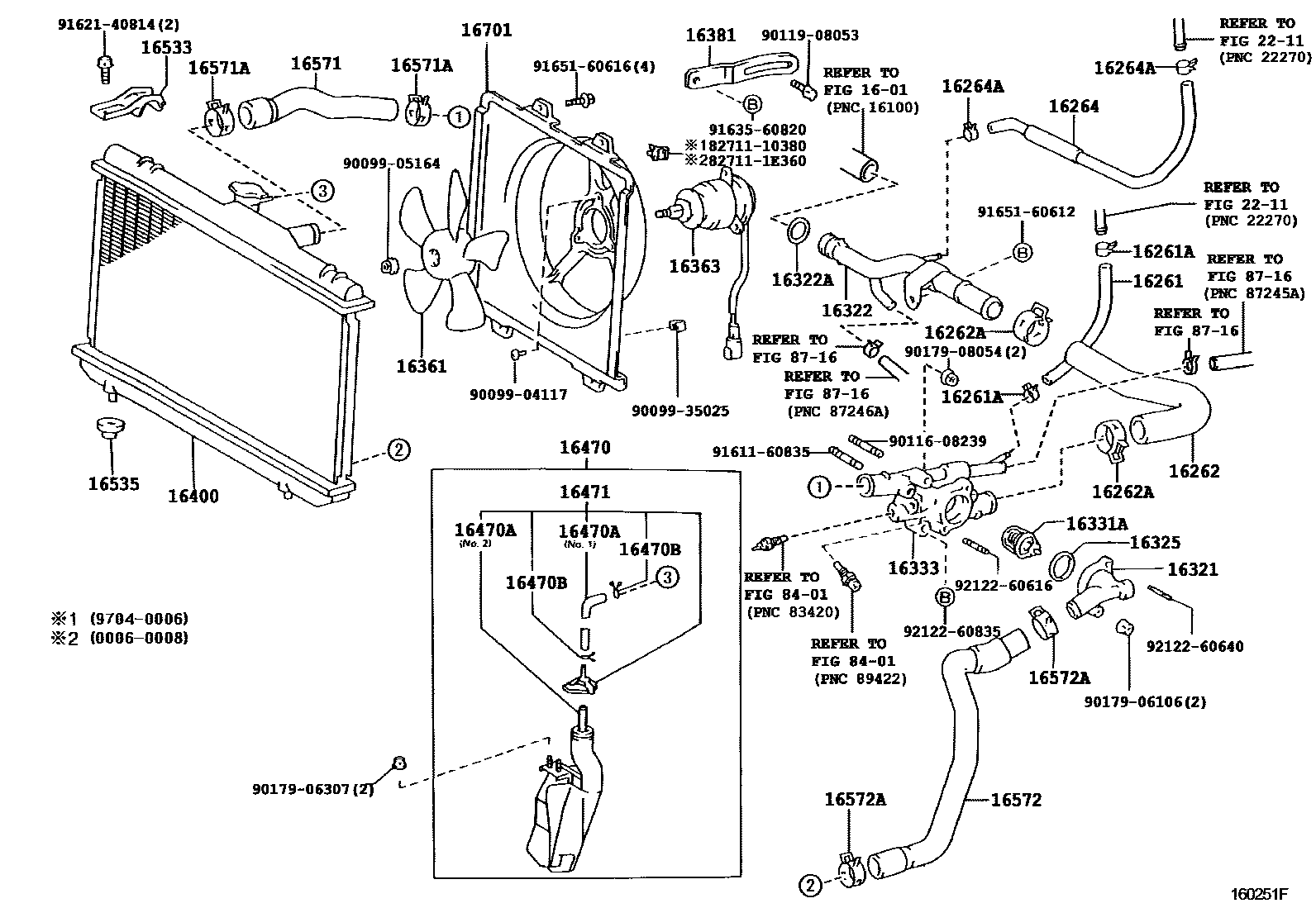

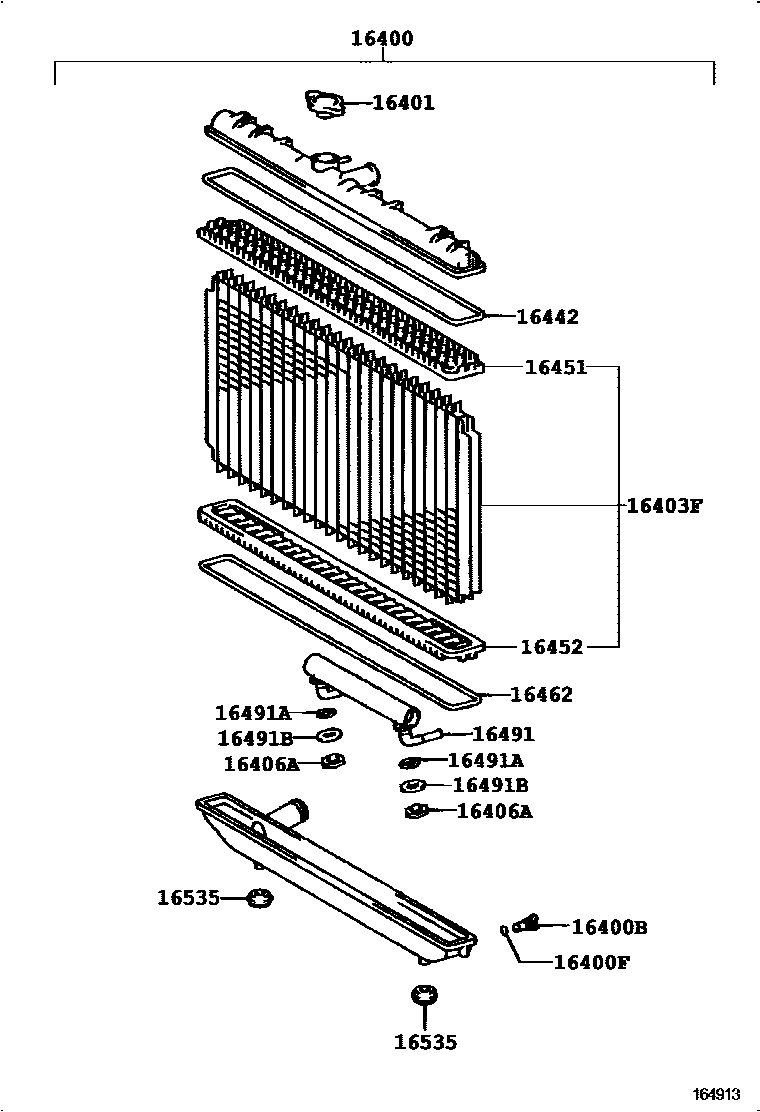

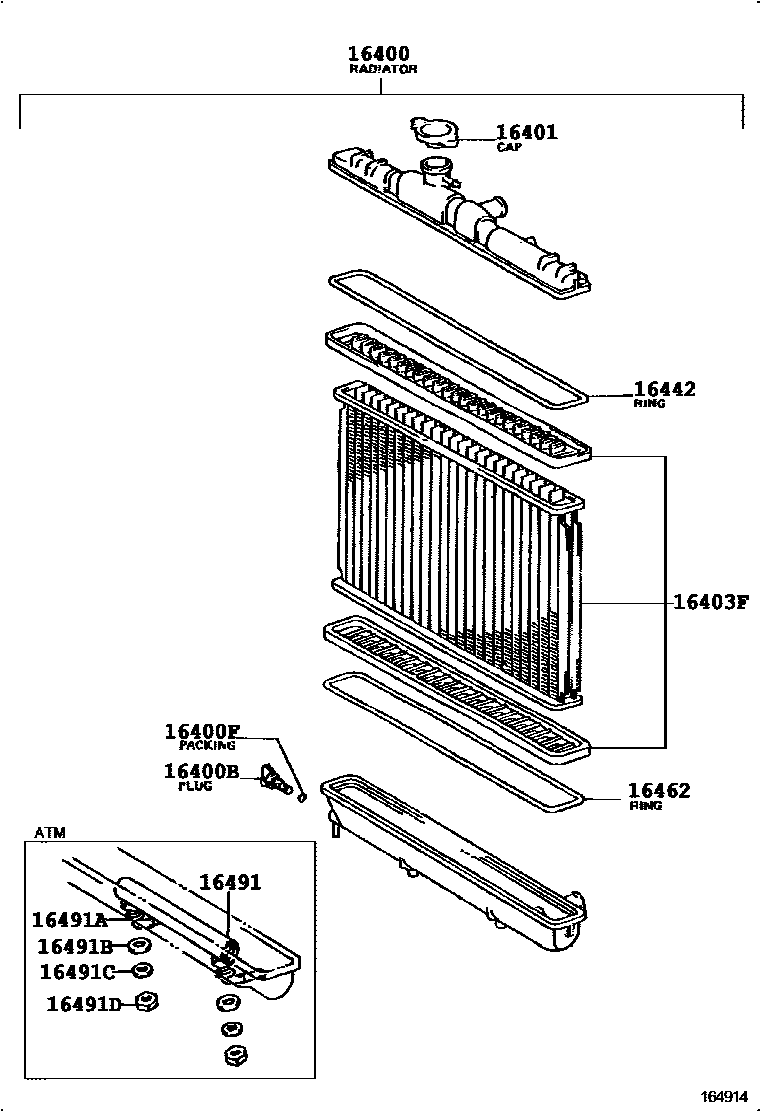

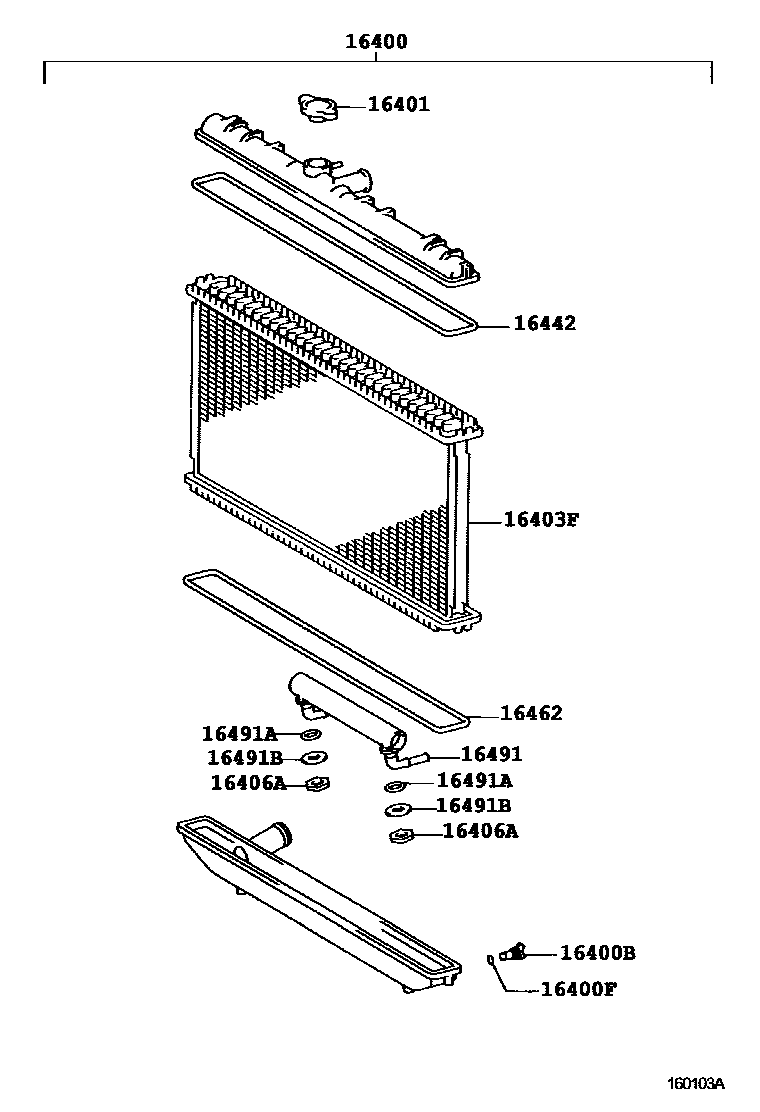

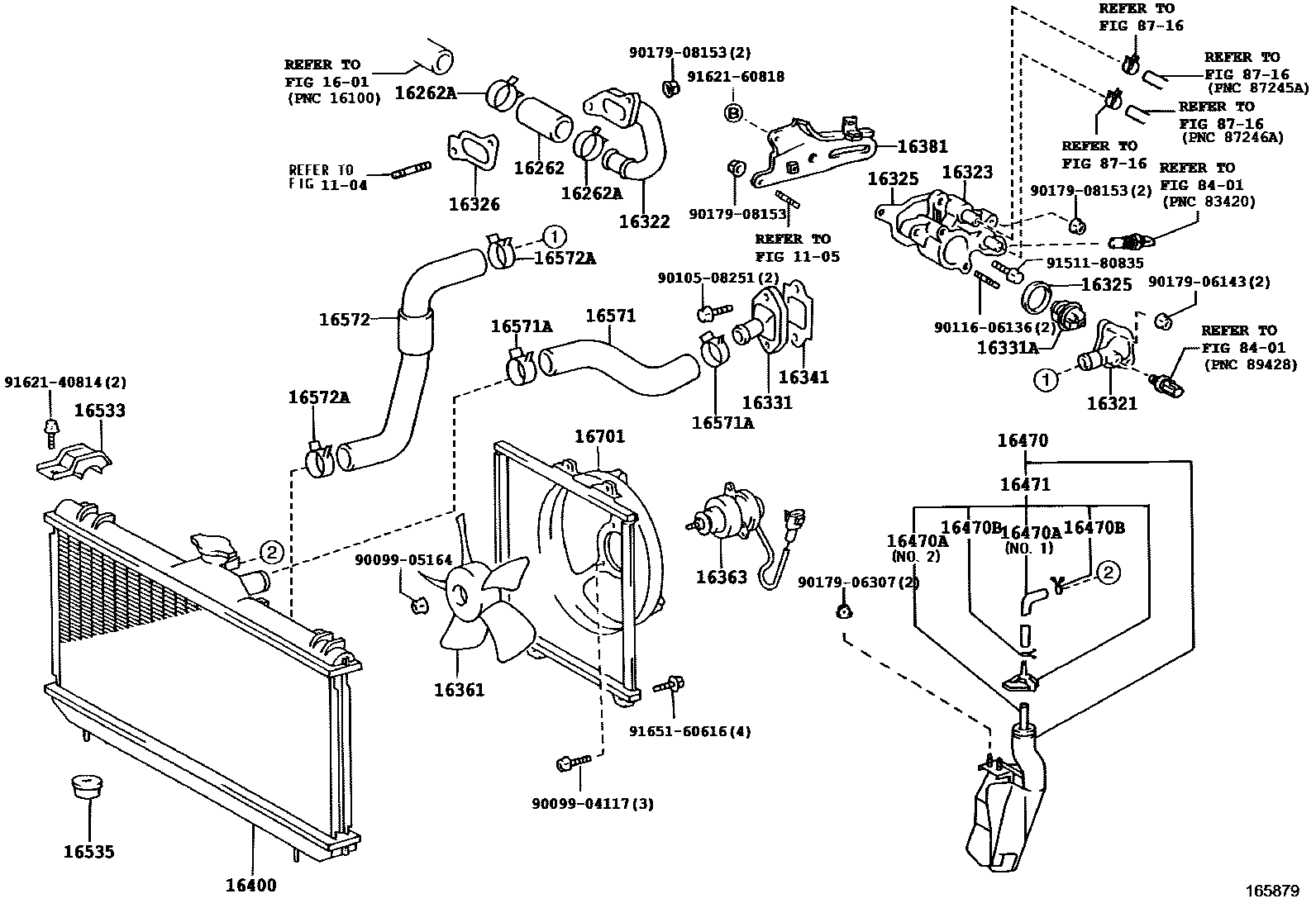

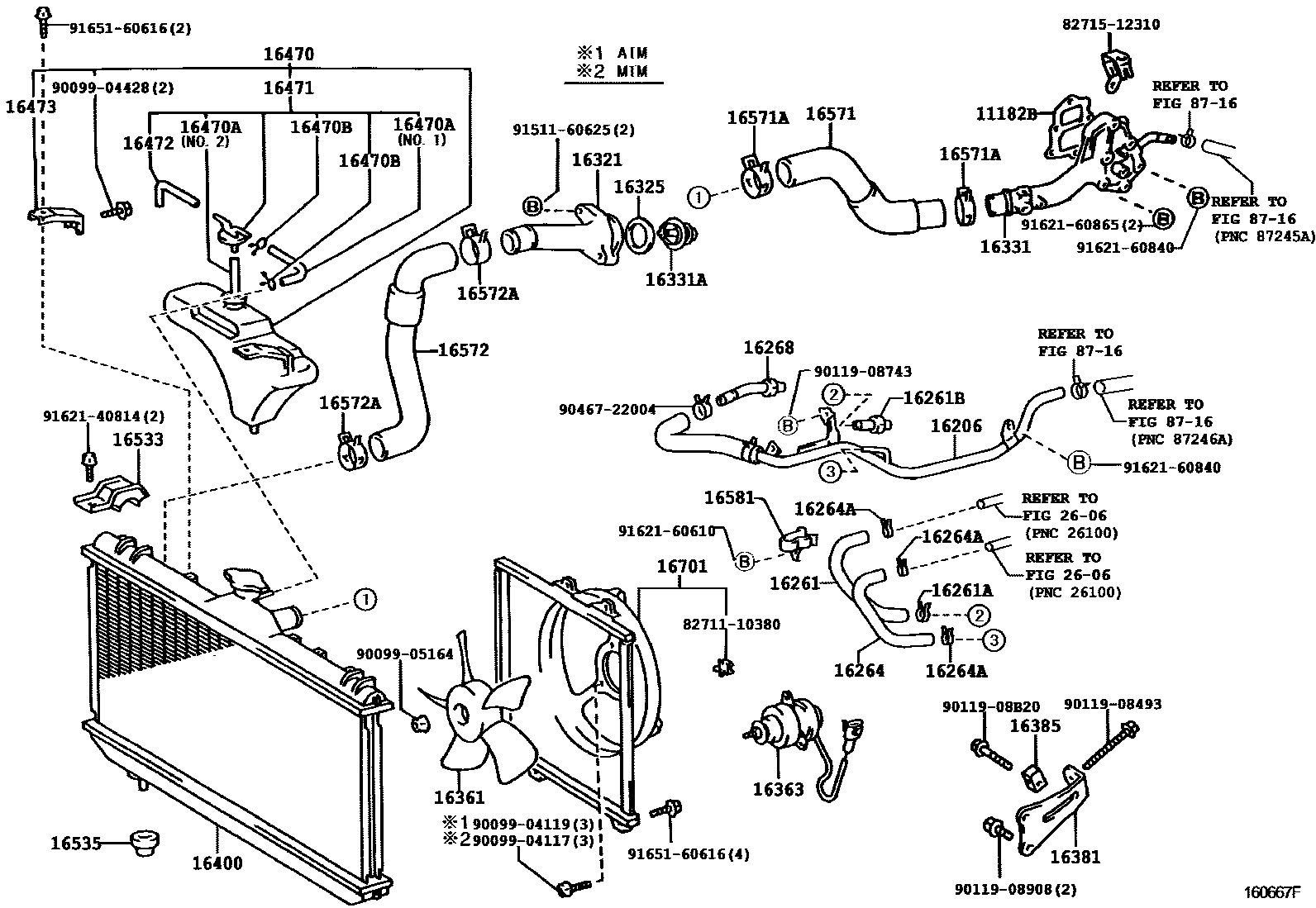

Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 9 images and 56 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11182B | Rear cylinder head gasket | 11182-64021 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-64070 |
| 16261 | HOSE, WATER BY-PASS | 16261-64060 · 16261-64140 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-11009 · 90467-15022 |
| 16261B | Connector (for water bypass hose) | 90404-53050 · 90404-53059 · 90404-53075 |
| 16262 | water inlet hose | 16262-10011 · 16262-10022 · 16262-15040 · 16262-16030 · 90445-42002 |
| 16262A | Clamp (for water inlet hose) | 90467-34003 · 90467-37002 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-11090 · 16264-64090 · 16264-64160 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-11009 · 90467-13128 · 90467-15022 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-11009 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-64061 · 16268-64100 |
| 16321 | water inlet | 16321-11011 · 16321-15040 · 16321-16050 · 16321-64020 |
| 16322 | PIPE, WATER INLET | 16322-11162 · 16322-15050 · 16322-16050 |
| 16322A | O-RING, WATER INLET | 96761-35028 |
| 16323 | HOUSING, WATER INLET | 16323-15180 · 16323-16150 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-16020 · 16325-62010 · 16325-63011 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-16010 |
| 16331 | Water outlet | 16331-15080 · 16331-16100 · 16331-64120 · 16331-64150 |
| 16331A | thermostat | 90916-03046 · 90916-03075 · 90916-03109 · 90916-03115 |
| 16331B | Screw plug (for water outlet) | 90345-53030 |
| 16333 | Water outlet shell | 16333-11120 · 16333-11121 |
| 16341 | GASKET, WATER OUTLET | 16341-16040 |
| 16347D | water bypass liner | 16347-15010 |
| 16361 | Fan | 16361-02050 · 16361-02110 · 16361-11010 · 16361-11020 · 16361-63020 · 16361-64060 |
| 16363 | cooling fan motor | 16363-02040 · 16363-15120 · 16363-64170 · 16363-74020 · 16363-74030 |
| 16381 | Fan belt adjustment lever | 16381-11030 · 16381-15080 · 16381-16080 · 16381-64080 · 16381-64180 |
| 16385 | Fan belt adjustment slider | 16385-15020 · 16385-64011 |
| 16400 | Radiator assembly | 16400-02370 · 16400-15511 · 16400-15600 · 16400-15660 · 16400-15670 · 16400-15680 · 16400-16660 · 16400-16670 · 16400-16720 · 16400-64641 · 16400-64651 · 16400-6A060 · 16400-6A070 · 16400-6A080 · 16400-6A081 |
| 16400B | Radiator drain switch screw plug | 16417-15210 · 23322-54010 · 90080-34010 |
| 16400F | Seal (for radiator drain switch) | 16418-15520 · 16492-21050 · 90080-30024 · 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-15520 · 16401-72090 |
| 16403F | Radiator core sub-assembly | 16403-02370 · 16403-15510 · 16403-15600 · 16403-15660 · 16403-15670 · 16403-15680 · 16403-16440 · 16403-16670 · 16403-16720 · 16403-16730 · 16403-16740 · 16403-64640 |
| 16406A | Bracket (for transmission oil cooler) | 16406-74520 · 16496-15550 |
| 16442 | O-ring (for radiator tank) | 16442-02370 · 16442-11380 · 16442-15660 · 16442-74520 · 16462-62050 |
| 16451 | Radiator core upper plate | 16451-11380 · 16451-74520 · 16452-62050 |
| 16452 | Radiator core lower plate | 16452-11420 · 16452-62050 · 16452-74520 |
| 16462 | O-ring (for radiator lower tank) | 16462-02370 · 16462-11420 · 16462-15660 · 16462-62050 · 16462-74520 |
| 16470 | Radiator reservoir assembly | 16470-15090 · 16470-15100 · 16470-64130 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16471-64130 · 16478-15090 · 16478-64130 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-15100 · 16405-64080 |
| 16472 | Breather hose | 16477-64130 |
| 16473 | Bracket (for radiator reservoir) | 16473-64130 |
| 16491 | Oil cooler (for ATM) | 16491-11310 · 16491-15550 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16418-15660 · 16492-15660 · 16492-62060 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-15550 · 16493-74520 |
| 16491C | Spring washer (for automatic transmission oil cooler) | 16494-15550 |
| 16491D | Nut (for automatic transmission oil cooler) | 16496-15550 |
| 16533 | Radiator upper bracket | 16533-02020 · 16533-15120 · 16533-64120 |
| 16535 | Radiator lower support | 16535-74070 · 90916-04002 · 90916-04003 · 90916-04005 · 90916-04006 · 90916-04009 |
| 16571 | Radiator water inlet hose | 16571-11130 · 16571-15160 · 16571-16250 · 16571-64250 · 16571-64320 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-31003 · 90467-34003 · 90467-37002 · 90467-37005 |
| 16572 | Radiator outlet hose | 16572-11220 · 16572-11230 · 16572-11231 · 16572-15210 · 16572-16120 · 16572-64200 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-31003 · 90467-34003 · 90467-37002 |
| 16581 | Hose clamp (for water hose) | 16581-64010 |
| 16701 | Fan cover sub-assembly | 16711-02051 · 16711-02140 · 16711-15261 · 16711-15271 · 16711-15281 · 16711-16221 · 16711-16231 · 16711-16241 · 16711-16251 · 16711-64301 · 16711-64311 · 16711-64480 |
