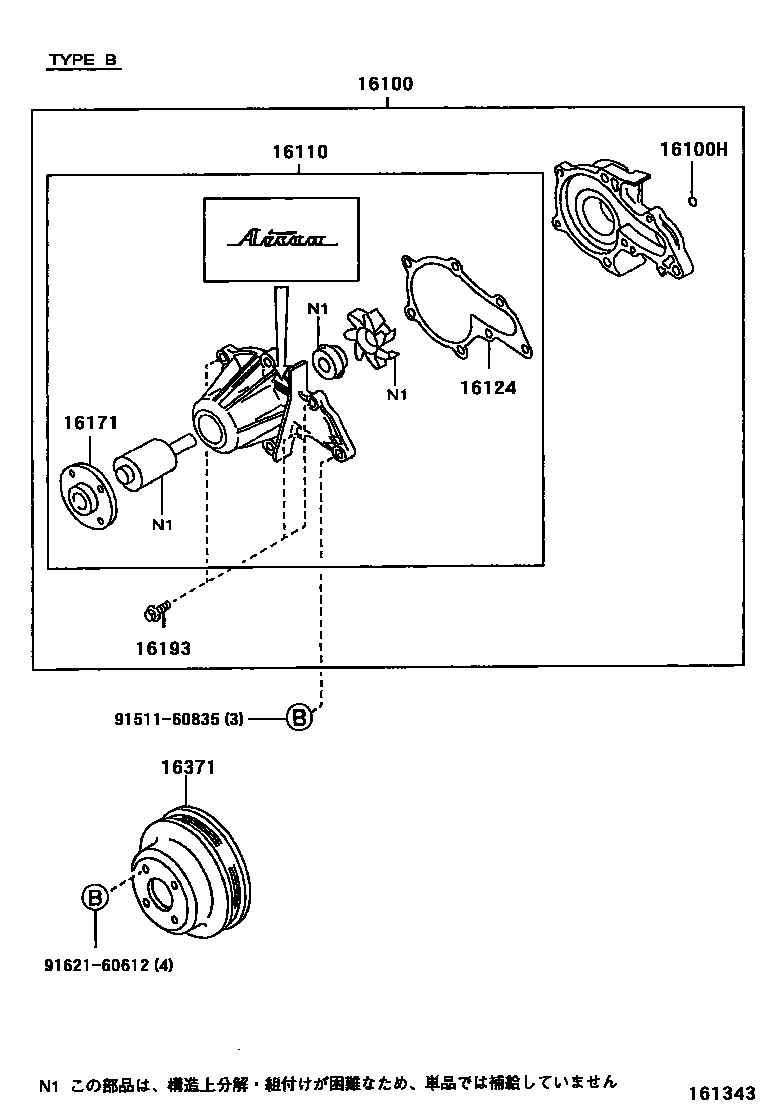

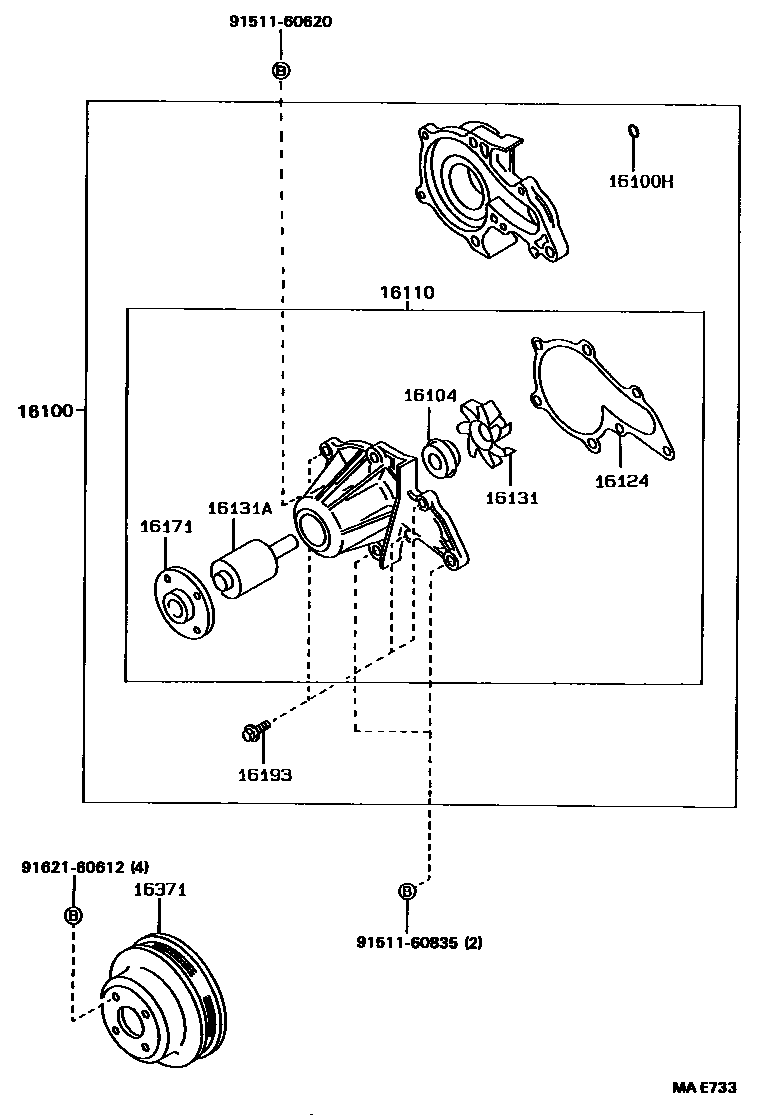

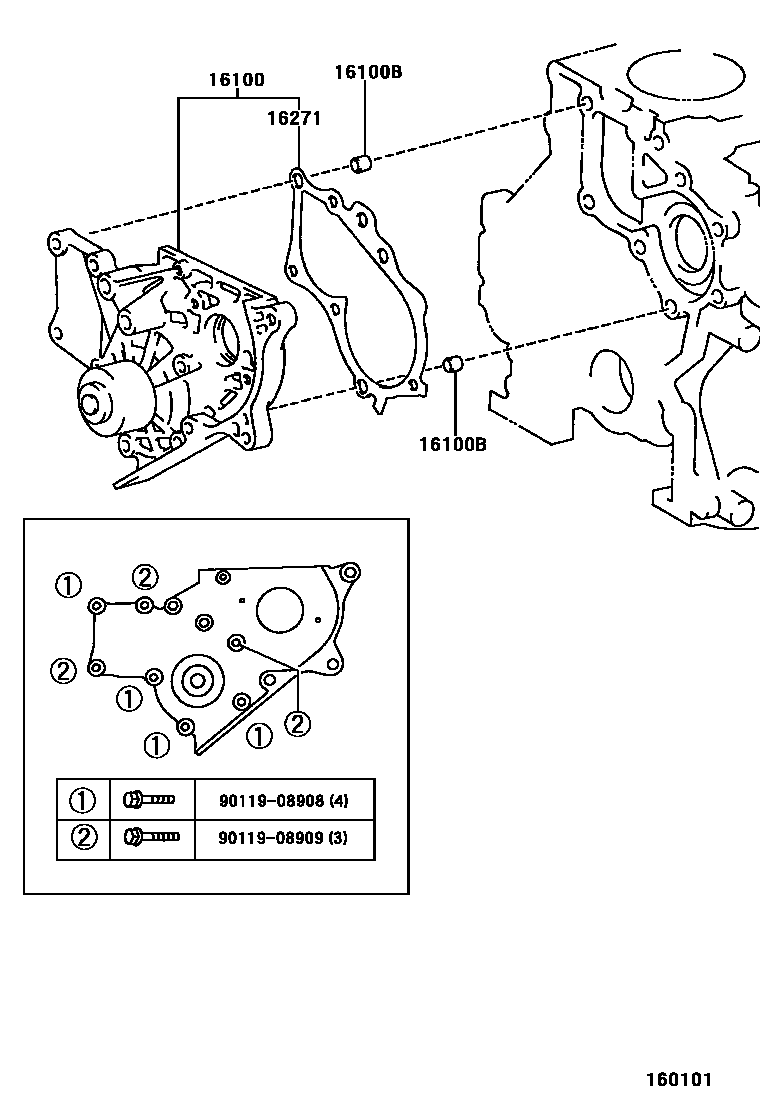

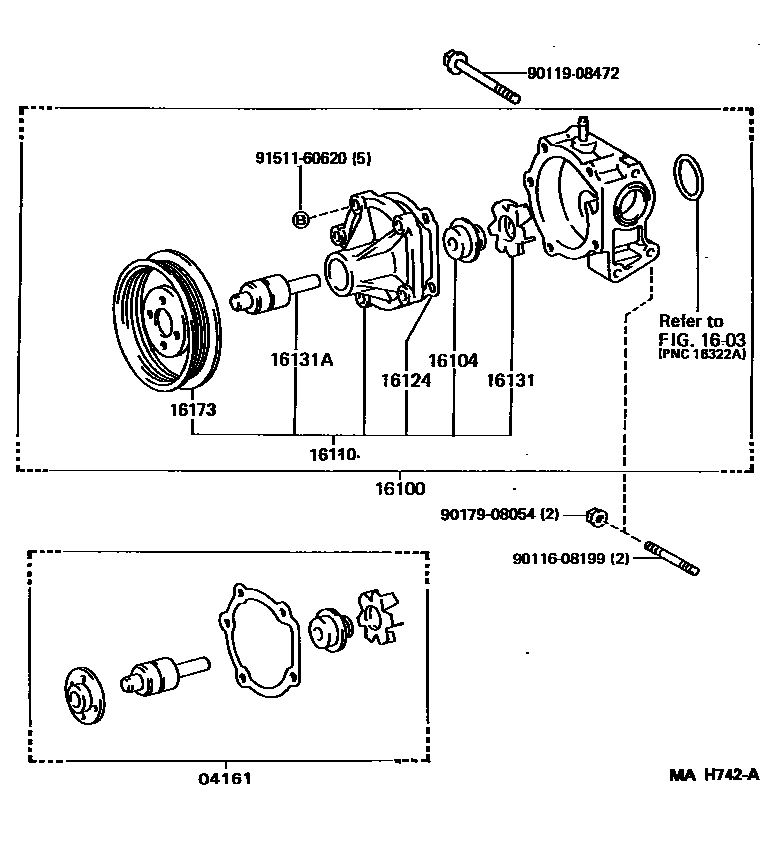

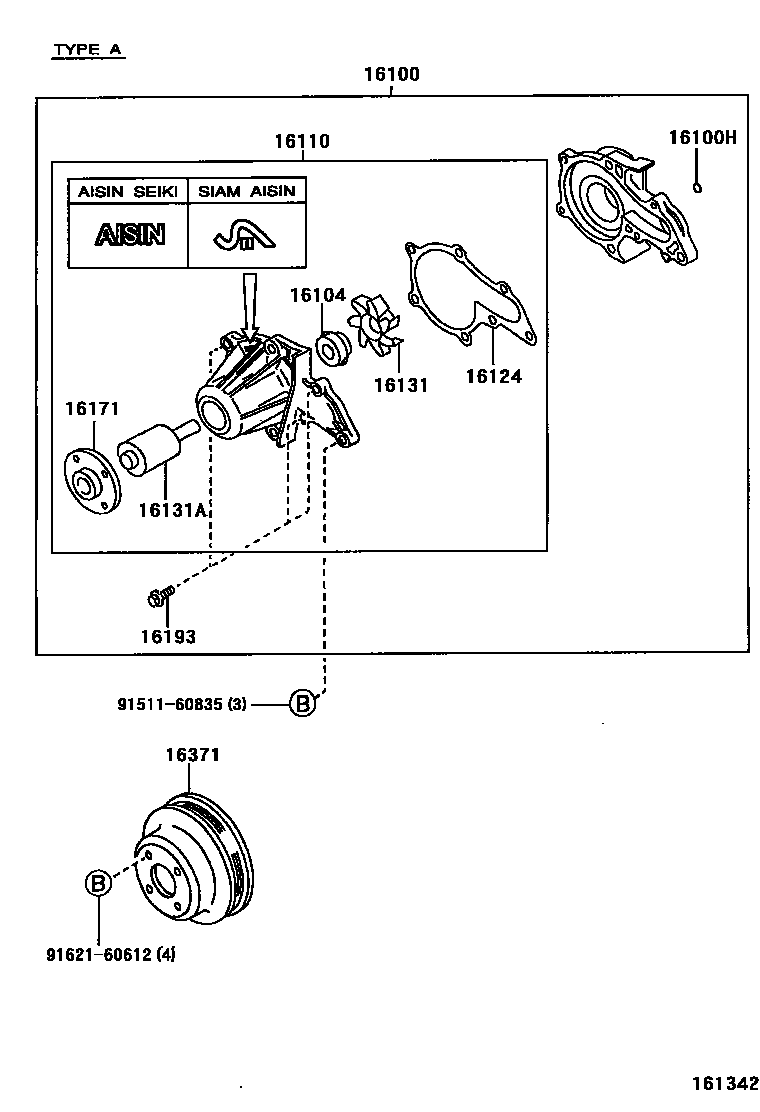

Toyota COROLLA Water Pump — Figure 1601
Toyota COROLLA EPC diagram 1601, Water Pump, with 5 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04161 | Water pump components | 04161-10022 · 04161-10023 |
| 16100 | Engine water pump assembly | 16100-09120 · 16100-19226 · 16100-19285 · 16100-19295 · 16100-69295 · 16100-69296 · 16100-69298 |
| 16100B | Ring pin (for water pump assembly) | 90253-11021 |
| 16100H | O-ring (for water pump) | 96761-24035 |
| 16104 | Water pump seal components | 16104-46060 · 16104-54030 · 16104-74010 |
| 16110 | Water pump assembly without coupling | 16110-19106 · 16110-19107 · 16110-19145 · 16110-19146 · 16110-19195 · 16110-19205 |
| 16124 | water pump cover gasket | 16124-10013 · 16124-15110 · 16124-16040 · 16124-16060 |
| 16131 | water pump rotor | 16131-10013 · 16131-15080 · 16131-16020 · 16131-16090 |
| 16131A | water pump bearings | 90029-36809 · 90029-36846 · 90029-36850 |
| 16171 | water pump pulley seat | 16171-10012 · 16171-15020 · 16171-15070 · 16171-15071 |
| 16173 | water pump pulley | 16173-10013 |
| 16193 | Studs (for water pump cover) | 16193-15011 · 16193-15100 |
| 16271 | water pump gasket | 16271-64030 · 16271-64031 |
| 16371 | fan pulley | 16371-02030 · 16371-15060 · 16371-15070 · 16371-15071 · 16371-16030 |
