Toyota COROLLA Cylinder Block — Figure 1105

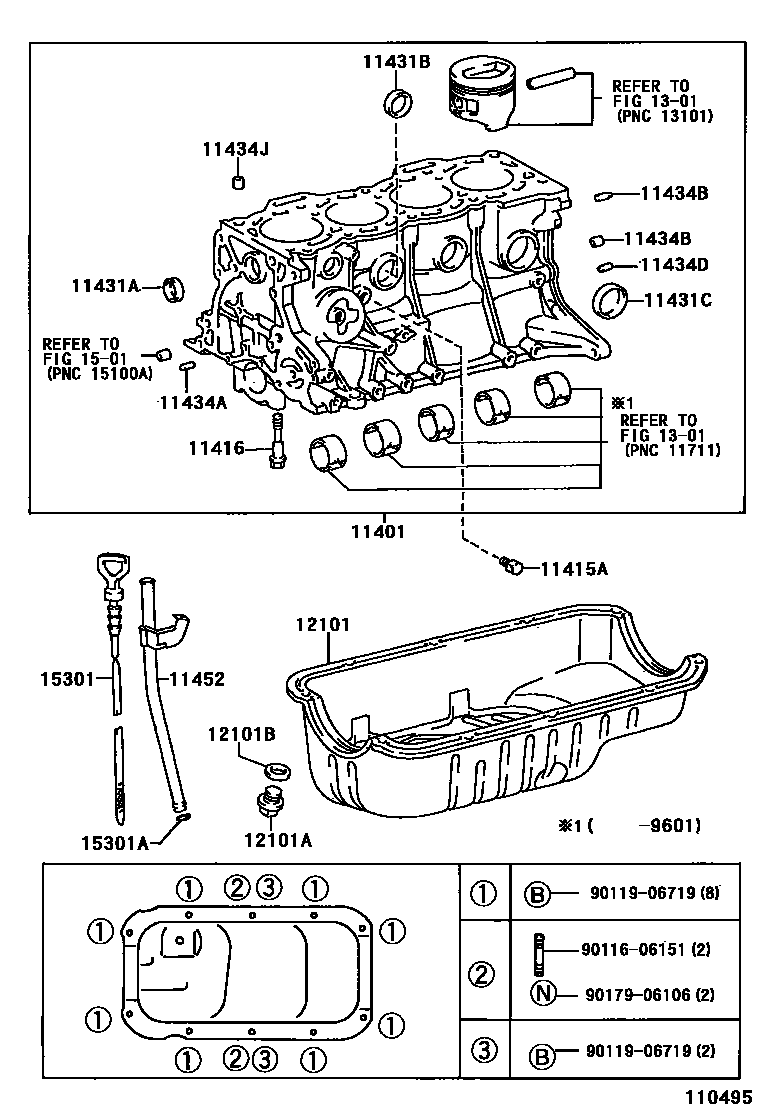

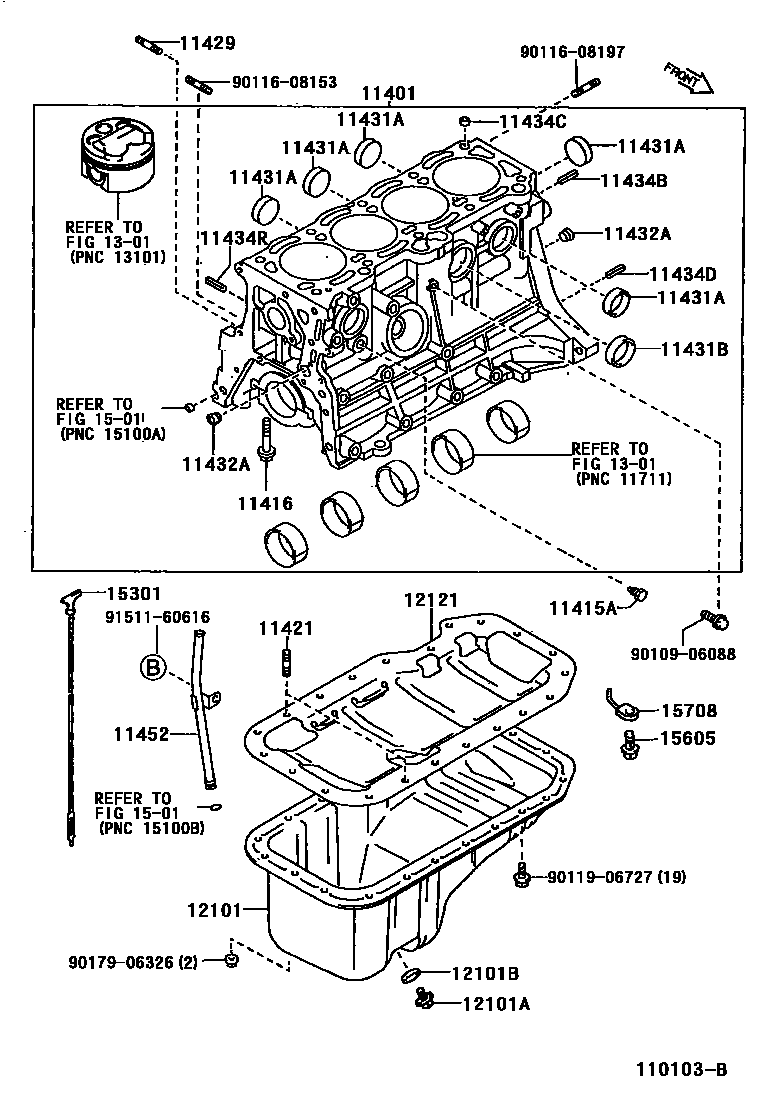

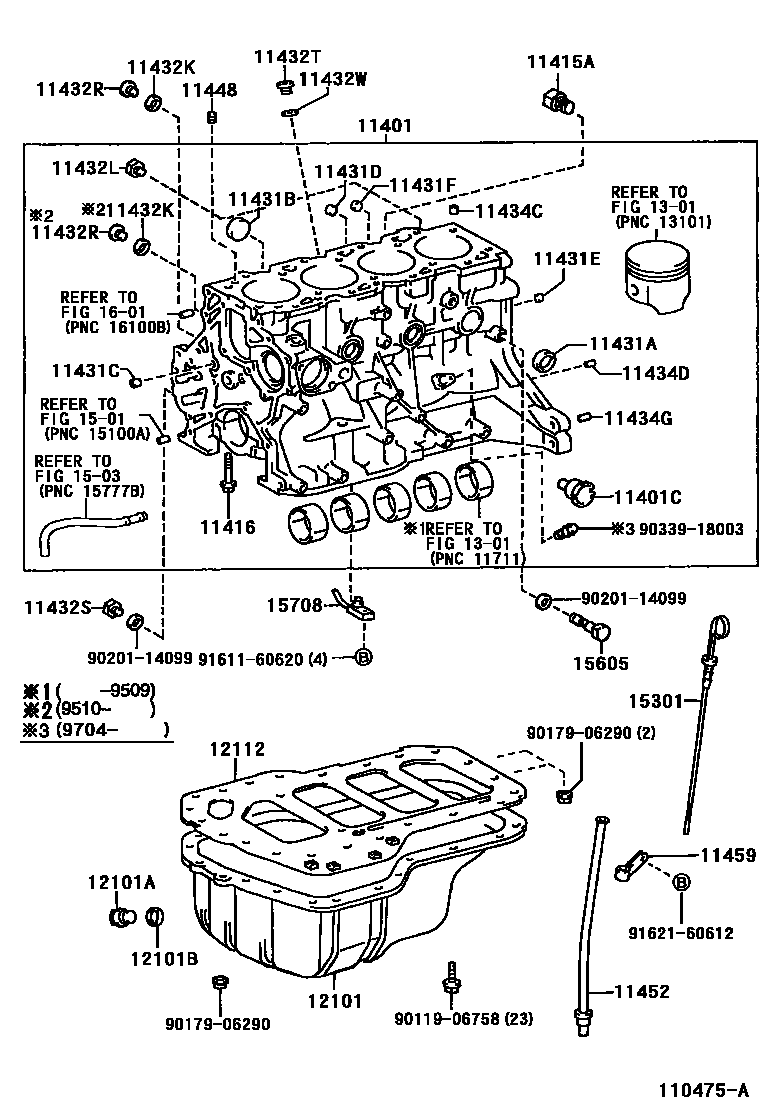

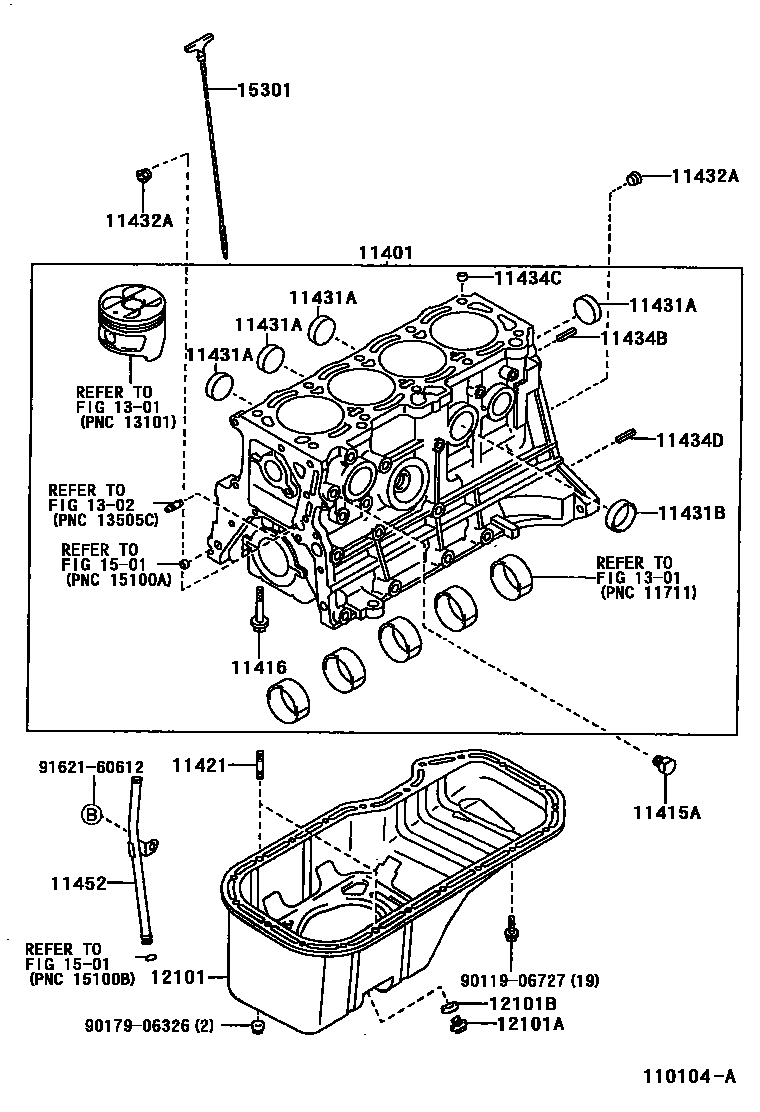

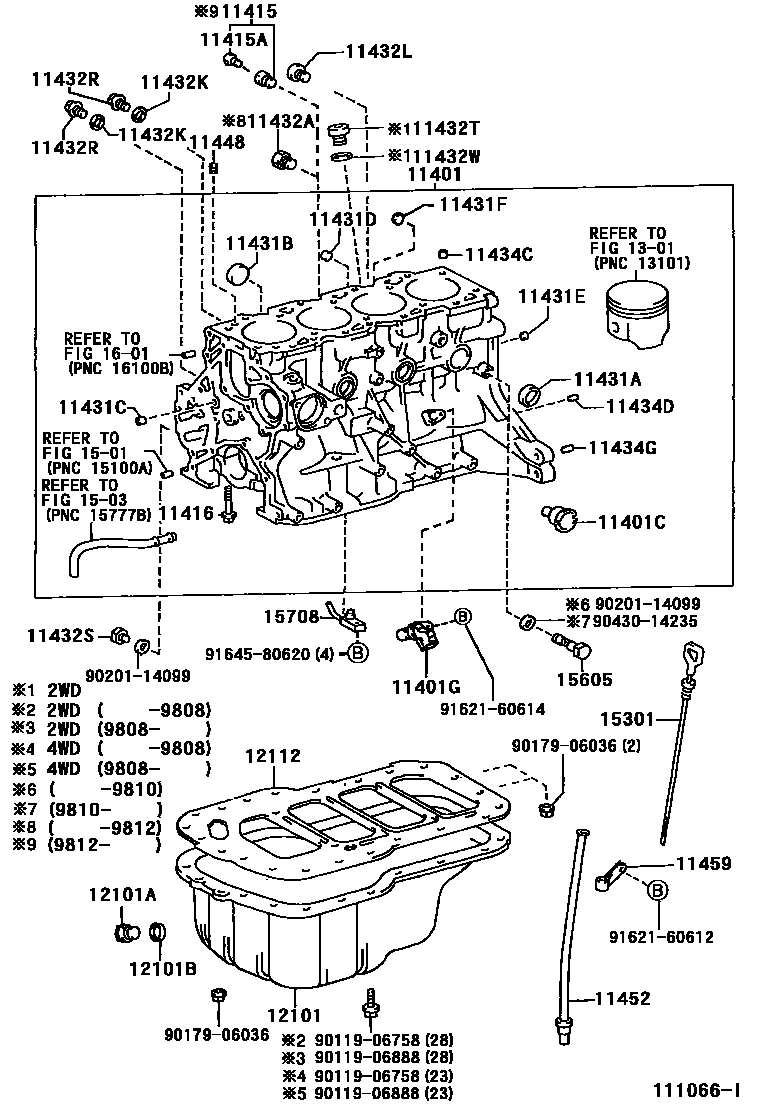

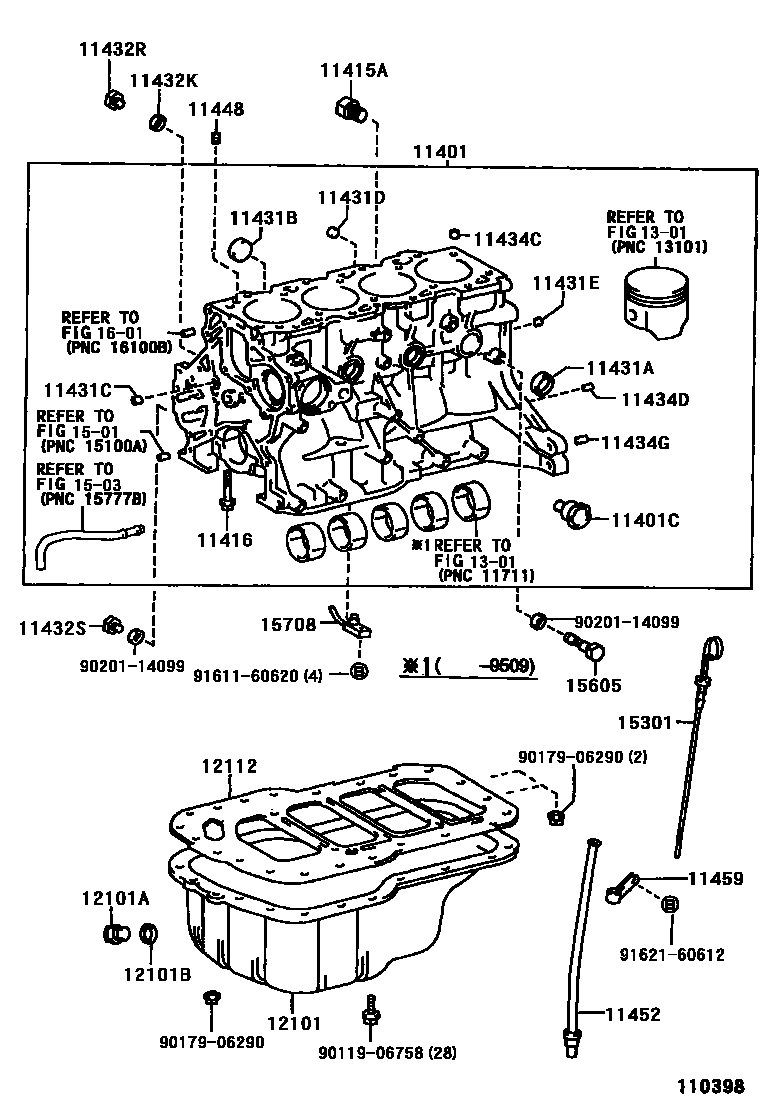

Toyota COROLLA EPC diagram 1105, Cylinder Block, with 6 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-09180 · 11401-19685 · 11401-19695 · 11401-19715 · 11401-19875 · 11401-19876 · 11401-19877 · 11401-69625 · 11401-69626 · 11401-69627 · 11401-69635 · 11401-69636 · 11401-69637 · 11401-69815 · 11401-69825 · 11401-69826 · 11401-69827 · 11401-69855 · 11401-69856 · 11401-80001 · 11401-80003 |
| 11401C | Flange (for water bypass pipe) | 16353-64011 |
| 11401G | crankshaft position sensor | 90919-05031 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09075 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90345-52001 · 90345-52003 · 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10007 · 90910-02019 · 90910-02061 · 90910-02135 |
| 11421 | Stud bolts (for oil pan) | 90116-06022 |
| 11429 | Studs (for generator bracket) | 90116-08170 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-42500 · 96411-43500 · 96411-63500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-43000 · 96411-44000 · 96411-63000 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-41800 · 96411-43500 |
| 11431D | No. 4 sealing plug (for cylinder block) | 96411-41800 |
| 11431E | No. 5 sealing plug (for cylinder block) | 96411-41800 |
| 11431F | No. 6 sealing plug (for cylinder block) | 96411-42000 |
| 11432A | No. 1 headed tapered thread plug | 90344-53006 · 90344-53008 · 90345-52003 |
| 11432K | Headed straight thread plug liner | 90430-10027 |
| 11432L | No. 4 headed straight thread plug (for cylinder block) | 90339-23002 |
| 11432R | No. 1 headed straight thread plug (for cylinder block) | 90341-10002 |
| 11432S | No. 2 headed straight thread plug (for cylinder block) | 90341-14032 |
| 11432T | No. 3 headed straight thread plug (for cylinder block) | 90341-22001 |
| 11432W | No. 3 straight thread plug gasket (for cylinder block) | 90430-22003 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-06068 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10017 · 90250-10113 · 90253-15003 |
| 11434C | Direct sales (for cylinder head components) | 90253-13017 · 90253-14002 · 90253-14004 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 · 90250-06068 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-12001 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 |
| 11448 | Cylinder block oil orifice | 11448-64020 |
| 11452 | Engine oil level gauge guide | 11452-11040 · 11452-11041 · 11452-15030 · 11452-16040 · 11452-64030 |
| 11459 | Oil level gauge guide bracket | 90929-01049 |
| 12101 | Oil pan sub-assembly | 12101-11060 · 12101-15100 · 12101-16100 · 12101-64101 · 12101-64131 · 12101-64141 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12026 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12112 | No. 2 oil pan | 12112-64040 · 12112-64060 |
| 12121 | No. 1 oil pan baffle | 12122-16031 |
| 15301 | Engine oil level scoring assembly | 15301-11050 · 15301-15051 · 15301-16070 · 15301-64042 · 15301-64110 |
| 15301A | O-ring (for engine oil level gauge) | 96721-19010 |
| 15605 | Oil check valve sub-assembly | 15605-64020 · 15703-16010 · 15703-27010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-16010 · 15708-16020 · 15790-64021 |
