Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103
Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 14 images and 2 PNC and OE references.

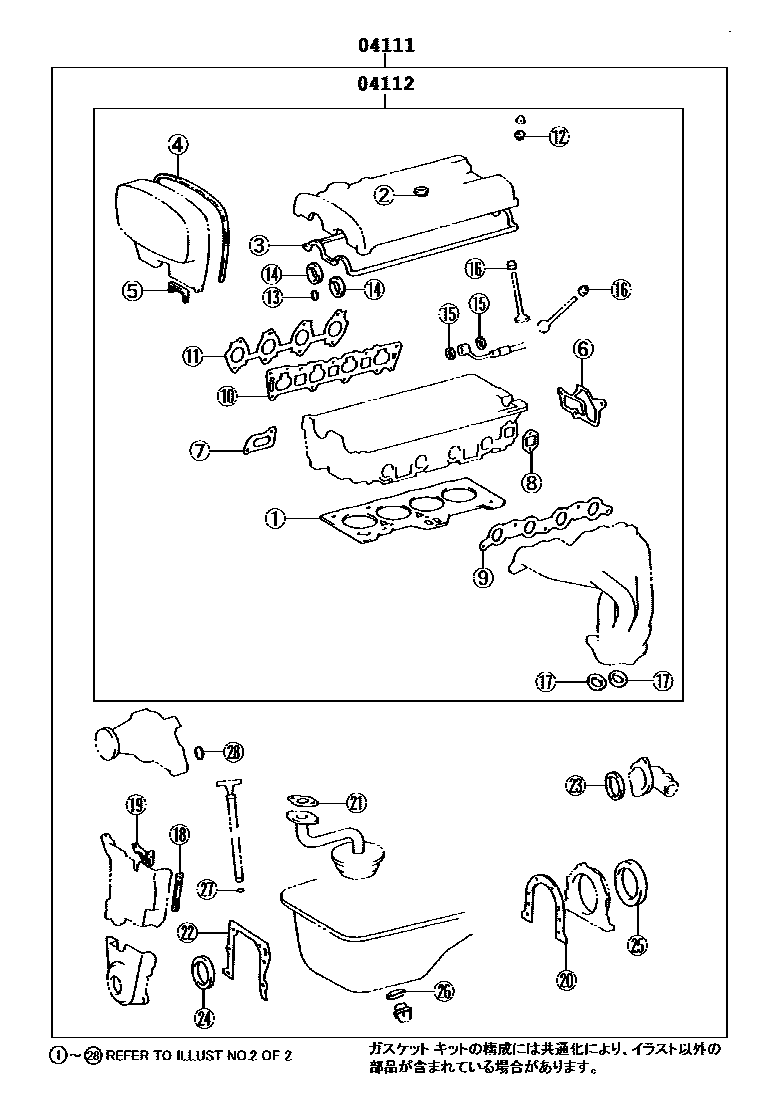

Engine Overhaul Gasket Kit — 110106F (199704 – 999999)

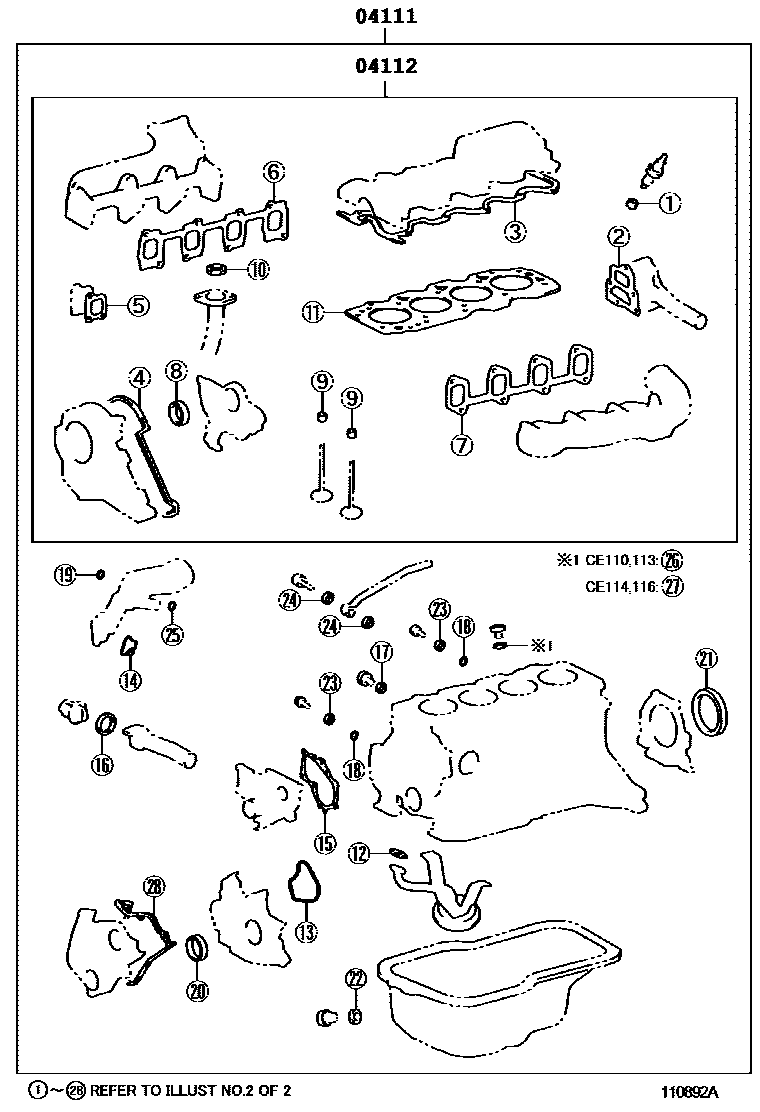

Engine Overhaul Gasket Kit — 110892A (199505 – 199708)

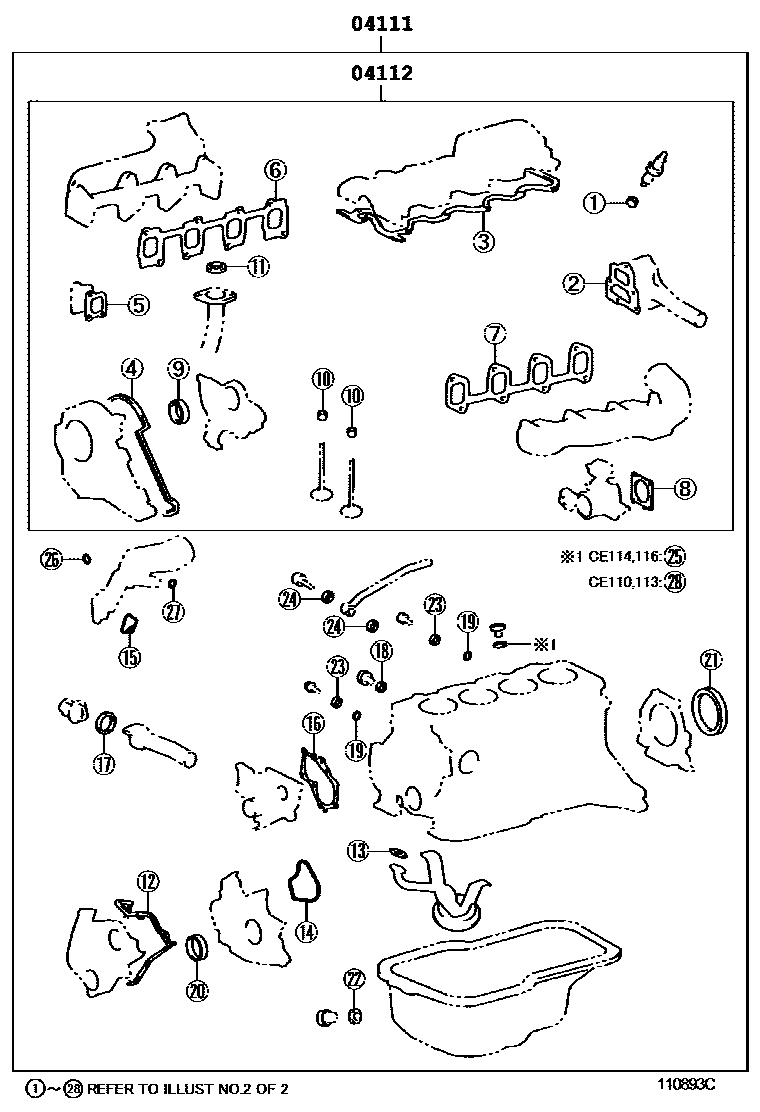

Engine Overhaul Gasket Kit — 110893C (199804 – 999999)

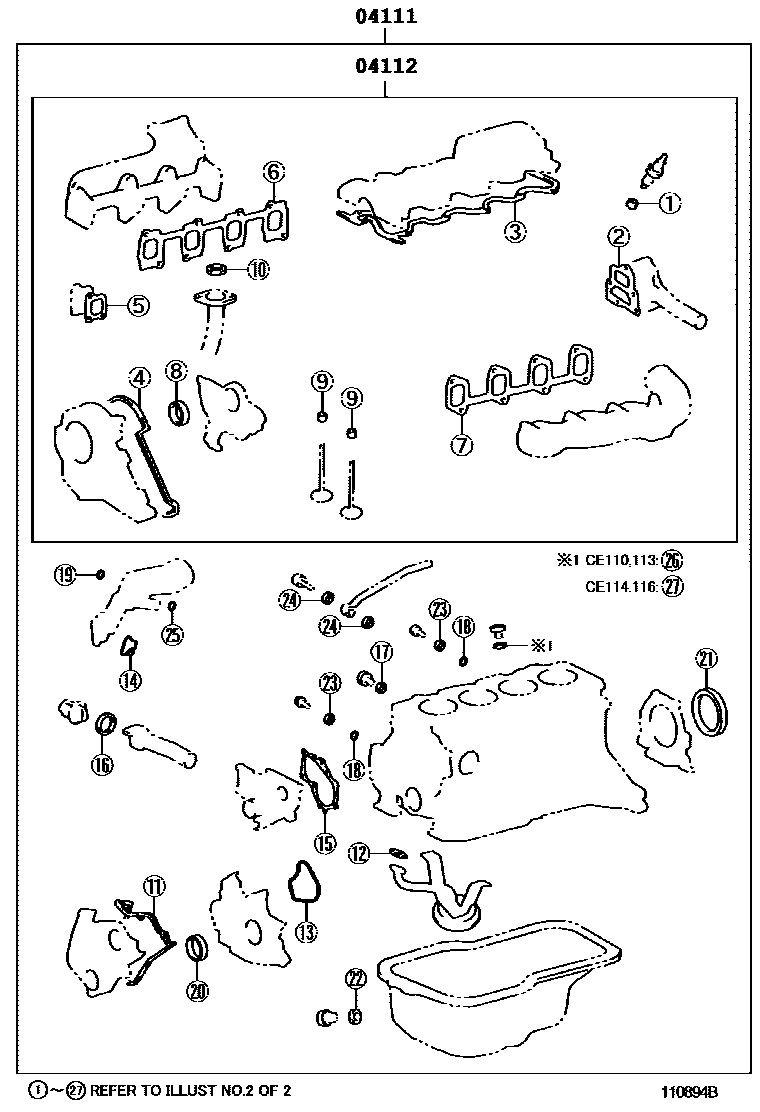

Engine Overhaul Gasket Kit — 110894B (199708 – 199804)

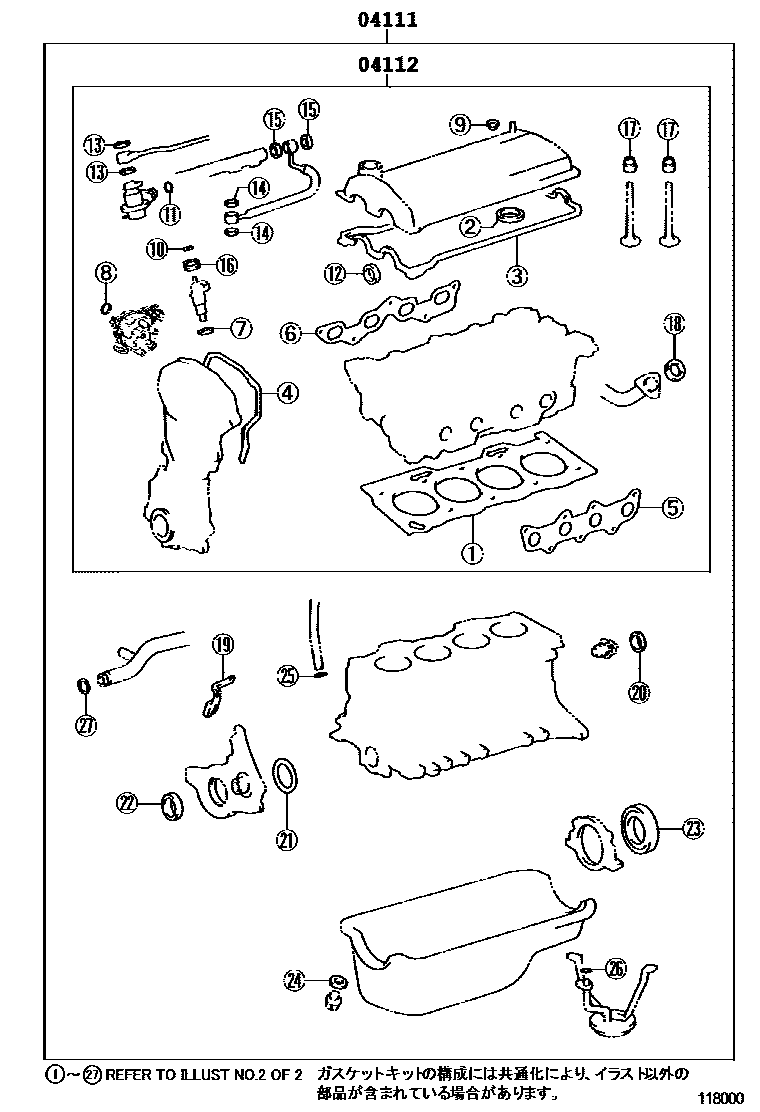

Engine Overhaul Gasket Kit — 118000 (199505 – 999999)

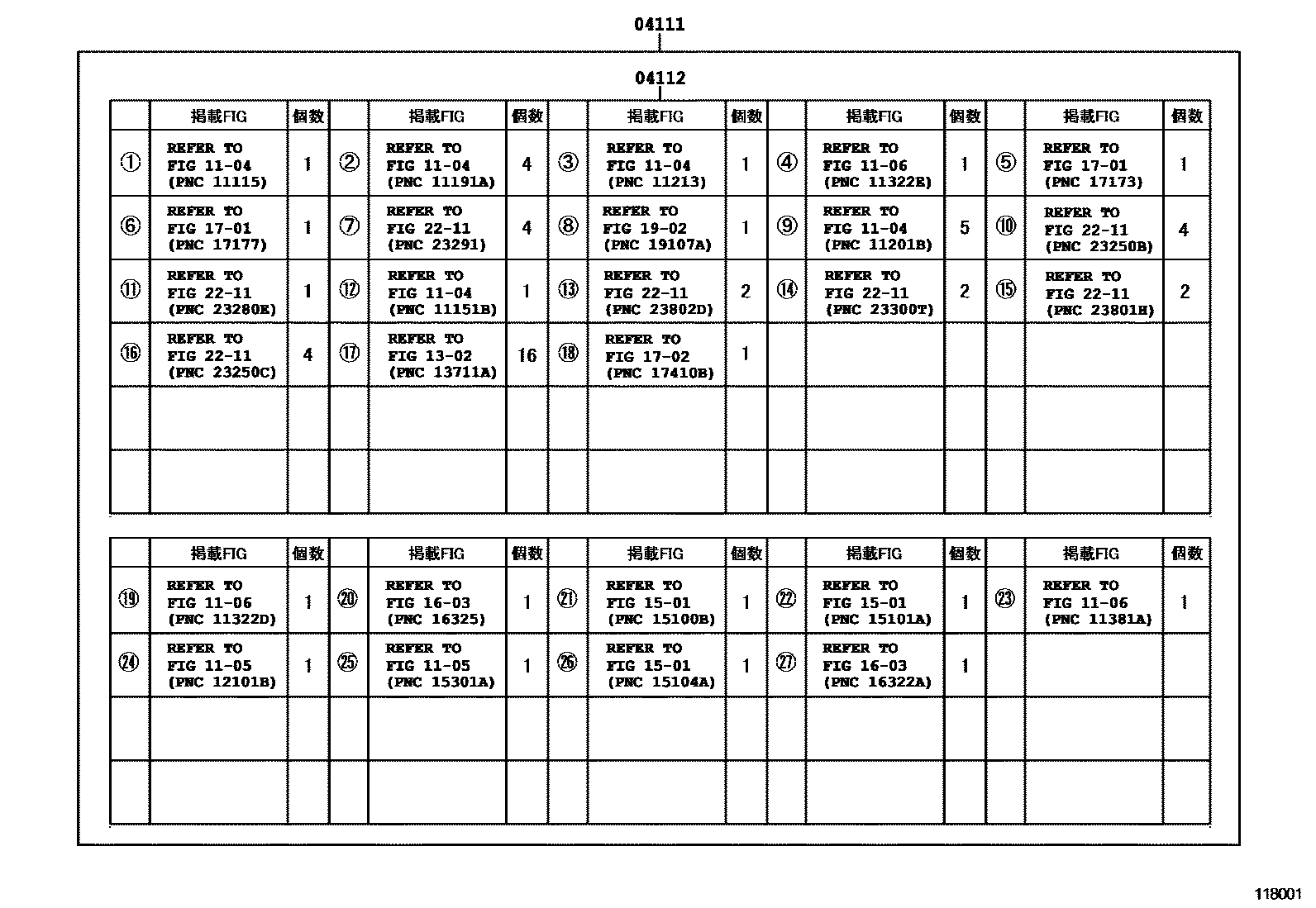

Engine Overhaul Gasket Kit — 118001 (199505 – 999999)

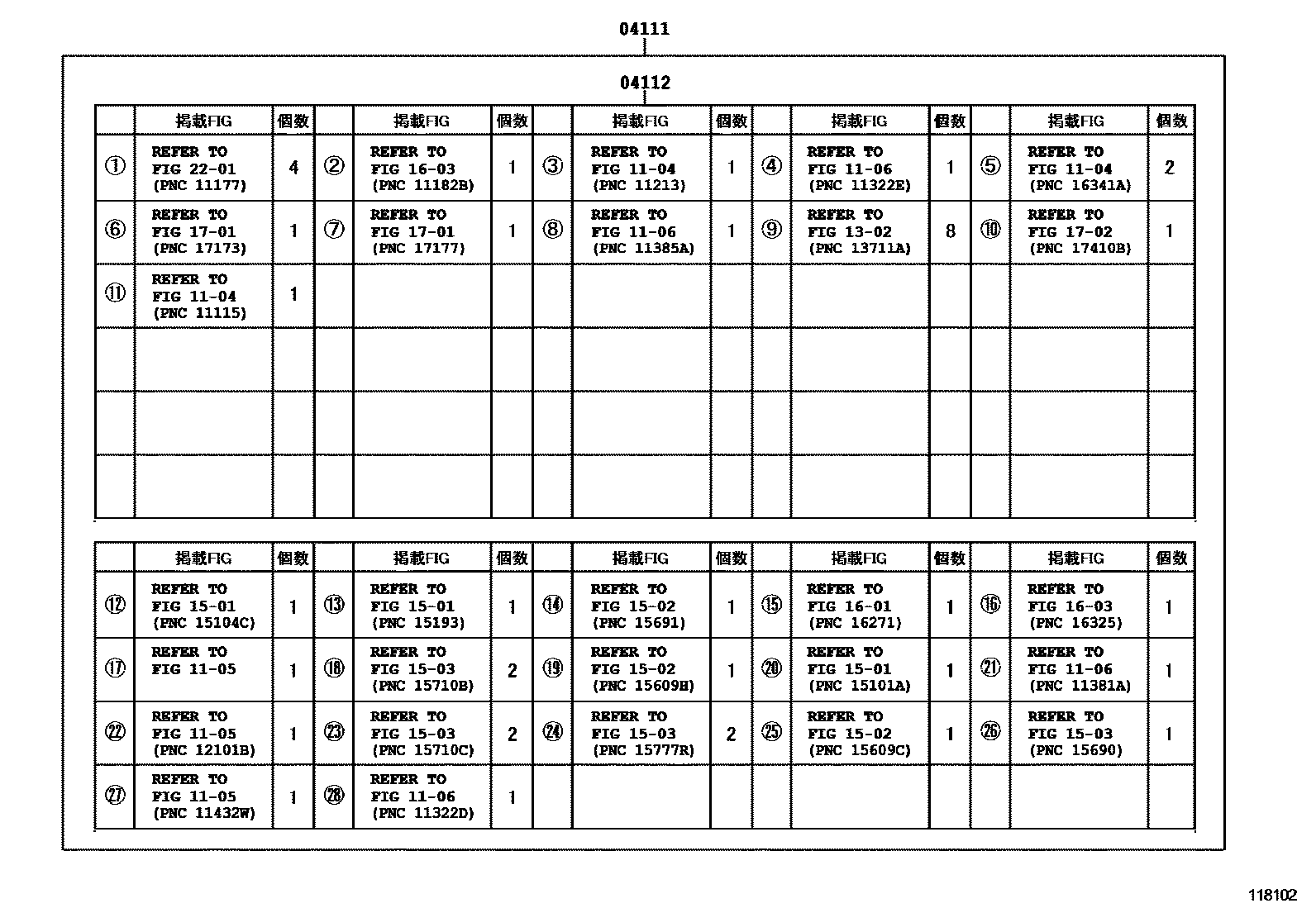

Engine Overhaul Gasket Kit — 118102 (199505 – 199708)

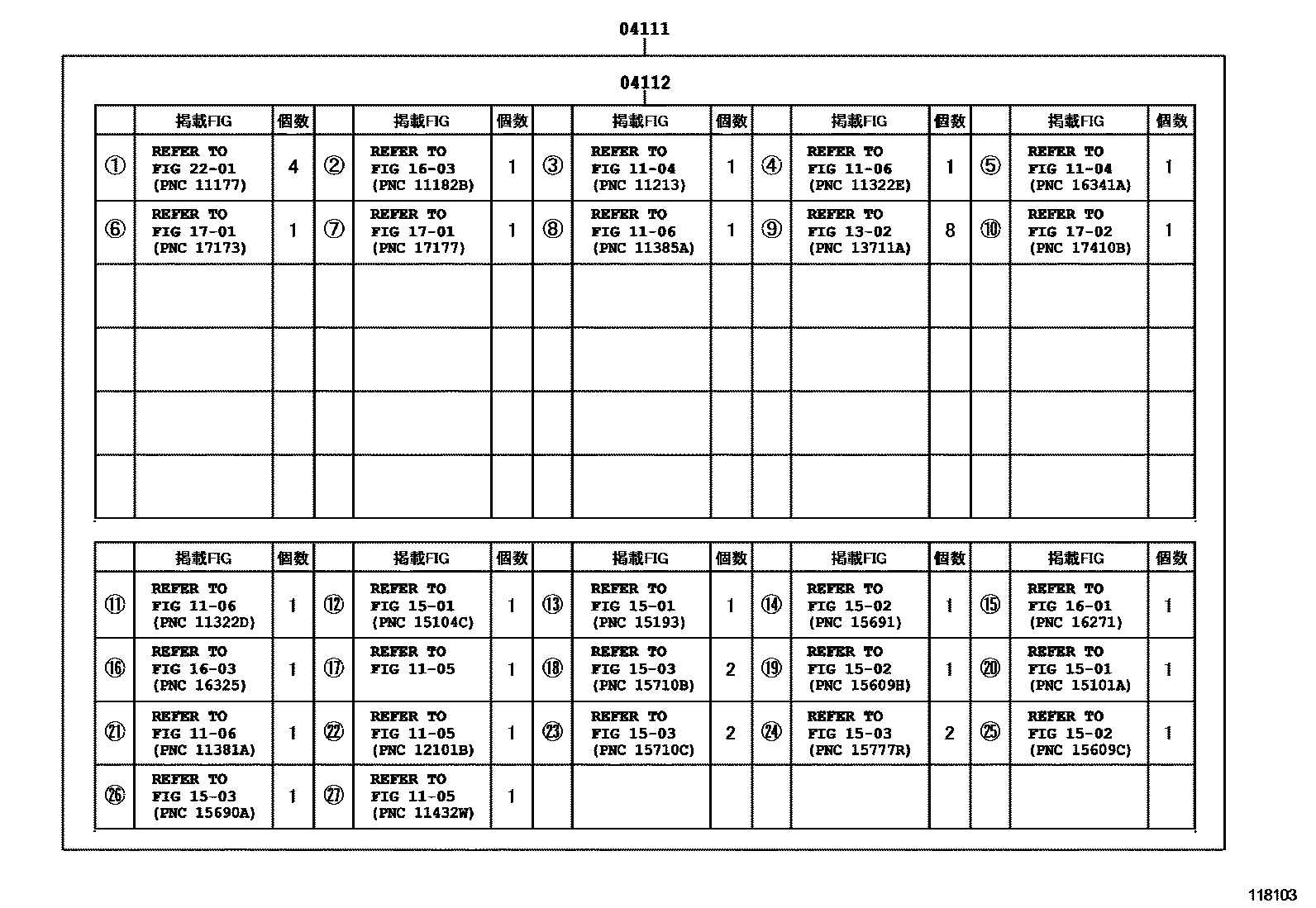

Engine Overhaul Gasket Kit — 118103 (199708 – 199804)

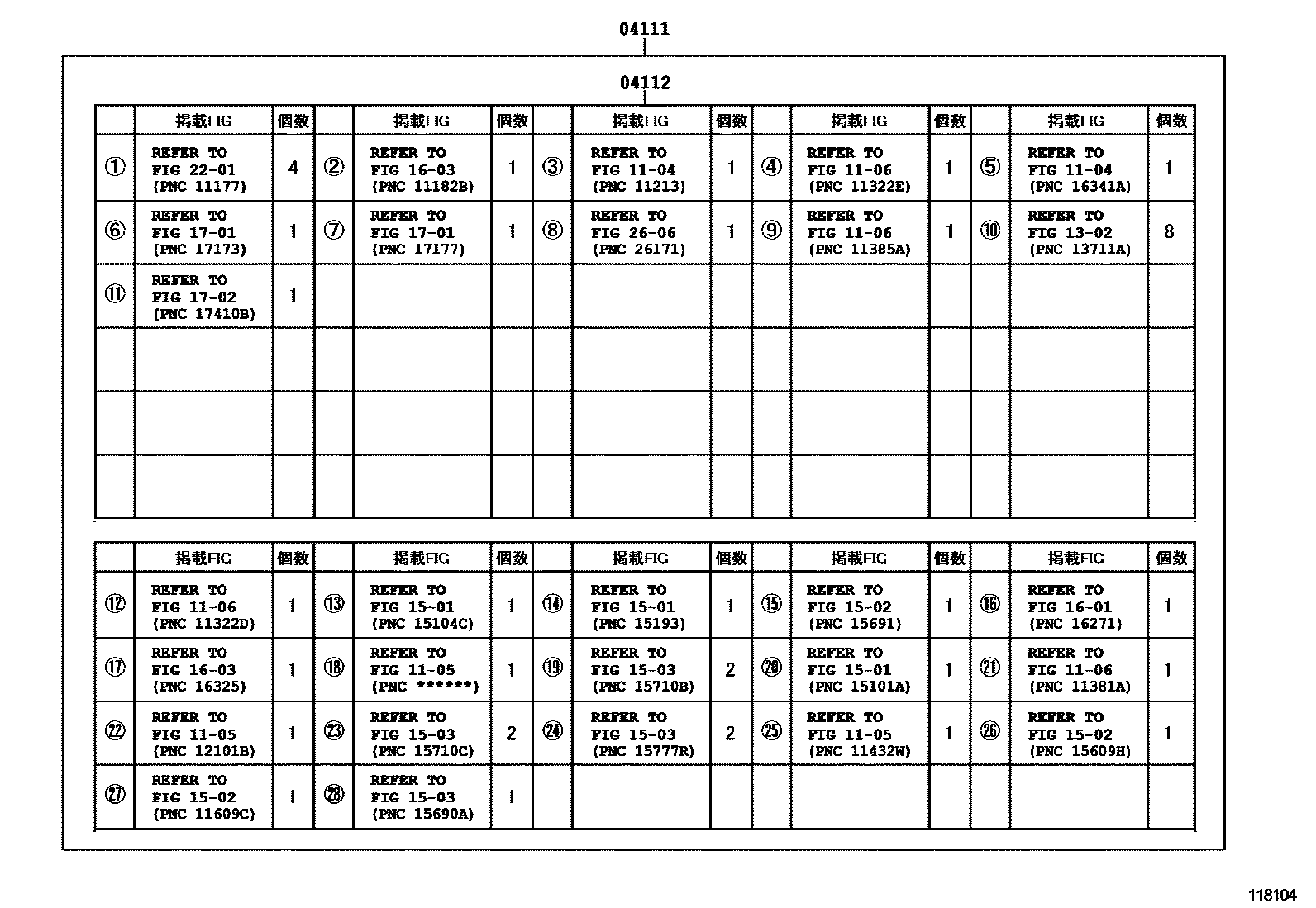

Engine Overhaul Gasket Kit — 118104 (199804 – 999999)

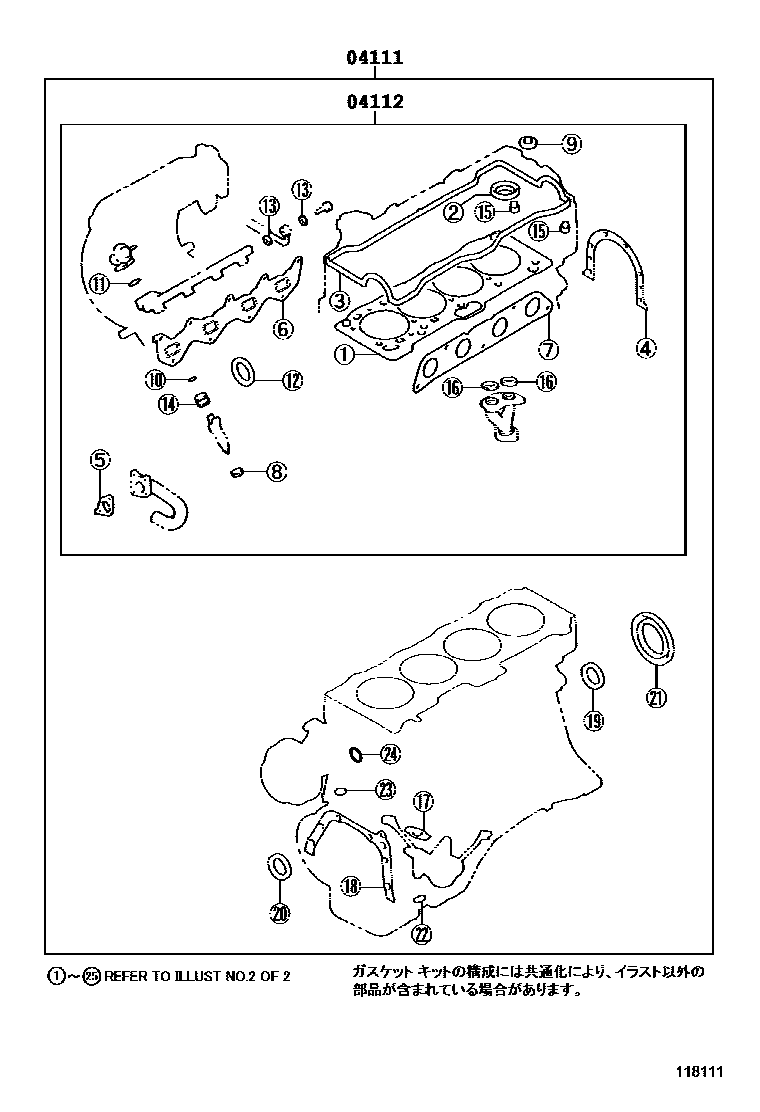

Engine Overhaul Gasket Kit — 118111A (199505 – 999999)

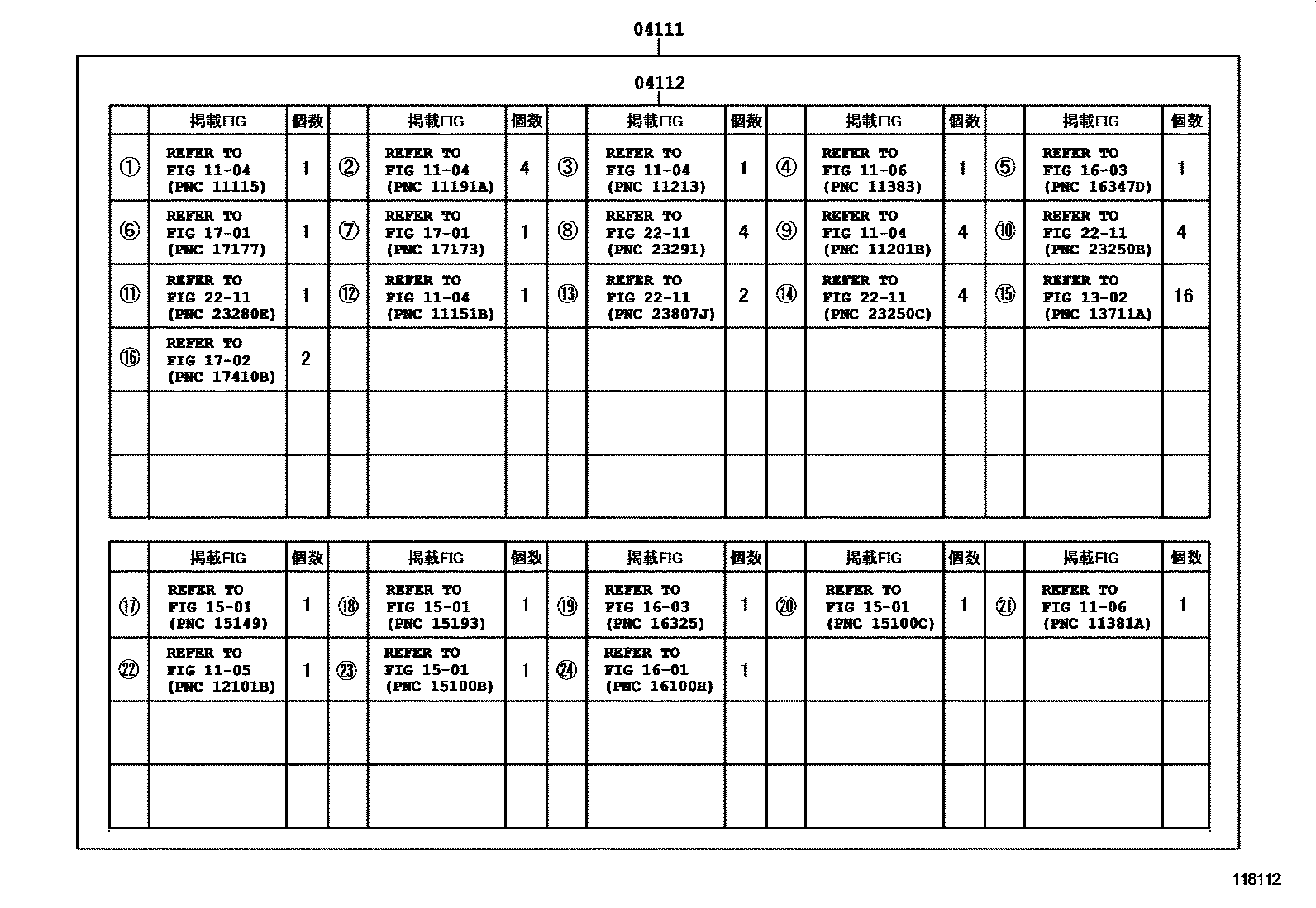

Engine Overhaul Gasket Kit — 118112 (199505 – 999999)

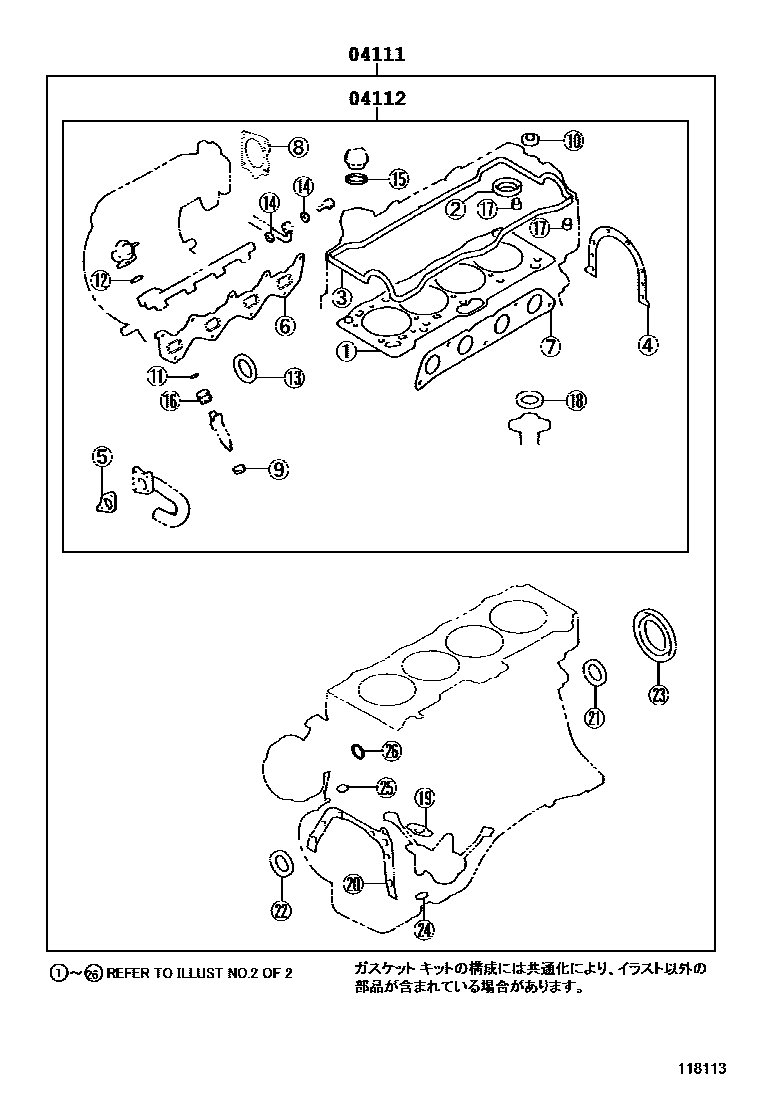

Engine Overhaul Gasket Kit — 118113A (199505 – 999999)

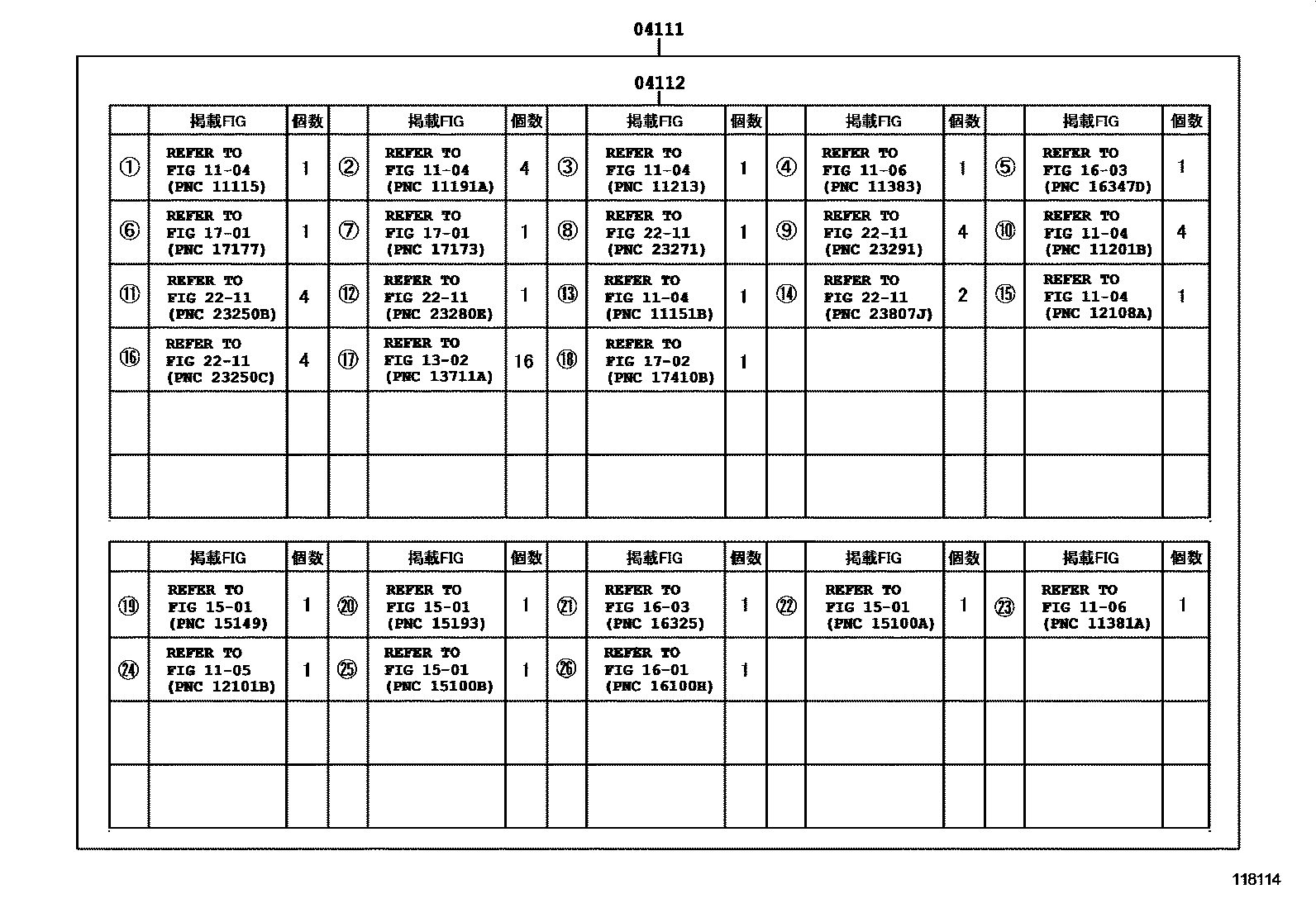

Engine Overhaul Gasket Kit — 118114 (199505 – 999999)

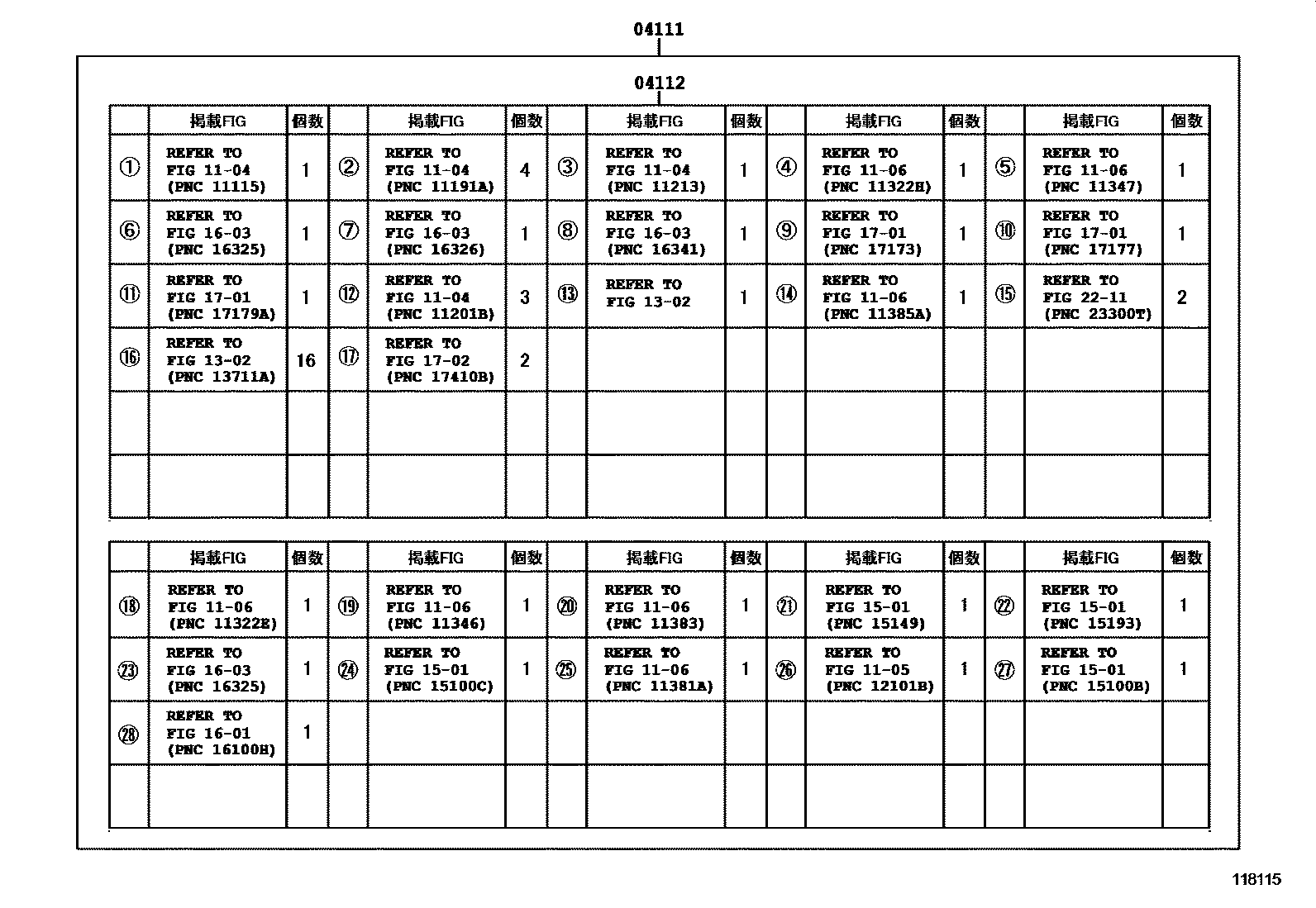

Engine Overhaul Gasket Kit — 118115 (199704 – 999999)PNC and OE references
| PNC | Part name | OE numbers |
|---|
| 04111 | Engine overhaul gasket assembly | 04111-11092 · 04111-11141 · 04111-16221 · 04111-16231 · 04111-16330 · 04111-64290 · 04111-64291 · 04111-64292 · 04111-64293 · 04111-64380 · 04111-64381 · 04111-64382 · 04111-64383 |
| 04112 | Engine valve grinding pad assembly | 04112-11081 · 04112-11121 · 04112-16220 · 04112-16230 · 04112-16330 · 04112-64220 · 04112-64221 · 04112-64222 · 04112-64223 · 04112-64290 · 04112-64291 |
