Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 2 PNC and OE references.

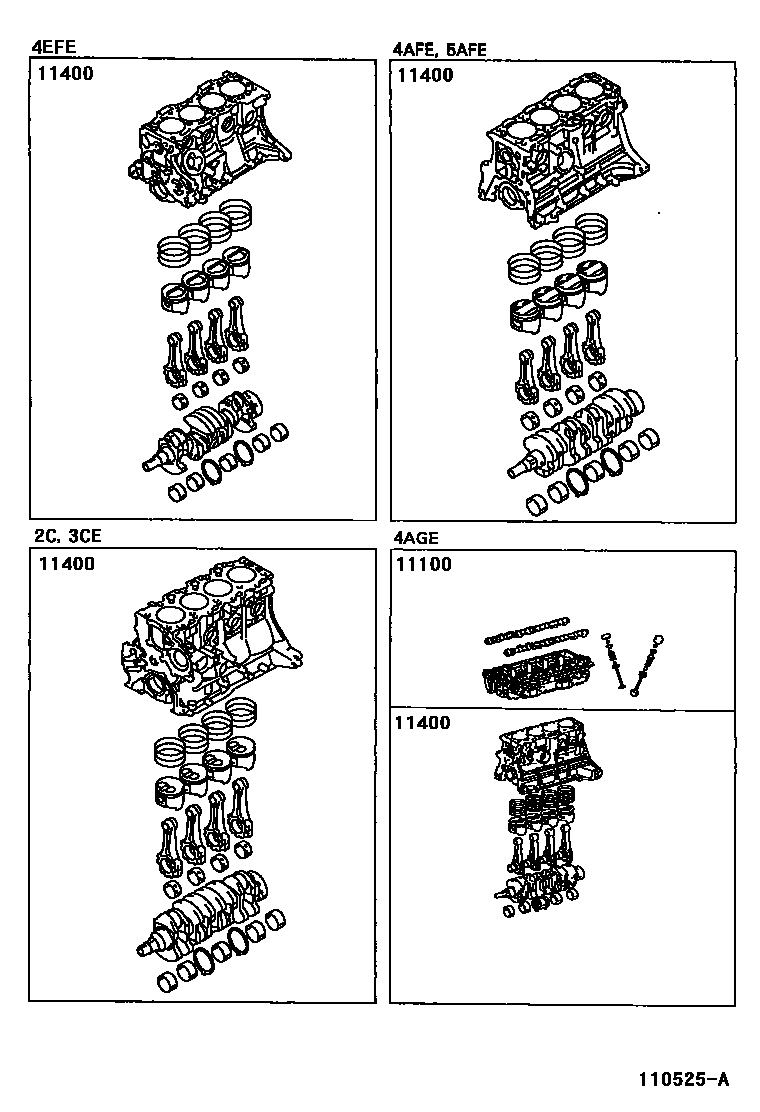

Toyota COROLLA Short Block Assembly EPC diagram — 110525A
Short Block Assembly — 110525A (199505 – 999999)

PNC and OE references

PNCPart nameOE numbers
11100Short Block Assembly11100-16020
11400Short Block Assembly11400-11140 · 11400-11141 · 11400-11181 · 11400-16310 · 11400-16320 · 11400-16400 · 11400-16410 · 11400-16450 · 11400-64480 · 11400-64481 · 11400-64490 · 11400-64590 · 11400-64591 · 11400-64592 · 11400-64600 · 11400-64601 · 11400-64602
