Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

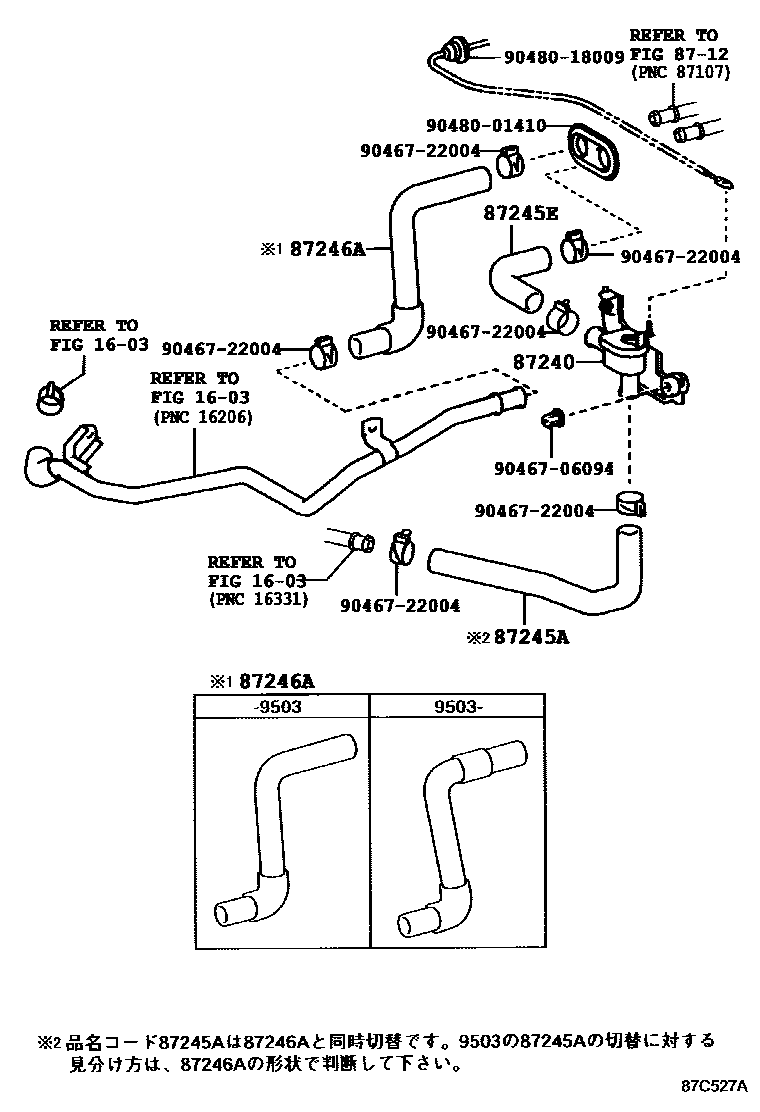

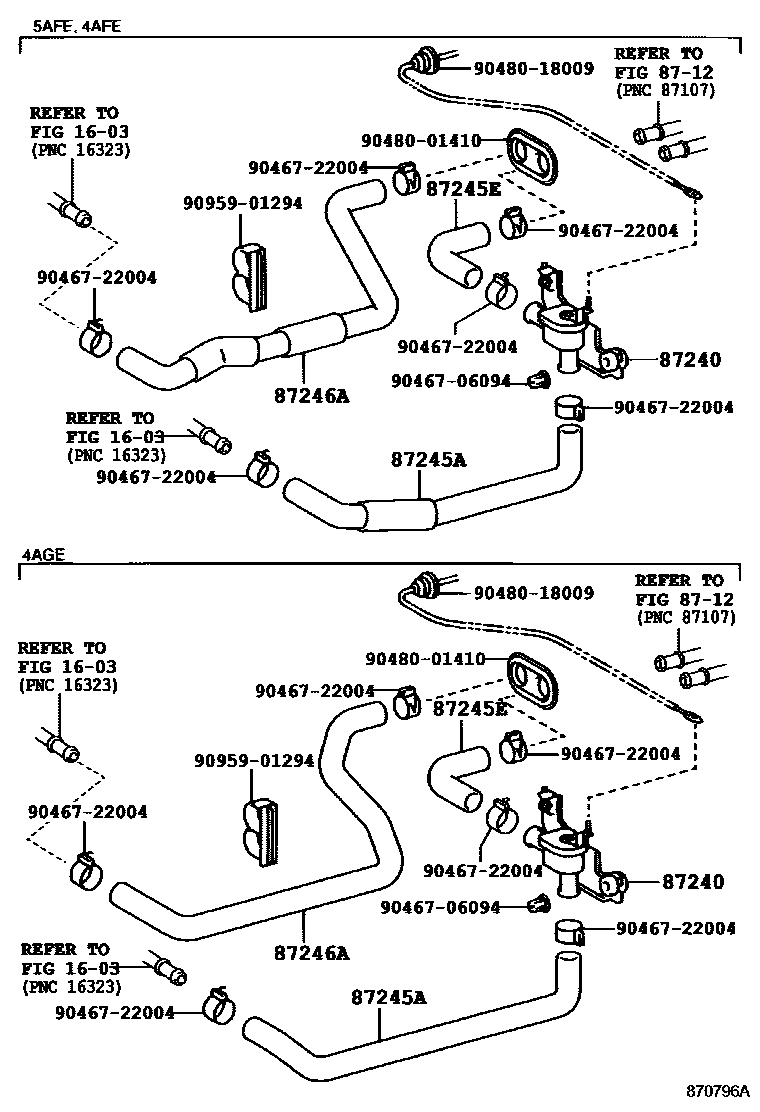

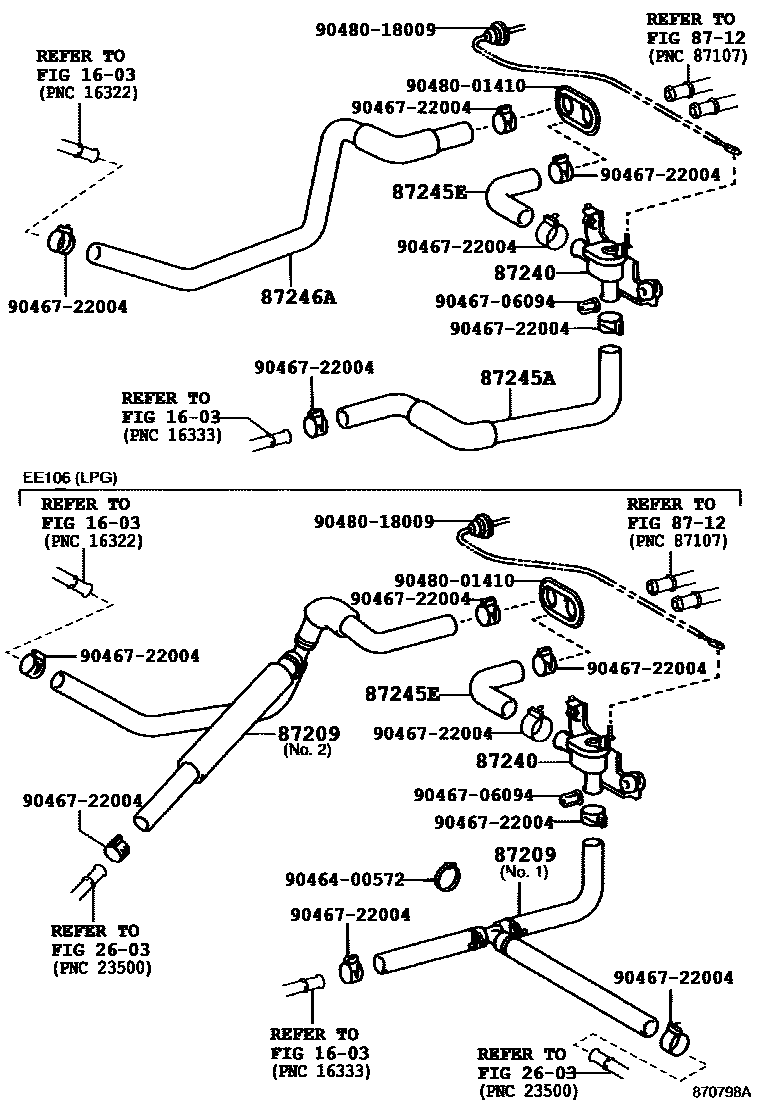

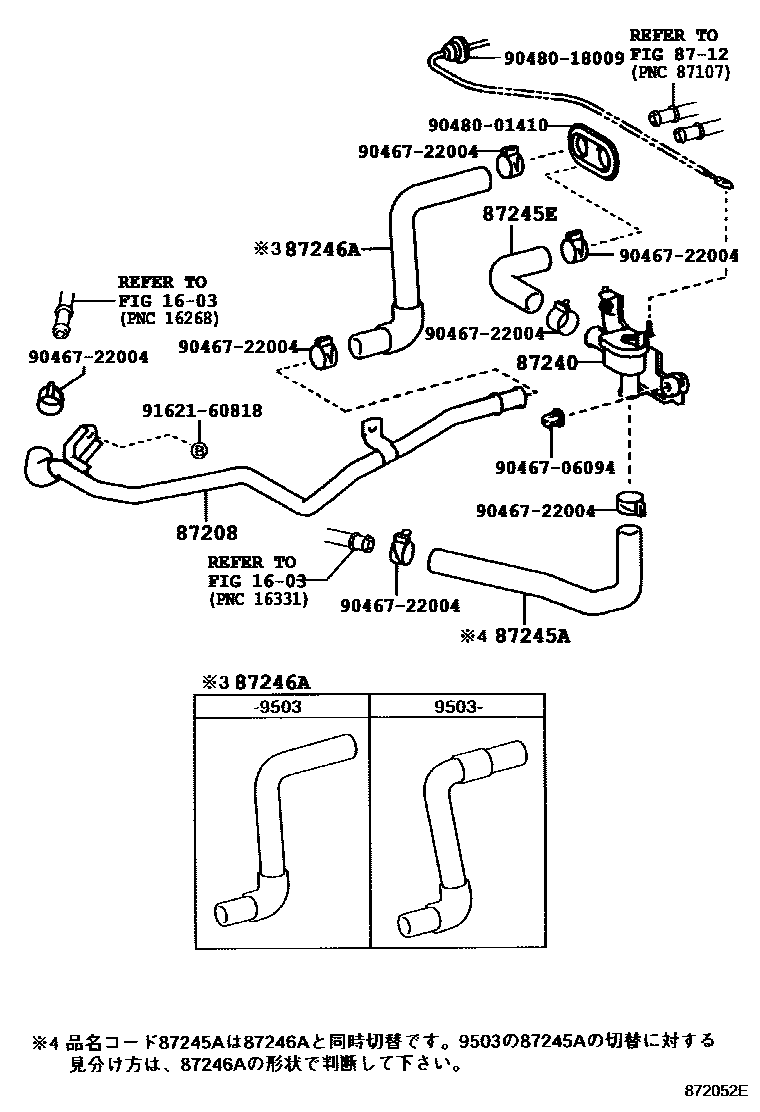

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87208 | Heater water pipe sub-assembly | 87209-12440 · 87209-12450 |
| 87209 | Water hose sub-assembly | 87209-13021 · 87209-13030 |
| 87240 | Heater water valve assembly | 87240-12250 |
| 87245A | Heater water inlet hose A | 87245-1A170 · 87245-1A450 · 87245-1A470 · 87245-1A490 · 87245-1A640 · 87245-1A660 · 87245-1A680 · 87245-1A690 |
| 87245E | Heater water inlet hose E | 87245-1A440 |
| 87246A | Heater outlet hose A | 87245-1A211 · 87245-1A460 · 87245-1A480 · 87245-1A510 · 87245-1A630 · 87245-1A670 · 87245-1A700 |
