Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 3 images and 3 PNC and OE references.

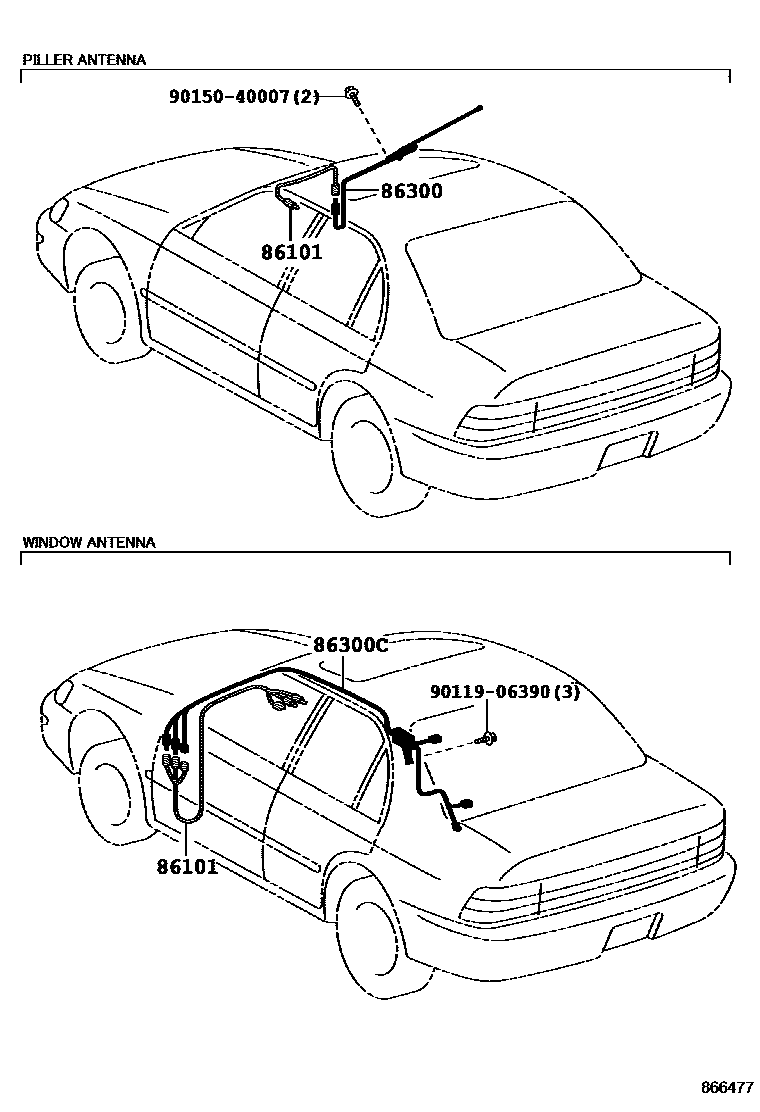

Toyota COROLLA antenna EPC diagram — 866477
antenna — 866477 (199106 – 999999)

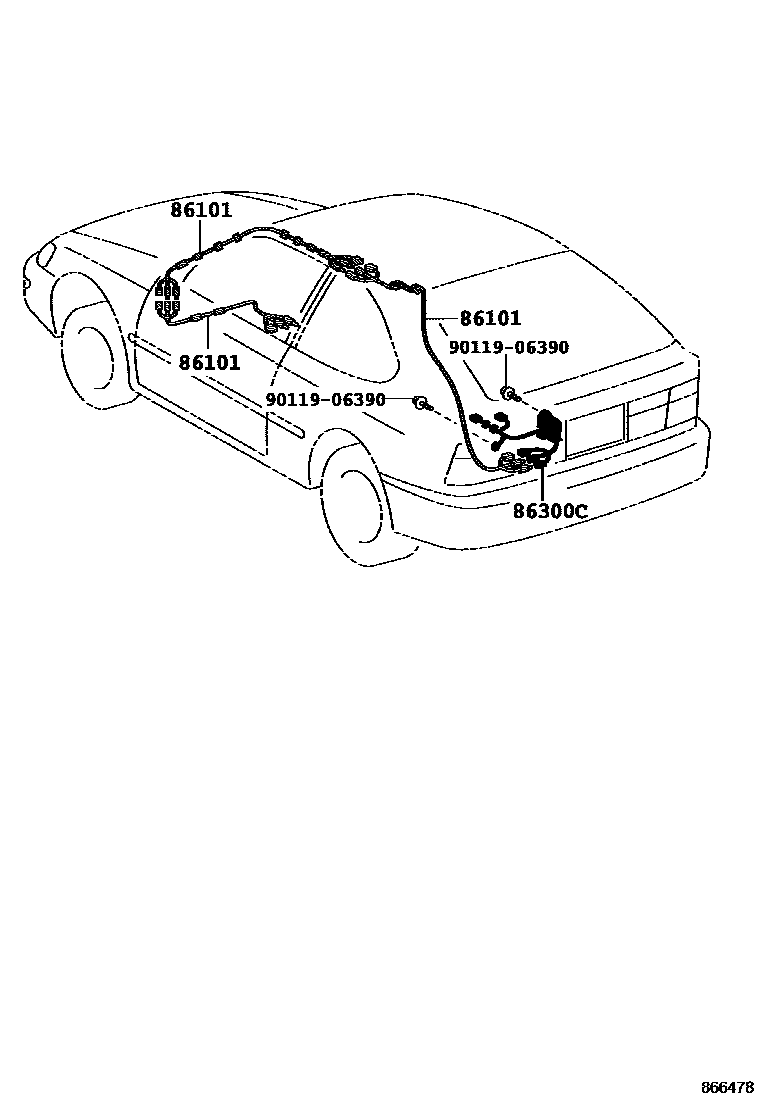

Toyota COROLLA antenna EPC diagram — 866478
antenna — 866478 (199205 – 999999)

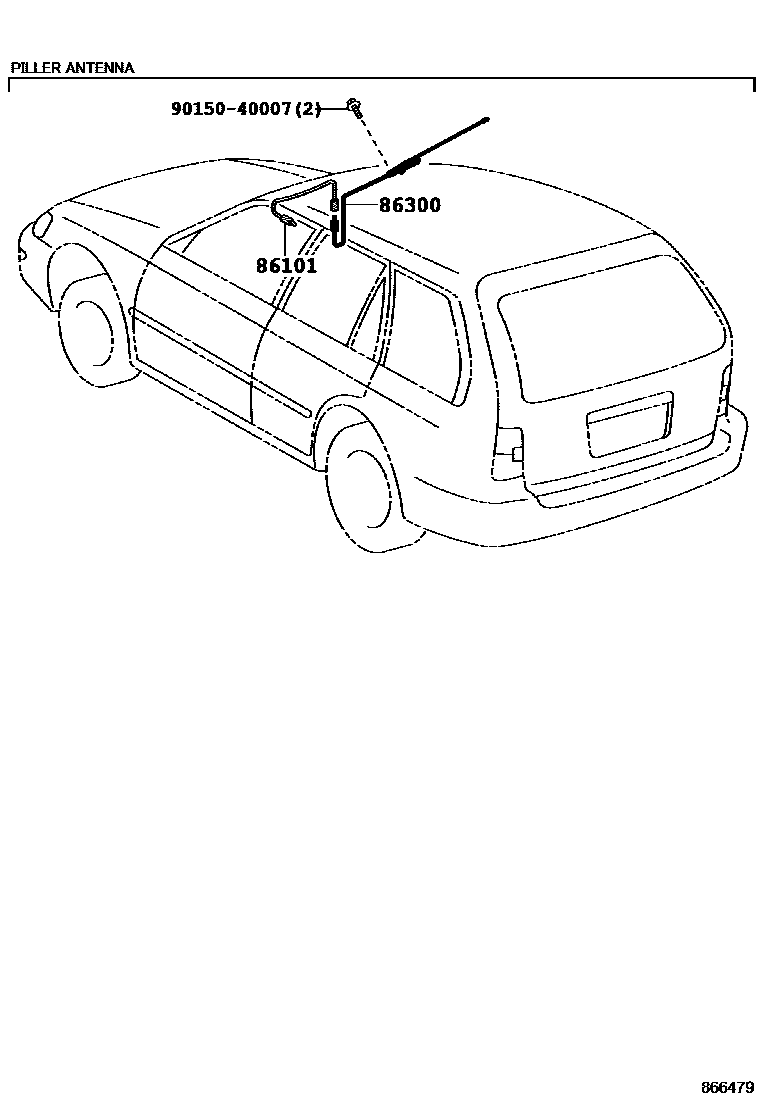

Toyota COROLLA antenna EPC diagram — 866479
antenna — 866479 (199109 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-12120 · 86101-12130 · 86101-12140 · 86101-12190 · 86101-12200 · 86101-12210 · 86101-12220 · 86101-12230 · 86101-12240
86300Antenna assembly with fixing parts86300-12390 · 86300-12391
86300CAmplifier antenna assembly86300-12420 · 86300-12430 · 86300-12490 · 86300-12510 · 86300-12540 · 86300-12550
