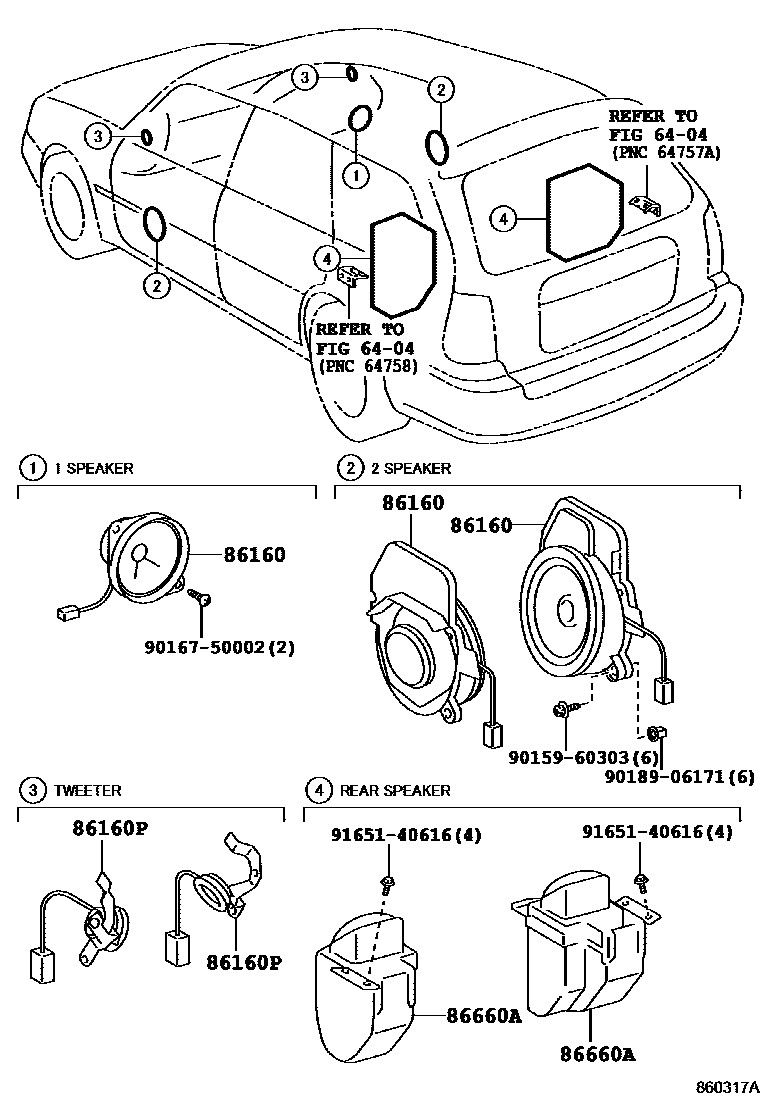

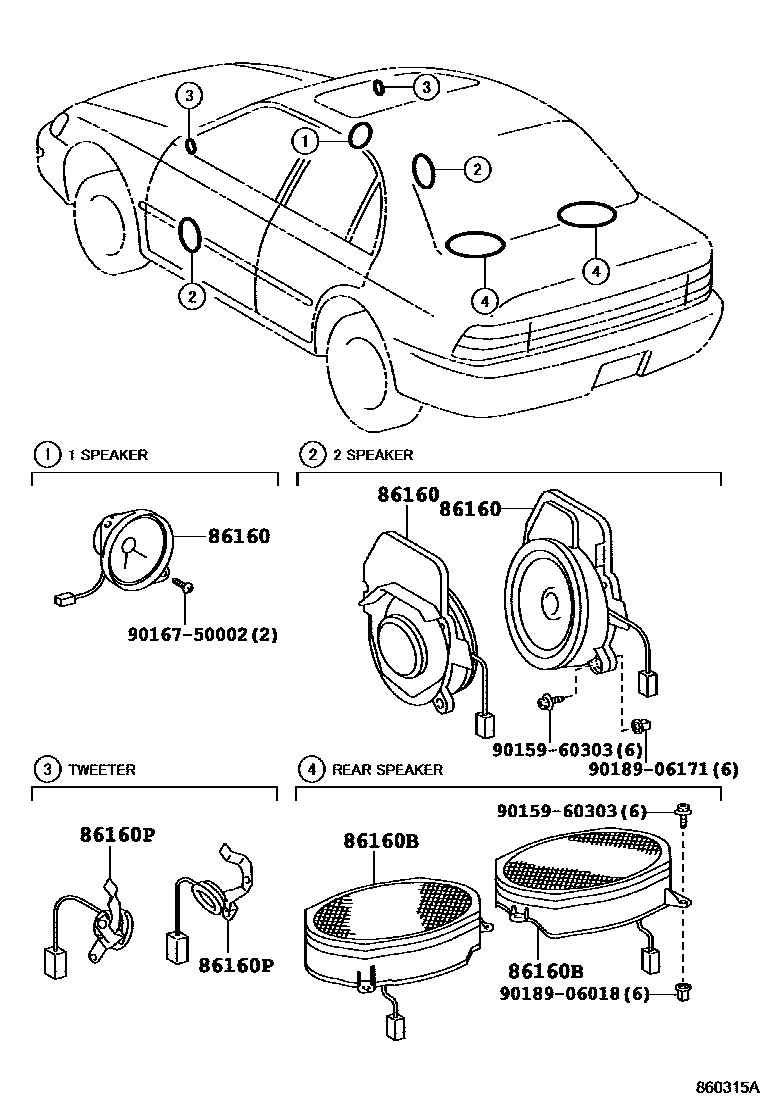

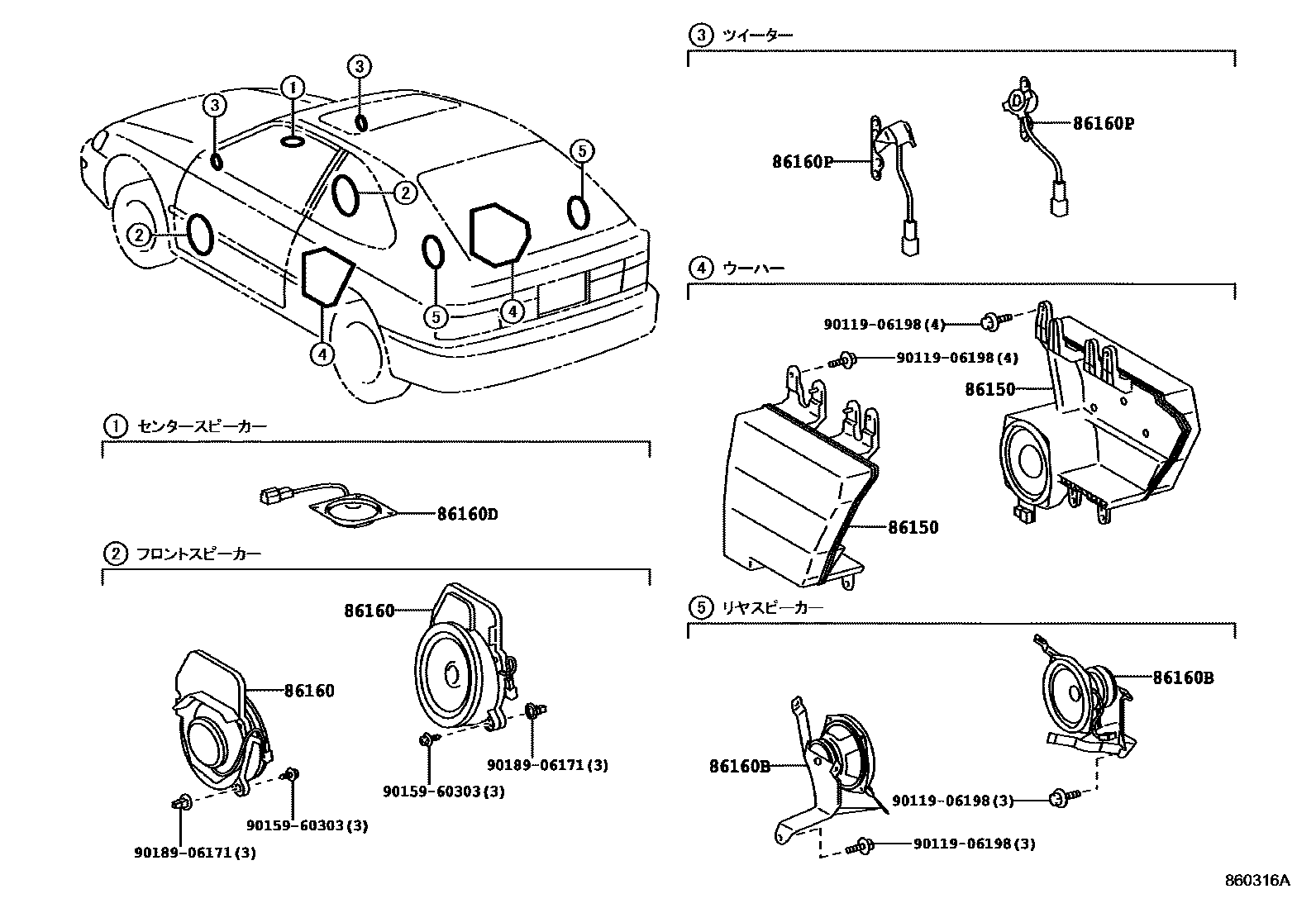

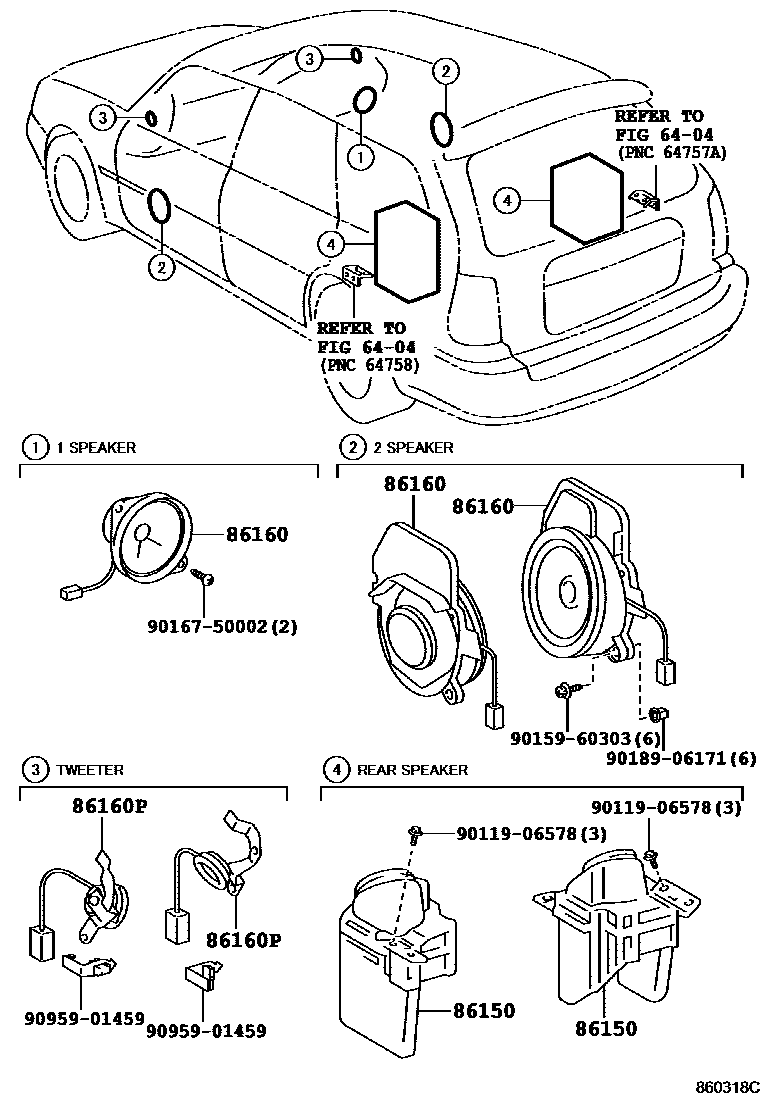

Toyota COROLLA 扬声器 — Figure 8602
Toyota COROLLA EPC diagram 8602, 扬声器, with 4 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86150 | No. 1 loudspeaker assembly with box | 86150-12140 · 86150-12150 · 86150-13060 · 86150-13070 |
| 86160 | No. 1 front speaker assembly | 86160-12400 · 86160-12410 · 86160-12420 · 86160-12430 · 86160-12440 · 86160-12570 · 86160-12580 |
| 86160B | Rear speaker assembly | 86160-12450 · 86160-12460 · 86160-12470 · 86160-12480 · 86160-12640 · 86160-12650 · 86160-12660 · 86160-12670 |
| 86160D | Front stereo part speaker assembly | 86160-12720 |
| 86160P | No. 2 front speaker assembly | 86160-12360 · 86160-12370 · 86160-12740 · 86160-12750 |
| 86660A | Speaker assembly | 86660-13010 · 86660-13020 |
