Toyota COROLLA 后清洗器 — Figure 8504

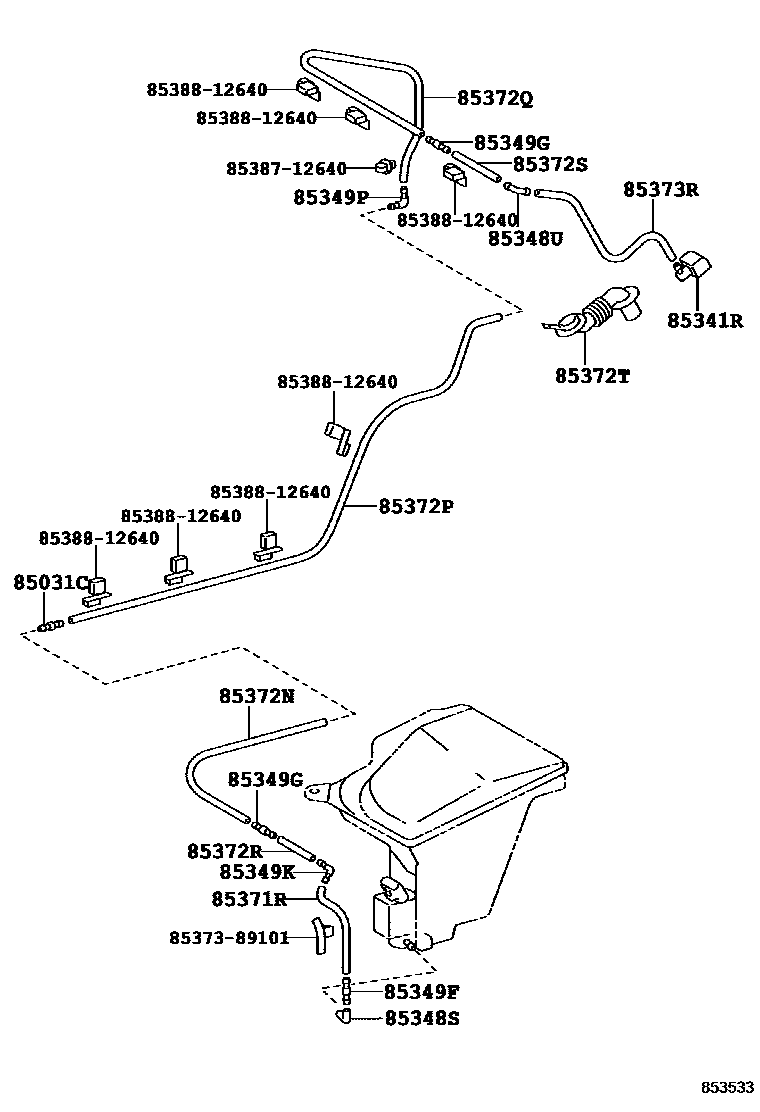

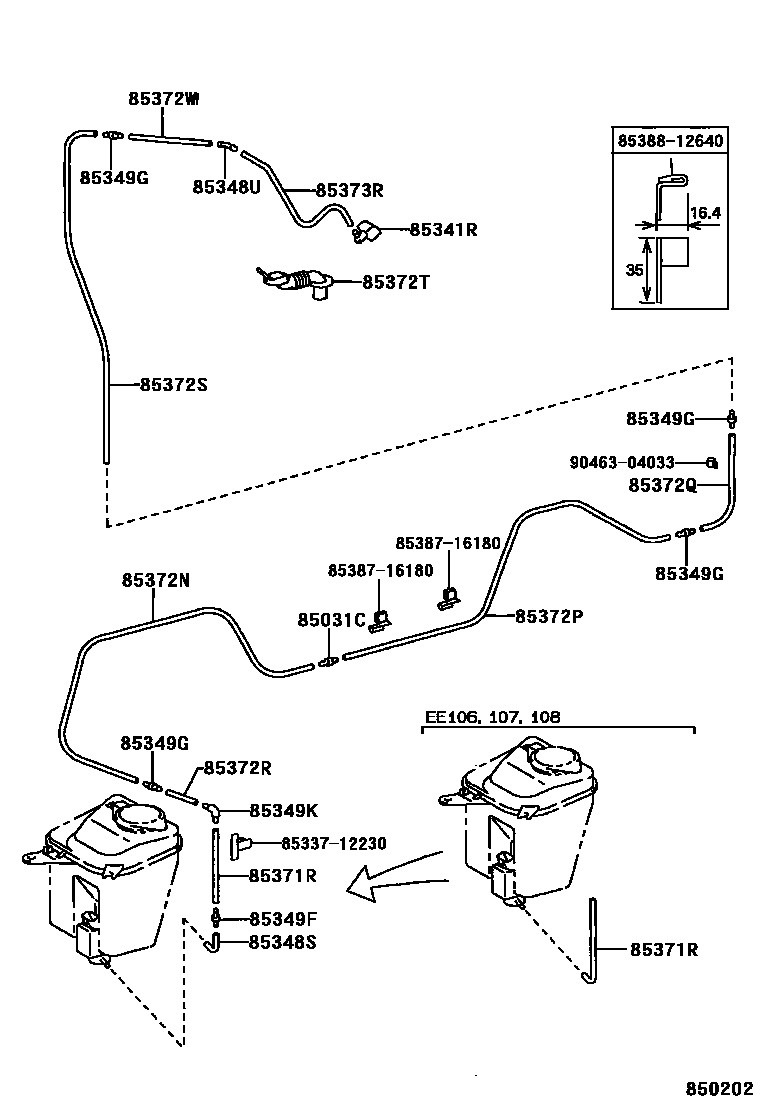

Toyota COROLLA EPC diagram 8504, 后清洗器, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031C | Cleaner valve sub-assembly | 85031-30010 |
| 85341R | Cleaner nozzle assembly | 85395-12020 · 85395-13010 · 85395-13040 |
| 85348S | No. 1 rear cleaner elbow joint | 85336-12230 |
| 85348U | No. 3 rear washer hose connector | 85349-89122 · 85355-20080 |
| 85349F | No. 1 rear washer hose connector | 85375-10260 |
| 85349G | No. 2 rear washer hose connector | 85349-89122 |
| 85349K | No. 2 rear cleaner elbow joint | 85317-12230 |
| 85349P | No. 3 rear cleaner elbow joint | 85355-20200 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 90099-33490 · 90099-59030 · 90099-59060 · 90099-59079 · 90099-59116 |
| 85372T | Cleaner seal | 82819-13080 · 85373-13010 |
| 85372W | No. 5 rear washer hose (from connector to connector) | 90099-33080 |
| 85373R | Rear washer hose (from connector to nozzle) | 90099-33727 |
