Toyota COROLLA 遥控门锁 — Figure 8420

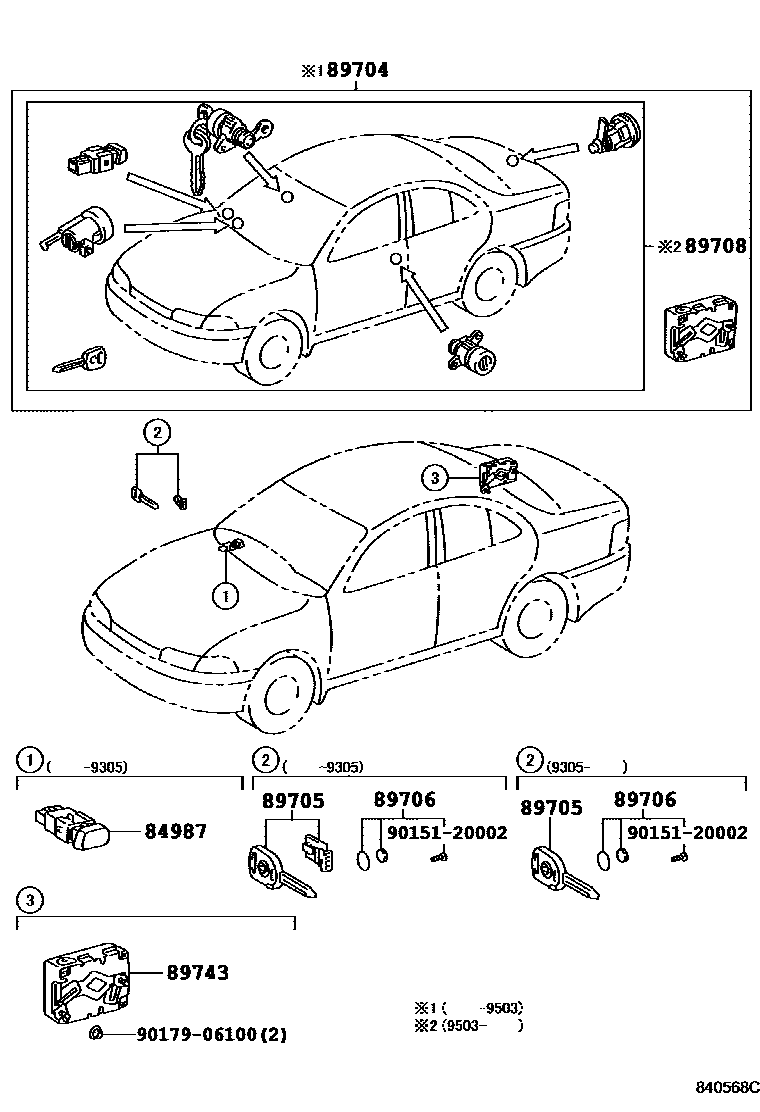

Toyota COROLLA EPC diagram 8420, 遥控门锁, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84987 | Remote door lock main switch | 84987-12010 |
| 89704 | Remote door lock control components | 89704-12020 · 89704-12070 |
| 89705 | remote key | 89705-12010 · 89742-12060 |
| 89706 | Transmitter battery pack | 89706-50010 |
| 89708 | Remote control door lock cylinder assembly | 89708-12050 |
| 89743 | door control receiver | 89741-12040 · 89743-12010 |
