Toyota COROLLA 高位刹车灯 — Figure 8117

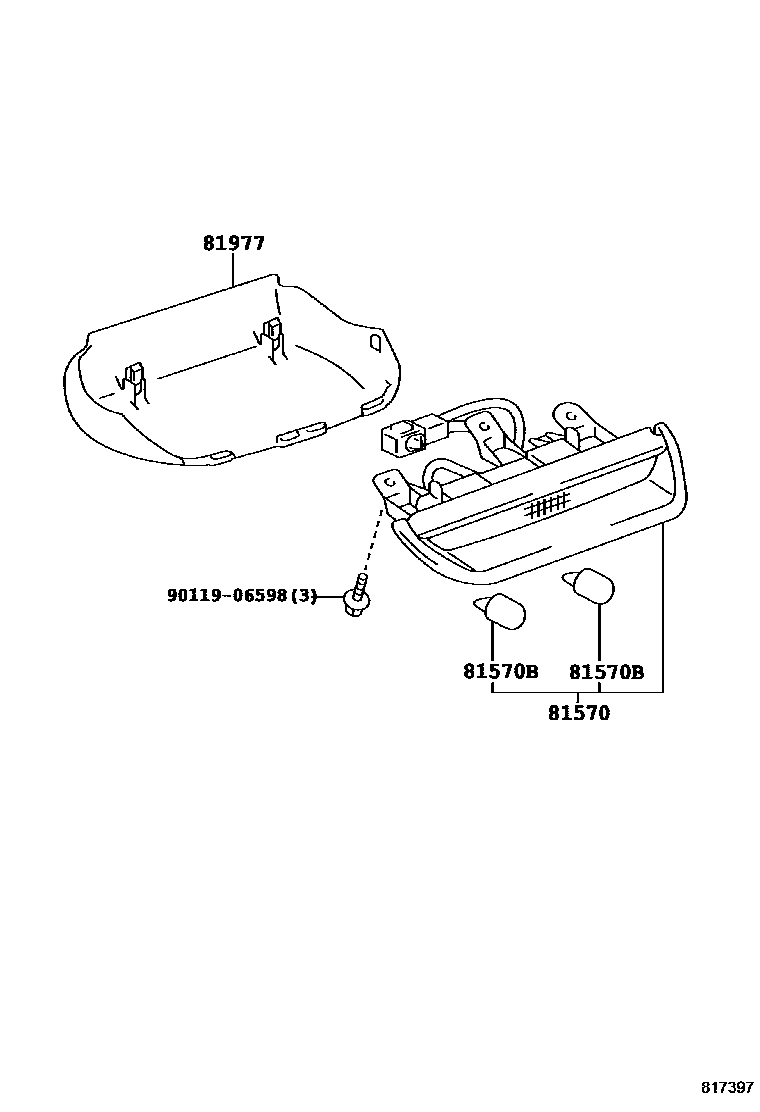

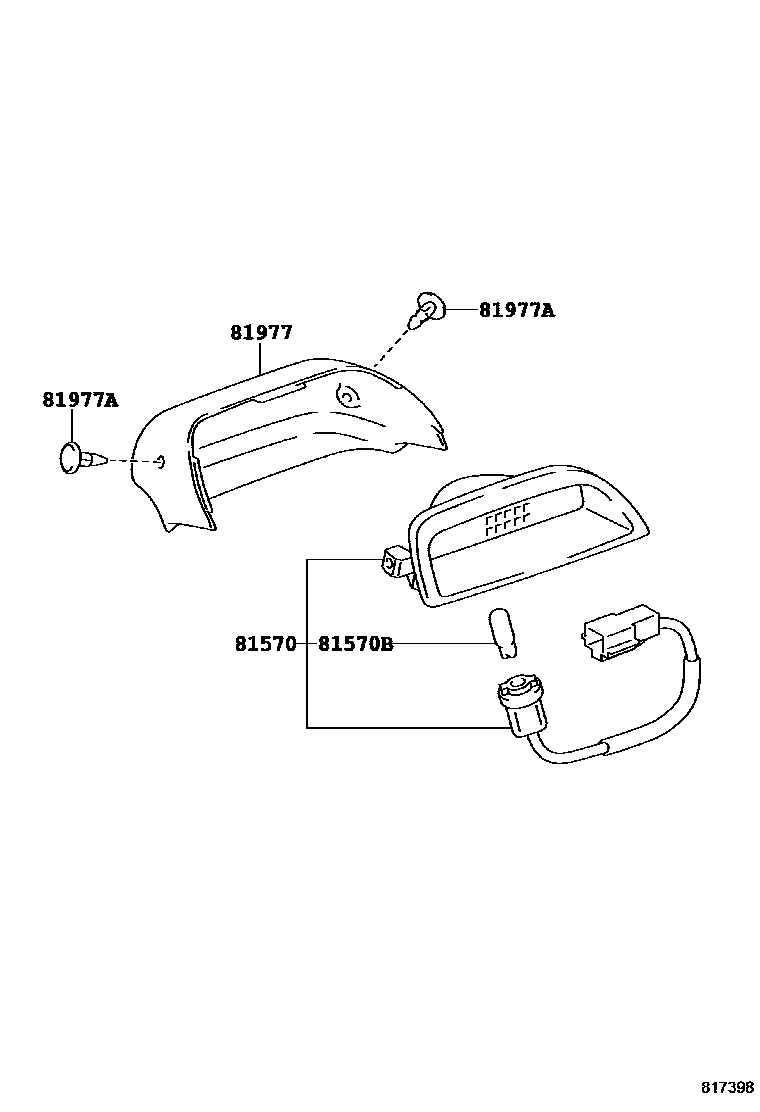

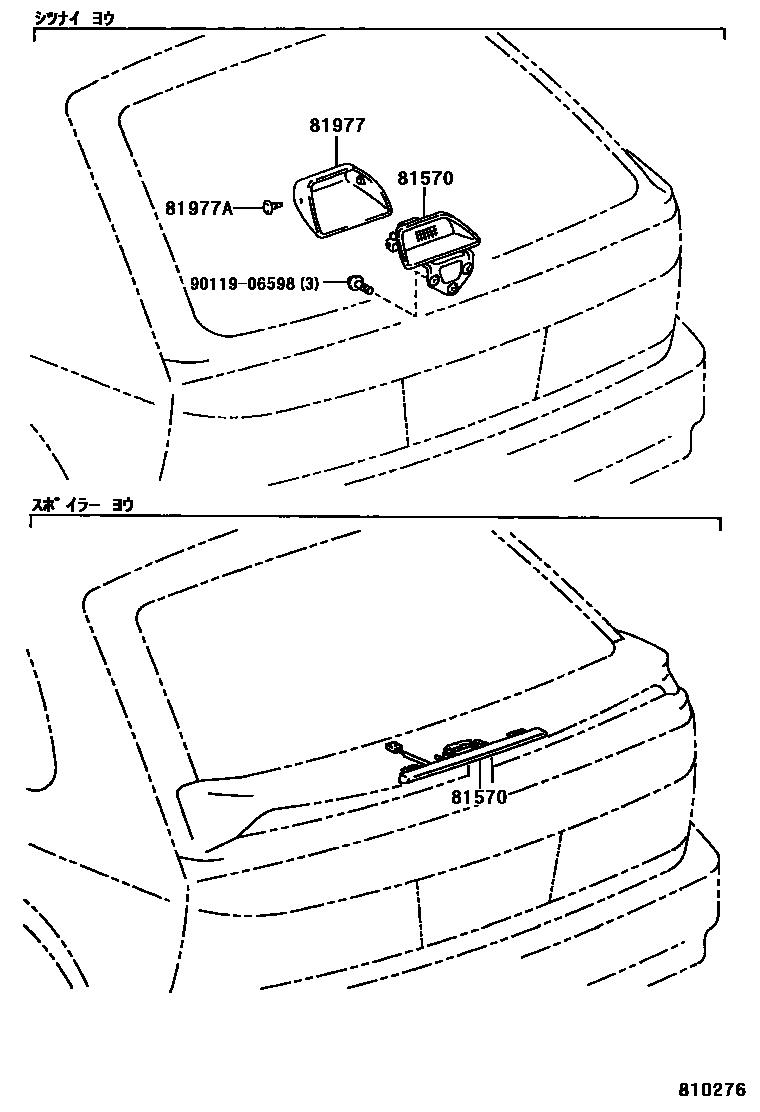

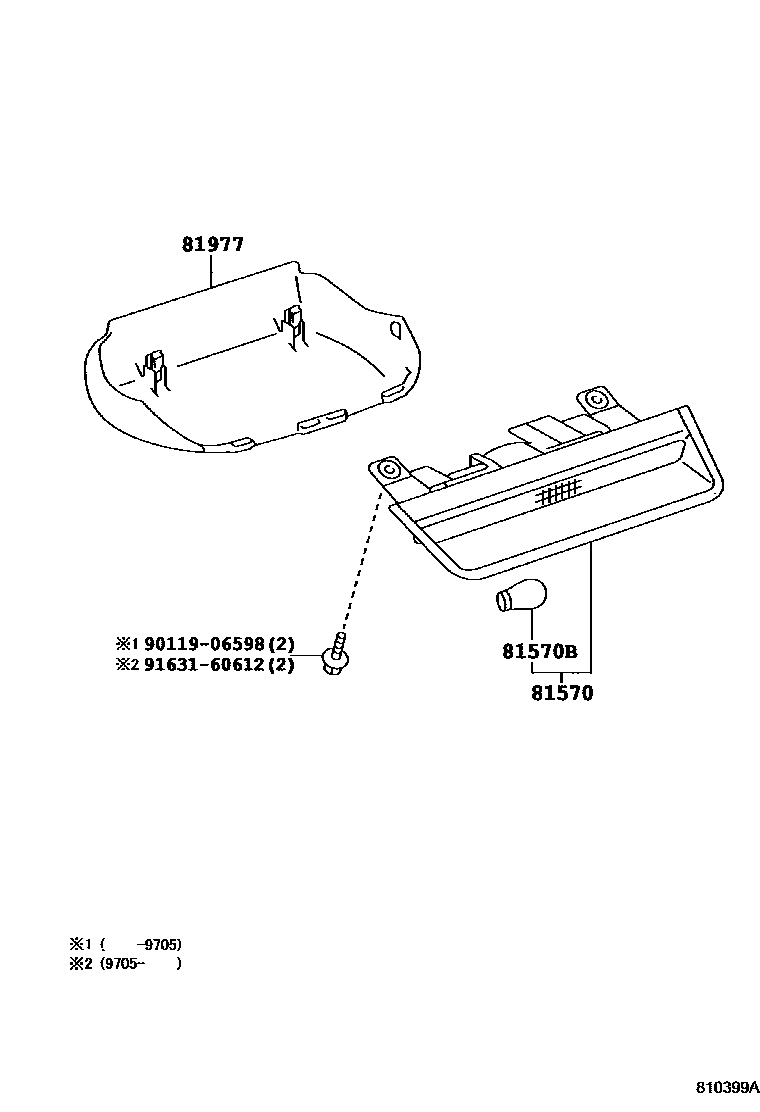

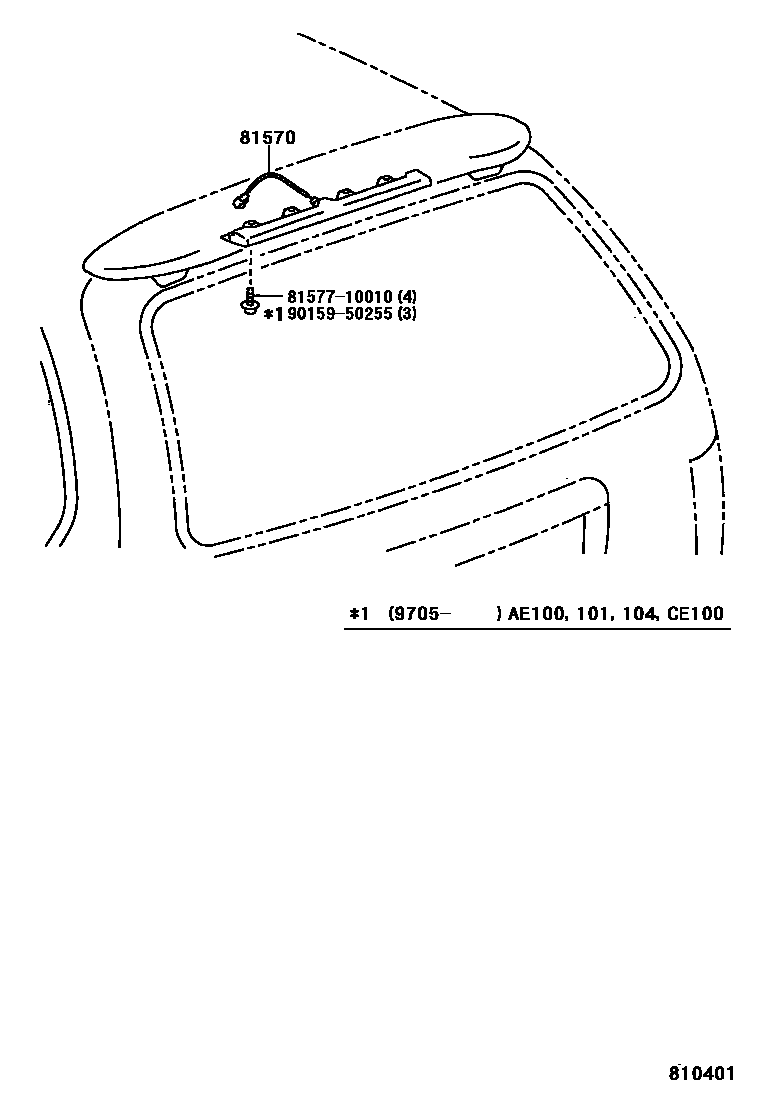

Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 5 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81570 | Central brake light assembly | 81570-12230 · 81570-12231 · 81570-12232 · 81570-12250 · 81570-12251 · 81570-13050 · 81570-13060 · 81570-13070 · 81570-13080 · 81570-13110 · 81570-13120 · 81570-13150 |
| 81570B | Bulb (for center brake light) | 90981-11039 · 99132-11210 |
