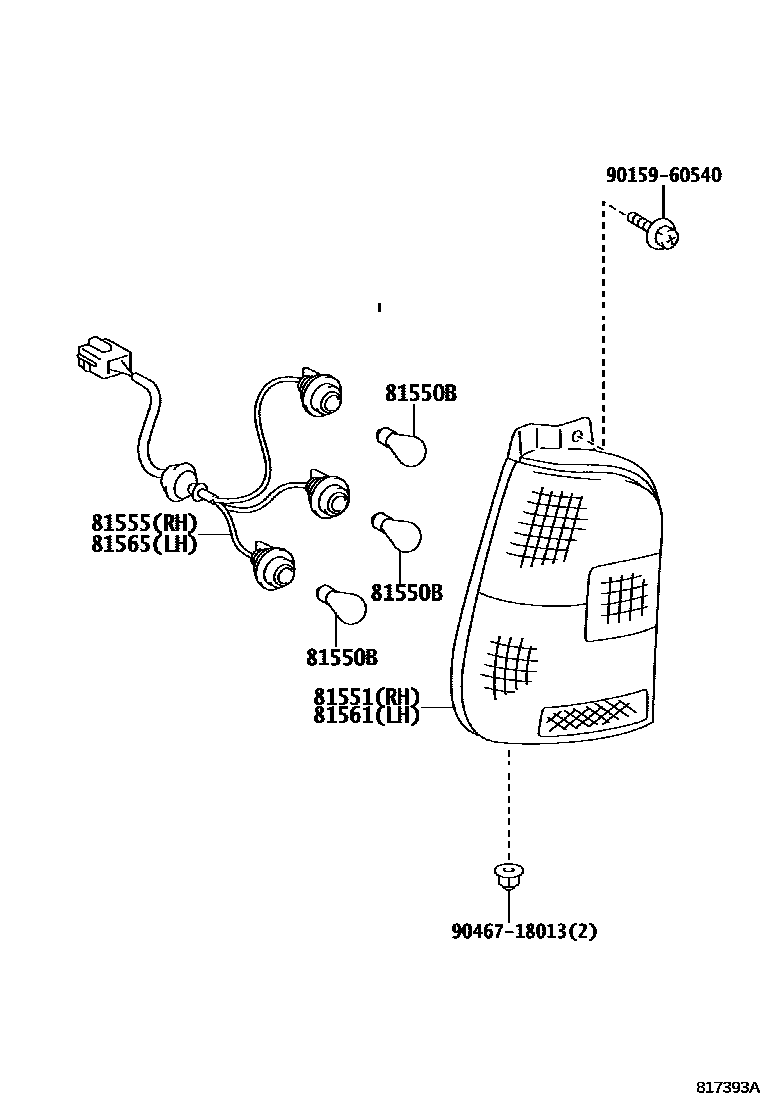

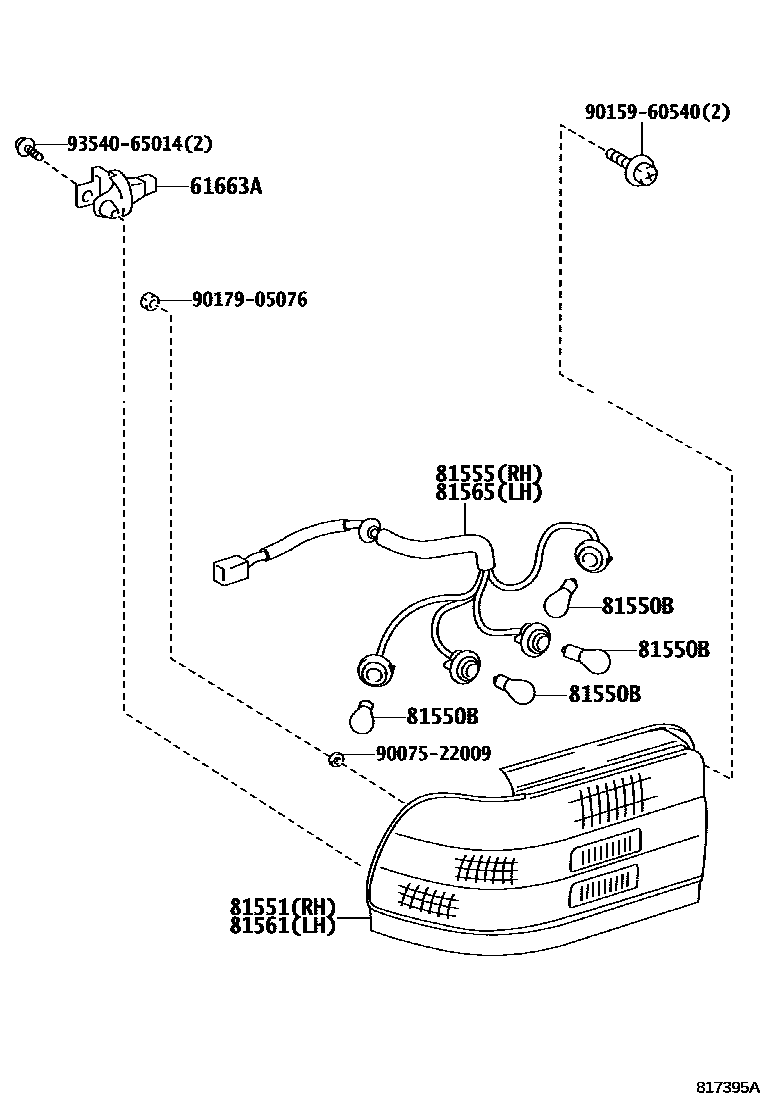

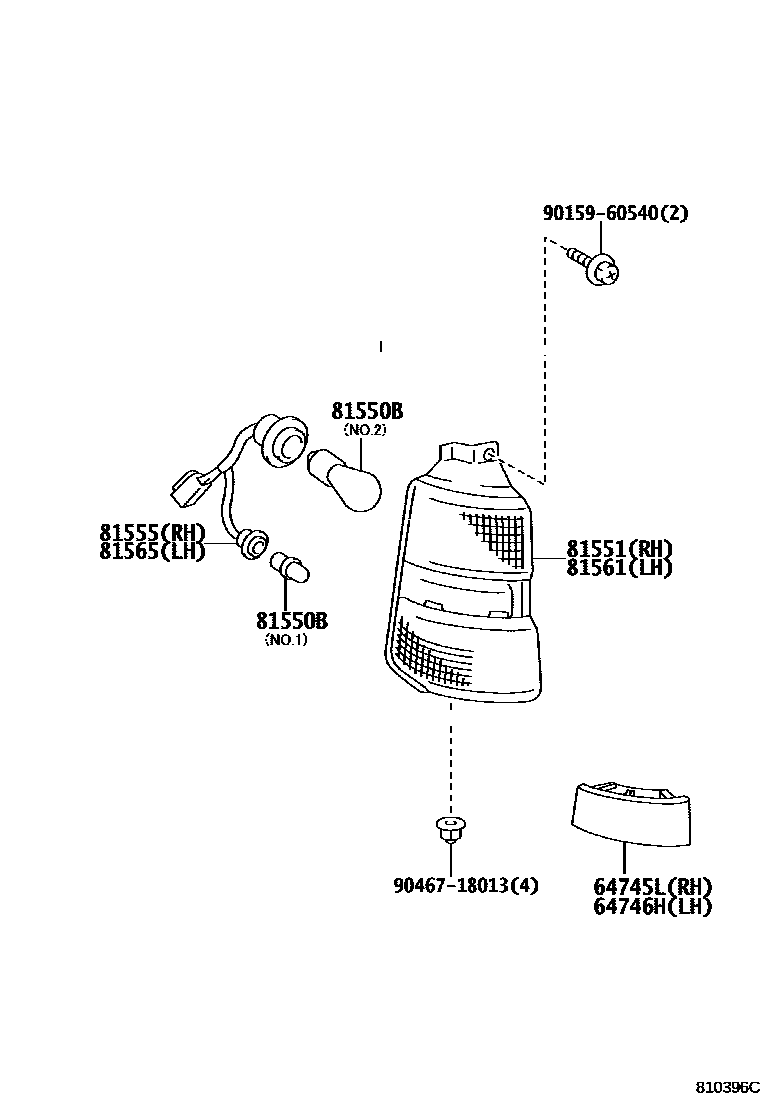

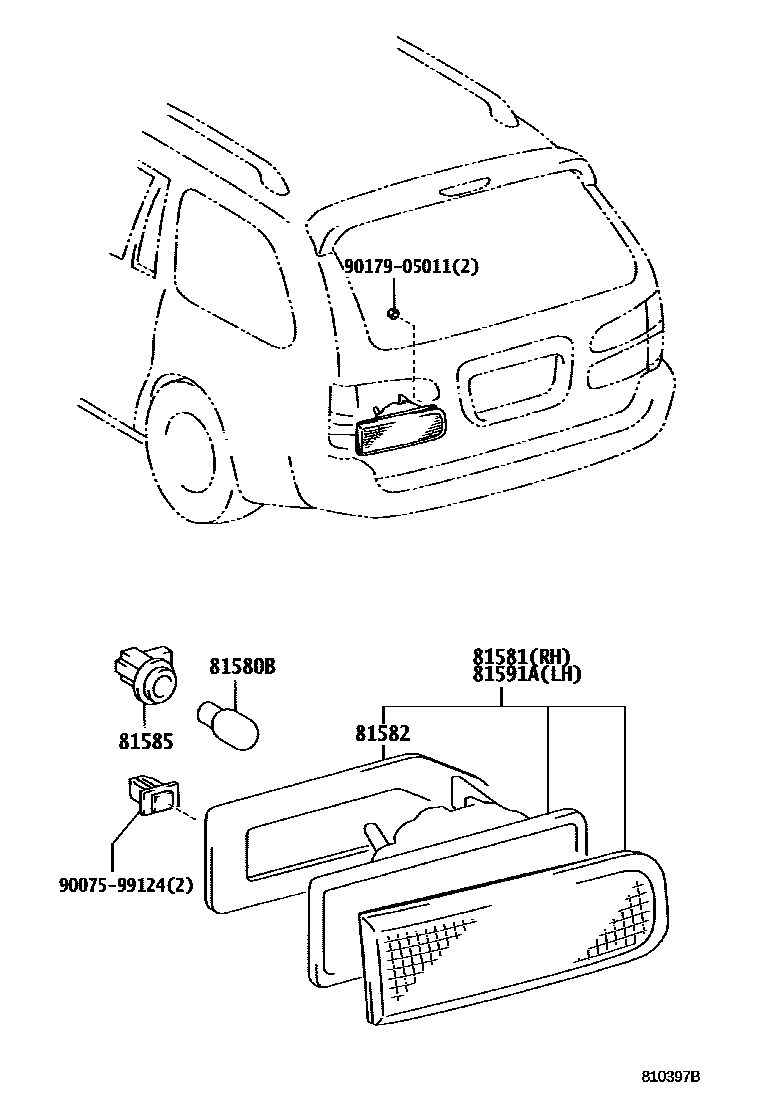

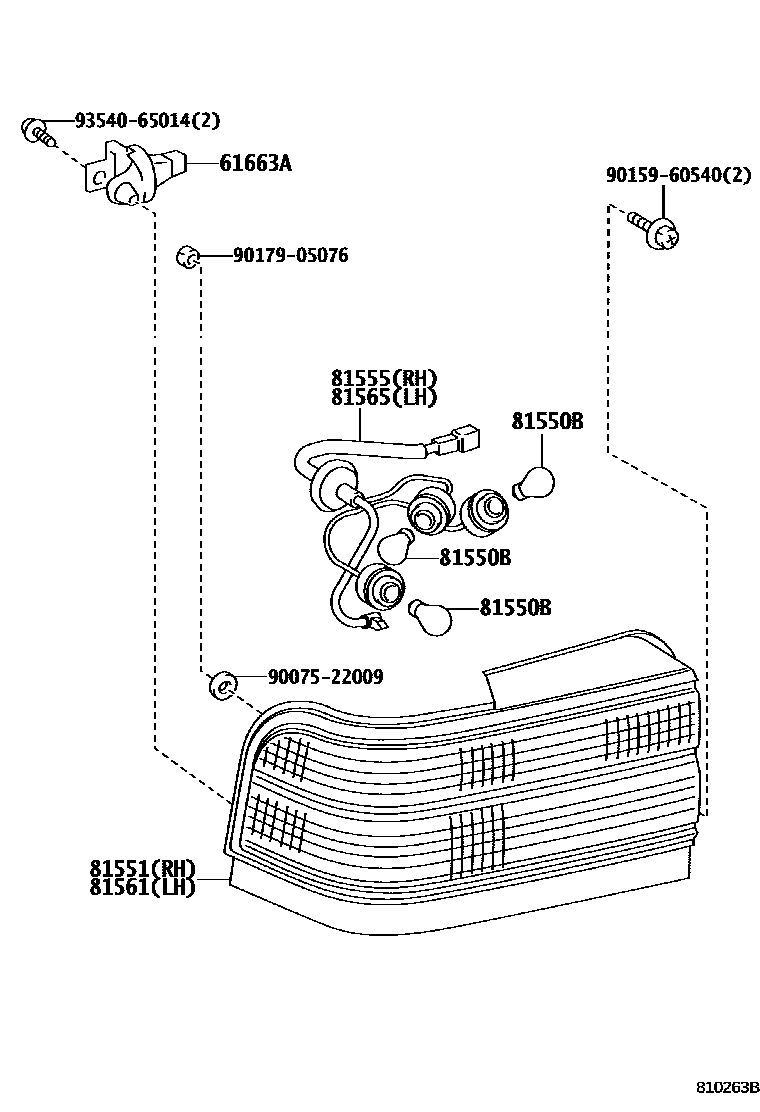

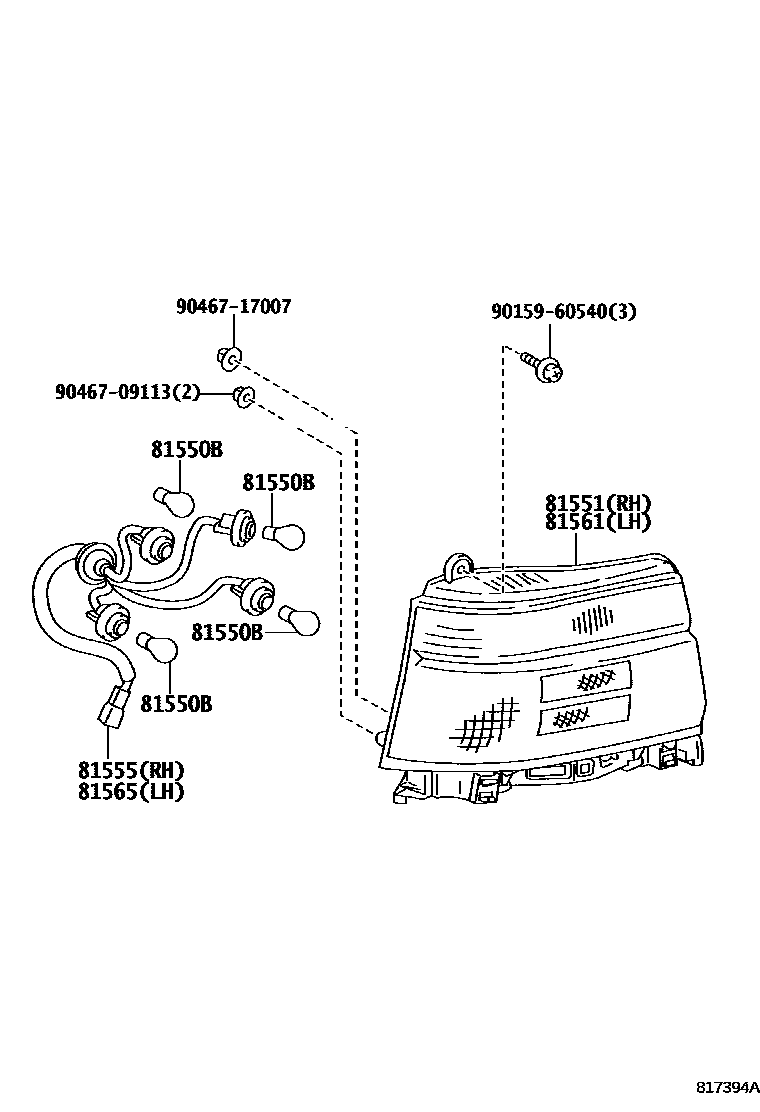

Toyota COROLLA 后组合灯 — Figure 8111
Toyota COROLLA EPC diagram 8111, 后组合灯, with 6 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61663A | Rear combination light mounting bracket | 61663-12010 |
| 64745L | Right rear combination light access hole cover | 64745-13010 |
| 64746H | Left rear combination light access hole cover | 64746-13020 |
| 81550B | Bulb (for rear combination lights) | 90981-13044 · 90981-15009 · 99132-11210 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-13320 · 81551-13390 · 81551-1A630 · 81551-1A720 · 81551-1A870 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13320 · 81555-13340 · 81555-13390 · 81555-1A630 · 81555-1A720 · 81555-1A870 |
| 81561 | Left rear combination lamp shade | 81561-13320 · 81561-13390 · 81561-1A460 · 81561-1A630 · 81561-1A830 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13320 · 81555-13340 · 81555-13390 · 81555-1A630 · 81555-1A720 · 81555-1A870 |
| 81580B | Bulb (for rear light) | 99132-12050 |
| 81581 | rear light shade | 81581-13010 |
| 81582 | rear light gasket | 81582-13010 · 81592-13010 |
| 81585 | Rear lamp holder and wiring harness | 90075-99005 |
| 81591A | rear light shade | 81591-13010 |
