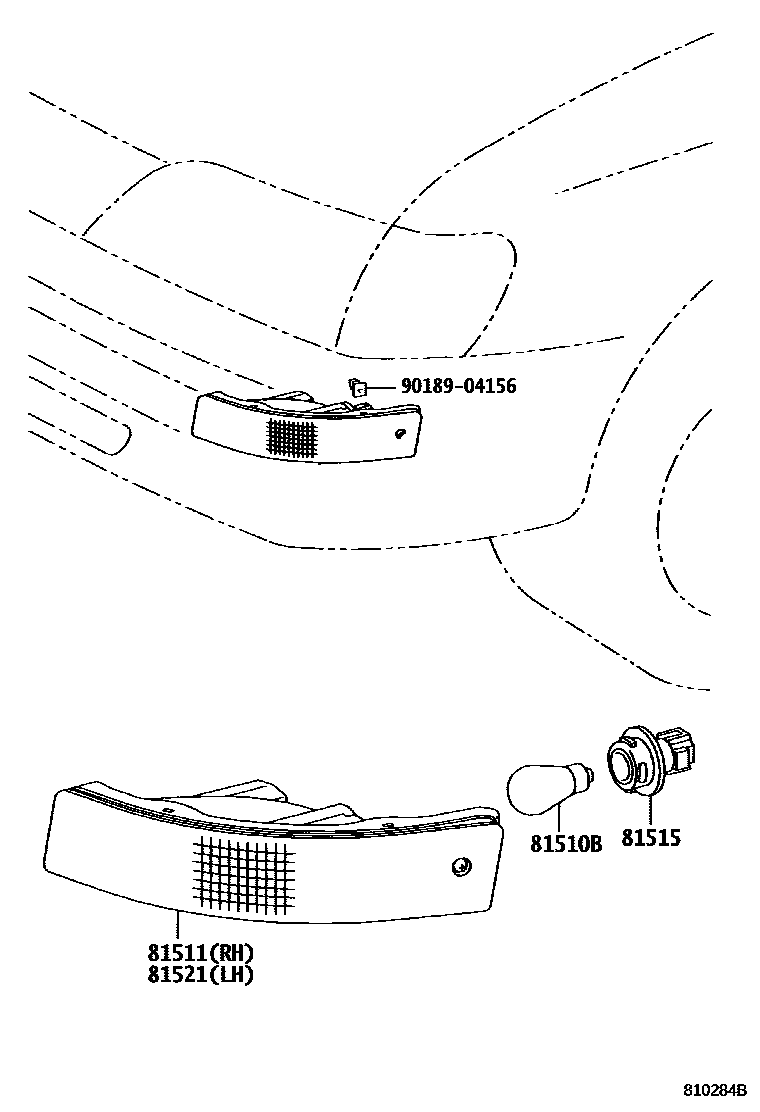

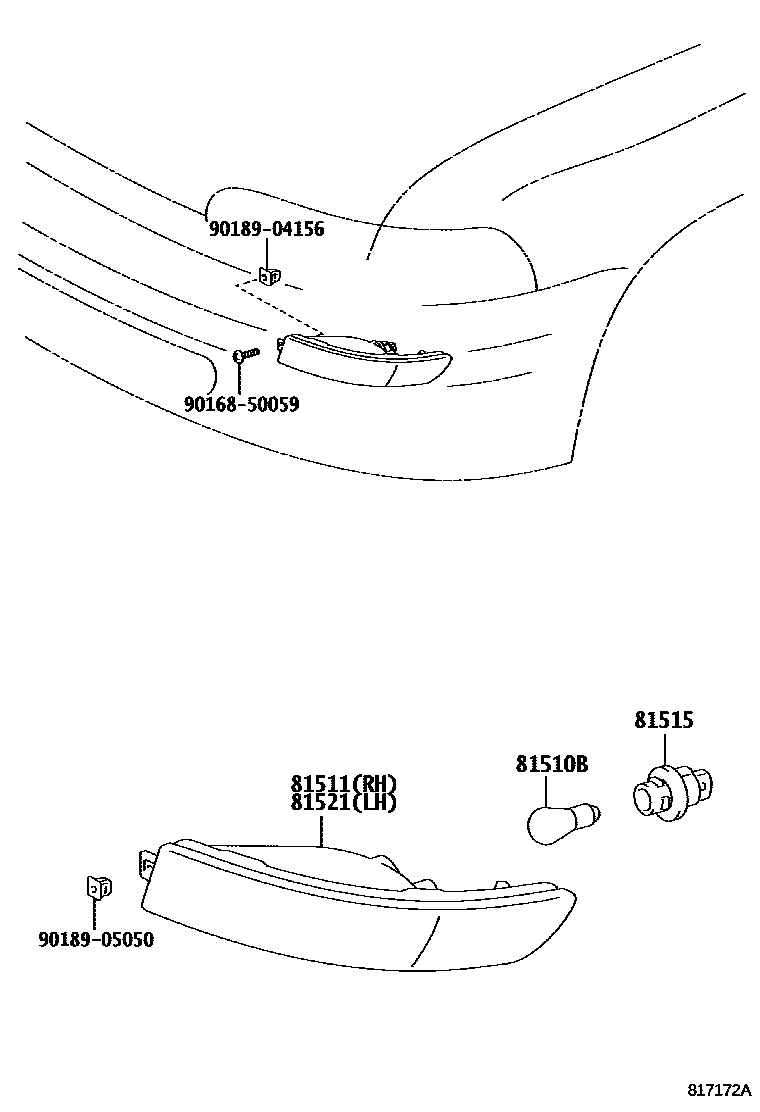

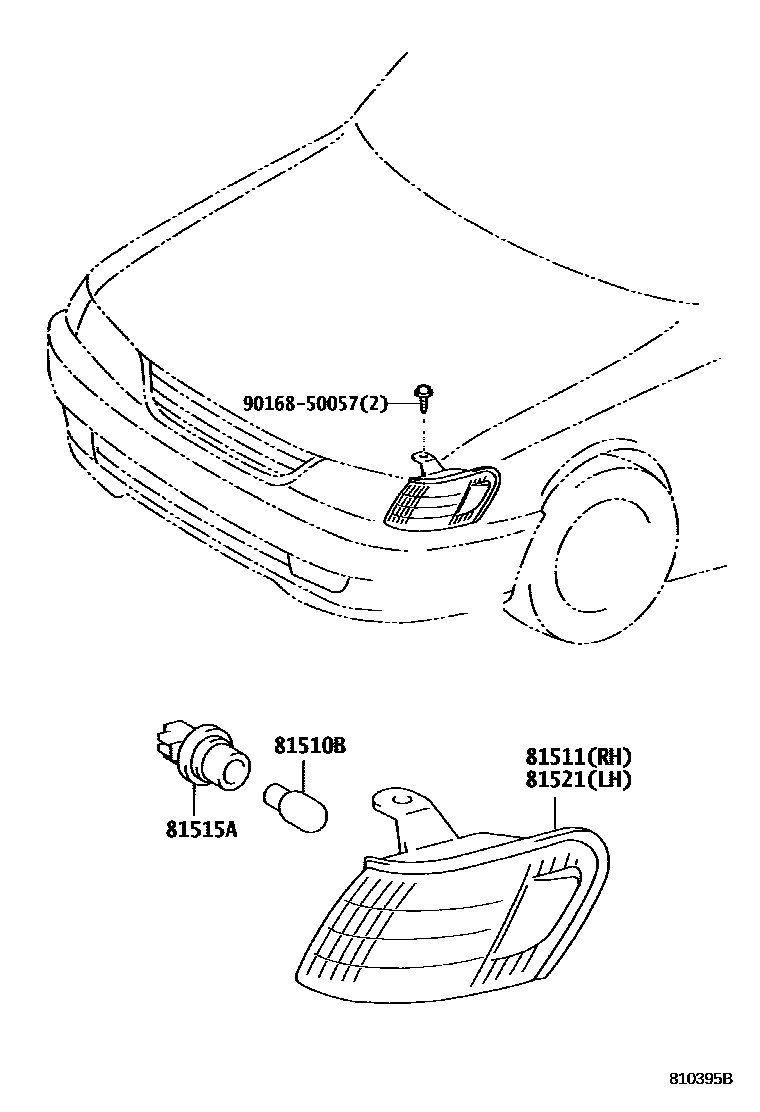

Toyota COROLLA 前转向灯 — Figure 8103
Toyota COROLLA EPC diagram 8103, 前转向灯, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510B | Bulb (for front turn signal lamp) | 90981-13043 · 99132-11210 |
| 81511 | Right front turn signal lamp cover | 81511-12670 · 81511-12740 · 81511-12770 · 81511-13060 · 81511-13070 |
| 81515 | Front turn signal light body wiring harness sub-assembly | 81515-12520 · 90075-99092 |
| 81515A | Front turn signal light plug assembly | 90075-99080 |
| 81521 | Left front turn signal lamp cover | 81521-12520 · 81521-12720 · 81521-12750 · 81521-13060 · 81521-13070 |
