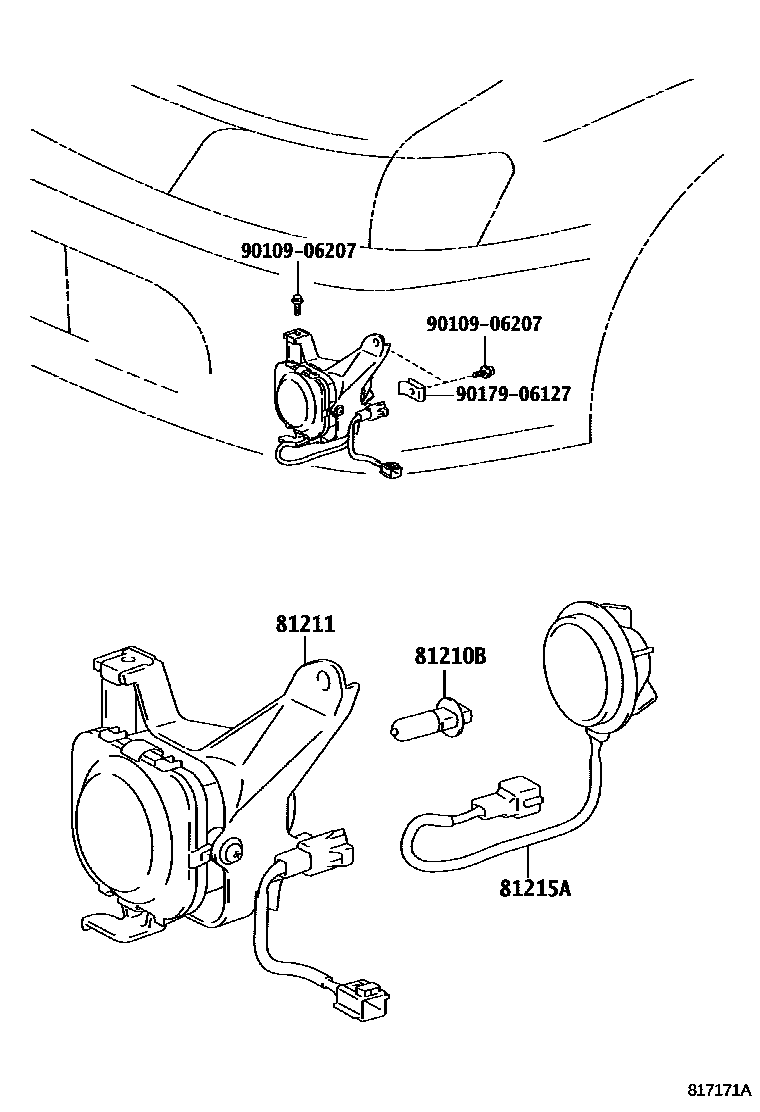

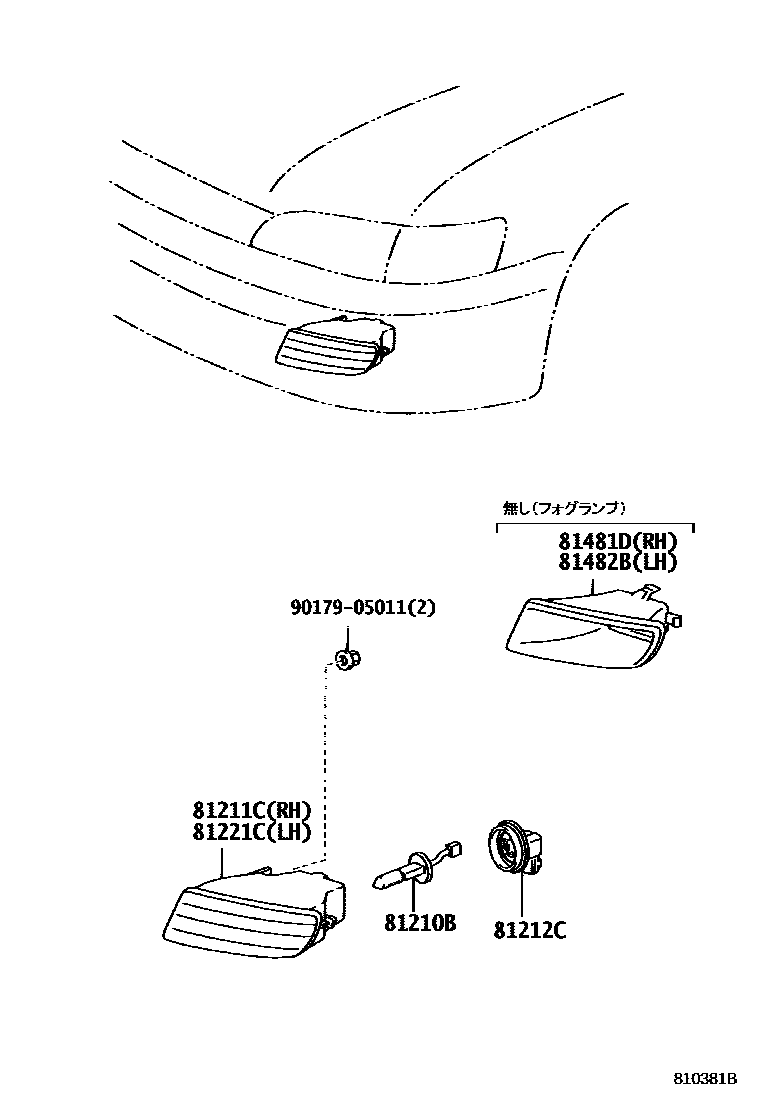

Toyota COROLLA Fog Lamp — Figure 8102
Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210B | fog light bulb | 90981-13018 · 90981-13040 |
| 81211 | fog lamp shade | 81211-12080 · 81221-12070 |
| 81211C | Right fog light assembly | 81211-13080 |
| 81212C | fog light cover | 90075-66001 |
| 81215A | Fog light holder and wiring harness | 81215-12080 |
| 81221C | Left fog light assembly | 81221-13080 |
| 81481D | Right fog light cover | 81481-13010 |
| 81482B | Left fog light cover | 81482-13010 |
