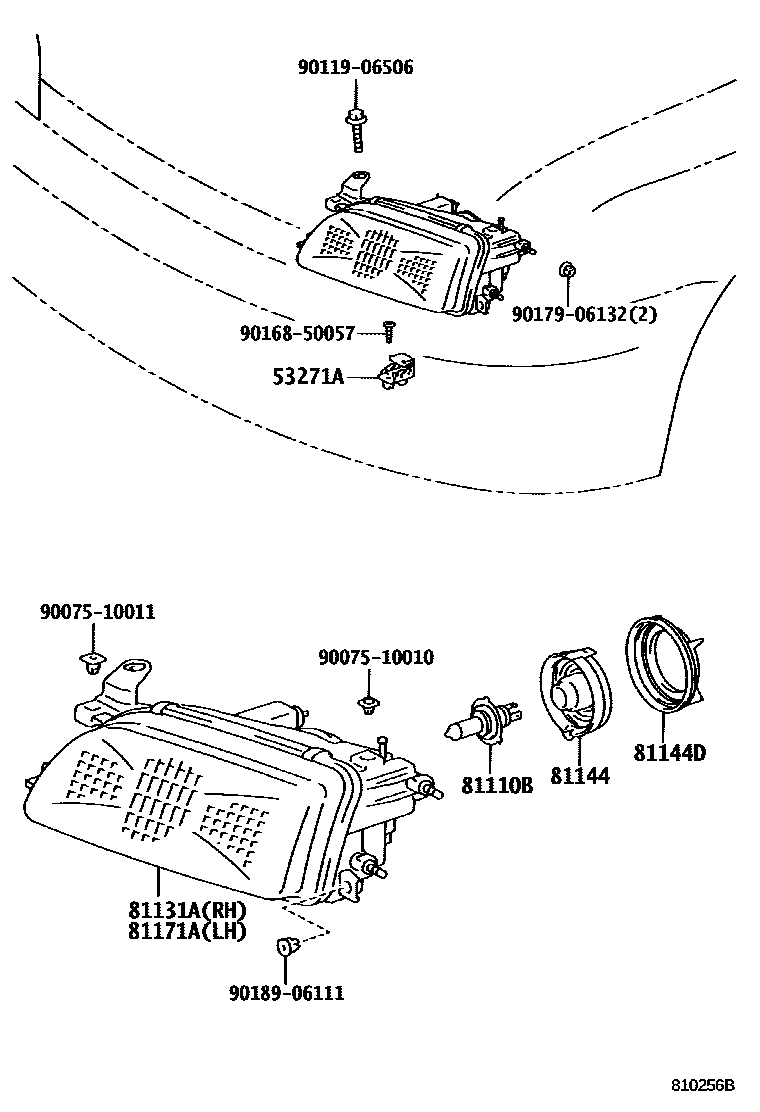

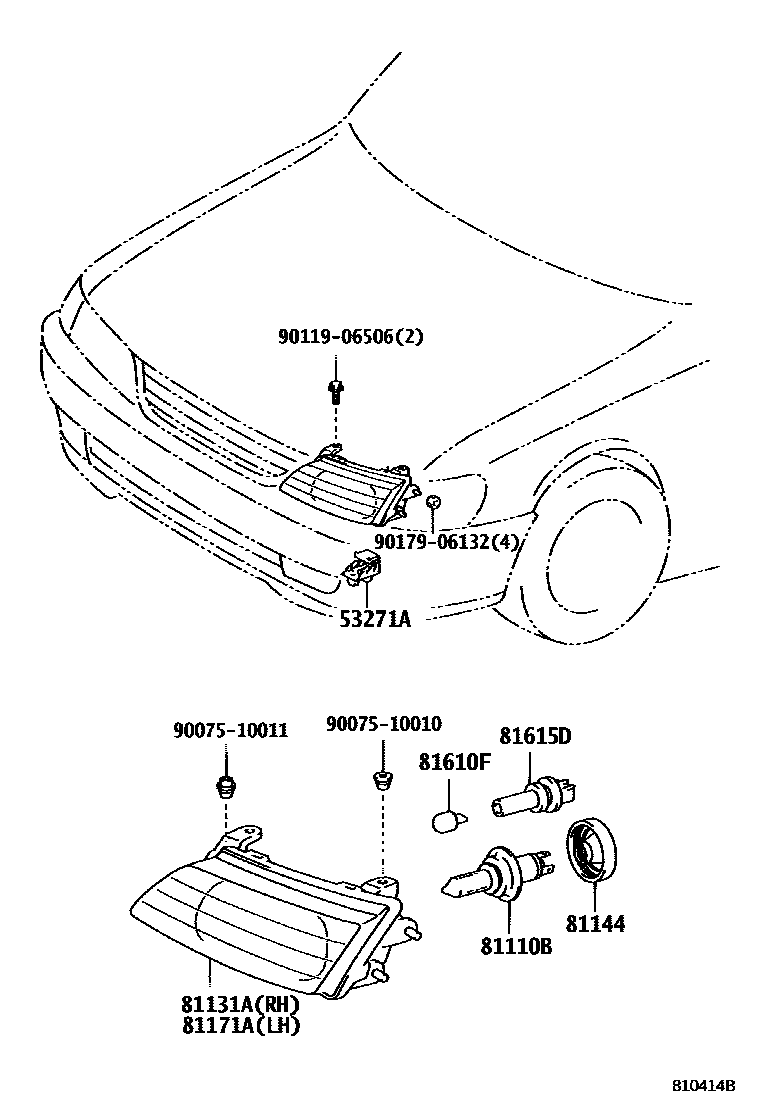

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53271A | Headlight mounting bracket | 53271-12040 · 53271-12060 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 · 90981-22004 |
| 81131A | Right headlight assembly assembly | 81130-13160 · 81130-13170 · 81130-1E180 · 81130-1E181 · 81130-1E182 |
| 81144 | No. 1 headlight cover | 90075-65002 · 90075-99058 |
| 81144D | headlight lock cover | 90075-99057 |
| 81171A | Left headlight assembly assembly | 81170-13160 · 81170-13170 · 81170-1A440 · 81170-1A441 · 81170-1A442 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60004 |
