Toyota COROLLA accelerator pedal connecting rod — Figure 7801

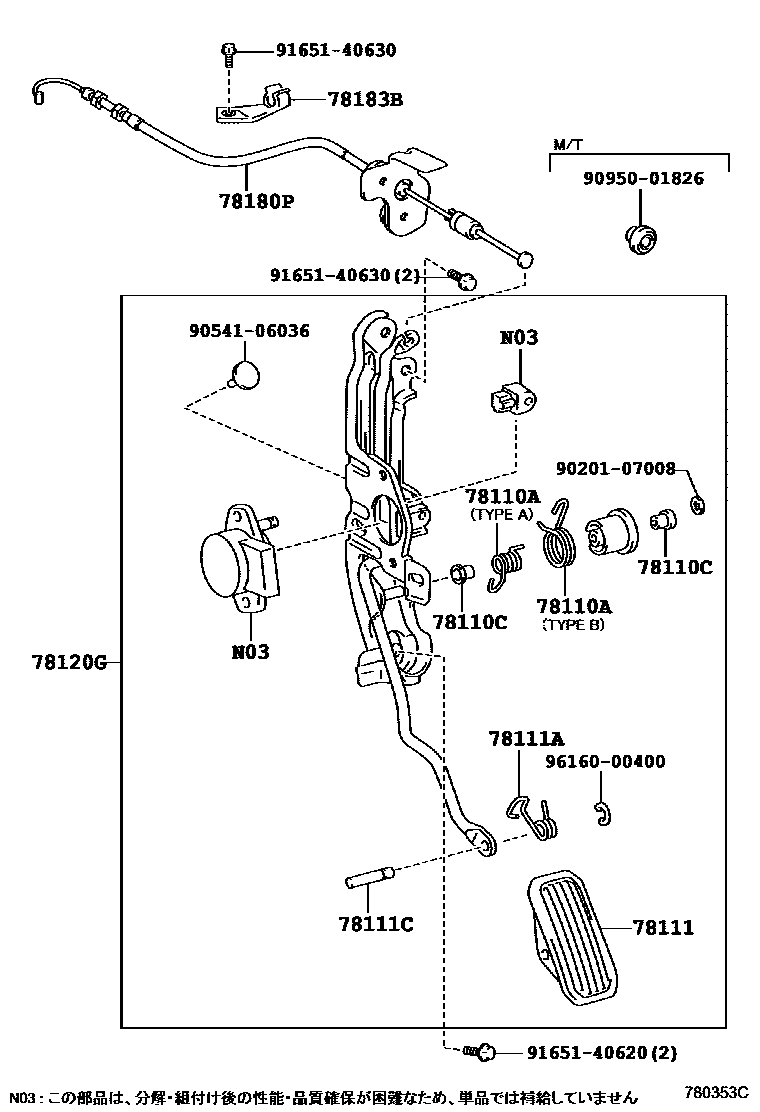

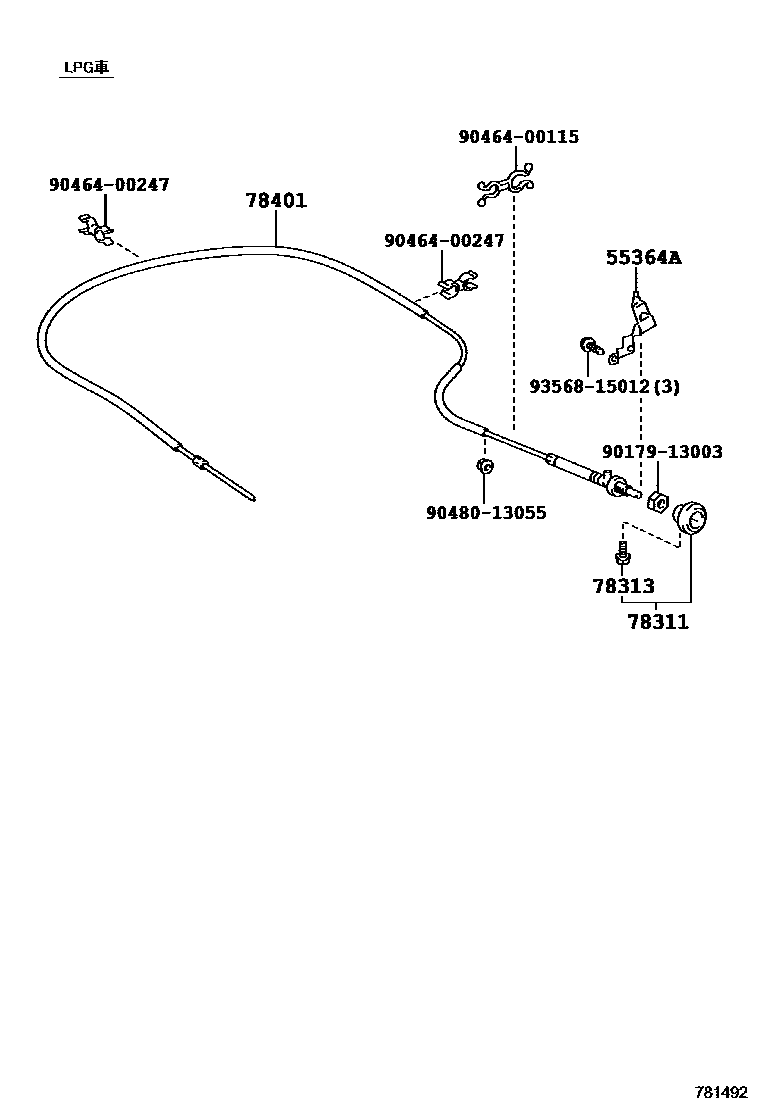

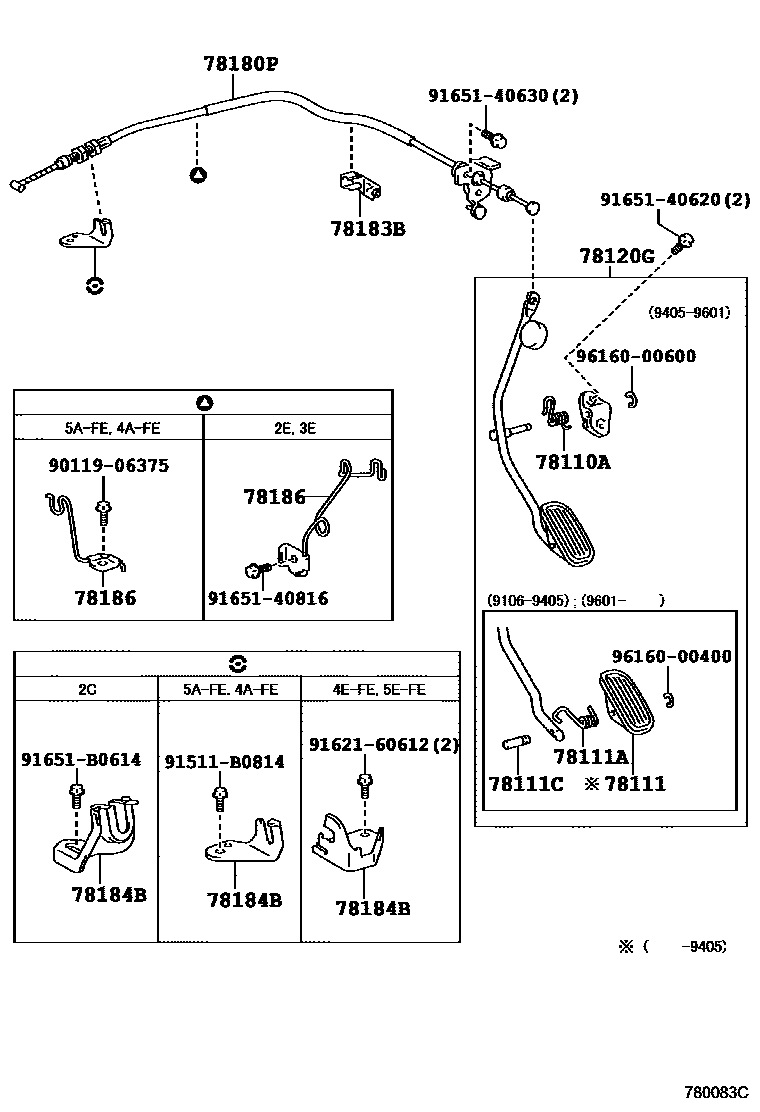

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55364A | Choke rod mounting bracket | 55364-13010 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-18398 · 90508-26036 · 90959-03195 · 90959-03196 · 90959-03197 · 90959-03198 |
| 78110C | Bushing (for accelerator pedal lever) | 90386-08007 |
| 78111 | accelerator pedal | 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-18050 |
| 78111C | pin (for gas pedal) | 90249-05001 · 90249-08066 |
| 78120G | Accelerator pedal lever assembly | 78010-12130 · 78010-12140 · 78120-12150 · 78120-12151 · 78120-12160 · 78120-12161 · 78120-12170 |
| 78180P | Accelerator pedal control cable assembly | 78180-1A250 · 78180-1A370 · 78180-1A400 · 78180-1A410 · 78180-1A420 · 78180-1A440 · 78180-1A460 · 78180-1A461 · 78180-1A490 · 78180-1A640 · 78180-1A650 |
| 78183B | Accelerator pedal control cable clip | 78183-12160 |
| 78184B | Throttle pedal control cable bracket | 78024-32140 · 78184-10080 · 78184-12280 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-12290 · 78186-12300 |
| 78311 | Choke control cable button | 78303-95700 |
| 78313 | screws | 78313-95702 |
| 78401 | Throttle valve control cable sub-assembly | 78401-13030 |
