Toyota COROLLA 挡泥板和扰流板 — Figure 7601

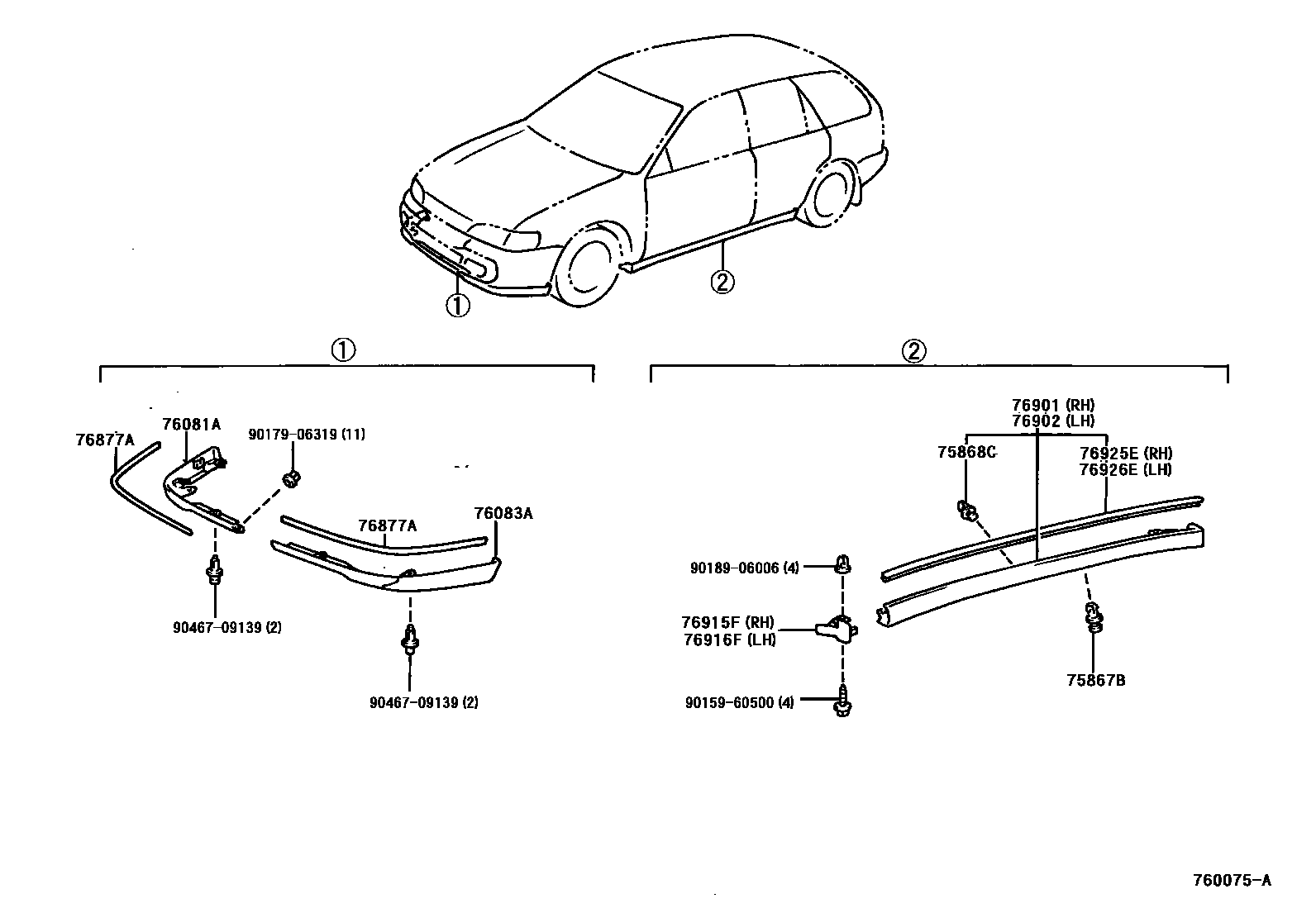

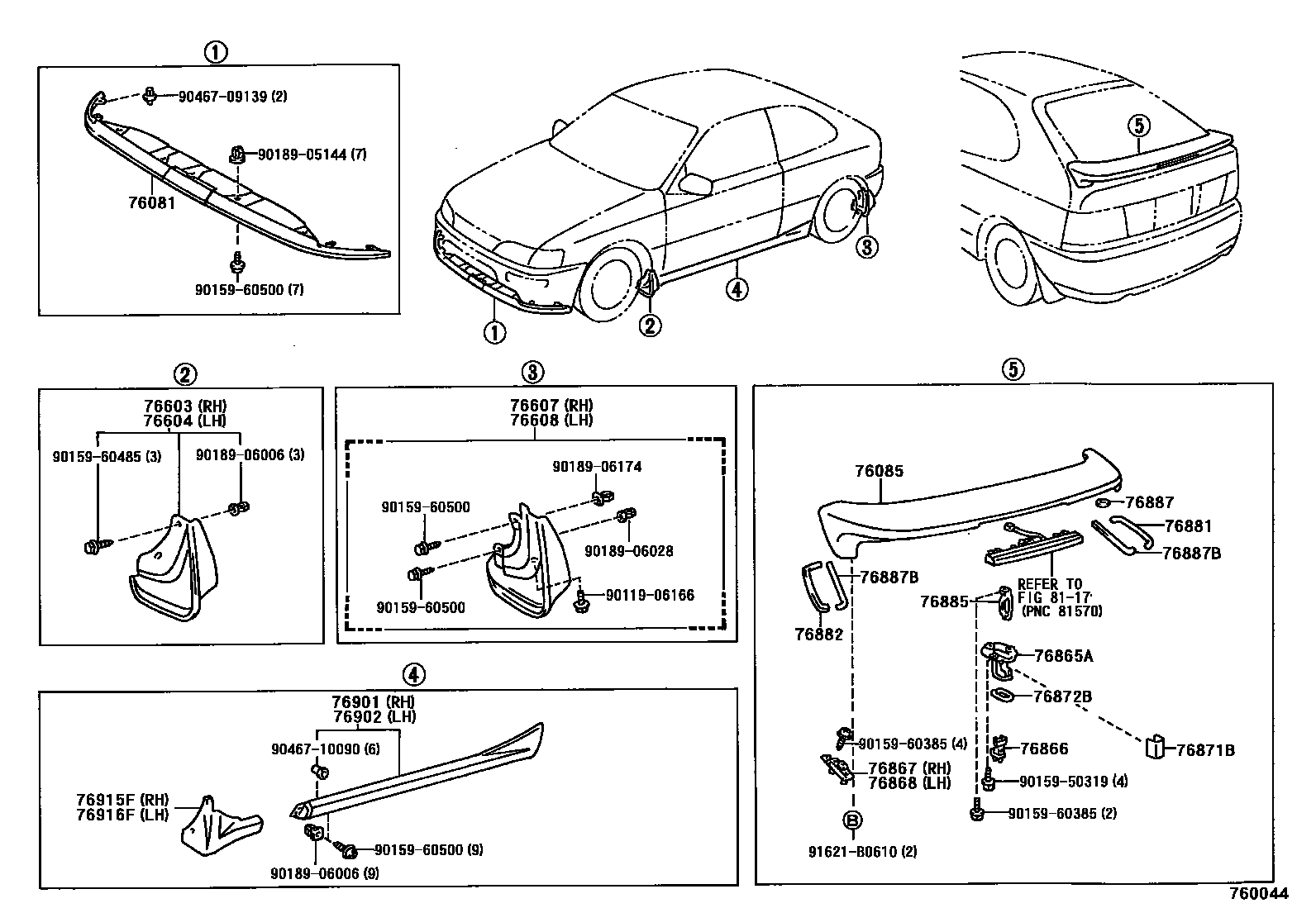

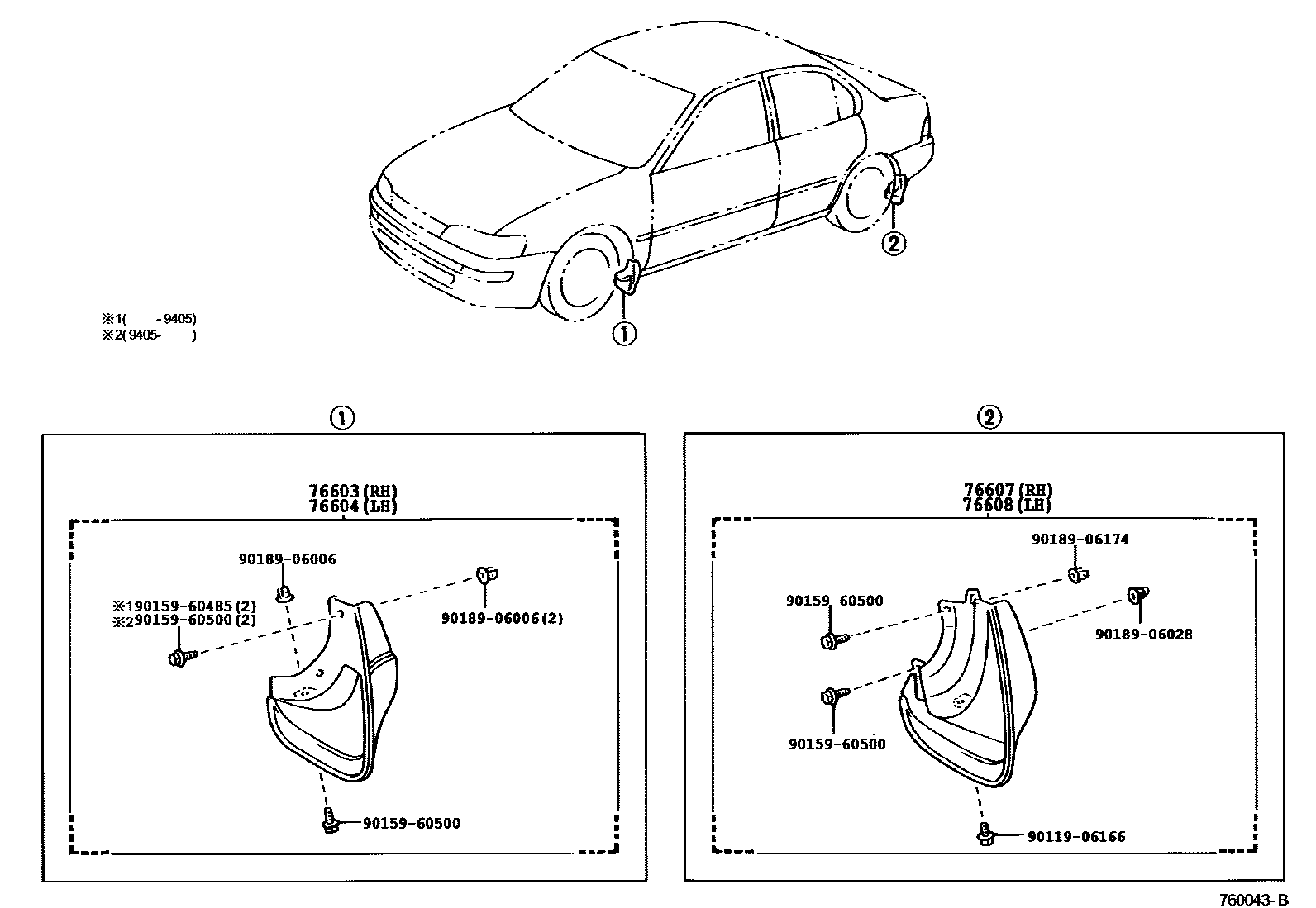

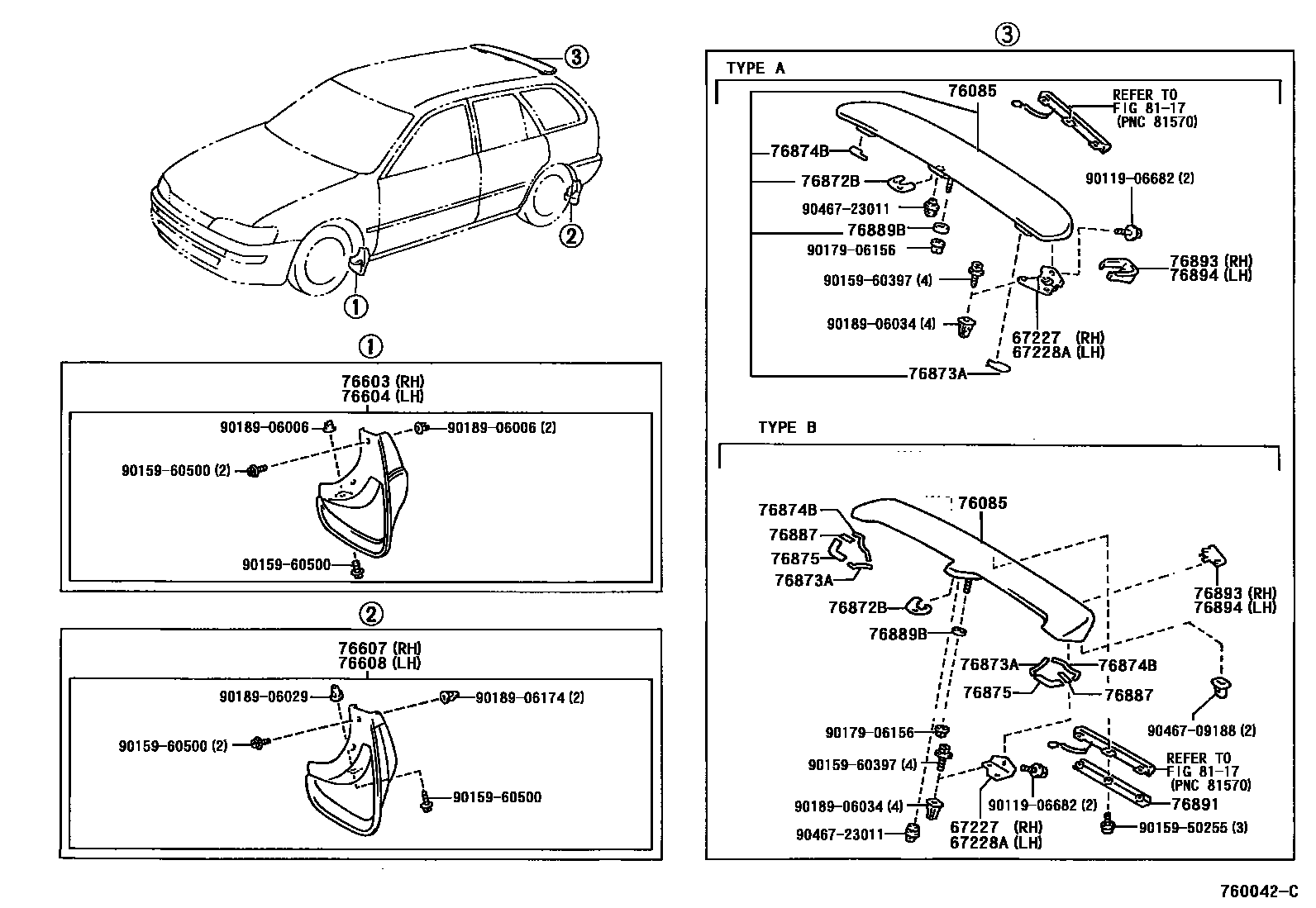

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67227 | Right rear spoiler fixing | 67227-13010 |
| 67228A | Left rear spoiler fixing | 67228-13010 |
| 75867B | Door sill panel protective strip clip | 75867-13010 |
| 75868C | No. 2 rear spoiler clip | 75868-30020 |
| 76081 | Front spoiler sub-assembly | 76081-12100 |
| 76085 | Rear spoiler sub-assembly | 76085-12912 · 76871-13902 · 76871-13904 |
| 76603 | Right front fender fender sub-assembly | 76621-19215 |
| 76604 | Left front fender fender sub-assembly | 76622-19215 |
| 76607 | Right rear side fender sub-assembly | 76625-19445 · 76625-19505 |
| 76608 | Left rear side fender sub-assembly | 76626-19445 · 76626-19505 |
| 76865A | Side fender fixings | 76865-12900 |
| 76866 | No. 2 rear spoiler fixing piece | 76866-12100 |
| 76867 | Right rear spoiler fixing | 76867-12110 |
| 76868 | Left rear spoiler fixing | 76868-12090 |
| 76871B | rear spoiler cover | 76871-12902 |
| 76872B | Rear center spoiler protective strip | 76872-12100 · 76872-13010 · 76872-13030 · 76872-13040 |
| 76873A | Right rear spoiler protective strip | 76873-13010 · 76873-13020 · 76873-13030 |
| 76874B | Left rear spoiler protective strip | 76874-13010 · 76874-13020 · 76874-13030 |
| 76875 | No. 4 rear spoiler protective strip | 76875-13010 · 76875-13020 · 76895-13010 |
| 76881 | No. 1 right rear spoiler protective strip | 76881-12030 |
| 76882 | No. 1 left rear spoiler protective strip | 76882-12030 |
| 76885 | No. 5 rear spoiler fixing piece | 76885-12060 |
| 76887 | Rear spoiler seal | 76887-13010 · 76887-21010 · 90540-12008 |
| 76887B | No. 2 rear spoiler protection strip | 76887-12030 |
| 76889B | No. 1 rear spoiler seal | 76889-13010 |
| 76891 | No. 1 rear spoiler | 76891-12110 · 76891-12904 |
| 76893 | No. 1 rear spoiler cover | 76893-13900 · 76893-13901 |
| 76894 | Left rear spoiler cover | 76894-13900 · 76894-13901 |
| 76915F | Right front fender | 76915-13010 |
| 76916F | Left front fender | 76916-13010 |
