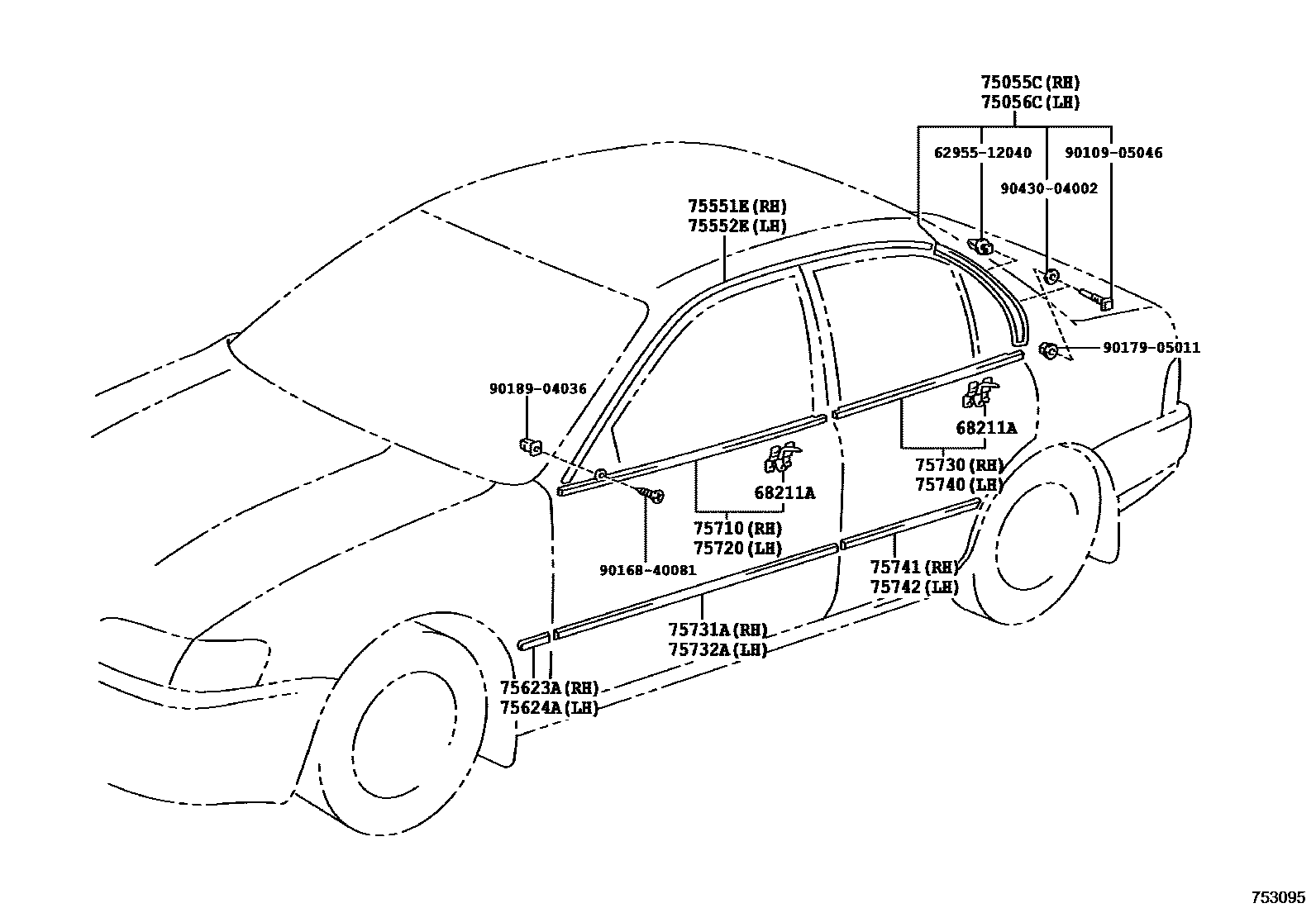

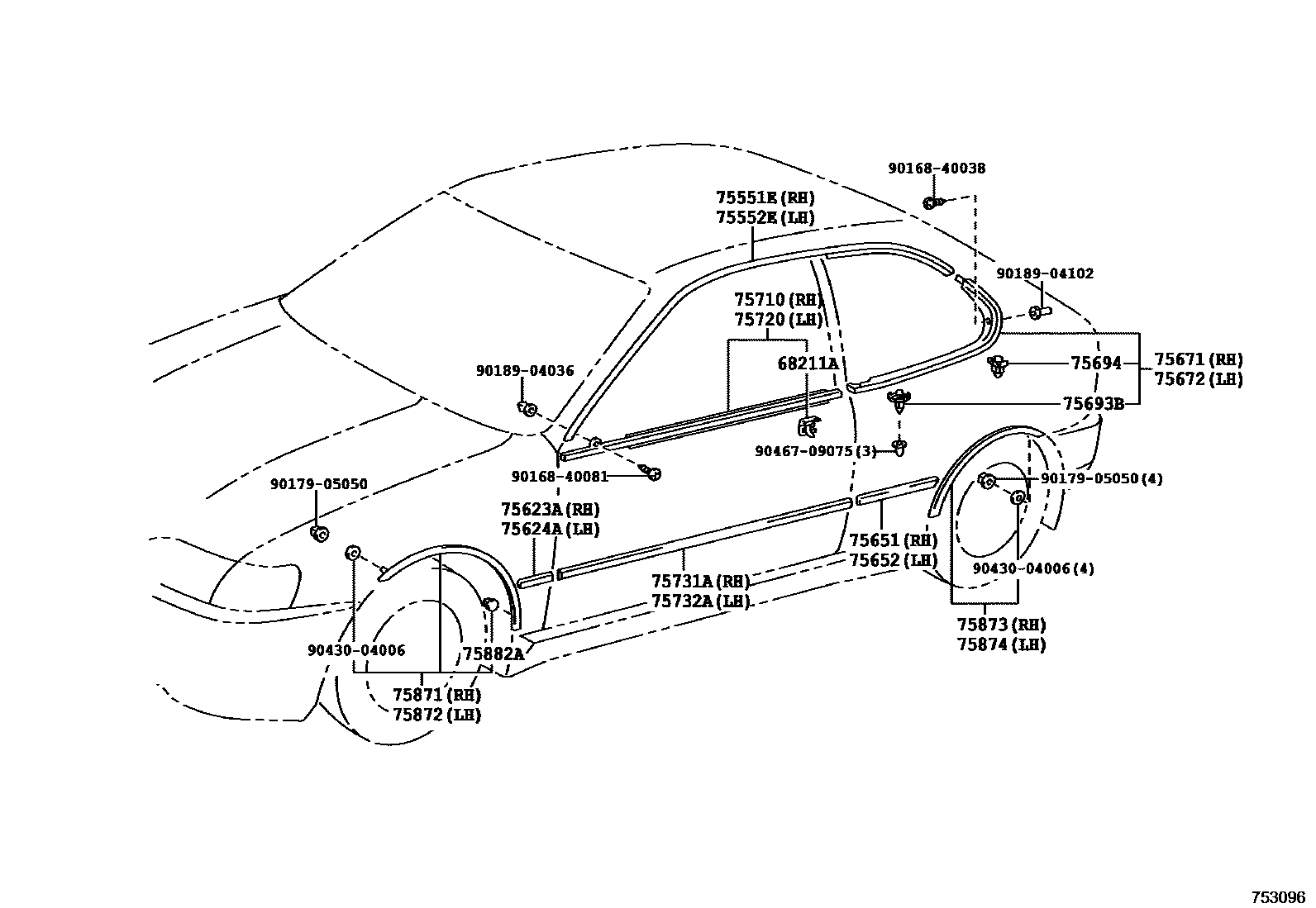

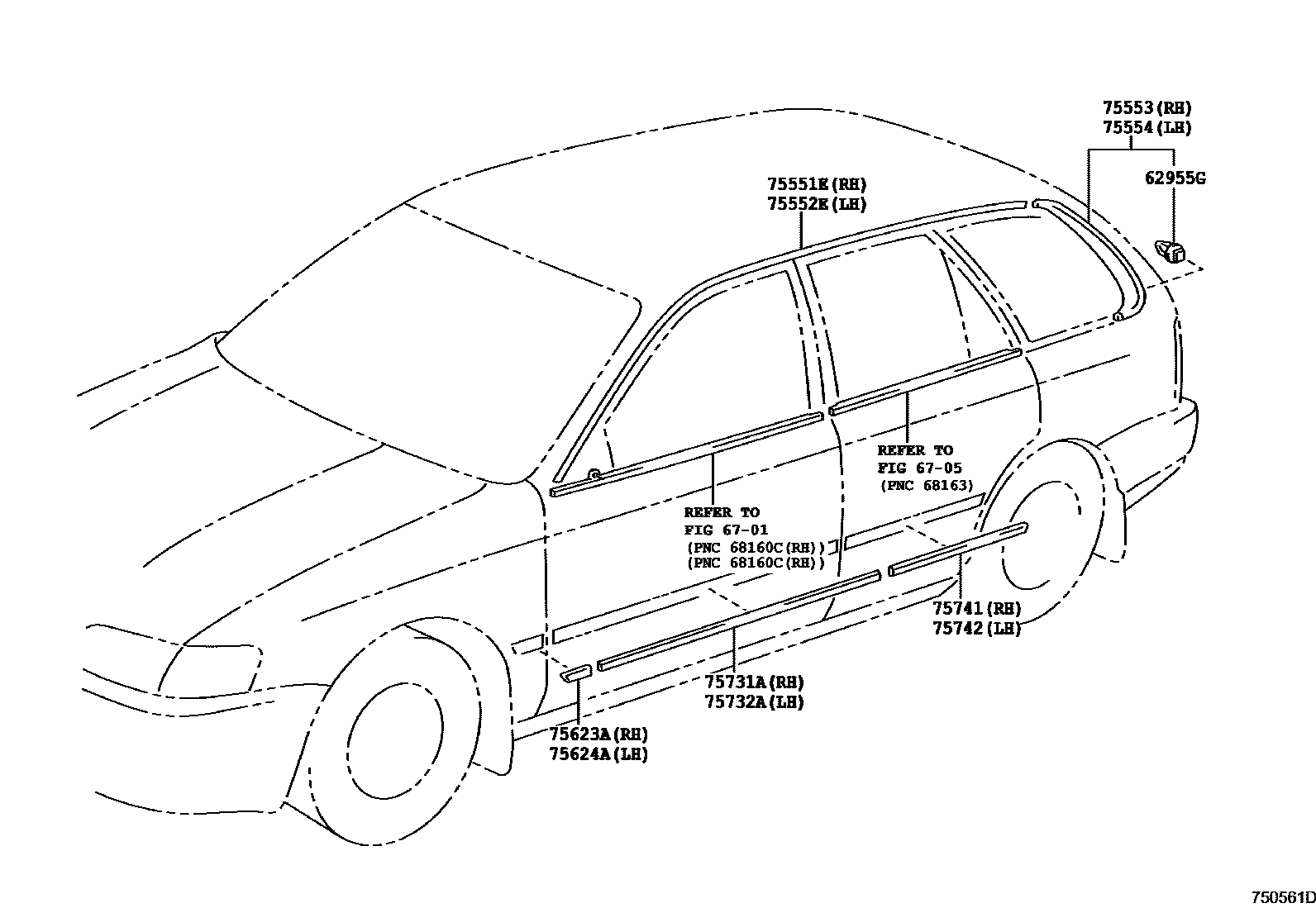

Toyota COROLLA 侧防护条 — Figure 7503
Toyota COROLLA EPC diagram 7503, 侧防护条, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62955G | Side ventilation grille fixings | 62955-12010 · 62955-20020 |
| 68211A | Door belt line protection strip clip | 68211-12190 |
| 75055C | Roof right rear gutter side decorative strip sub-assembly | 75055-12120 · 75055-12130 |
| 75056C | Roof left rear gutter side decorative strip sub-assembly | 75056-12120 · 75056-12130 |
| 75551E | Drainage groove side decorative strip on the right side of the roof | 75551-12490 · 75551-12500 · 75551-12510 · 75551-12520 · 75551-13110 · 75551-13120 |
| 75552E | Drainage groove side decorative strip on the left side of the roof | 75552-12490 · 75552-12500 · 75552-12510 · 75552-12520 · 75552-13110 · 75552-13120 |
| 75553 | Drainage groove side decorative strip on the right side of the roof | 75505-13010 · 75505-13020 |
| 75554 | Drainage groove side decorative strip on the left side of the roof | 75506-13010 · 75506-13020 |
| 75623A | Right front fender outer rear protective strip | 75623-12640 |
| 75624A | Left front fender outer rear protective strip | 75624-12640 |
| 75671 | Right corner window decorative strip | 75660-12220 |
| 75672 | Left corner window decorative strip | 75670-12220 |
| 75693B | No. 1 rear corner window decorative strap fixings | 75693-12110 |
| 75694 | No. 2 rear corner window decorative strap fixings | 75694-12040 |
| 75710 | Right front door waistline protection strip assembly | 75710-12490 · 75710-12510 · 75710-12580 |
| 75720 | Left front door waistline protection strip assembly | 75720-12490 · 75720-12510 · 75720-12580 |
| 75730 | Right rear door waistline protection strip assembly | 75730-12160 · 75730-12180 |
| 75731A | Right front door outer protective strip | 75731-1A330 |
| 75732A | Left front door outer protective strip | 75732-1A170 |
| 75740 | Left rear door waistline protection strip assembly | 75740-12250 · 75740-12270 |
| 75741 | Right rear door outer protective strip | 75741-12840 |
| 75742 | Left rear door outer protective strip | 75742-12830 |
| 75882A | No. 2 front fender protection strip fixings | 75882-12030 |
