Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

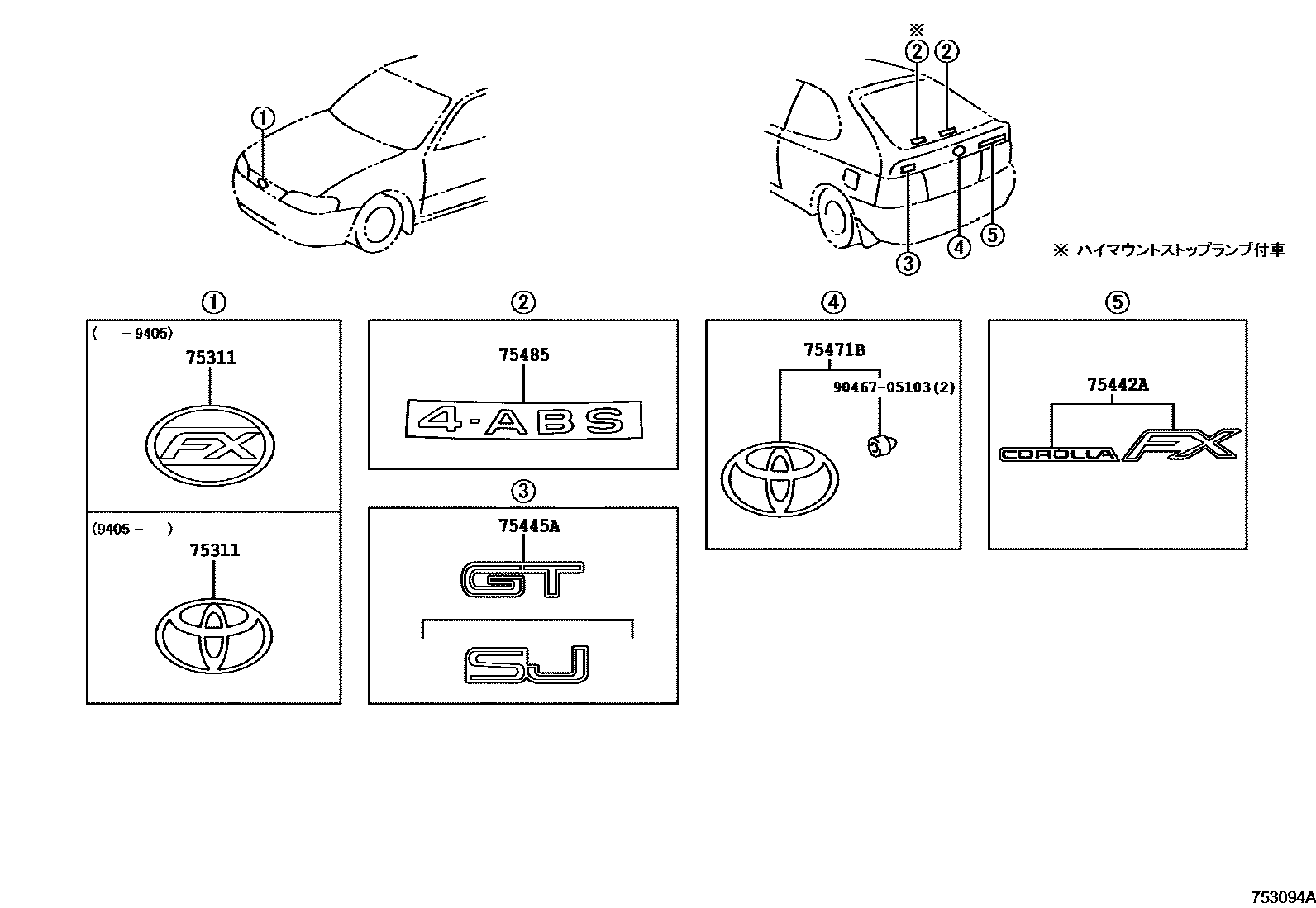

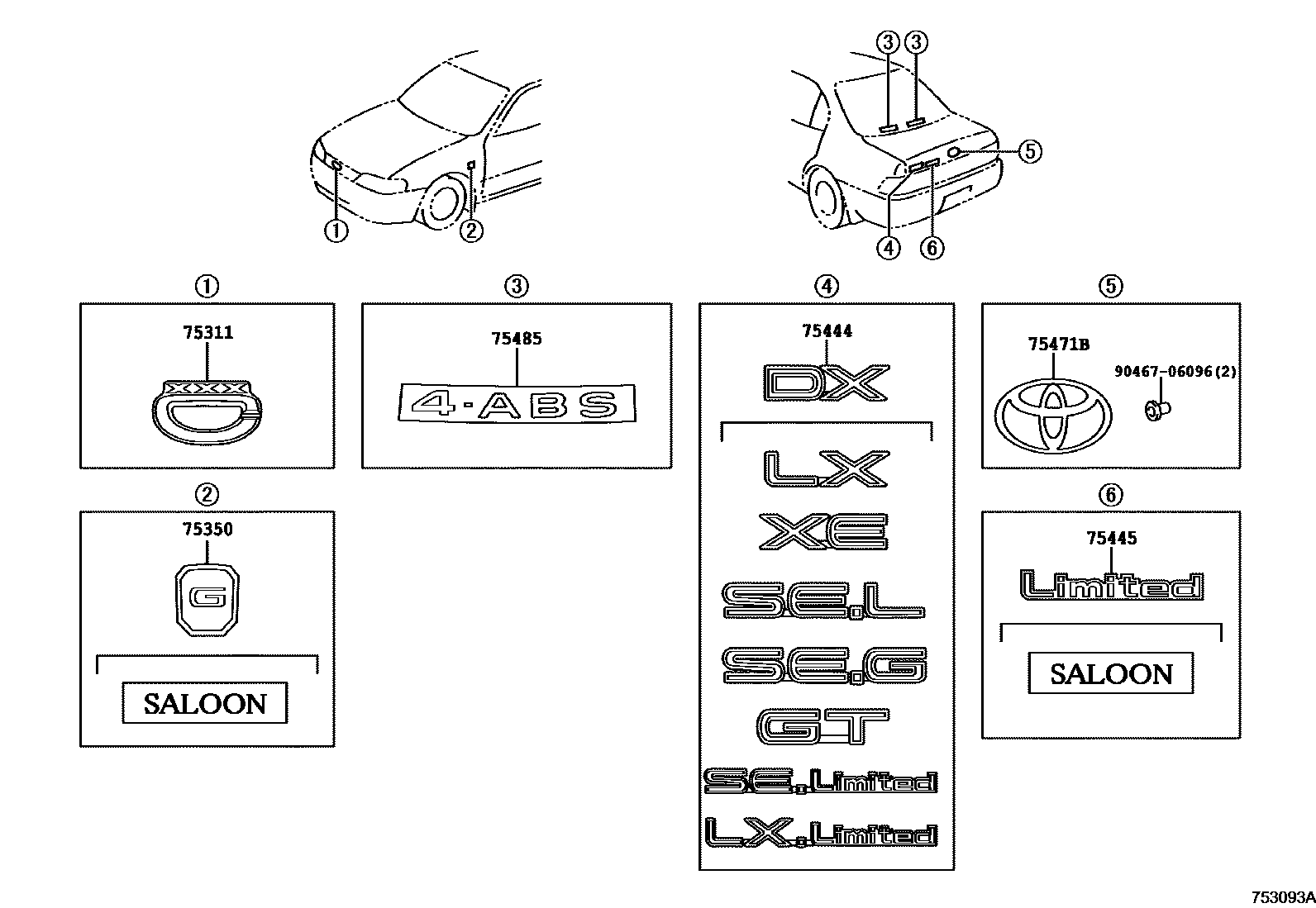

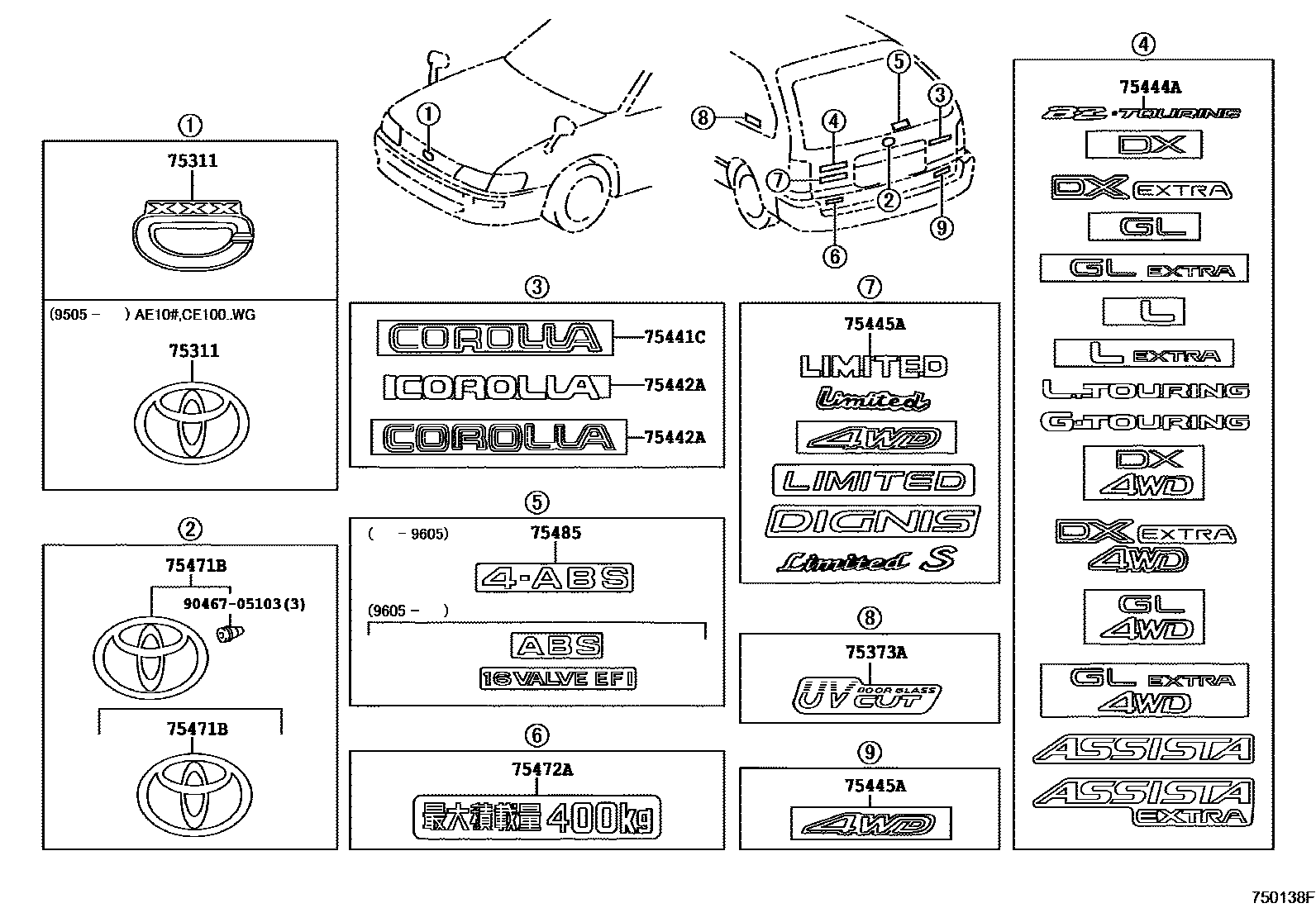

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75301-12350 · 75311-13090 · 75311-13110 · 75311-13140 · 75311-1A700 · 75311-1A710 · 75311-1A740 · 75311-1A750 · 75311-1A780 |
| 75350 | Front fender sign assembly | 75350-12040 · 75445-12190 |
| 75373A | corner window marking plate | 75373-12010 |
| 75441C | Back door nameplate | 75441-13110 |
| 75442A | No. 2 nameplate on back door | 75441-13150 · 75442-1A180 |
| 75444 | Trunk door No. 4 nameplate | 75444-12550 · 75444-12690 · 75444-12710 · 75444-12720 · 75444-12740 · 75444-12760 · 75444-12770 · 75444-12810 · 75444-12830 · 75444-1A160 · 75444-1A180 |
| 75444A | No. 4 nameplate on back door | 75444-13030 · 75444-13040 · 75444-13060 · 75444-13080 · 75444-13090 · 75444-13100 · 75444-13110 · 75444-13180 · 75444-13181 · 75444-13190 · 75444-13191 · 75444-13210 · 75444-13211 · 75444-13340 |
| 75445 | Trunk door No. 5 name plate | 75445-12180 · 75445-12190 |
| 75445A | No. 5 nameplate on back door | 75351-24050 · 75444-13170 · 75444-13191 · 75444-13200 · 75444-13220 · 75444-13240 · 75444-13280 |
| 75471B | No. 1 nameplate on rear body | 75471-12020 · 75471-12030 · 75471-12100 · 75471-13040 · 75471-13041 · 75471-13050 · 75471-13070 |
| 75472A | No. 2 nameplate on rear body | 75472-13020 |
| 75485 | Back window nameplate | 75485-12210 · 75485-12320 · 75485-13010 · 75485-13020 · 75485-13030 |
