Toyota COROLLA 扶手和遮阳板 — Figure 7401

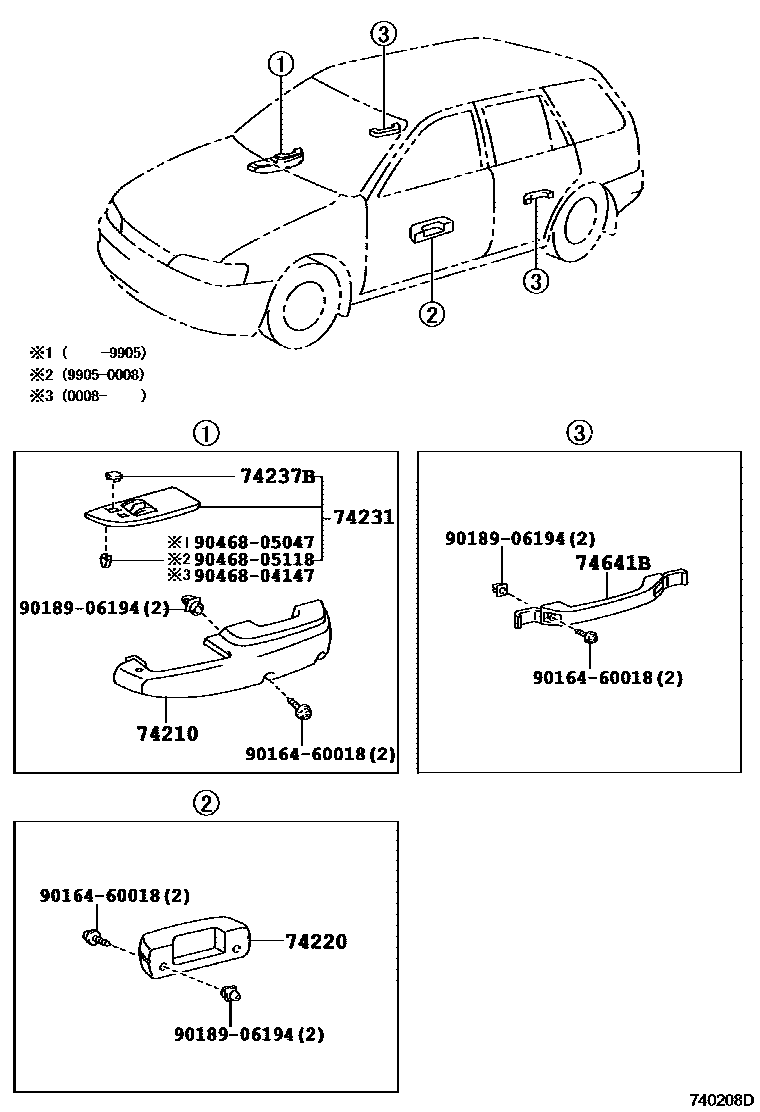

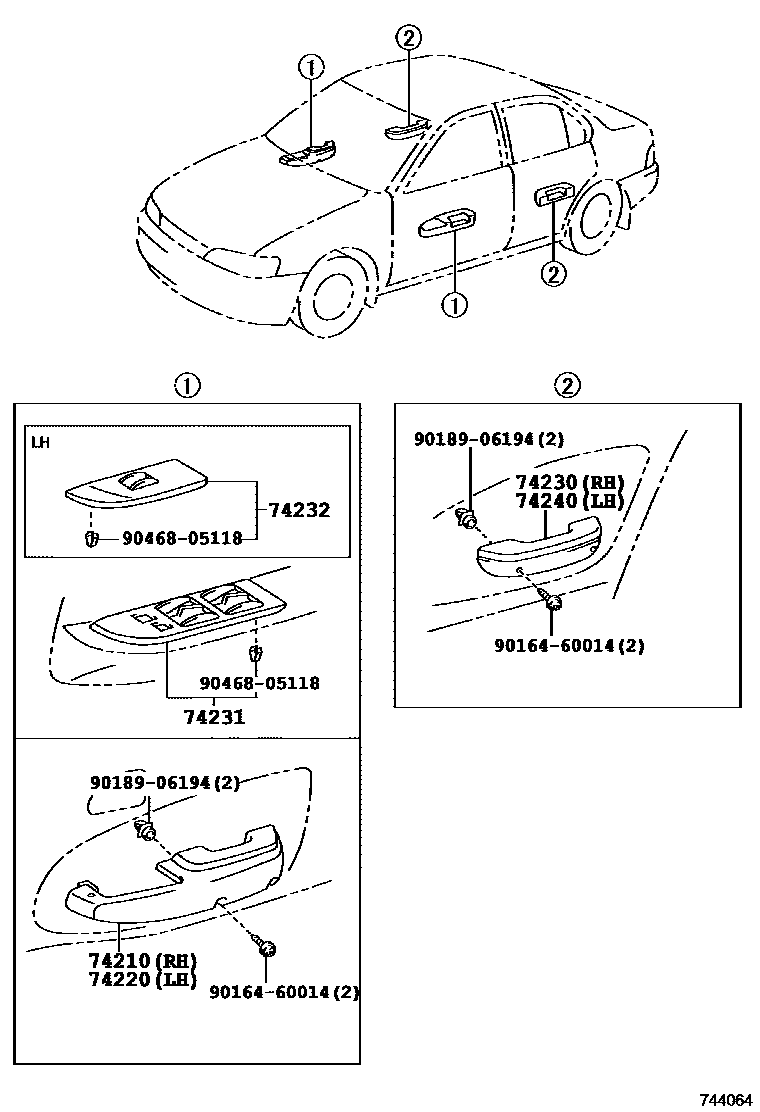

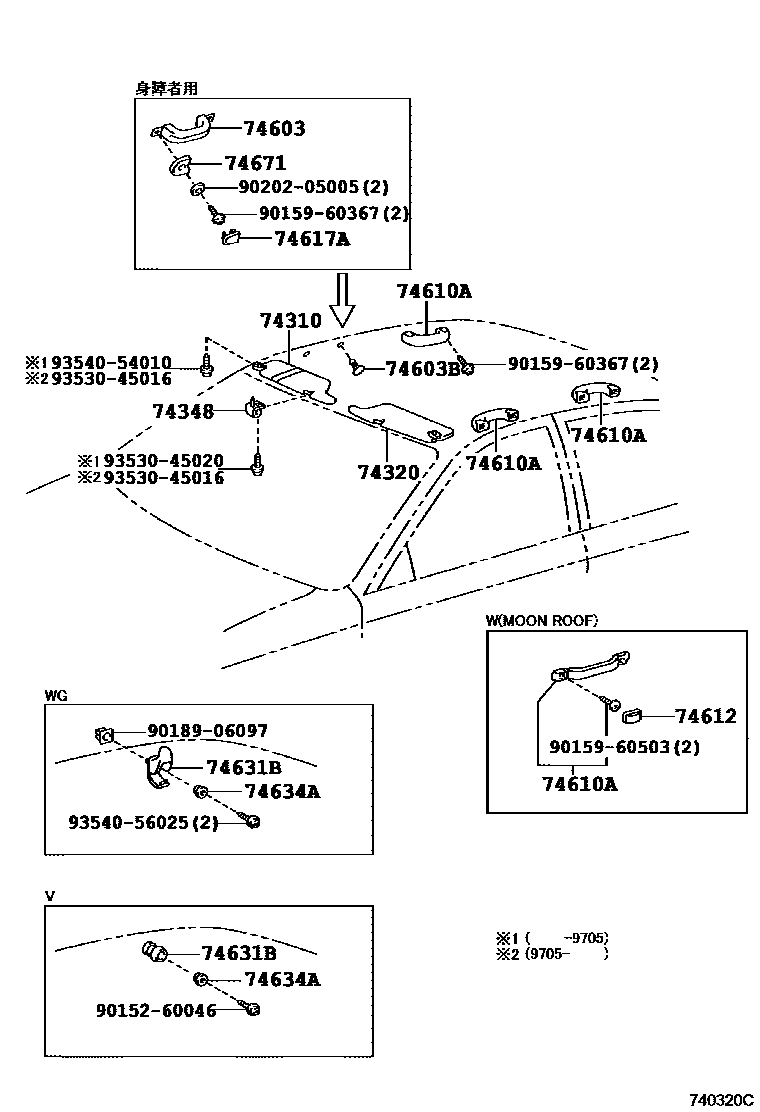

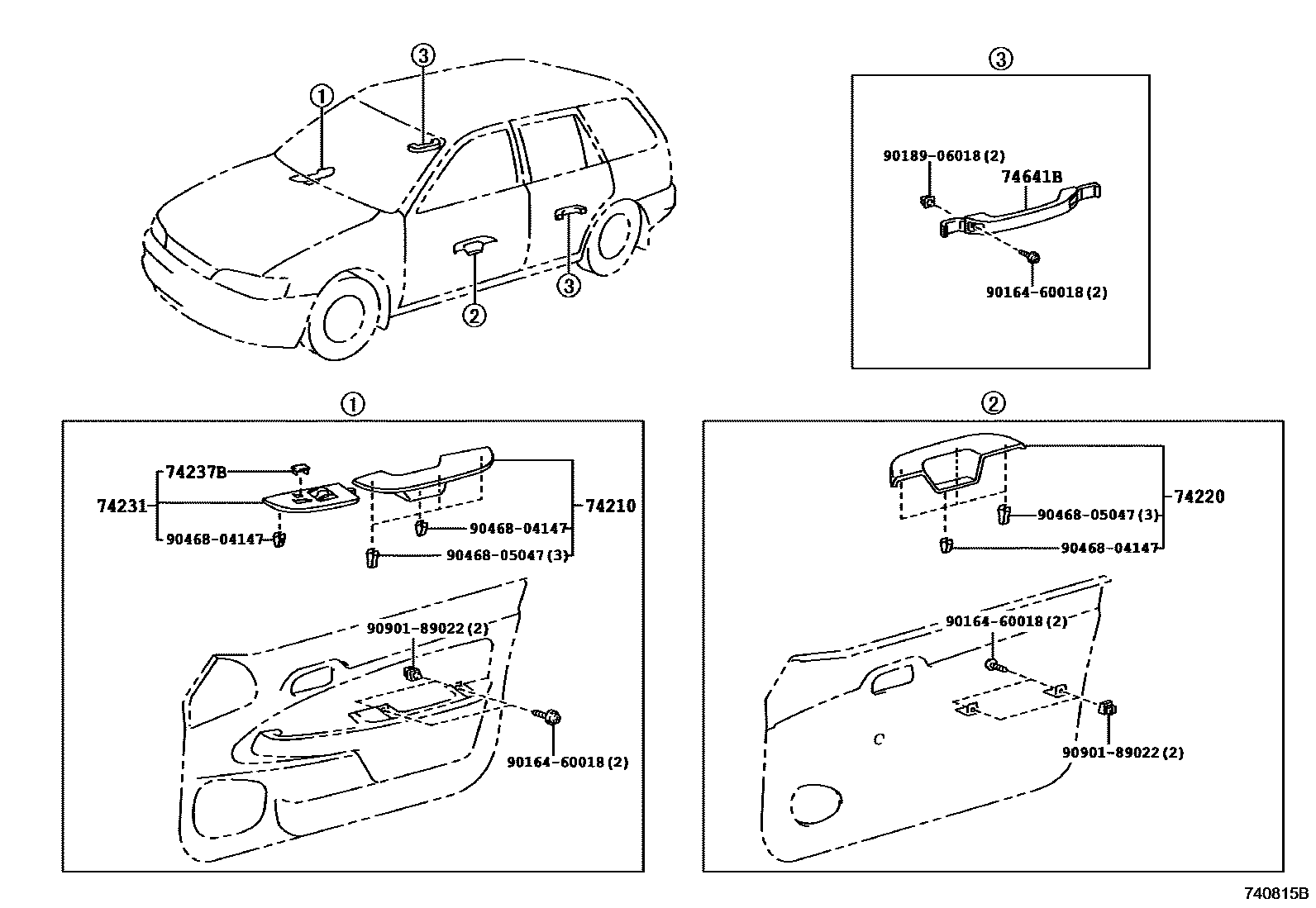

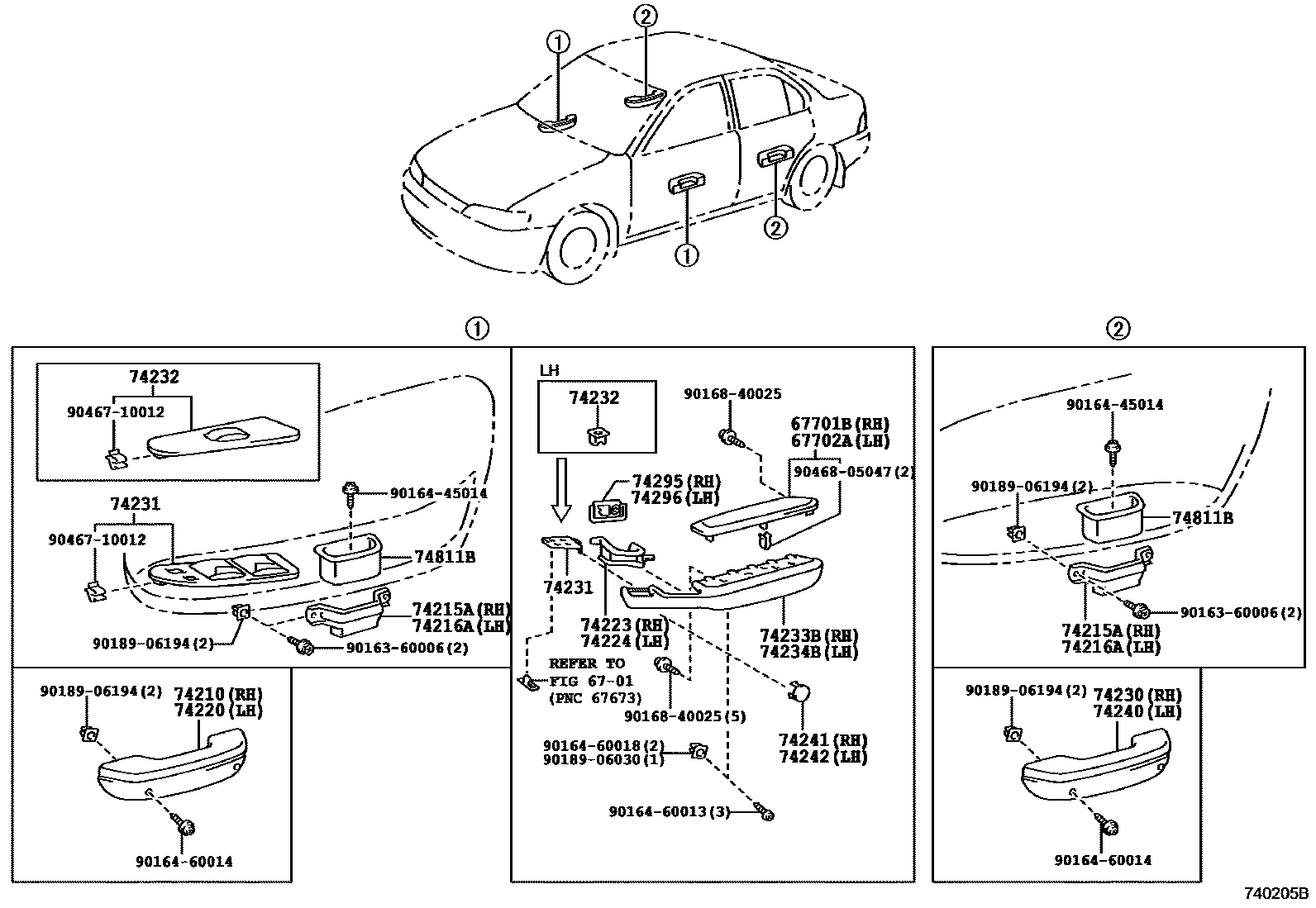

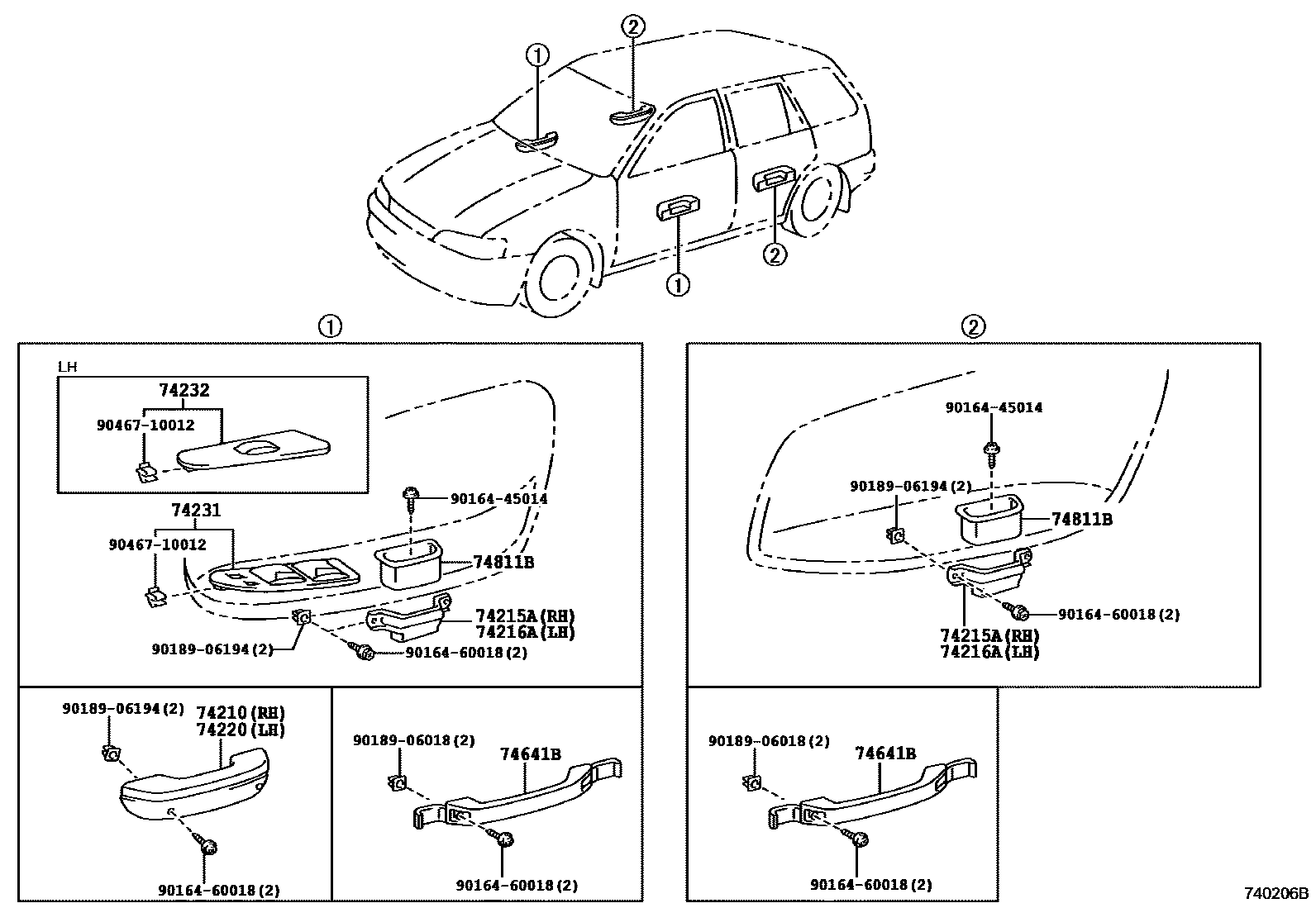

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 6 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74215A | Right door armrest seat | 74215-12050 |
| 74216A | Left door armrest seat | 74215-12050 |
| 74231 | Right front armrest upper panel | 74231-13040 |
| 74232 | Left front armrest upper panel | 74232-13010 |
| 74237B | door armrest seat cover | 74237-13010 · 74237-13020 |
| 74295 | No. 3 door armrest panel | 74295-12010 |
| 74296 | No. 4 door armrest panel | 74296-12010 |
| 74634A | Coat hook collar | 74634-12010 |
