Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

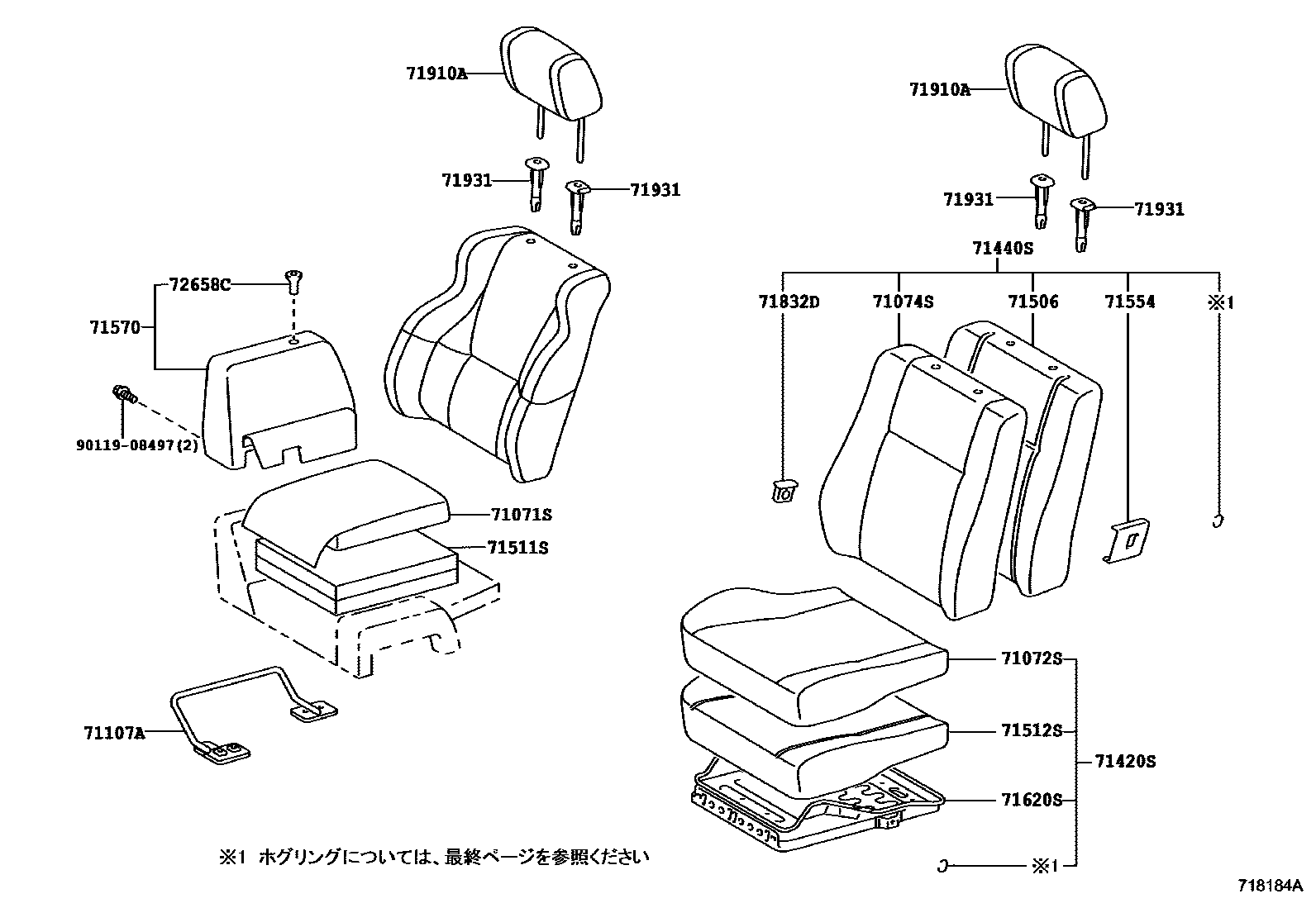

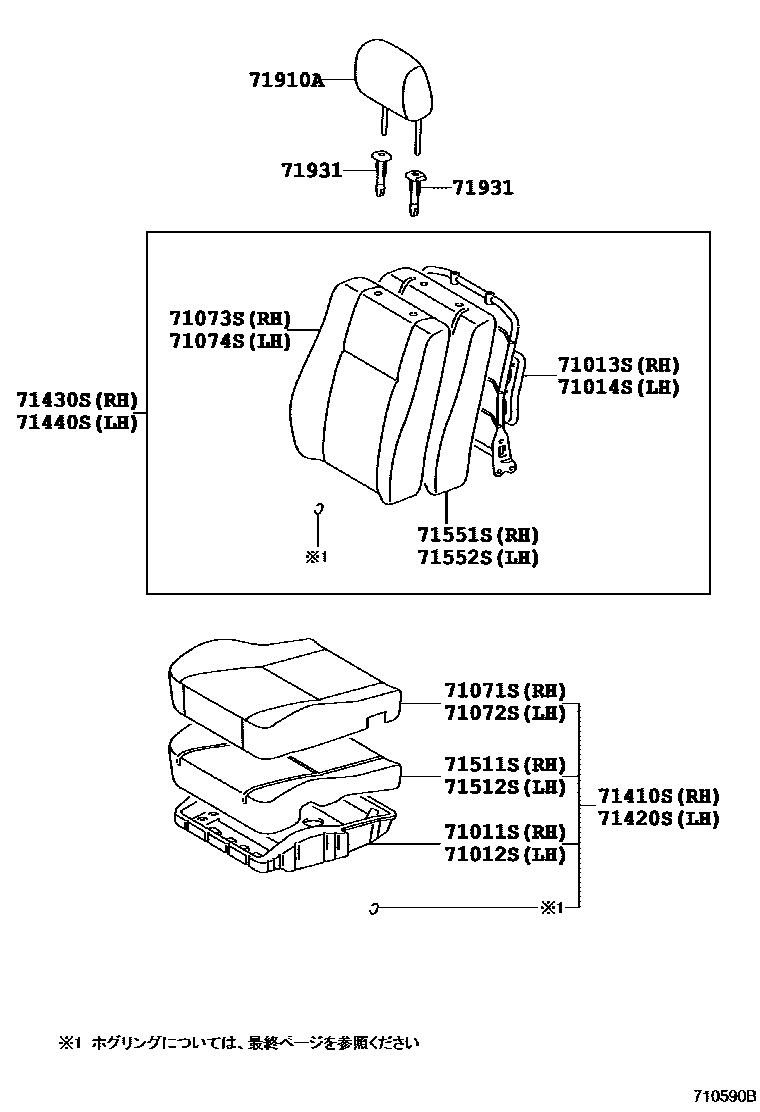

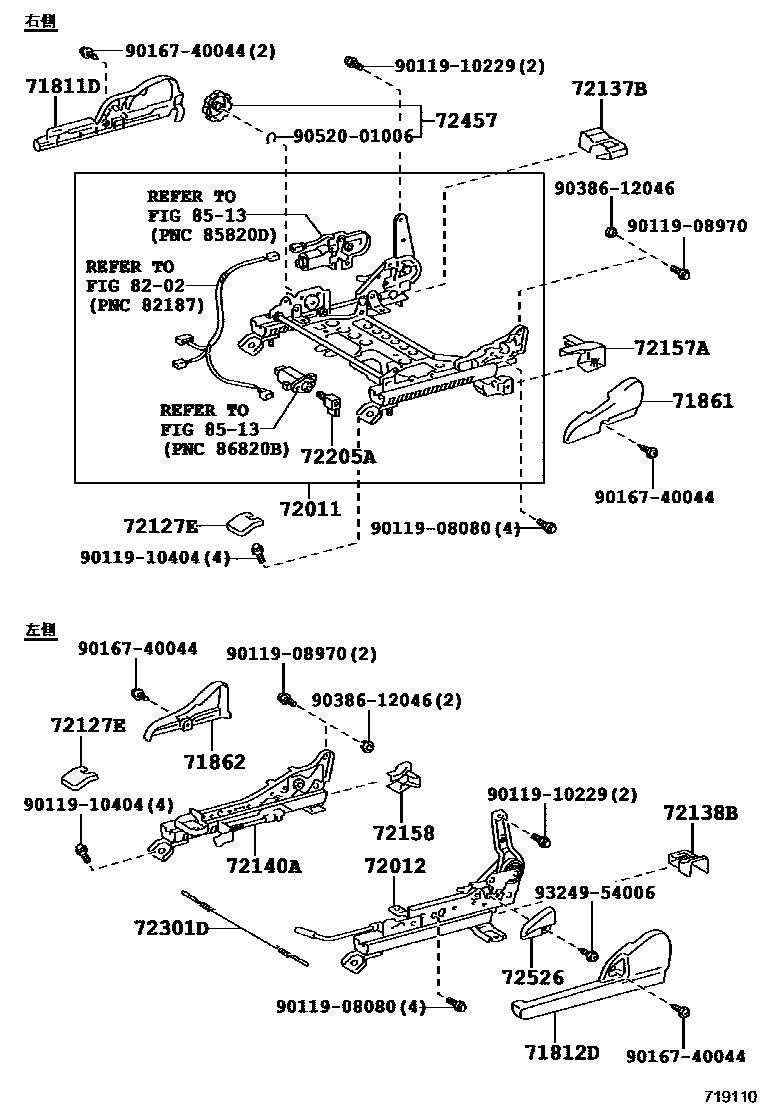

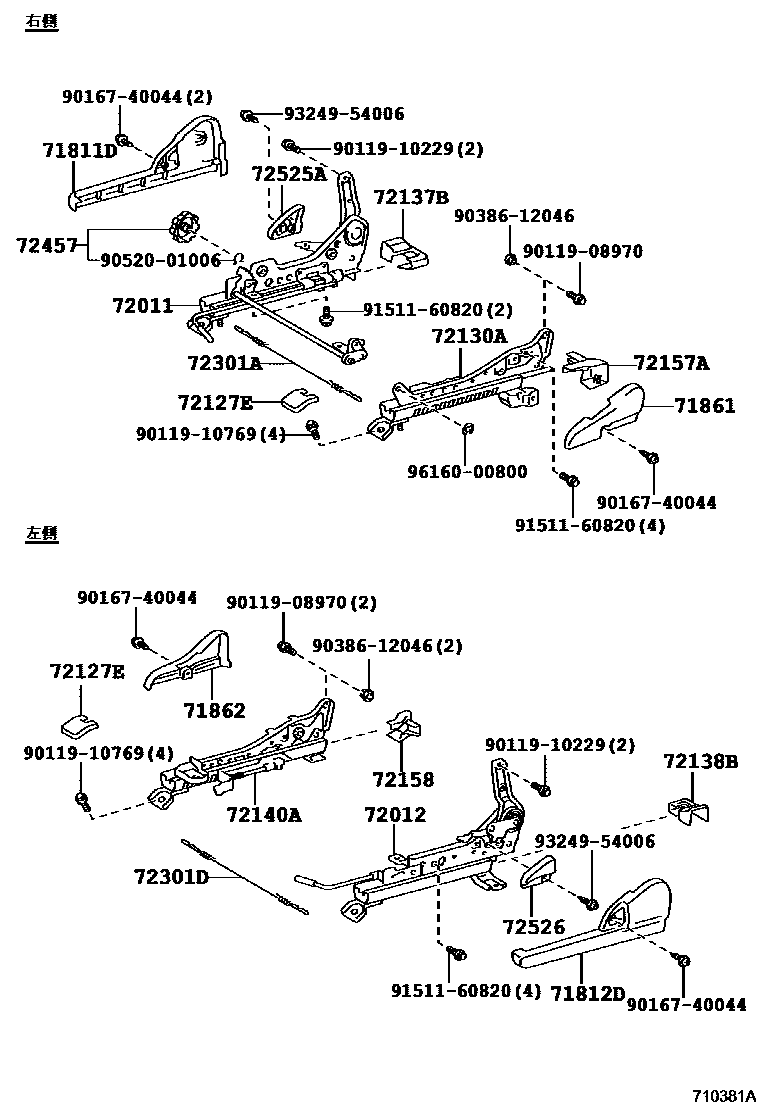

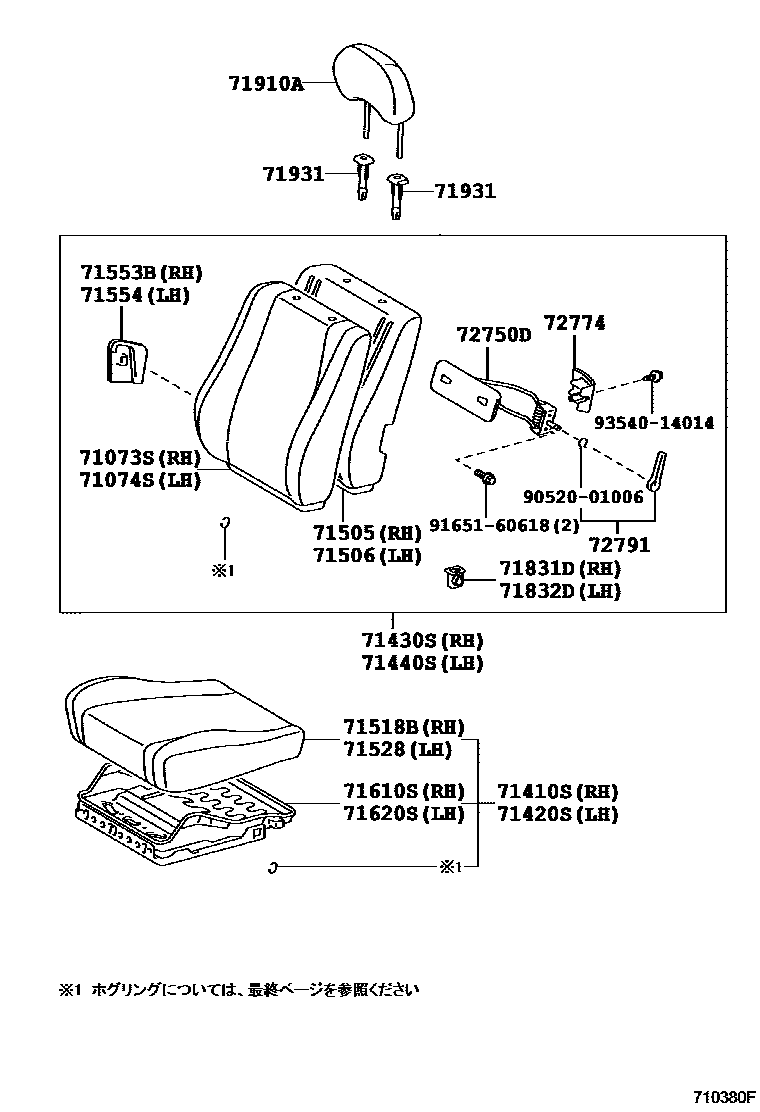

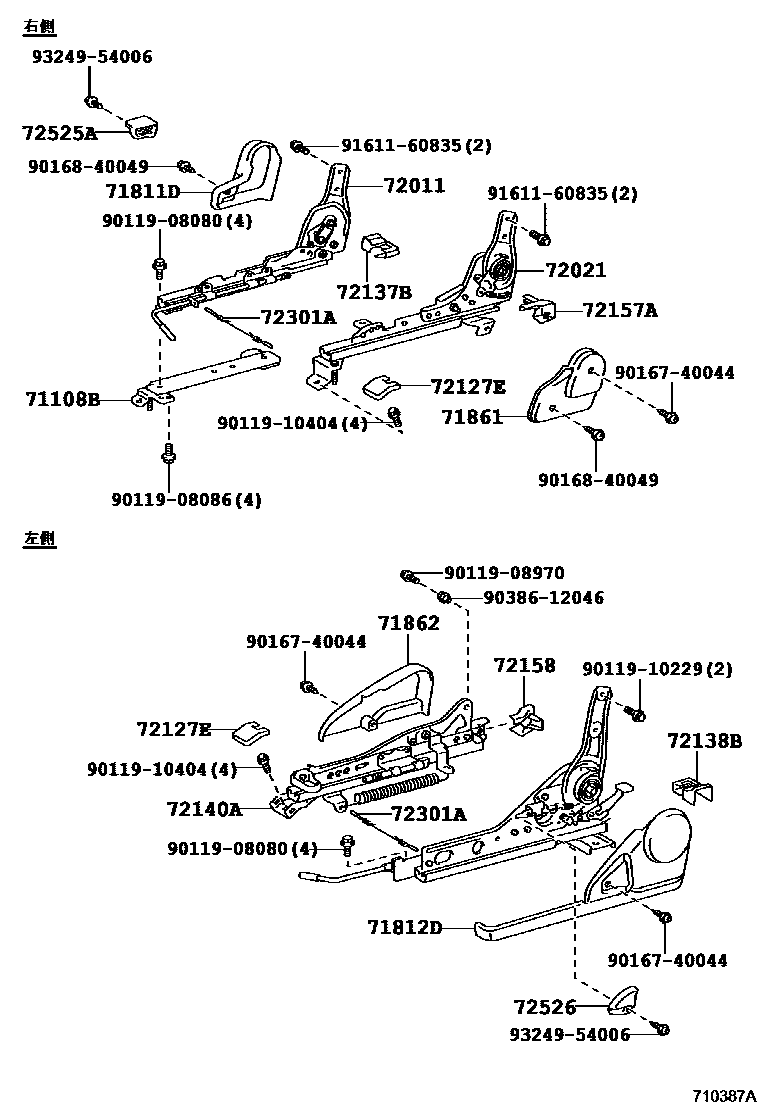

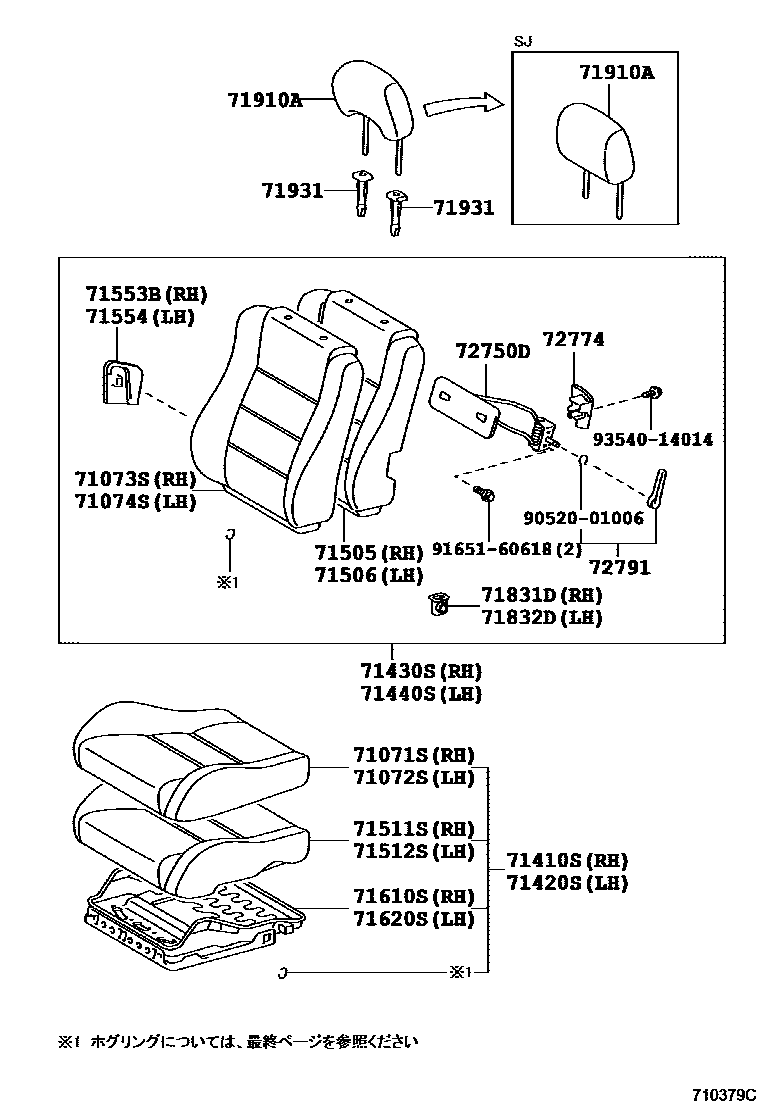

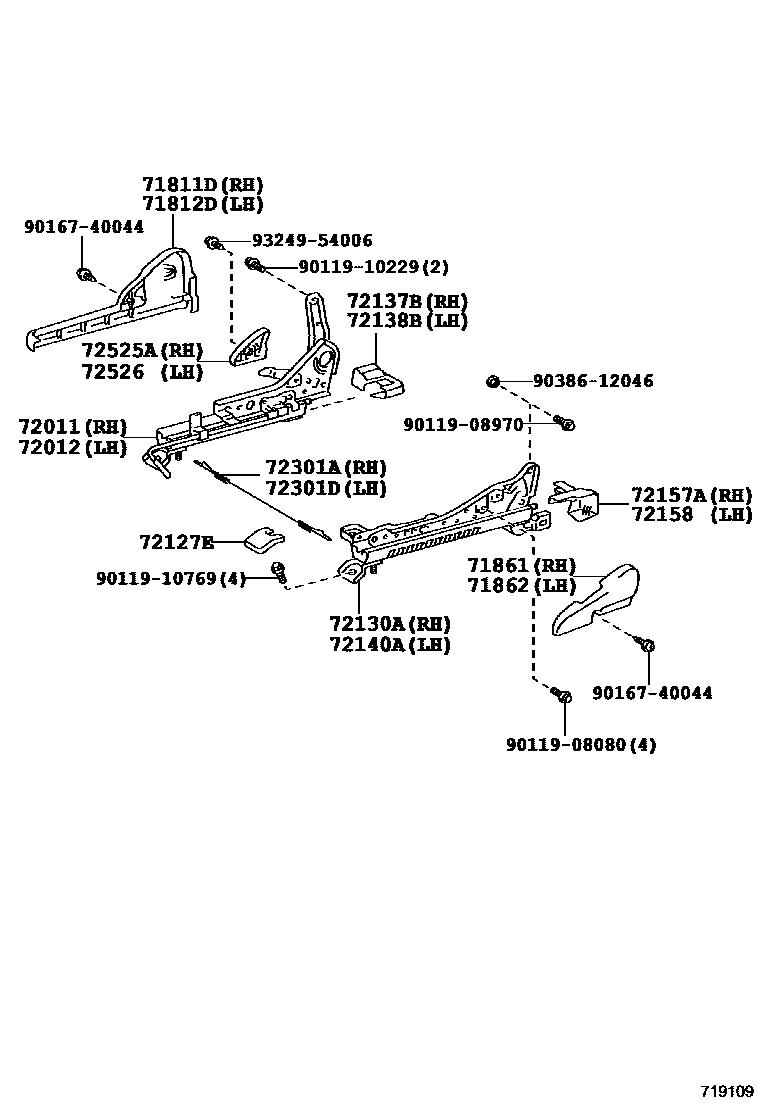

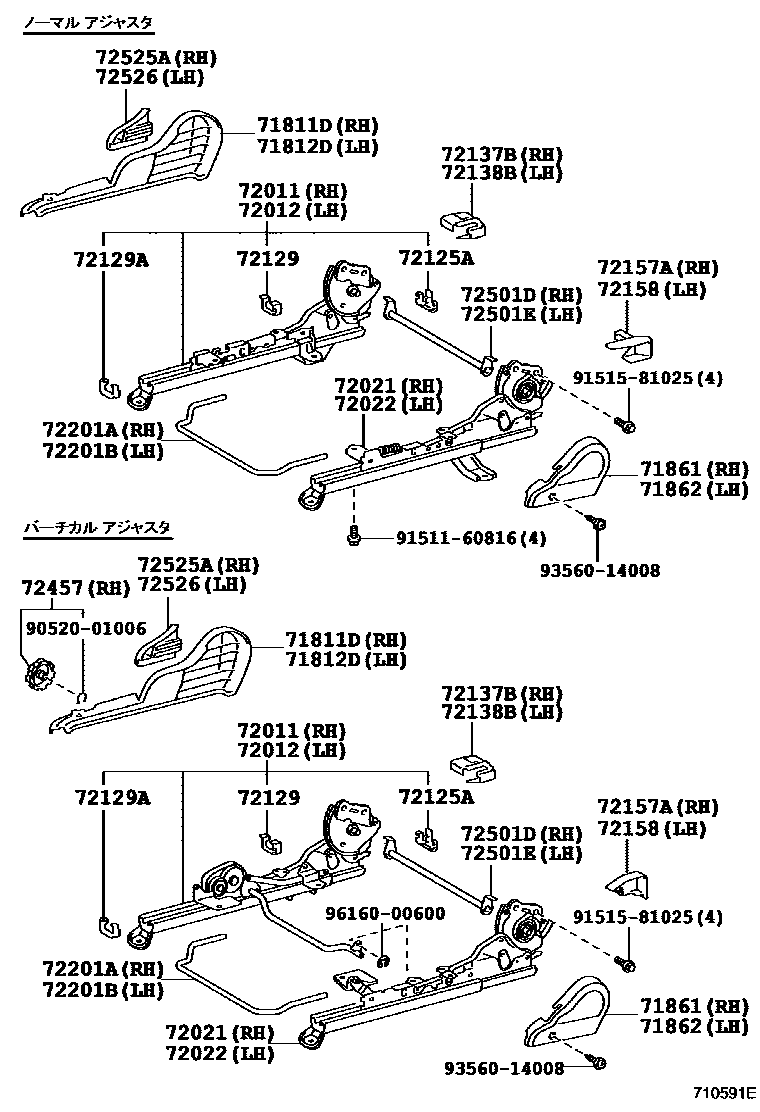

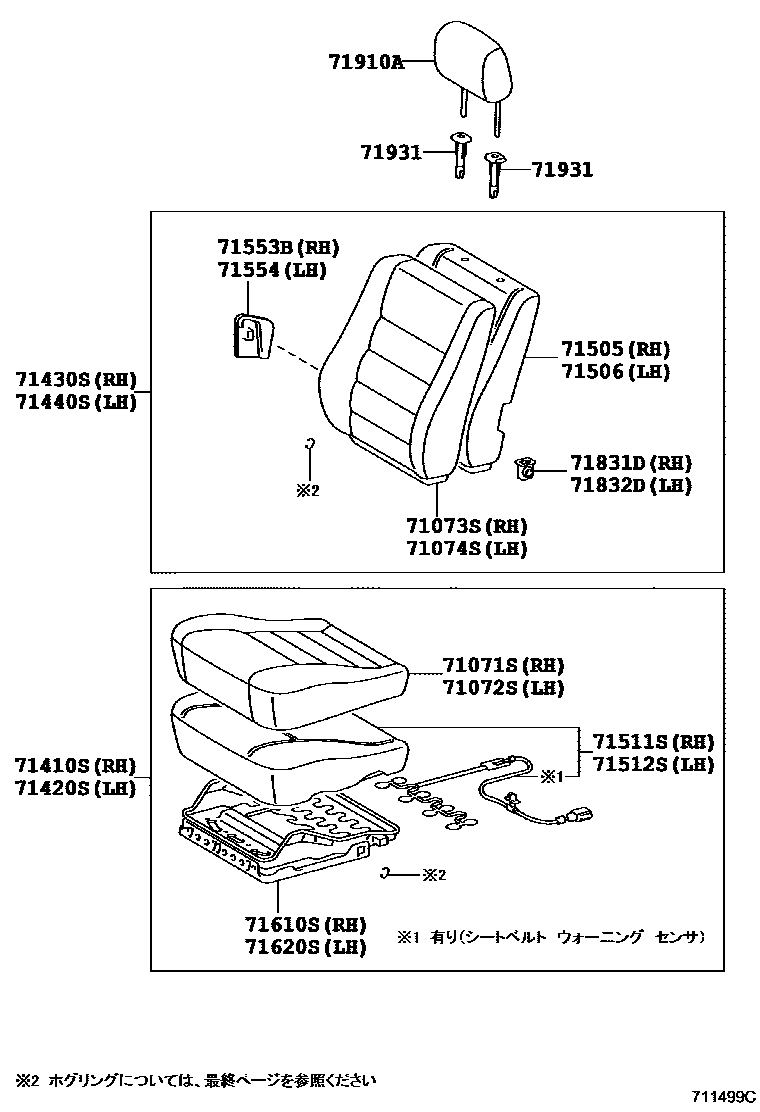

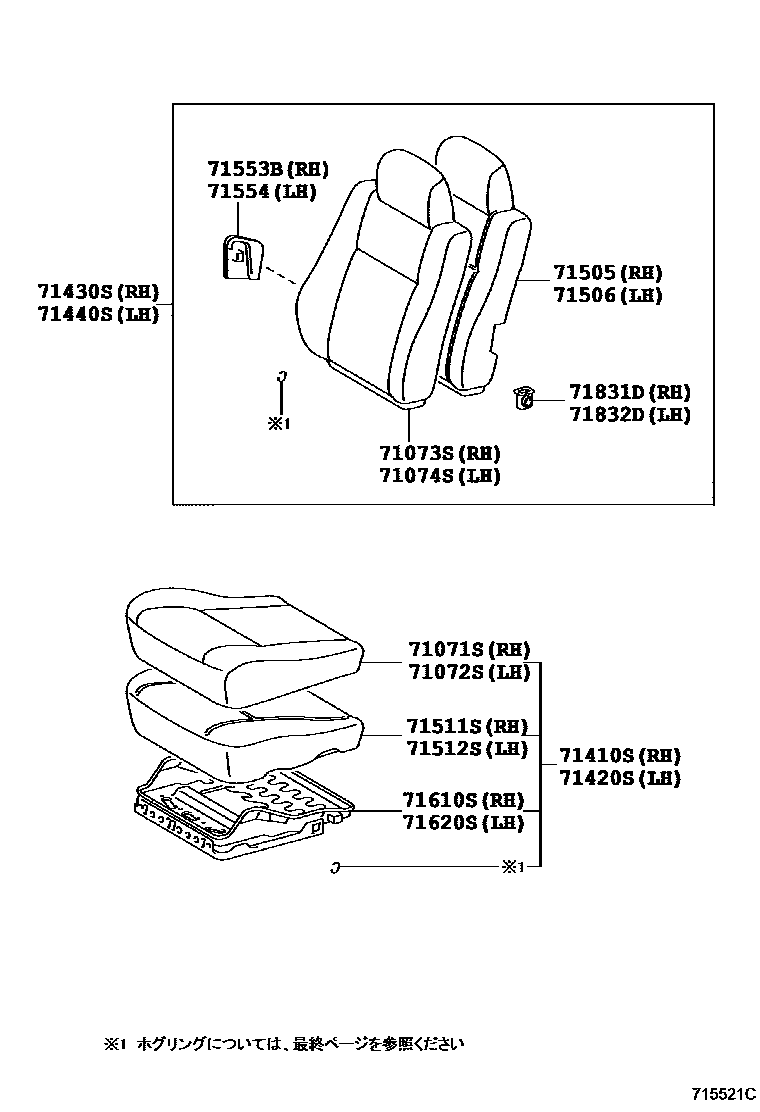

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 12 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-20430 · 71011-20440 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-20440 |
| 71013S | Front right seat back frame sub-assembly | 71013-12630 · 71013-12631 |
| 71014S | Front left seat back frame sub-assembly | 71013-12630 · 71013-12631 |
| 71107A | Front right seat armrest bracket sub-assembly | 71107-12010 |
| 71108B | Front right seat leg sub-assembly | 71108-12010 |
| 71505 | Front right seat back cushion sub-assembly with frame | 71505-12150 · 71505-12160 · 71505-12170 · 71505-12180 · 71505-13030 · 71505-13031 · 71505-13040 |
| 71506 | Front left seat back cushion sub-assembly with frame | 71506-12110 · 71506-12120 · 71506-12130 · 71506-13030 · 71506-13031 · 71506-13040 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12760 · 71511-12780 · 71511-12800 · 71511-12850 · 71511-12890 · 71511-1A010 · 71511-1A030 |
| 71512S | Front left seat cushion cushion (for split seats) | 71052-12040 · 71052-12060 · 71052-13010 · 71511-12760 · 71511-12780 · 71511-12800 · 71511-12890 · 71511-13050 · 71511-1A020 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12610 · 71551-12630 |
| 71552S | Front left seat back cushion (for split seats) | 71551-12610 · 71551-12630 |
| 71553B | Front B seat back cushion | 71553-12290 · 71553-13030 |
| 71554 | Front C seat back cushion | 71554-12130 · 71554-13020 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-12360 · 71610-12370 · 71610-12380 · 71610-12420 · 71610-12430 · 71610-12450 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-12240 · 71620-12280 · 71620-12300 |
| 71831D | Front right seat hinge cover | 71831-16010 |
| 71832D | Front left seat hinge cover | 71831-16010 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-12580 · 72010-12590 · 72010-12610 · 72011-12250 · 72011-12260 · 72011-12280 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-12210 · 72020-12560 · 72020-12650 · 72020-13050 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-12220 · 72021-12230 · 72021-12320 · 72021-12330 · 72021-12360 · 72021-12370 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-12270 · 72022-12390 |
| 72125A | Rear seat upper slide rail cover | 72125-10010 |
| 72129 | No. 1 seat slide rail lower rail protective cover | 72129-12010 |
| 72129A | No. 2 seat slide rail lower rail ring protective cover | 72129-20020 |
| 72130A | Front right seat inner slide rail assembly | 72130-12570 · 72130-12580 · 72130-12590 · 72130-12600 · 72130-12650 · 72130-12660 · 72130-13060 |
| 72140A | Front left seat inner slide rail assembly | 72140-12480 · 72140-12500 · 72140-12550 · 72140-12650 · 72140-13040 · 72140-13050 · 72140-13060 · 72140-13070 |
| 72201A | Right seat slide rail handle sub-assembly | 72201-12030 |
| 72201B | Left seat slide rail handle sub-assembly | 72201-12030 |
| 72205A | No. 1 electric seat shell sub-assembly | 72205-12010 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-12090 · 72301-12160 · 72301-12230 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-12090 · 72301-12140 · 72301-12160 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72345-12040 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72345-12040 |
| 72750D | Right lumbar support adjuster assembly | 72750-12090 |
| 72774 | Lumbar support spring guard | 72774-12040 |
