Toyota COROLLA 锁芯组件 — Figure 6712

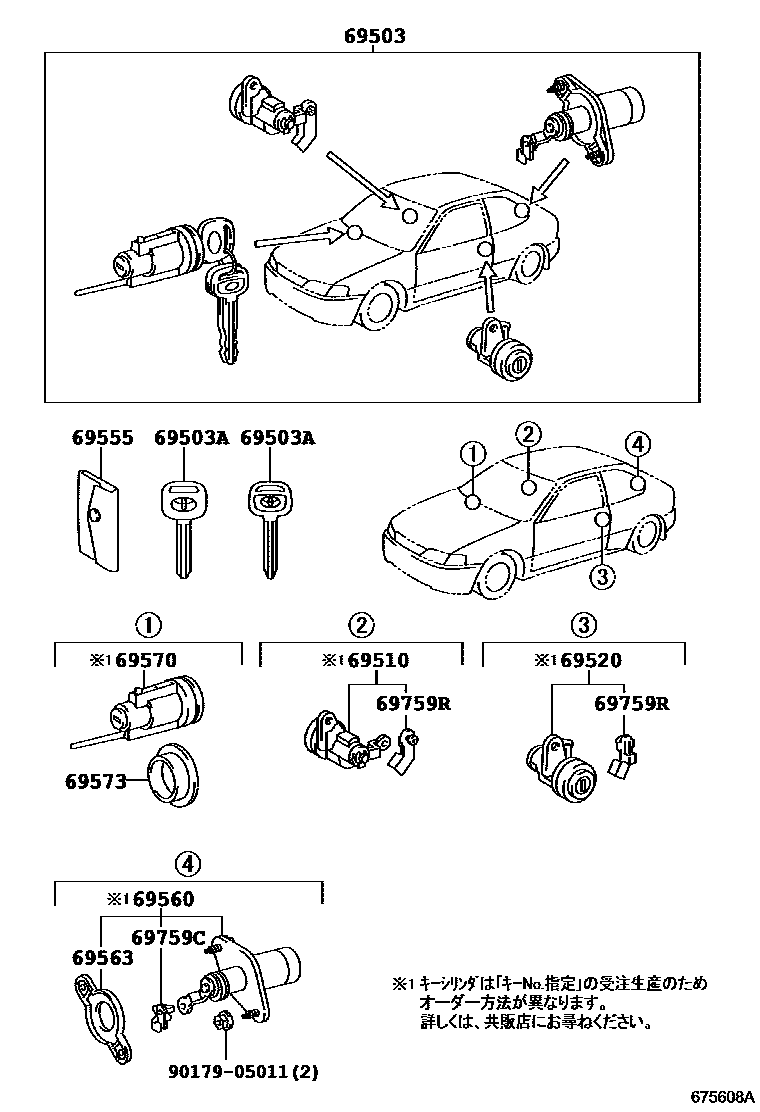

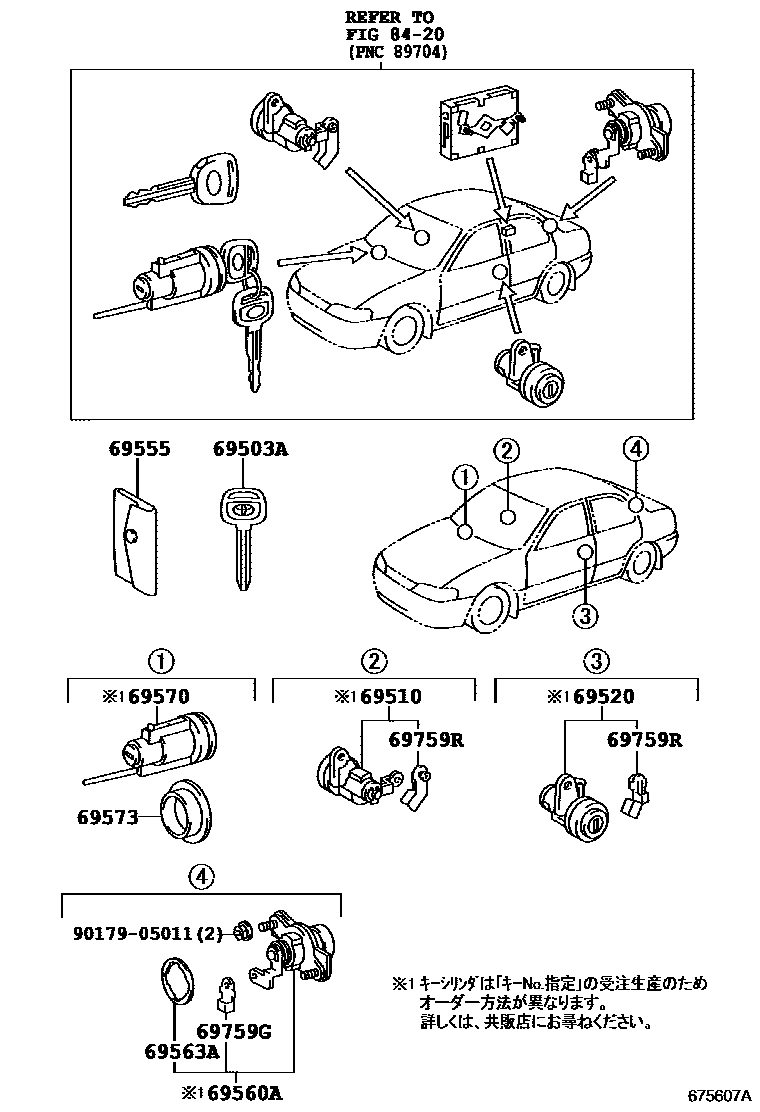

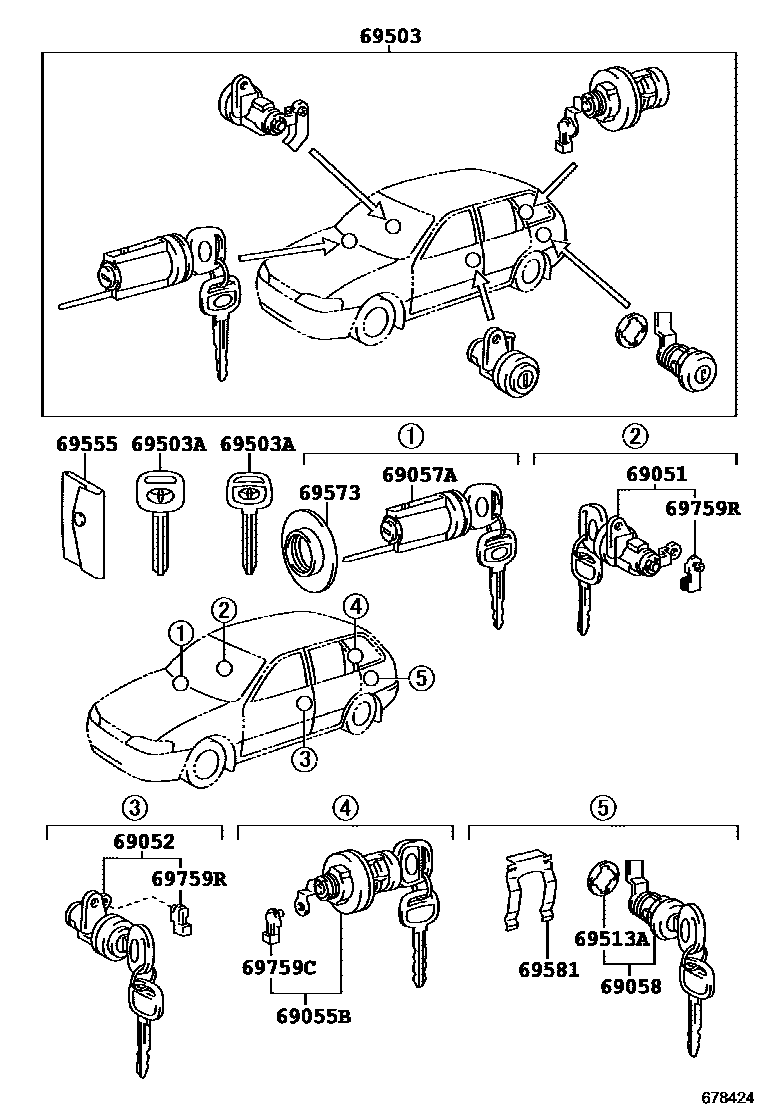

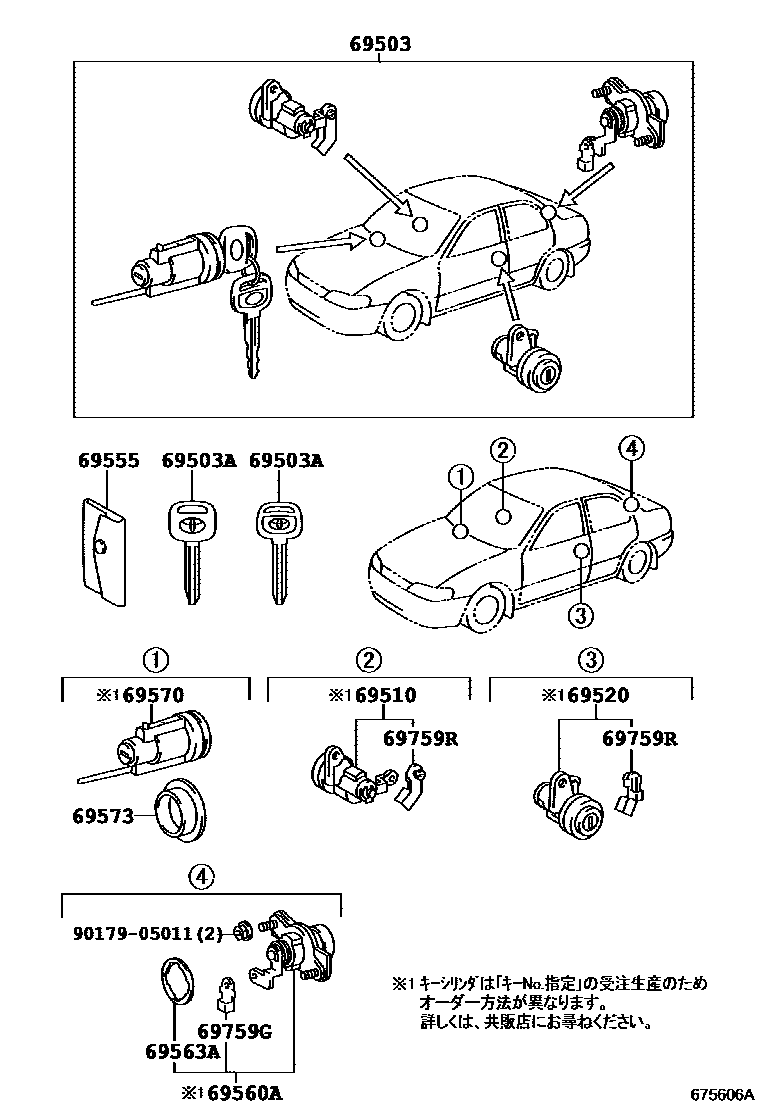

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-13130 · 69051-13200 |
| 69052 | Left door lock cylinder and key assembly | 69052-13130 · 69052-13190 |
| 69055B | Rear door lock cylinder and key assembly | 69055-13140 · 69055-13250 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12240 · 69057-13100 · 69057-13110 · 69057-13120 · 69057-13190 · 69057-13200 · 69057-13210 · 69057-13220 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-13100 · 69058-13130 |
| 69503 | Door lock cylinder components | 69005-13210 · 69005-13220 · 69005-13270 · 69005-13390 · 69005-13470 · 69005-13480 · 69005-13490 · 69005-13500 · 69005-1A330 · 69005-1A560 · 69005-1A680 |
| 69503A | external tooth key | 90999-00185 · 90999-00186 · 90999-00192 · 90999-00193 |
| 69510 | Right front door lock cylinder assembly | 69510-12140 |
| 69513A | Door lock cylinder gasket | 69513-13010 |
| 69520 | Left front door lock cylinder assembly | 69520-12140 |
| 69555 | key cover | 69555-17020 · 69555-20030 · 69555-95J00 |
| 69560 | Rear door lock cylinder assembly | 69560-12450 |
| 69560A | Trunk door lock core assembly | 69560-12280 · 69560-12490 |
| 69563 | Rear door lock cylinder gasket | 69563-12070 |
| 69563A | Trunk door lock cylinder lining | 69563-12070 |
| 69570 | Ignition switch lock cylinder assembly | 69570-12100 |
| 69573 | Ignition switch lock cylinder gasket | 69573-12010 · 69573-12030 |
| 69581 | Fuel filler cap lock cylinder fixing piece | 69581-13010 |
| 69759C | Back door lock cylinder buckle | 69759-24080 |
| 69759G | Trunk door lock core buckle | 69759-24090 |
| 69759R | Front door lock cylinder buckle | 69759-12080 · 69759-12090 |
