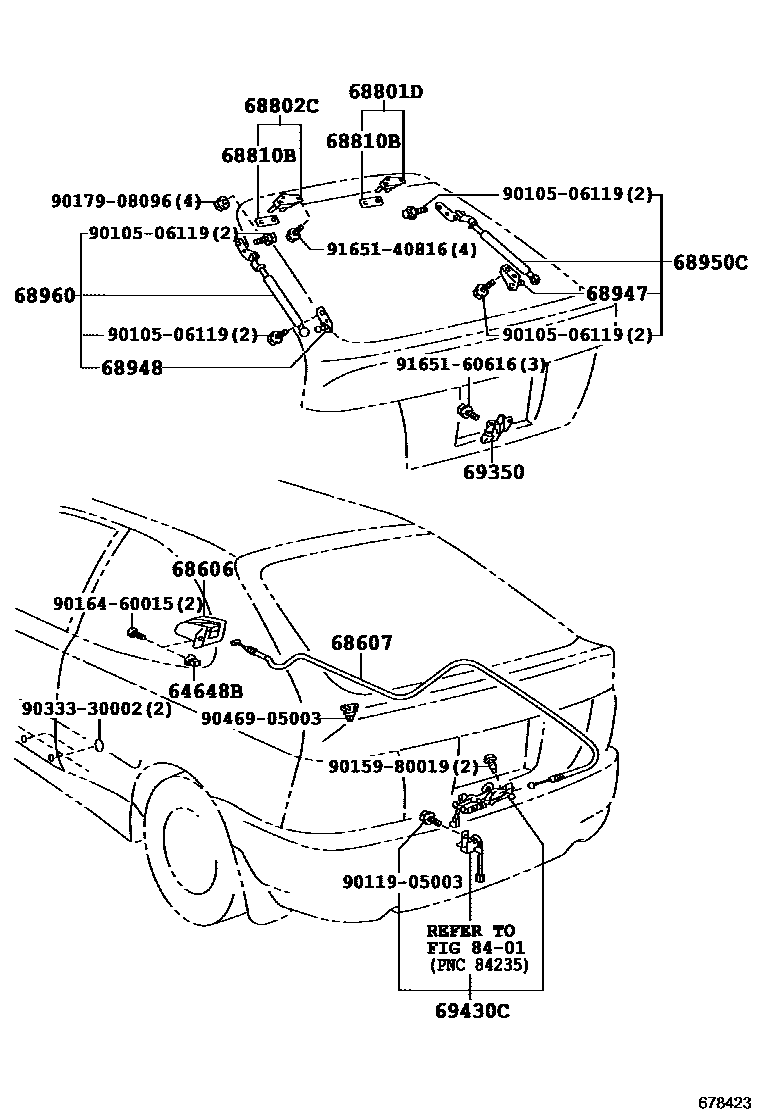

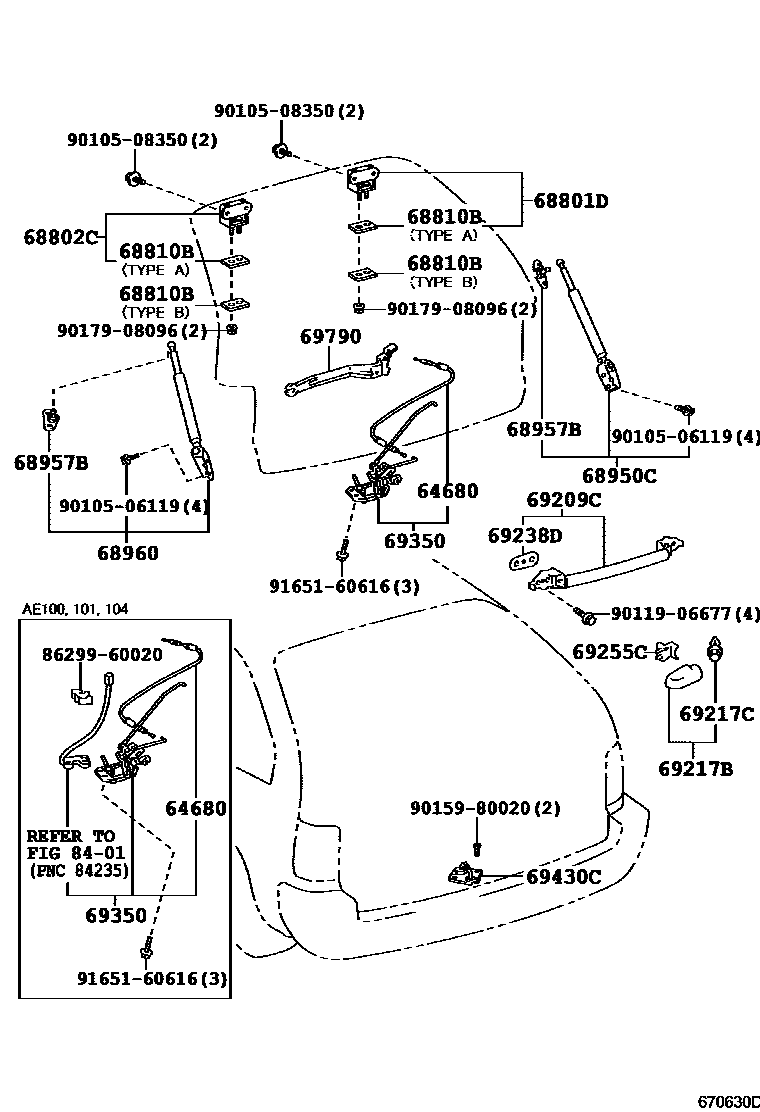

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64648B | Rear door lock opener seal | 64648-12010 |
| 64680 | Rear door lock control cable assembly | 64680-13010 · 64680-13011 · 64680-13031 · 64680-13032 · 64680-13080 |
| 68607 | Rear door lock control cable sub-assembly | 64607-12620 |
| 68801D | Back door right hinge sub-assembly | 68801-12070 · 68801-12090 · 68801-13090 · 68801-13110 |
| 68802C | Back door left hinge sub-assembly | 68801-12070 · 68801-12090 · 68801-13090 · 68801-13110 |
| 68810B | Back door hinge gasket | 68838-12010 · 68838-13010 · 68838-14022 · 68863-13010 |
| 68947 | Back door right damping strut lower bracket | 68947-12030 |
| 68948 | Rear door left damping strut lower bracket | 68948-12030 |
| 68950C | Back door right support rod assembly | 68950-19775 · 68950-19785 · 68950-19795 · 68950-19835 · 68950-19845 · 68950-80056 |
| 68957B | Rear door support rod lower bracket | 68957-13020 |
| 68960 | Back door left support rod assembly | 68960-19465 · 68960-19475 · 68960-19485 · 68960-19525 · 68960-19535 · 68960-19695 |
| 69209C | Rear door outer handle sub-assembly | 69209-13020 |
| 69217B | Rear door outer handle cover | 69217-13010 |
| 69217C | Rear door outer handle cover fixing part | 90467-08179 |
| 69238D | Back door outer handle cushion | 69238-13020 |
| 69255C | Car door outer handle protector | 69255-13010 |
| 69350 | Rear door lock assembly | 69350-12120 · 69350-13110 · 69350-13120 · 69350-13130 · 69350-13150 · 69350-13170 · 69350-13172 · 69350-13173 · 69350-13174 · 69350-13180 · 69350-13182 · 69350-13183 · 69350-13184 · 69350-13210 · 69350-13211 · 69350-13230 |
| 69430C | Back door lock assembly | 69430-12310 · 69430-12311 · 69430-13010 |
| 69790 | Rear door lock control assembly | 69790-13010 · 69790-13050 |
