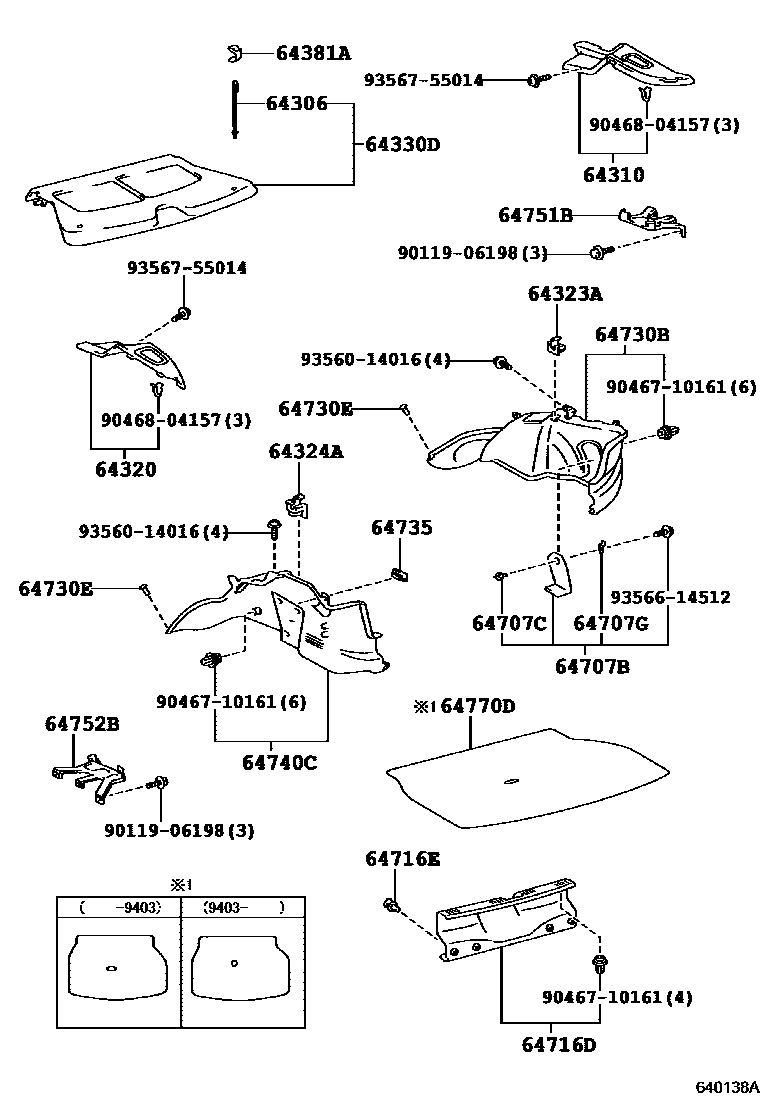

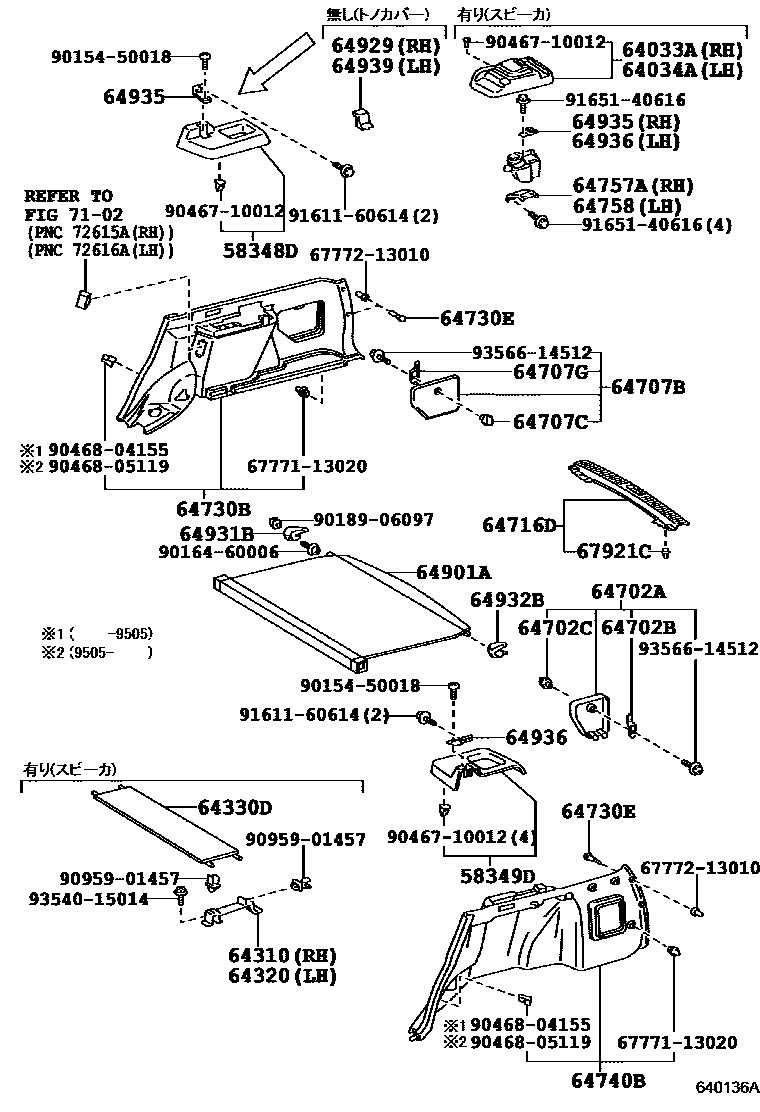

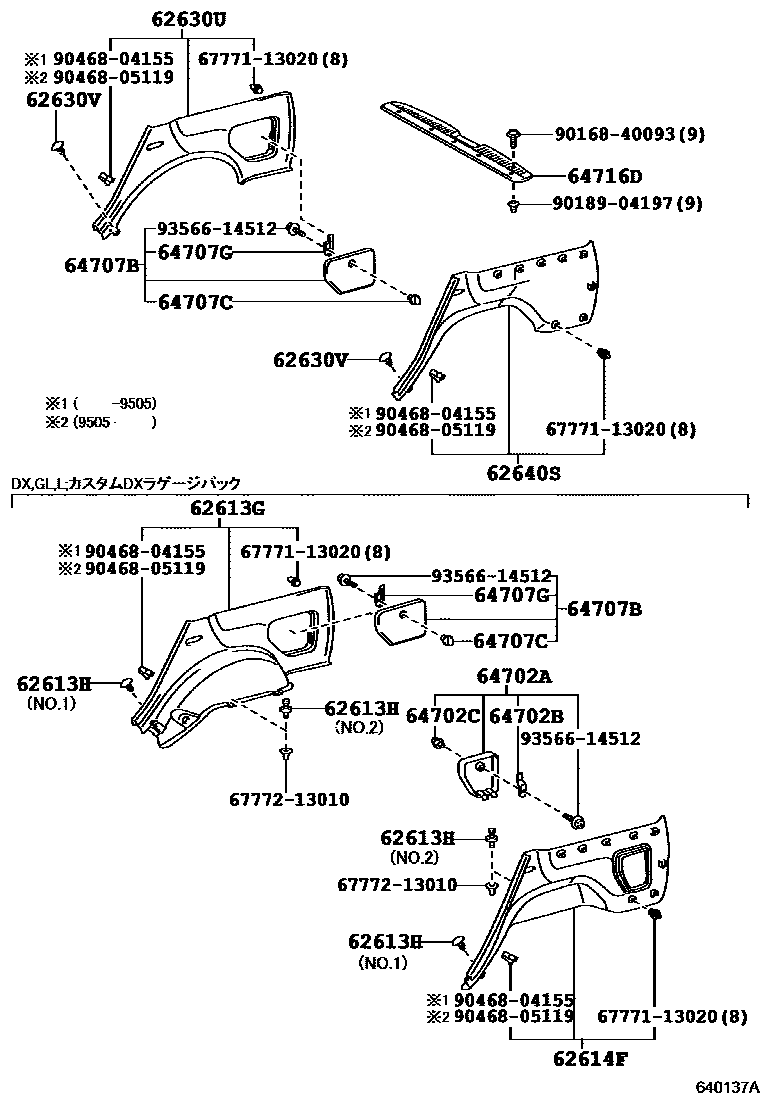

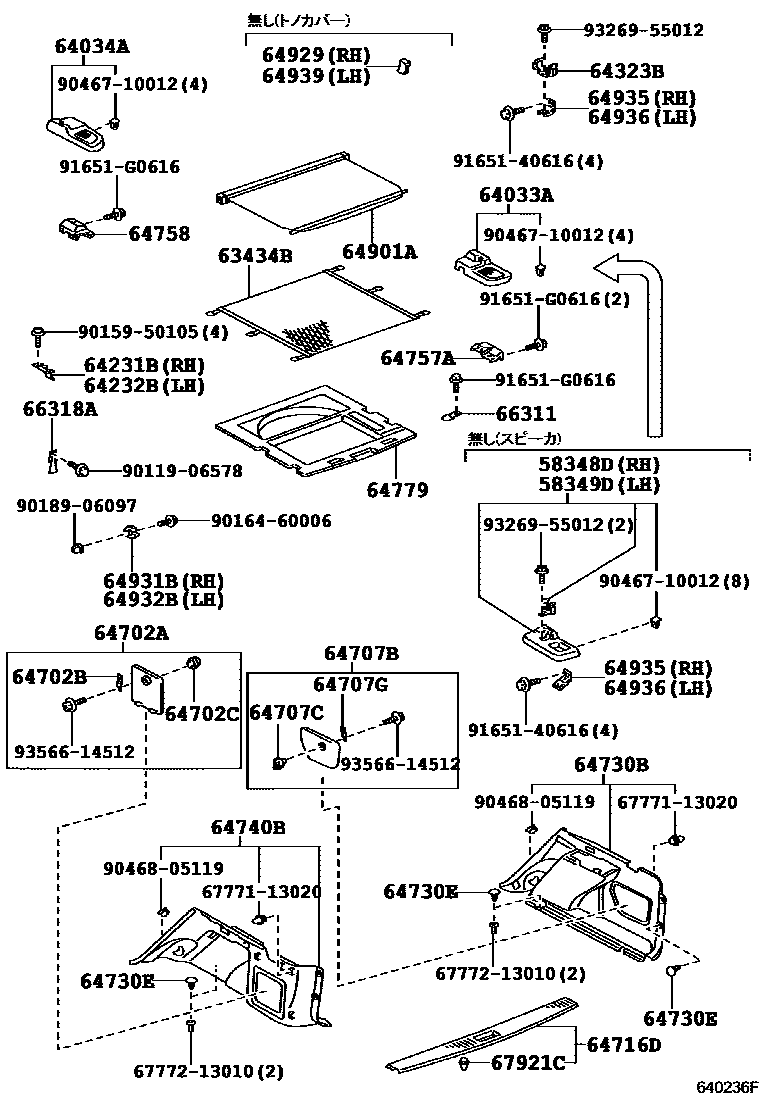

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63434B | In-car luggage rack net | 63434-13020 |
| 64231B | Cabin partition net right front hook | 64231-13020 |
| 64232B | Cabin partition net left front hook | 64231-13020 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-12050 · 64306-12070 |
| 64310 | Glove box decorative panel right bracket | 64301-13010 |
| 64320 | Glove box decorative panel left bracket | 64302-13010 |
| 64323A | Glove box decorative panel right clip | 64327-12020 |
| 64324A | Glove box decorative panel left clip | 64328-12020 |
| 64381A | Glove box decorative panel hanger | 64381-12030 |
| 64702B | Washer water tank cover stopper | 64981-13010 |
| 64707G | Jack cover stop | 64981-13010 · 64981-16021 |
| 64716E | Clip (for rear floor decorative cover) | 90467-07146 |
| 64735 | Bottom panel side trim access hole cover | 64735-12040 |
| 64751B | No. 1 right speaker fixing bracket | 64751-12040 |
| 64752B | No. 1 left speaker fixing bracket | 64752-12040 |
| 64757A | No. 3 speaker fixing bracket | 64757-13010 · 64757-13020 |
| 64758 | No. 4 speaker fixing bracket | 64758-13010 · 64758-13020 |
| 64770D | Spare tire cover assembly | 64770-12181 · 64770-12191 |
| 64779 | Spare tire cover bracket | 64779-13010 |
| 64935 | Right trunk trim cover retainer | 64935-13030 · 64935-13040 · 64935-13060 |
| 64936 | Left trunk trim cover retainer | 64935-13030 · 64936-13010 · 64936-13020 |
| 66311 | rope hook | 66311-13010 |
| 66318A | rope hook strap | 66318-13010 |
| 67921C | Base panel side decorative panel fixings | 67921-13010 |
