Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 3 images and 13 PNC and OE references.

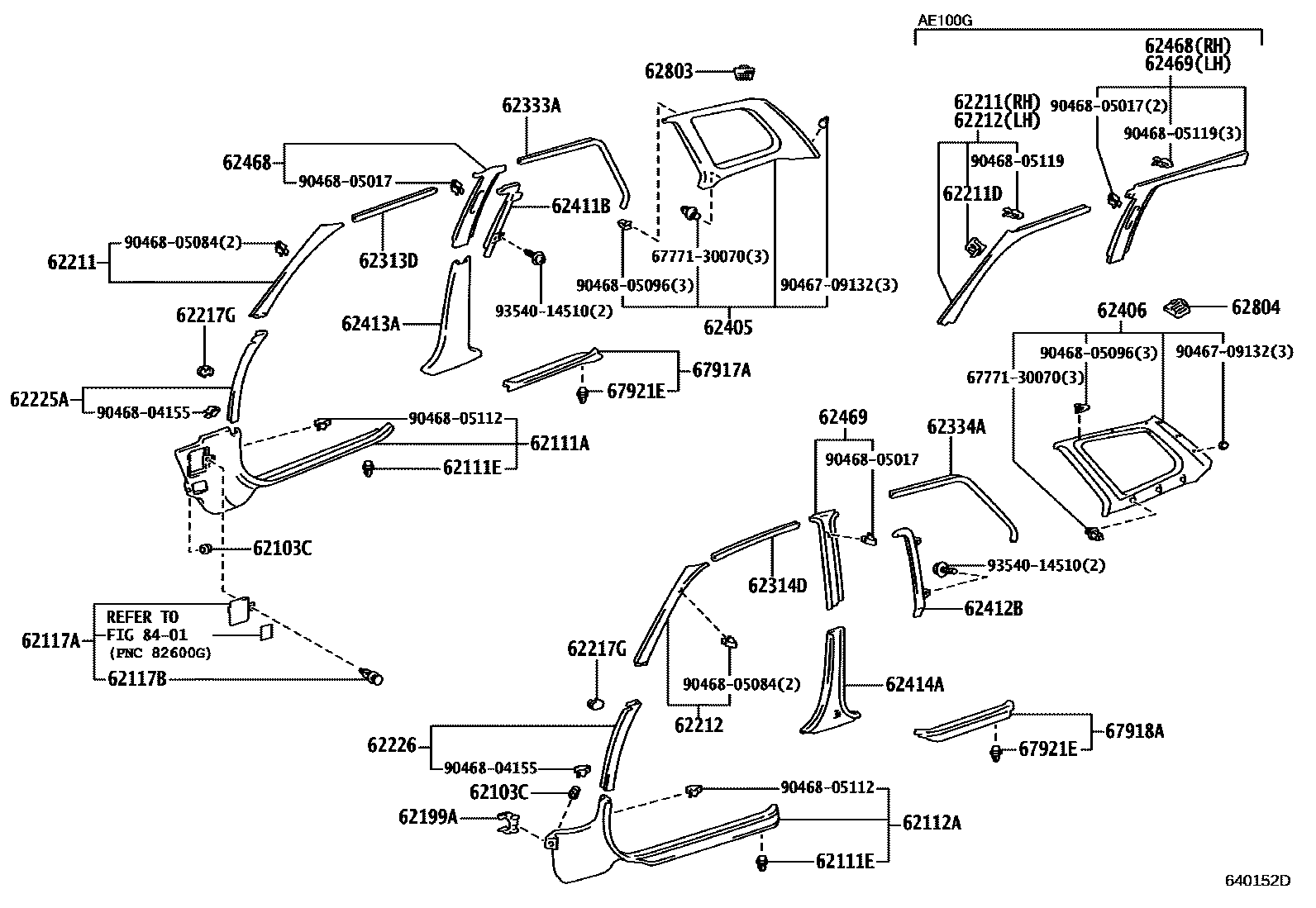

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 640152D
内饰板和车门防水胶条 — 640152D (199109 – 999999)

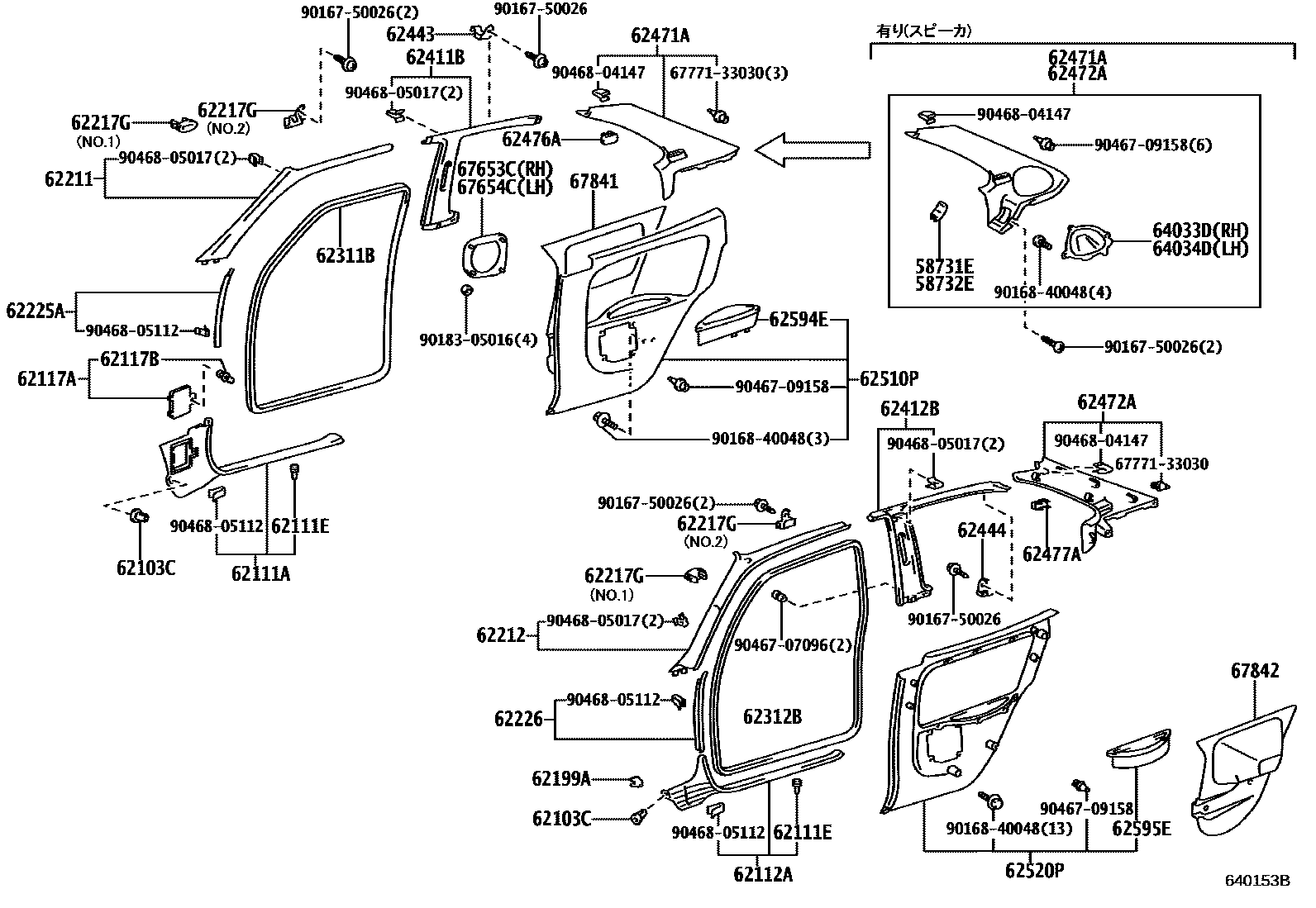

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 640153B
内饰板和车门防水胶条 — 640153B (199205 – 999999)

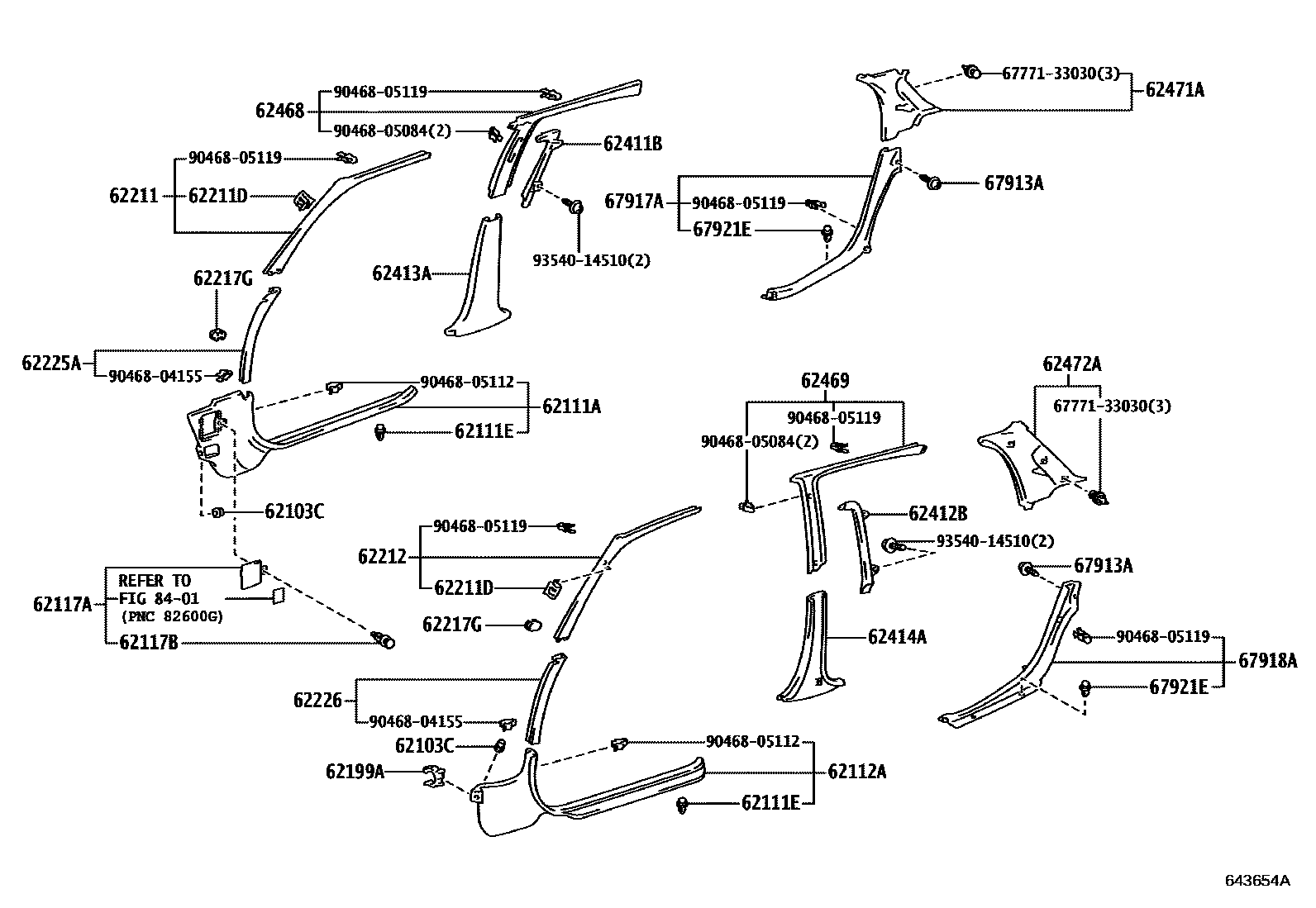

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 643654A
内饰板和车门防水胶条 — 643654A (199106 – 999999)

PNC and OE references

PNCPart nameOE numbers
62103CFront wall side trim panel fixing clips90467-08160
62111EFront wall side trim panel fixings67921-32010
62117BNo. 1 clip (for cowl side trim panel)90467-08149
62199AToyota part90468-25003
62211DClip (for body front pillar decorative panel)90468-05084
62217GFront pillar decorative plate clip62217-12020 · 62217-12040
62311BRight front door opening waterproof tape62311-12060
62312BLeft front door opening waterproof tape62312-12050
62443Roof right side rail decorative strip joint62443-12020
62444Roof left side rail decorative strip joint62444-12020
67841No. 1 right side manhole cover67841-12260
67842No. 1 left side manhole cover67842-12090
67921ERear door wear plate fixing parts67921-32010
