Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

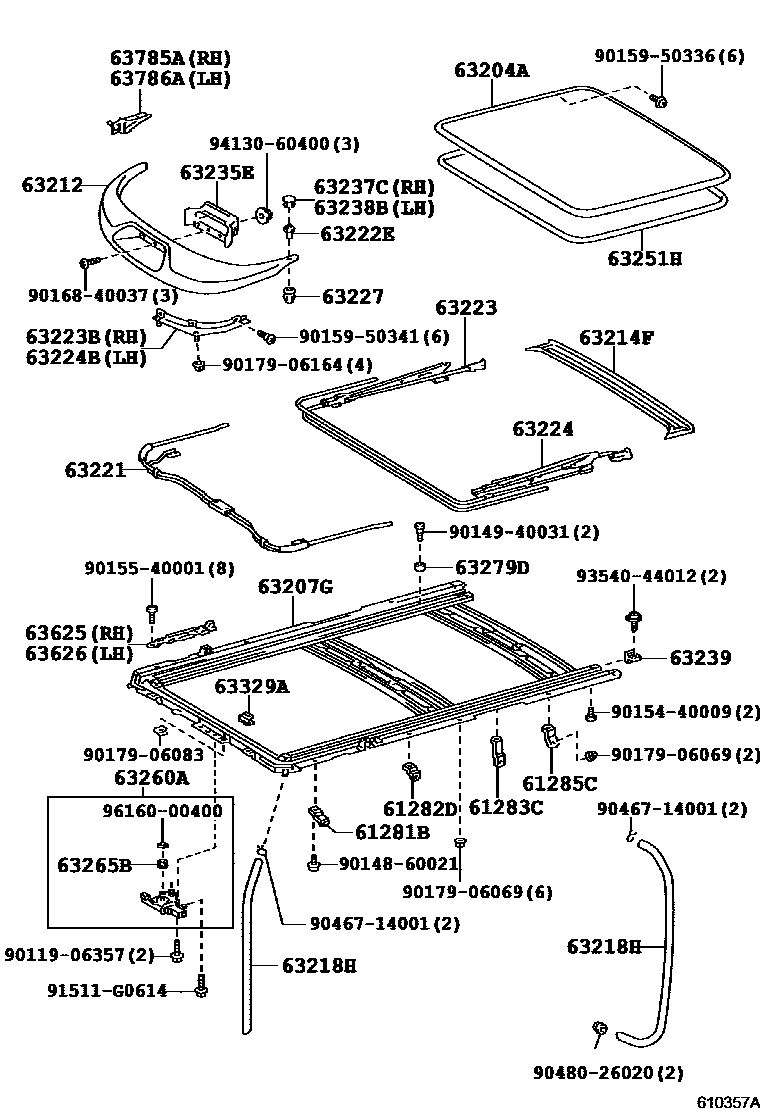

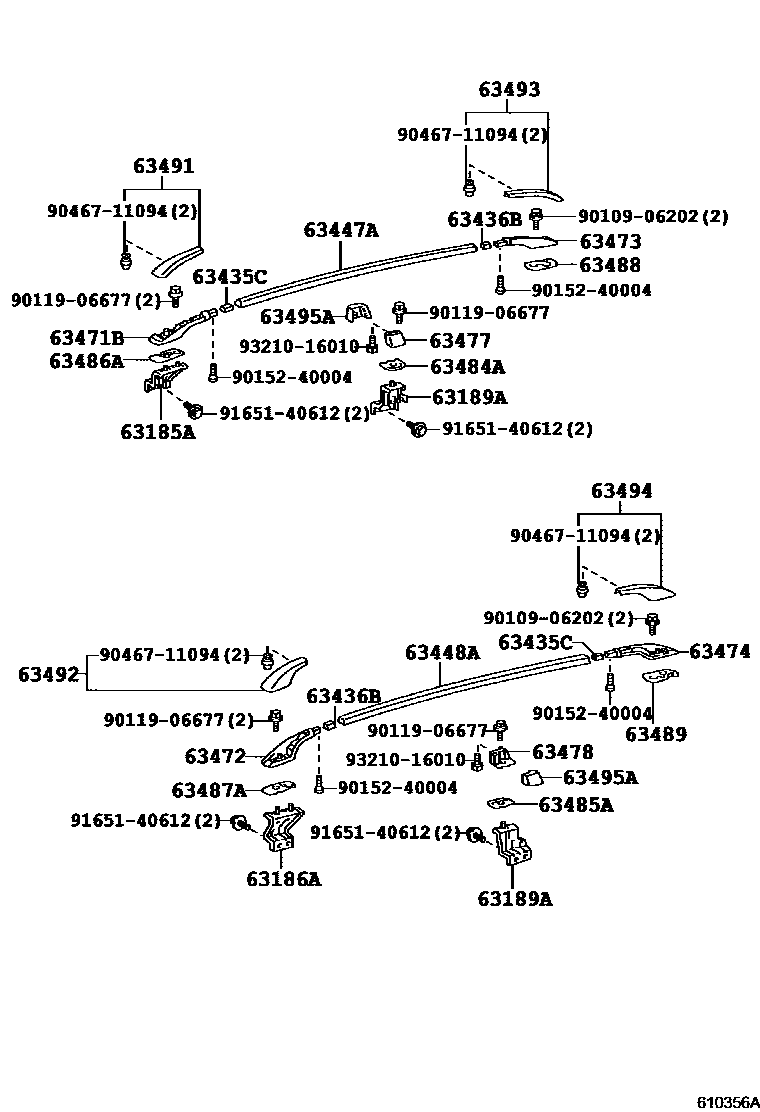

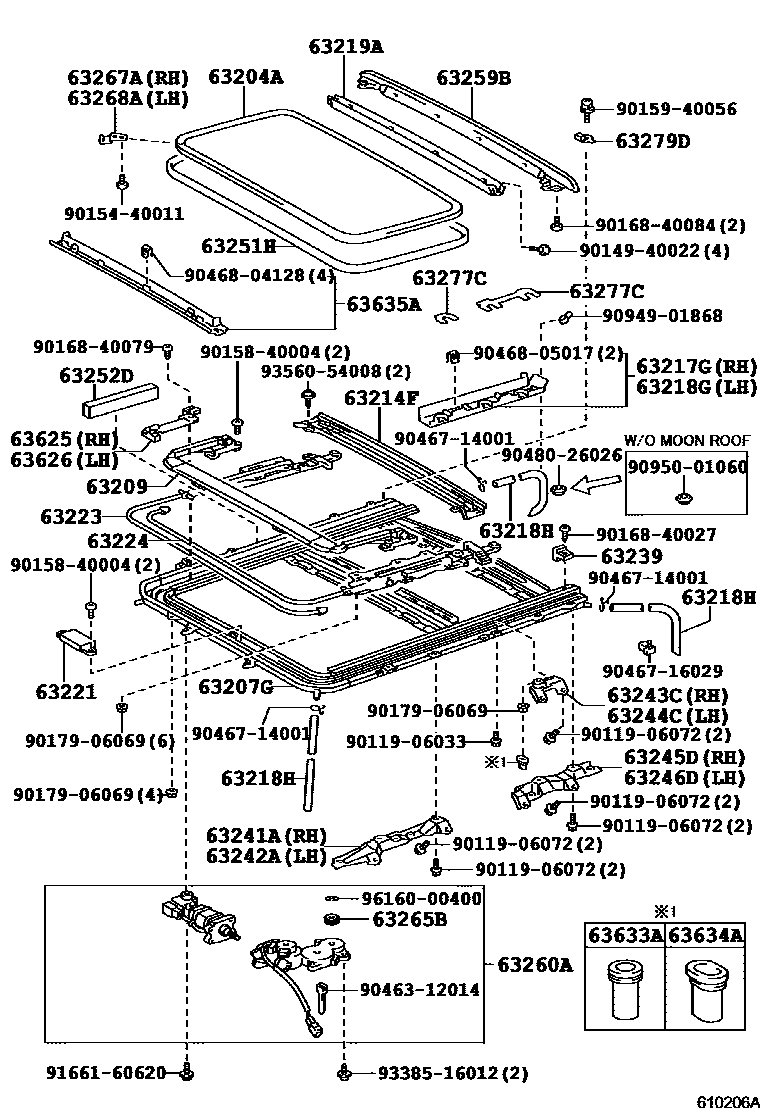

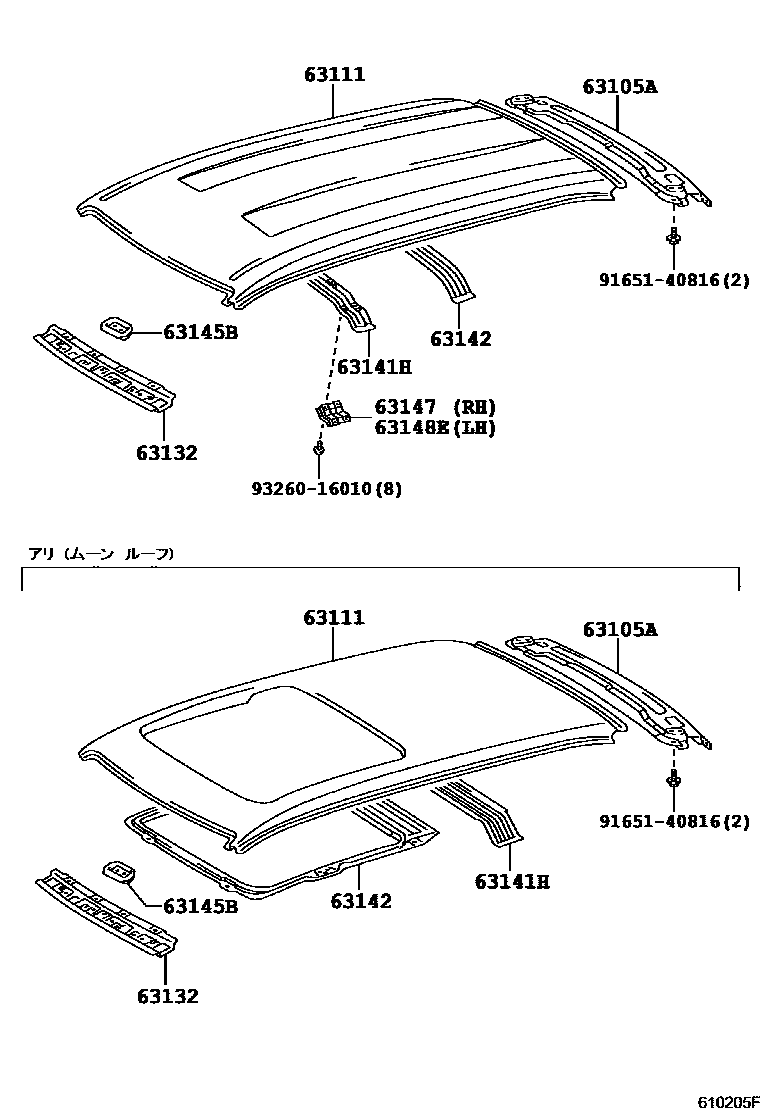

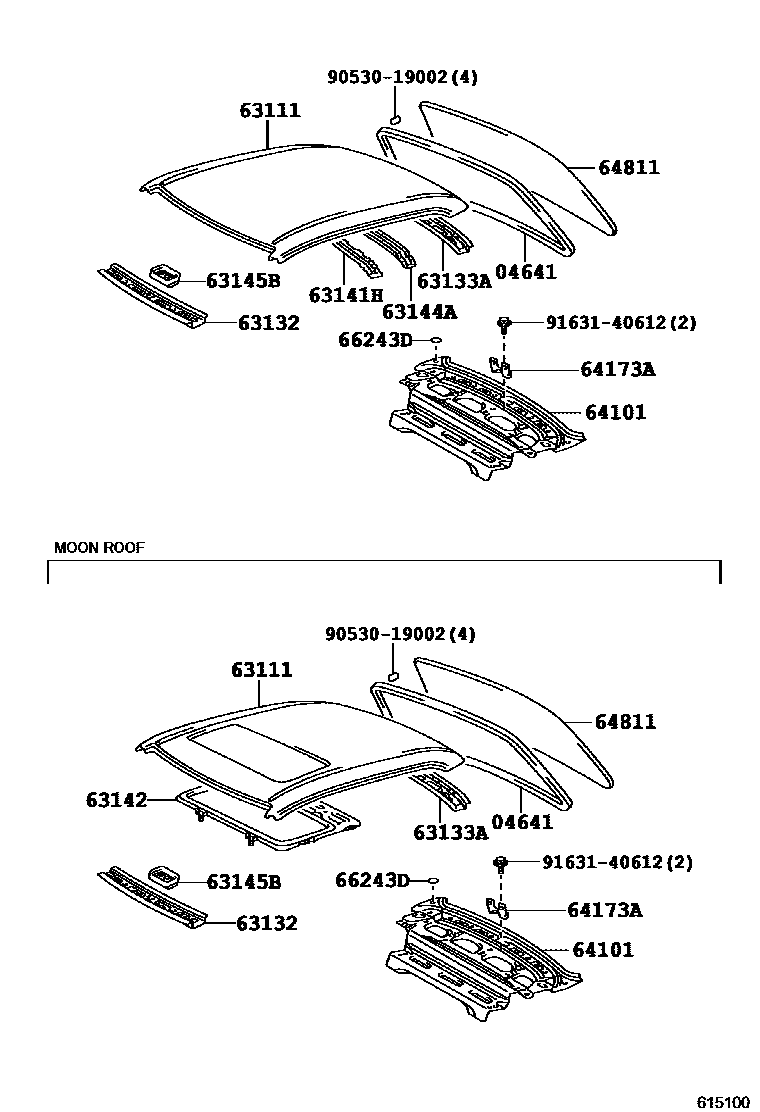

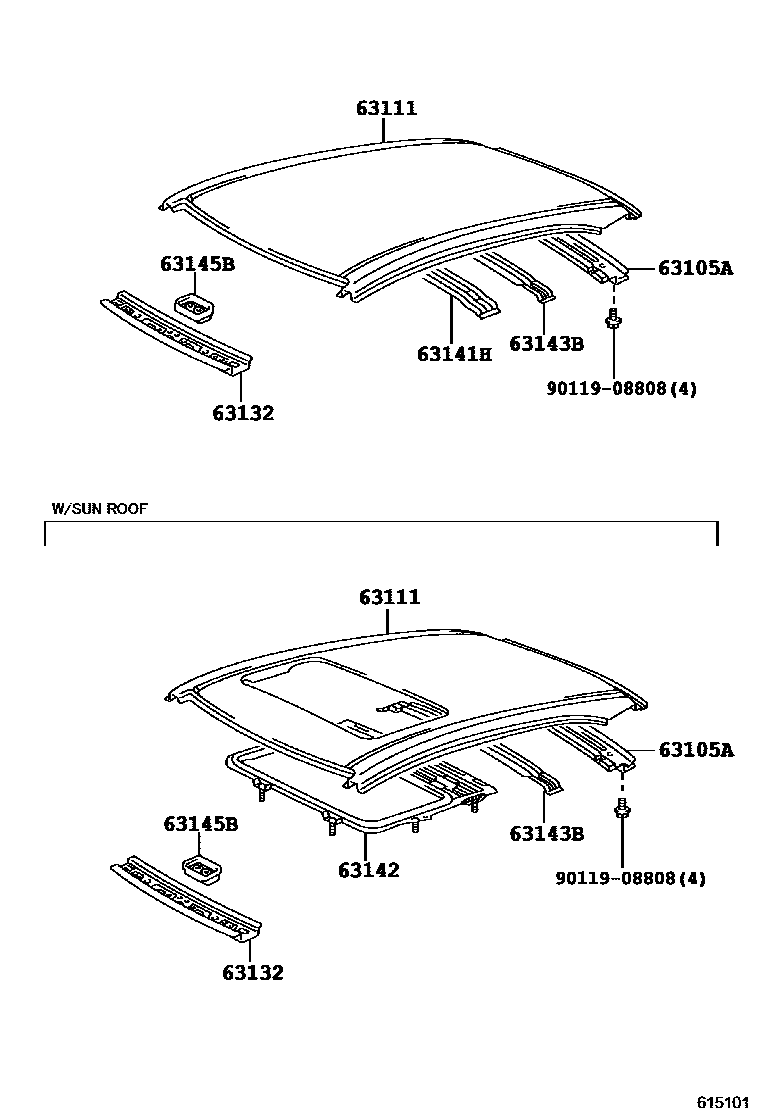

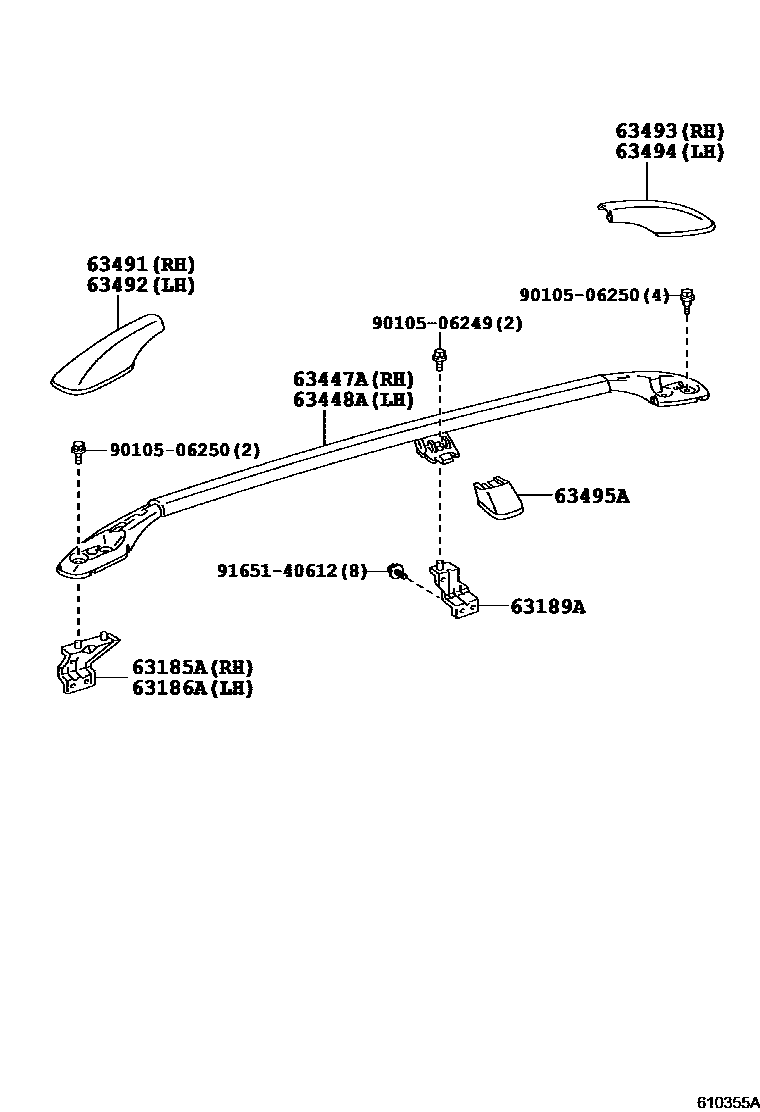

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 7 images and 82 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641 | Back window glass sealing strip assembly | 04562-12010 |
| 61281B | Sliding sunroof frame No. 1 side mounting bracket | 61281-13020 |
| 61282D | Sliding sunroof frame No. 2 side mounting bracket | 61282-13010 |
| 61283C | Sliding sunroof frame No. 3 side mounting bracket | 61283-13020 |
| 61285C | Sliding sunroof frame No. 4 side mounting bracket | 61285-13010 |
| 63105A | Back door opening frame sub-assembly | 63105-12210 · 63105-13070 · 63105-13080 · 63105-13110 · 63105-13120 |
| 63111 | roof panel | 63111-12530 · 63111-12540 · 63111-12590 · 63111-12600 · 63111-13170 · 63111-13171 · 63111-13190 · 63111-13191 · 63111-13250 |
| 63132 | Windshield inner roof panel | 63102-13020 · 63102-13060 · 63132-12170 |
| 63133A | upper frame of back window | 63133-12190 |
| 63141H | Center roof panel reinforcement | 63141-12160 · 63141-13060 · 63141-13061 · 63141-13090 |
| 63142 | No. 2 roof panel reinforcement | 63142-12060 · 63142-13050 · 63142-13080 |
| 63143B | No. 3 roof panel reinforcement | 63143-12060 · 63143-12070 |
| 63144A | No. 4 roof panel reinforcement | 63144-12020 |
| 63145B | Windshield roof reinforcement | 63145-12100 |
| 63147 | Roof panel reinforcement bracket | 63147-13010 |
| 63148E | Left roof panel reinforcement bracket | 63147-13010 · 63148-13050 |
| 63185A | Right front roof rack bracket | 63185-13020 · 63185-13050 |
| 63186A | Left front roof rack bracket | 63186-13020 · 63186-13050 |
| 63189A | Center roof rack bracket | 63189-13020 · 63189-13050 · 63199-13020 · 63199-13040 |
| 63204A | Sliding sunroof inner panel sub-assembly | 63204-12060 · 63204-12061 · 63204-13020 |
| 63207G | Sliding sunroof guide rail sub-assembly | 63207-12110 · 63207-12111 · 63207-12112 · 63207-13030 |
| 63209 | Roof deflector sub-assembly | 63209-12080 · 63209-12100 |
| 63214F | Roof rear drain channel | 63214-12040 · 63214-13020 |
| 63217G | Right sliding sunroof trim | 63217-12060 |
| 63218G | Sliding sunroof trim, left | 63218-12070 |
| 63218H | Sliding skylight drain hose | 63220-13010 · 63249-12160 · 63249-12210 · 63249-12230 · 63249-32090 |
| 63219A | Rear sliding sunroof trim | 63219-12040 |
| 63221 | Sliding sunroof cable duct | 63221-12070 · 63221-13030 |
| 63222E | Roof deflector pin | 63222-13010 |
| 63223 | Right sliding sunroof transmission cable | 63223-12090 · 63223-12091 · 63223-13040 |
| 63223B | Roof right deflector bracket | 63223-13050 |
| 63224 | Left sliding sunroof transmission cable | 63224-12080 · 63224-12081 · 63224-13040 |
| 63224B | Roof left deflector bracket | 63224-13050 |
| 63227 | Roof deflector clip | 63227-13010 |
| 63235E | Roof deflector duct | 63235-13020 |
| 63239 | Sliding roof panel stop | 63239-12020 · 63239-12030 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-12040 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63242-12020 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-12060 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63244-12060 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-12030 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63246-12020 |
| 63251H | Sliding skylight seal | 63251-12120 · 63251-13020 |
| 63252D | Sliding skylight frame sealing strip | 63252-12030 |
| 63259B | Sliding sunroof sealing strip holder | 63259-12070 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12070 · 63260-13030 |
| 63265B | Sliding sunroof driving gear | 63265-12020 · 63265-12040 |
| 63267A | Right sliding sunroof sealing strip protector | 63267-32020 |
| 63268A | Left sliding sunroof sealing strip protector | 63268-32020 |
| 63277C | Sliding skylight panel gasket | 63277-20020 · 63277-20030 · 63277-20040 · 63277-20050 |
| 63279D | Sliding sunroof guide rail stop | 63279-12020 · 63279-12030 |
| 63329A | Sunshade lock stop | 63329-12020 |
| 63435C | Roof right storage rack No. 1 seal | 63435-13020 · 63436-13030 |
| 63436B | Roof left storage rack No. 1 seal | 63435-13020 · 63436-13030 |
| 63447A | Roof right side rail | 63447-13030 · 63460-13060 |
| 63448A | Roof left side rail | 63448-13030 · 63470-13060 |
| 63471B | Right front roof rack support | 63471-13020 |
| 63472 | Left front roof rack support | 63472-13020 |
| 63473 | Right rear roof rack support | 63473-13030 |
| 63474 | Left rear roof rack support leg | 63474-13030 |
| 63477 | Right center roof rack bracket | 63477-13030 |
| 63478 | Left center roof rack bracket | 63478-13030 |
| 63484A | Right center roof rack foot cushion | 63484-13020 |
| 63485A | Left center roof rack foot cushion | 63485-13020 |
| 63486A | Right front roof rack support foot cushion | 63486-13020 |
| 63487A | Left front roof rack support foot cushion | 63487-13020 |
| 63488 | Right rear roof rack foot cushion pad | 63488-13030 |
| 63489 | Left rear roof rack support foot cushion pad | 63489-13030 |
| 63491 | Right front roof rack leg cover | 63491-13020 · 63491-13050 |
| 63492 | Left front roof rack leg cover | 63492-13020 · 63492-13050 |
| 63493 | Right rear roof rack foot cover | 63493-13030 · 63493-13060 |
| 63494 | Left rear roof rack leg cover | 63494-13030 · 63494-13060 |
| 63495A | Center roof rack foot cover | 63495-13020 · 63495-13050 · 63496-13020 · 63496-13050 |
| 63625 | Right sliding sunroof guide block | 63625-12010 · 63625-13010 |
| 63626 | Left sliding sunroof guide block | 63626-12010 · 63626-13010 |
| 63633A | Sliding sunroof frame bushing No. 1 | 63633-12010 |
| 63634A | Sliding sunroof frame bushing No. 2 | 63634-12010 |
| 63635A | Front sliding sunroof trim | 63635-12030 |
| 64101 | Upper back panel sub-assembly | 64101-12410 · 64101-12430 |
| 64173A | high brake light bracket | 64173-12050 |
| 64811 | back window glass | 64811-02080 · 64811-1A400 · 64811-1A410 · 64811-1A420 · 64811-1A440 · 64811-1A450 · 64811-1A460 |
| 66243D | Rear body protection piece No. 1 | 66243-20010 |
