Toyota COROLLA 角窗 — Figure 6103
Toyota COROLLA EPC diagram 6103, 角窗, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

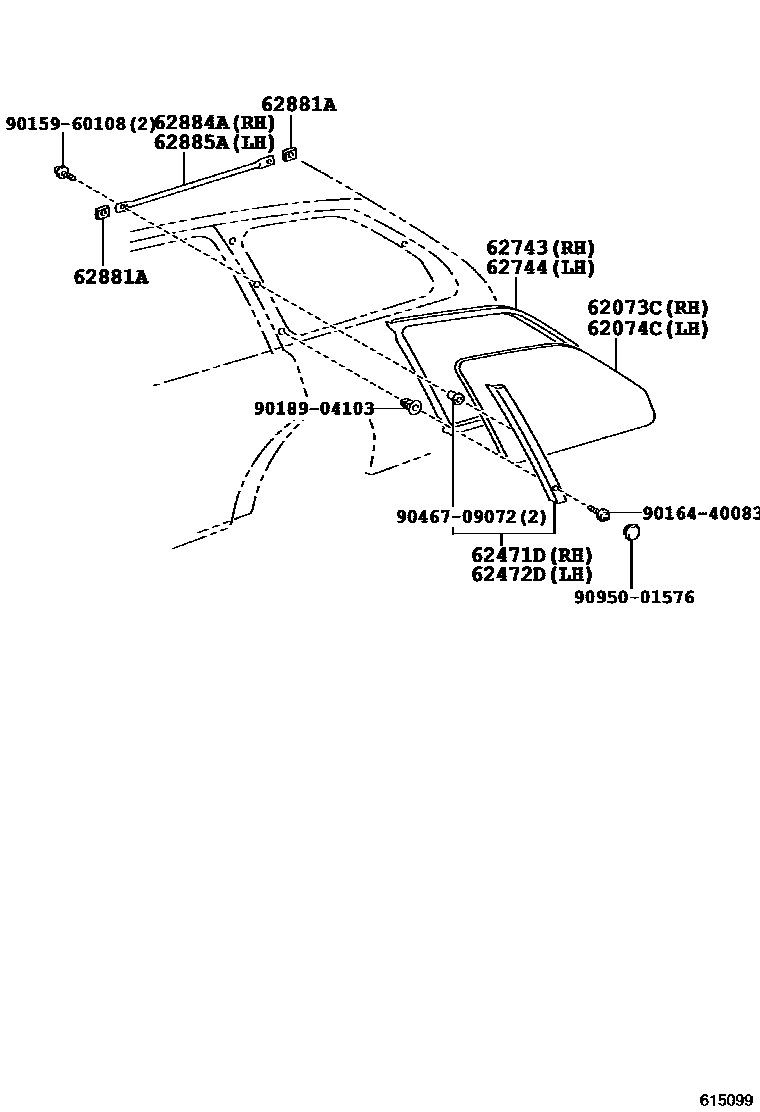

| 62073C | Right rear corner window glass sub-assembly | 62073-13090 · 62073-13130 · 62073-13140 · 62073-13150 · 62073-13160 · 62073-13170 · 68133-13020 · 68133-13070 · 68133-13130 |
| 62074C | Left rear corner window glass sub-assembly | 62074-13090 · 62074-13130 · 62074-13140 · 62074-13150 · 62074-13160 · 62074-13170 · 68134-13020 · 68134-13070 · 68134-13130 |
| 62471D | Decorative panel on right rear pillar | 62471-13030 |
| 62472D | Decorative panel on left rear pillar | 62472-13030 |

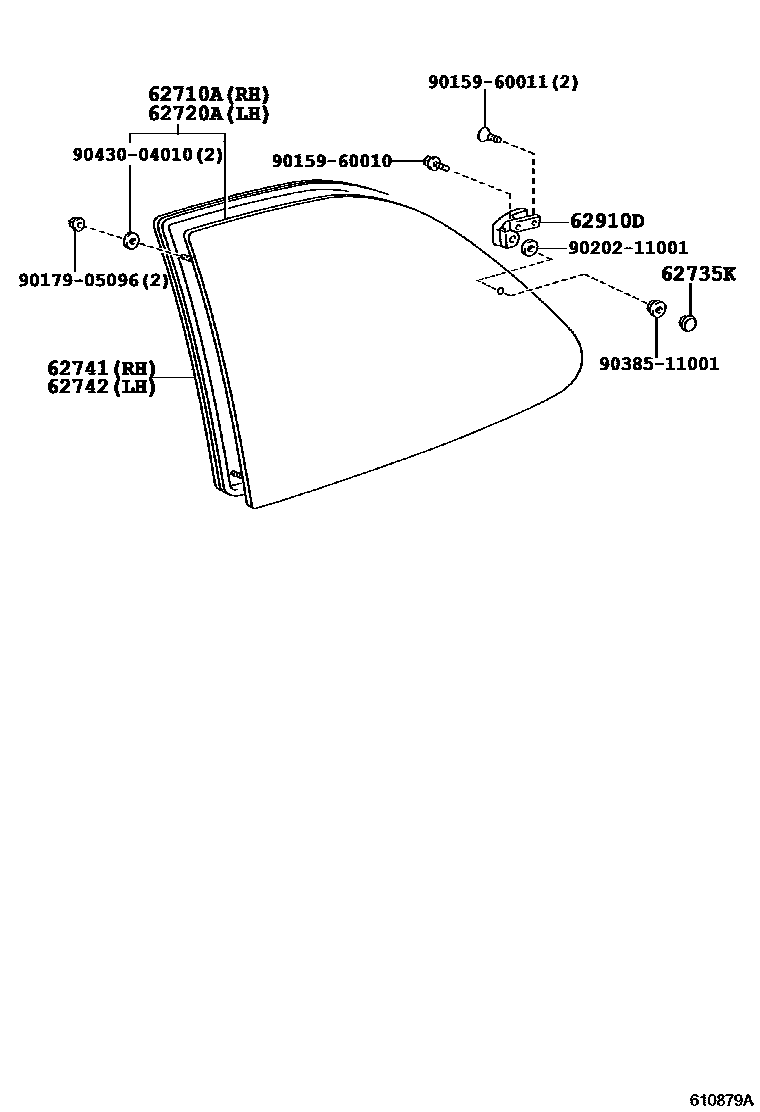

| 62710A | Right corner window assembly | 62710-12740 |
| 62720A | Left corner window assembly | 62720-12740 |
| 62735K | Corner window hinge fixings | 62735-10030 |
| 62741 | Right corner window sealing strip | 62741-12160 |
| 62742 | Left corner window sealing strip | 62741-12160 |
| 62743 | Right rear corner window sealing strip | 62743-13070 |
| 62744 | Left rear corner window sealing strip | 62744-13070 |
| 62881A | Corner window guardrail bracket | 62881-13040 |
| 62884A | Right corner window guardrail | 62884-13090 |
| 62885A | Left corner window guardrail | 62885-13030 |
| 62910D | Corner window lock assembly | 62910-12100 · 62920-12030 |

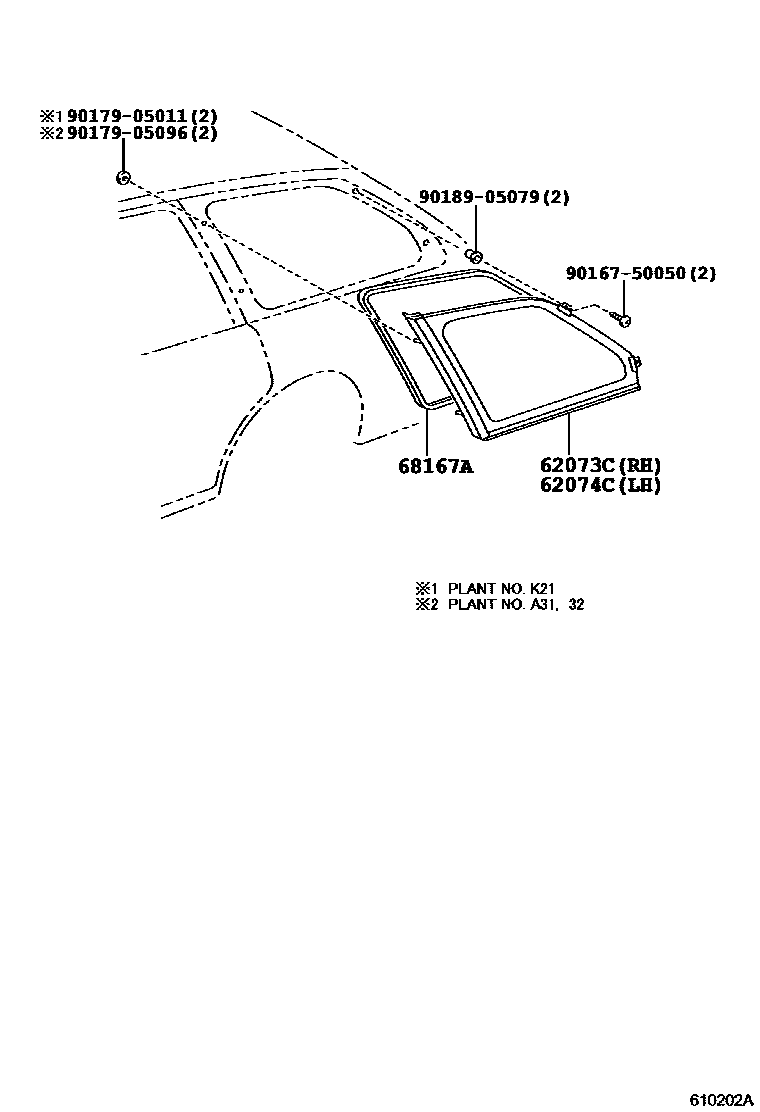

| 68167A | Corner window No. 2 glass sealing strip | 68167-13020 |
