Toyota COROLLA 侧梁 — Figure 6101

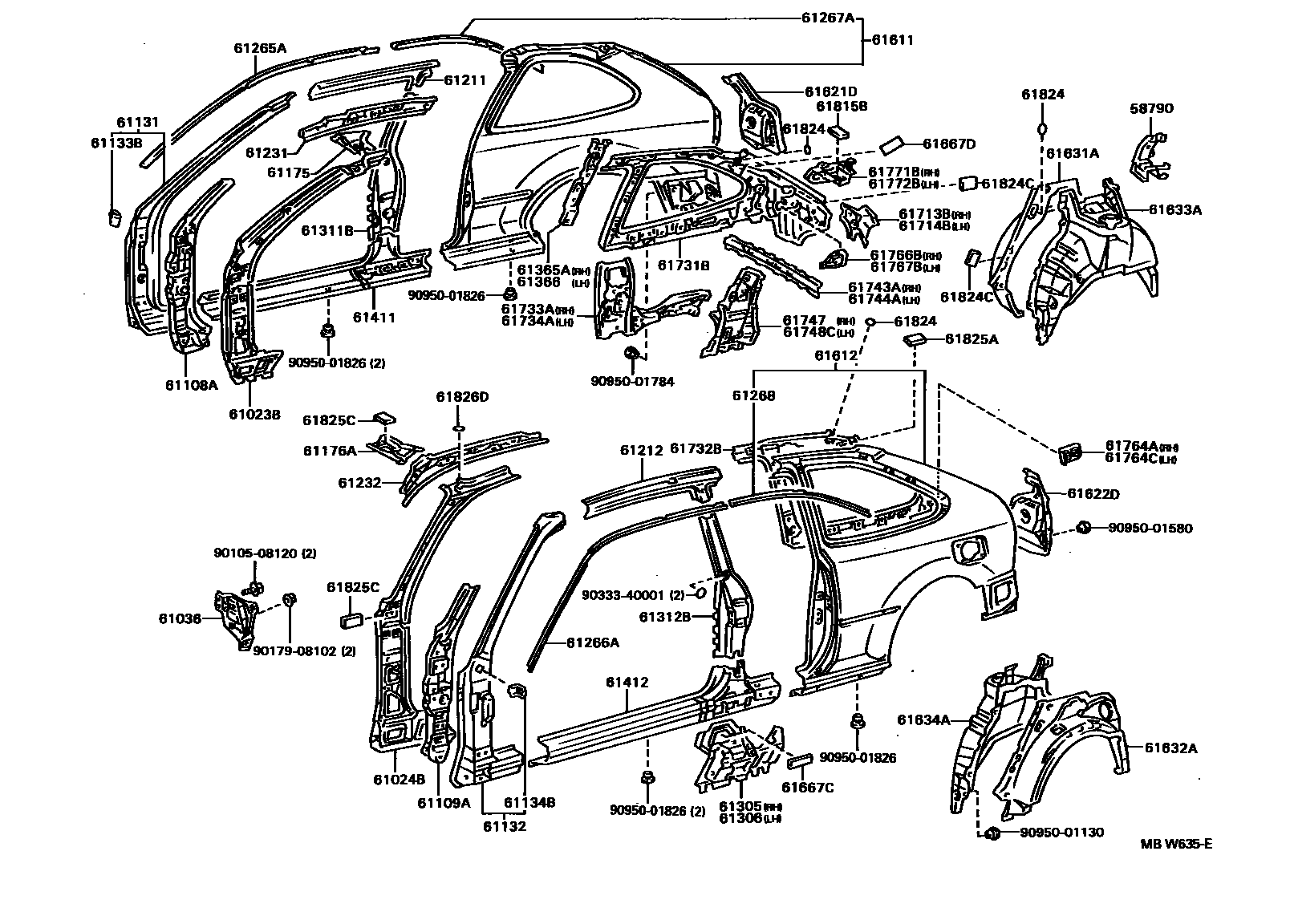

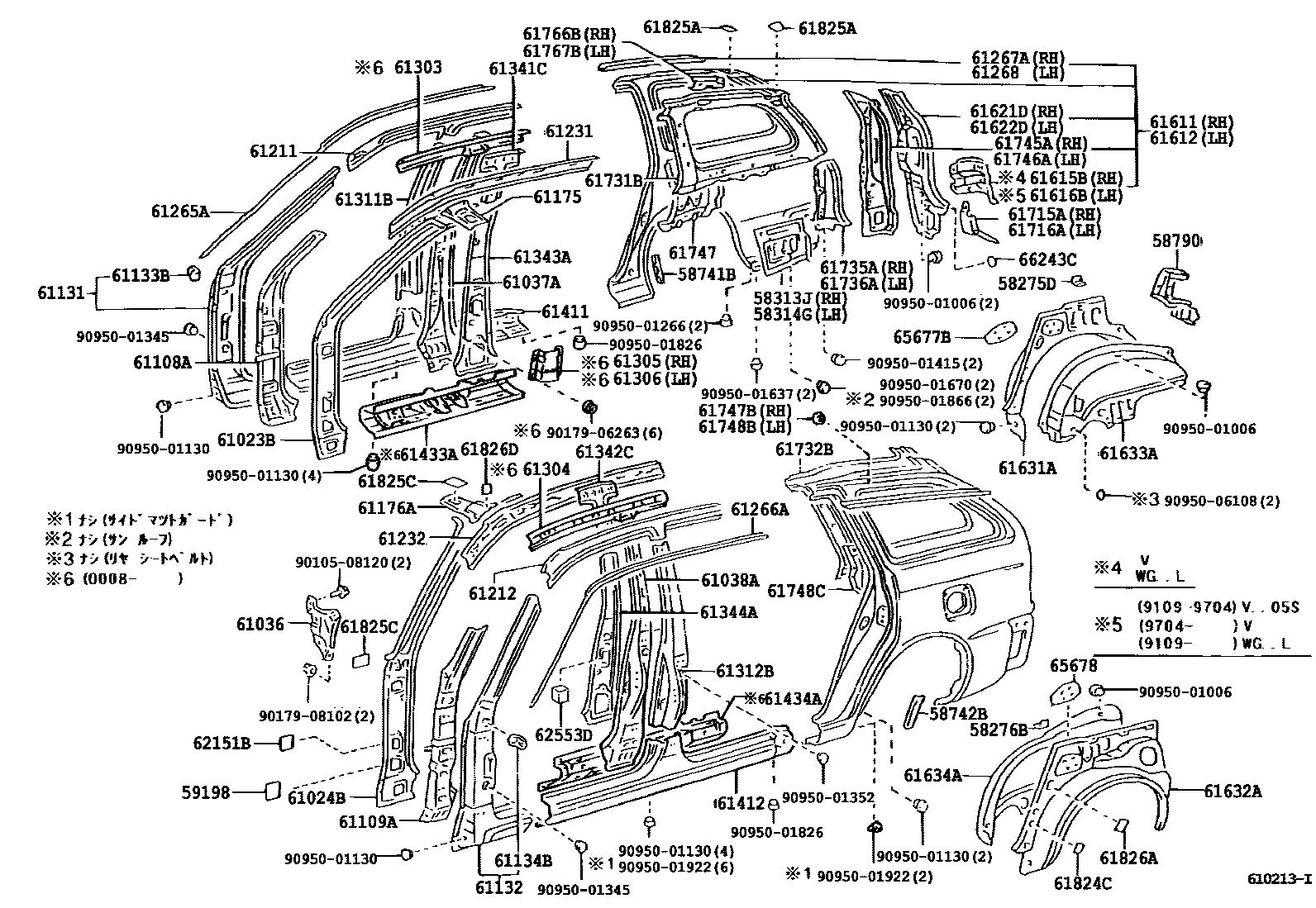

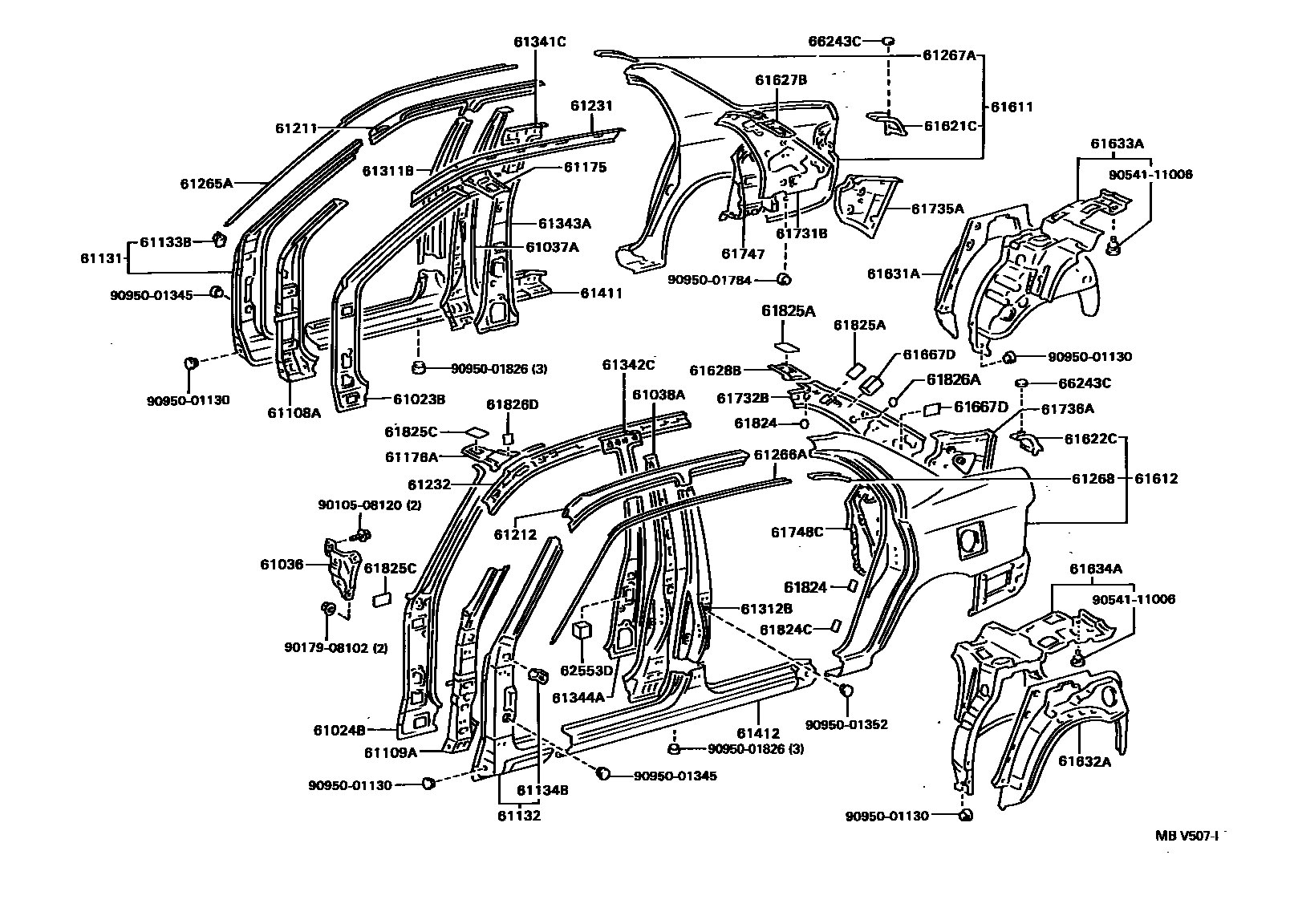

Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 97 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58275D | Right harness protector bracket | 58275-13010 |
| 58276B | Left harness protector bracket | 58275-13010 |
| 58313J | Rear floor pan to right side apron extension | 58313-13110 · 58313-13111 · 58313-13120 · 58313-13121 |
| 58314G | Rear floor pan to left side apron extension | 58314-13100 · 58314-13101 · 58314-13110 · 58314-13111 |
| 58741B | Right side enclosure protection panel | 58741-12080 |
| 58742B | Left side enclosure protection panel | 58742-12070 |
| 58790 | Jack bracket assembly | 58790-12100 · 58790-13020 |
| 59198 | Silencer panel seal | 59198-12010 |
| 61023B | Right body inner front pillar sub-assembly | 61023-12050 · 61023-12140 |
| 61024B | Left body inner front pillar sub-assembly | 61024-12050 · 61024-12140 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61036-12050 · 61036-12090 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12050 · 61037-13020 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12050 · 61038-13020 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-12110 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-12100 |
| 61131 | Right body outer front upper pillar | 61131-12350 · 61131-12360 · 61131-12410 · 61131-12420 · 61131-13020 |
| 61132 | Left body outer front upper pillar | 61132-12360 · 61132-12420 · 61132-12430 · 61132-13020 |
| 61133B | Right body outer front pillar bracket | 61133-12190 |
| 61134B | Left body outer front pillar bracket | 61133-12190 |
| 61175 | No. 2 right side body inner front pillar reinforcement | 61175-12080 |
| 61176A | No. 2 left body inner front pillar reinforcement | 61176-12080 |
| 61211 | Roof right outer longitudinal beam | 61211-12290 · 61211-12330 · 61211-13050 |
| 61212 | Roof left outer longitudinal beam | 61212-12290 · 61212-12330 · 61212-13050 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-12500 · 61231-12680 · 61231-12770 · 61231-12780 · 61231-13130 · 61231-13131 · 61231-13150 · 61231-13170 · 61231-13180 · 61231-13181 |
| 61232 | Roof left inner longitudinal beam | 61232-12550 · 61232-12590 · 61232-12650 · 61232-12660 · 61232-13110 · 61232-13111 · 61232-13140 · 61232-13150 · 61232-13160 · 61232-13161 |
| 61265A | Drainage channel in the middle section on the right side of the roof | 61265-12180 · 61265-12200 · 61265-13030 |
| 61266A | Drainage channel in the middle section of the left side of the roof | 61266-12180 · 61266-12200 · 61266-13030 |
| 61267A | Roof right rear gutter | 61267-12130 · 61267-12160 · 61267-13040 |
| 61268 | Roof left rear gutter | 61268-12130 · 61268-12160 · 61268-13040 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-13010 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-13010 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-12100 · 61305-13010 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-12100 · 61306-13010 |
| 61311B | Right body outer center pillar | 61311-12190 · 61311-12220 |
| 61312B | Left body outer center pillar | 61312-12230 · 61312-12260 |
| 61341C | Right inner middle pillar | 61341-12090 · 61341-12130 |
| 61342C | Left side inner center pillar | 61342-12090 · 61342-12130 |
| 61343A | Right body inner center pillar | 61343-12090 · 61343-12200 |
| 61344A | Left body inner center pillar | 61344-12090 · 61344-12200 |
| 61365A | No. 3 seat belt anchor to center pillar reinforcement | 61365-12160 |
| 61366 | Left No. 3 seat belt anchor to center pillar reinforcement | 61366-12100 |
| 61411 | Right door outer sill panel | 61411-12530 · 61411-12560 · 61411-12570 · 61411-13020 · 61411-13030 |
| 61412 | Left door outer sill panel | 61412-12520 · 61412-12550 · 61412-12560 · 61412-13020 · 61412-13030 |
| 61433A | Right door outer sill reinforcement | 61401-13010 |
| 61434A | Left door outer sill reinforcement | 61402-13010 |
| 61611 | Right side hoarding | 61601-13370 · 61601-13371 · 61601-13381 · 61601-13383 · 61601-13400 · 61601-13401 · 61601-1E915 · 61601-1E924 · 61601-1E925 · 61601-1E926 |
| 61612 | left side panel | 61602-13460 · 61602-13461 · 61602-13471 · 61602-13473 · 61602-13480 · 61602-13481 · 61602-1E924 · 61602-1E930 · 61602-1E931 · 61602-1E932 |
| 61615B | Front side panel outer panel reinforcement | 61615-13020 |
| 61616B | Rear side panel outer panel reinforcement | 61616-13010 |
| 61621C | Luggage right opening slot | 61621-12360 |
| 61621D | Back door right opening slot | 61621-12907 · 61621-13020 |
| 61622C | Luggage trunk left opening slot | 61622-12360 |
| 61622D | Rear door left opening slot | 61622-12907 · 61622-13020 |
| 61627B | Right rear side panel extension | 61627-12070 |
| 61628B | Extension on left rear side panel | 61628-12090 |
| 61631A | Right wheel cover outer panel | 61631-12210 · 61631-12280 · 61631-13070 · 61631-13080 |
| 61632A | Left side wheel cover outer panel | 61632-12210 · 61632-12300 · 61632-13060 · 61632-13070 |
| 61633A | Right wheel housing lining panel | 61607-12560 · 61607-12916 · 61607-12917 · 61607-13070 · 61607-13080 · 61607-13120 · 61607-13230 |
| 61634A | Left side wheel housing lining panel | 61608-12540 · 61608-12914 · 61608-12915 · 61608-13070 · 61608-13080 · 61608-13120 · 61608-13220 |
| 61667C | No. 1 side panel seal | 61667-12050 |
| 61667D | Side panel seals | 61667-12050 |
| 61713B | Roof right outer reinforcement | 61713-12090 |
| 61714B | Roof left outer reinforcement | 61714-12080 |
| 61715A | Roof right inner upper extension | 61715-13020 |
| 61716A | Roof left inner upper extension | 61716-13010 |
| 61731B | Roof right inner panel | 61731-12590 · 61731-12610 · 61731-12910 · 61731-13260 · 61731-13280 · 61731-13300 · 61731-13320 · 61731-13330 |
| 61732B | Roof left inner panel | 61732-12550 · 61732-12570 · 61732-12910 · 61732-13260 · 61732-13280 · 61732-13310 · 61732-13320 · 61732-13330 · 61732-13340 |
| 61733A | Right front roof inner panel | 61733-12903 |
| 61734A | Left front roof inner panel | 61734-12903 |
| 61735A | Right rear roof inner panel | 61735-12904 · 61735-13060 · 61735-13070 |
| 61736A | Left rear roof inner panel | 61736-12905 · 61736-13060 · 61736-13070 |
| 61743A | Rear door opening right reinforcement | 61743-12040 |
| 61744A | Rear door opening left reinforcement | 61744-12040 |
| 61745A | Back door opening lower right reinforcement | 61745-13070 |
| 61746A | Rear door opening lower left reinforcement | 61746-13070 |
| 61747 | Roof right inner panel to wheel housing bracket | 61083-13010 · 61747-12180 · 61747-12901 |
| 61747B | Right rear roof inner reinforcement | 61749-13050 |
| 61748B | Left rear roof inner reinforcement | 61749-13050 |
| 61748C | Roof left inner panel to wheel arch bracket | 61084-13010 · 61748-12180 · 61748-12901 |
| 61764A | Corner window locking corner plate | 61764-12060 |
| 61764C | Corner window locking corner plate | 61765-12070 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-12270 · 61766-13060 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-12230 · 61767-13050 |
| 61771B | Opening frame on the upper right corner of the back door | 61771-12040 |
| 61772B | Opening frame at the upper left corner of the back door | 61772-12040 |
| 61815B | Right inner upper cover of the roof | 61815-32020 |
| 61824 | Noise Control Panel No. 1 | 61824-12040 |
| 61824C | No. 1 silencer panel gasket | 61815-32020 · 61824-12040 · 61826-12020 · 61826-50010 · 61827-12030 |
| 61825A | Noise Control Panel No. 2 | 61815-32020 · 61825-12010 · 61825-12040 |
| 61825C | No. 2 silencer panel gasket | 61815-32020 |
| 61826A | Noise Control Panel No. 3 | 61824-12040 · 61826-12020 |
| 61826D | Noise Control Panel No. 3 | 61824-12040 · 61826-50010 |
| 62151B | Front cowl side silencer pads | 62151-12130 · 62553-12120 |
| 62553D | No. 3 column pad | 61667-12050 · 62151-12130 · 62553-12120 · 67812-12050 |
| 65677B | Right rear wheel house lining | 65677-13010 · 65677-13020 |
| 65678 | Left rear wheel house lining | 65678-13010 · 65678-13020 |
| 66243C | Rear body protection piece No. 1 | 66243-13010 · 66243-20010 |
