Toyota COROLLA 地板隔热垫 — Figure 5802

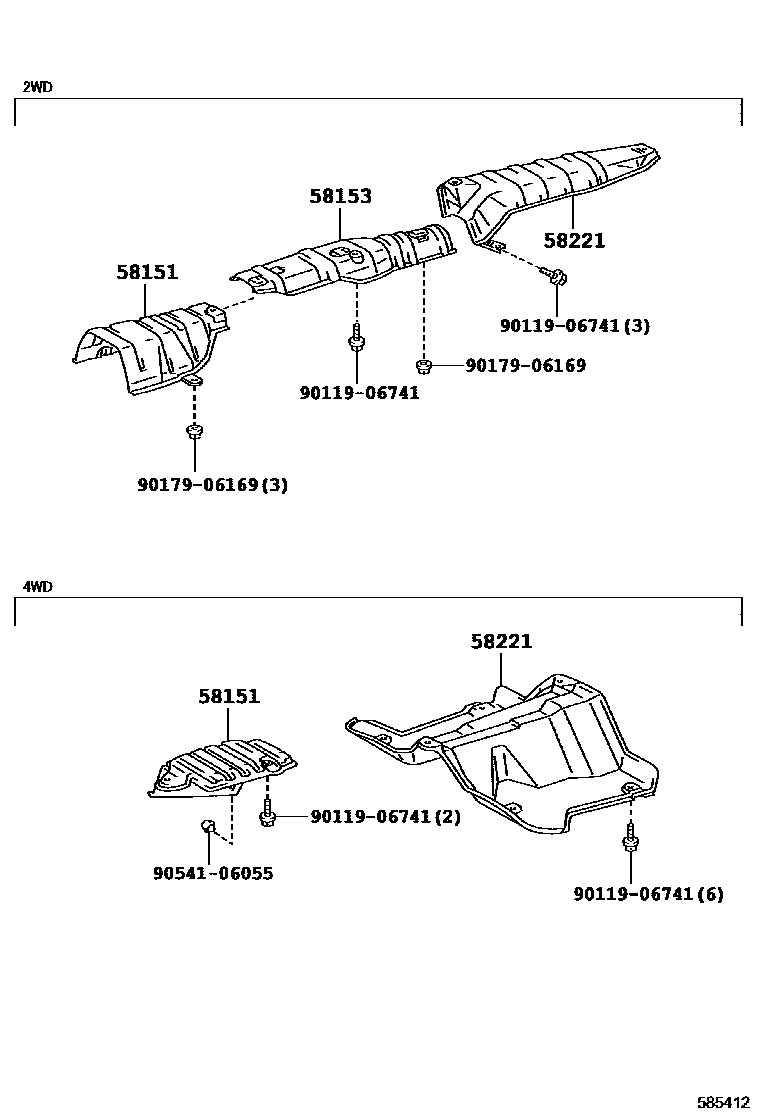

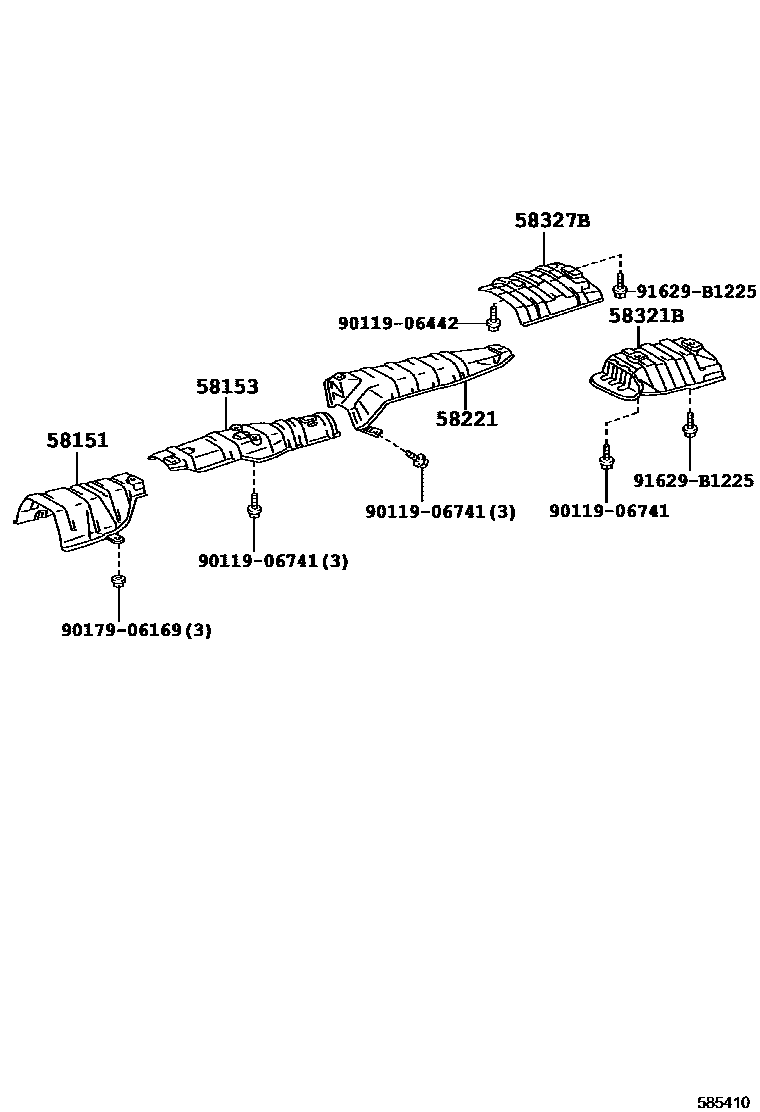

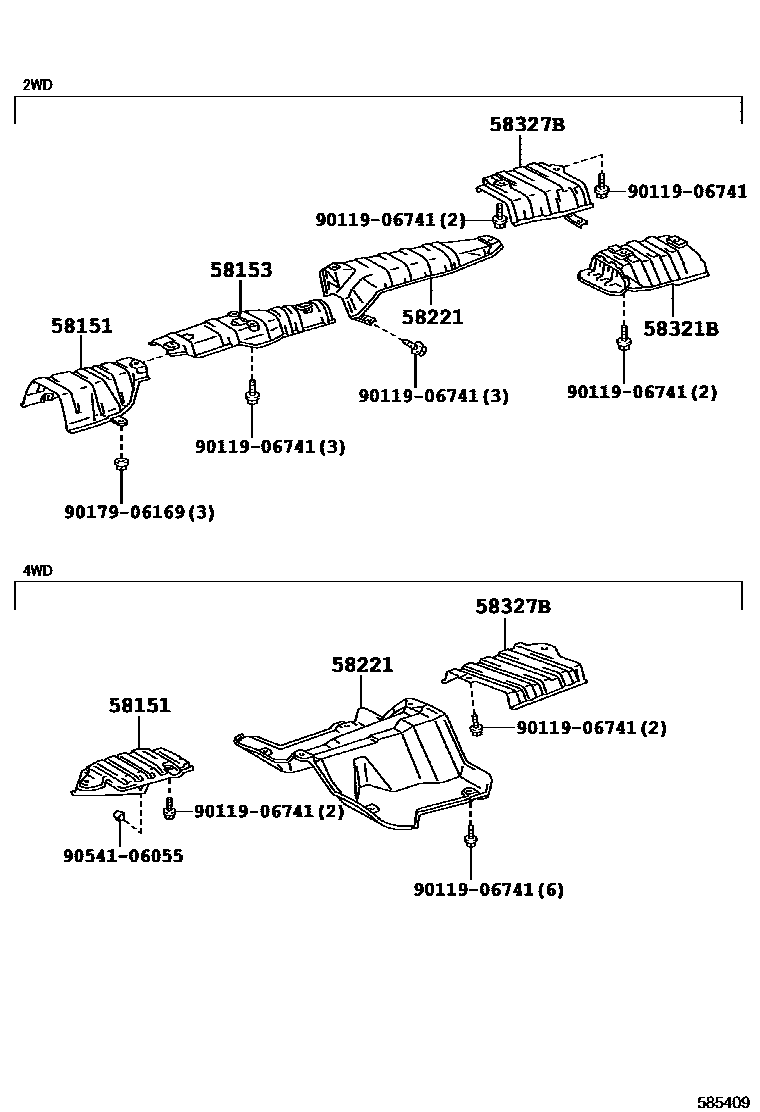

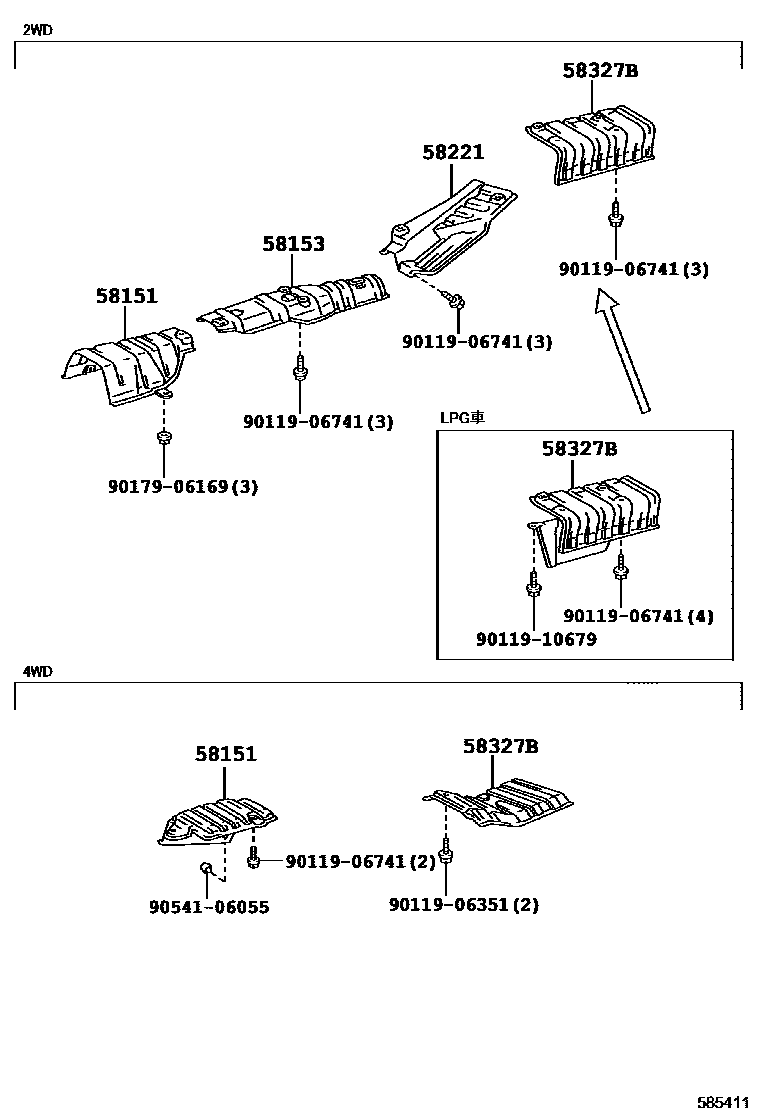

Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58041-12140 · 58041-12150 · 58151-12160 · 58151-12200 |
| 58153 | Front floor insulation mat No. 2 | 58153-12110 · 58153-12120 · 58153-12140 · 58153-12150 |
| 58221 | Central Floor Insulating Mat No. 1 | 58044-12010 · 58044-12020 · 58044-12040 · 58221-12110 · 58221-13030 |
| 58321B | Rear Floor Insulating Mat No. 1 | 58045-12020 · 58045-12030 |
| 58327B | Main muffler heat insulation pad | 58031-12040 · 58031-12070 · 58031-12080 · 58031-12090 · 58031-13030 · 58327-12130 · 58327-12140 · 58327-13020 · 58327-13040 · 58327-21030 |
