Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801

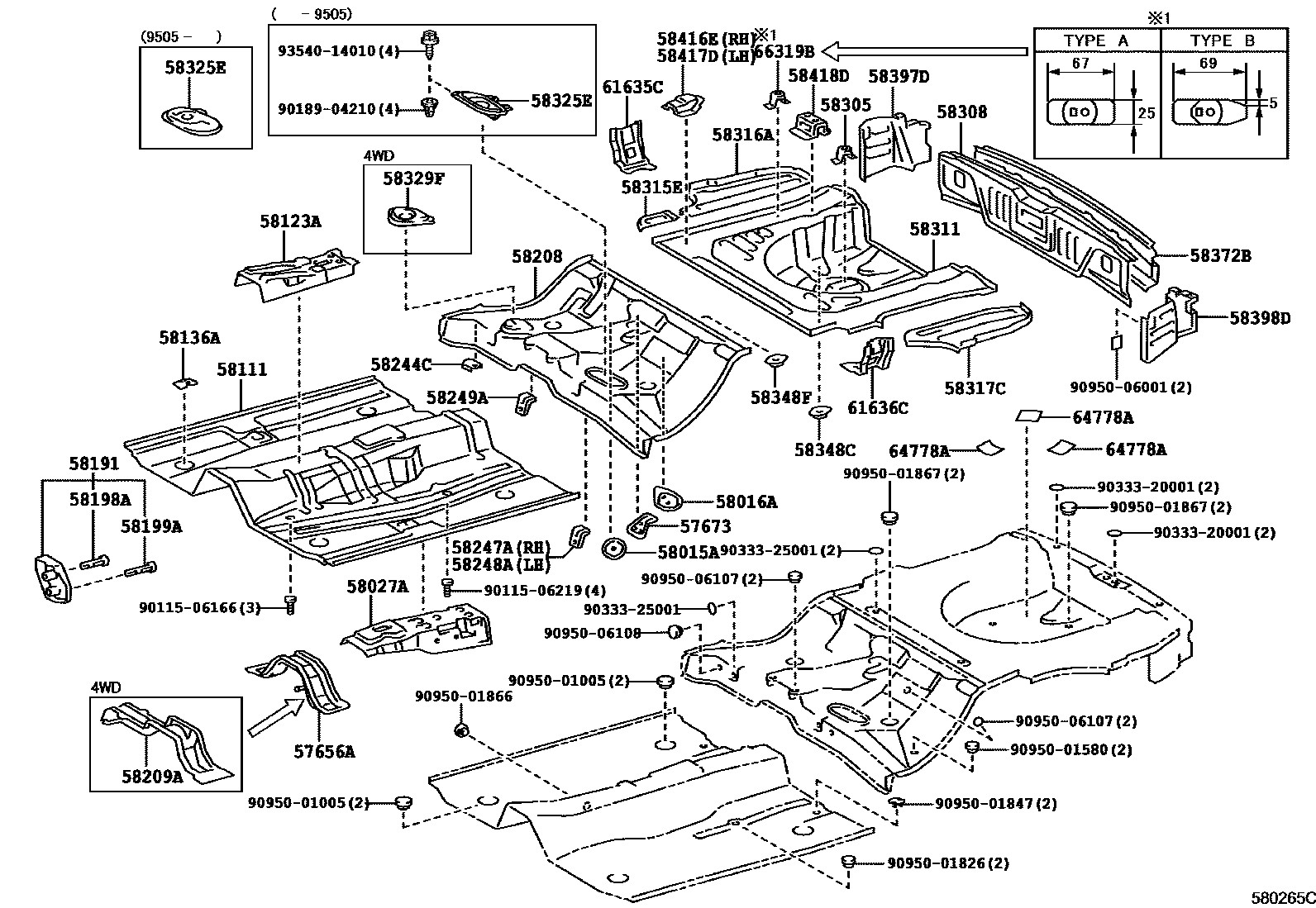

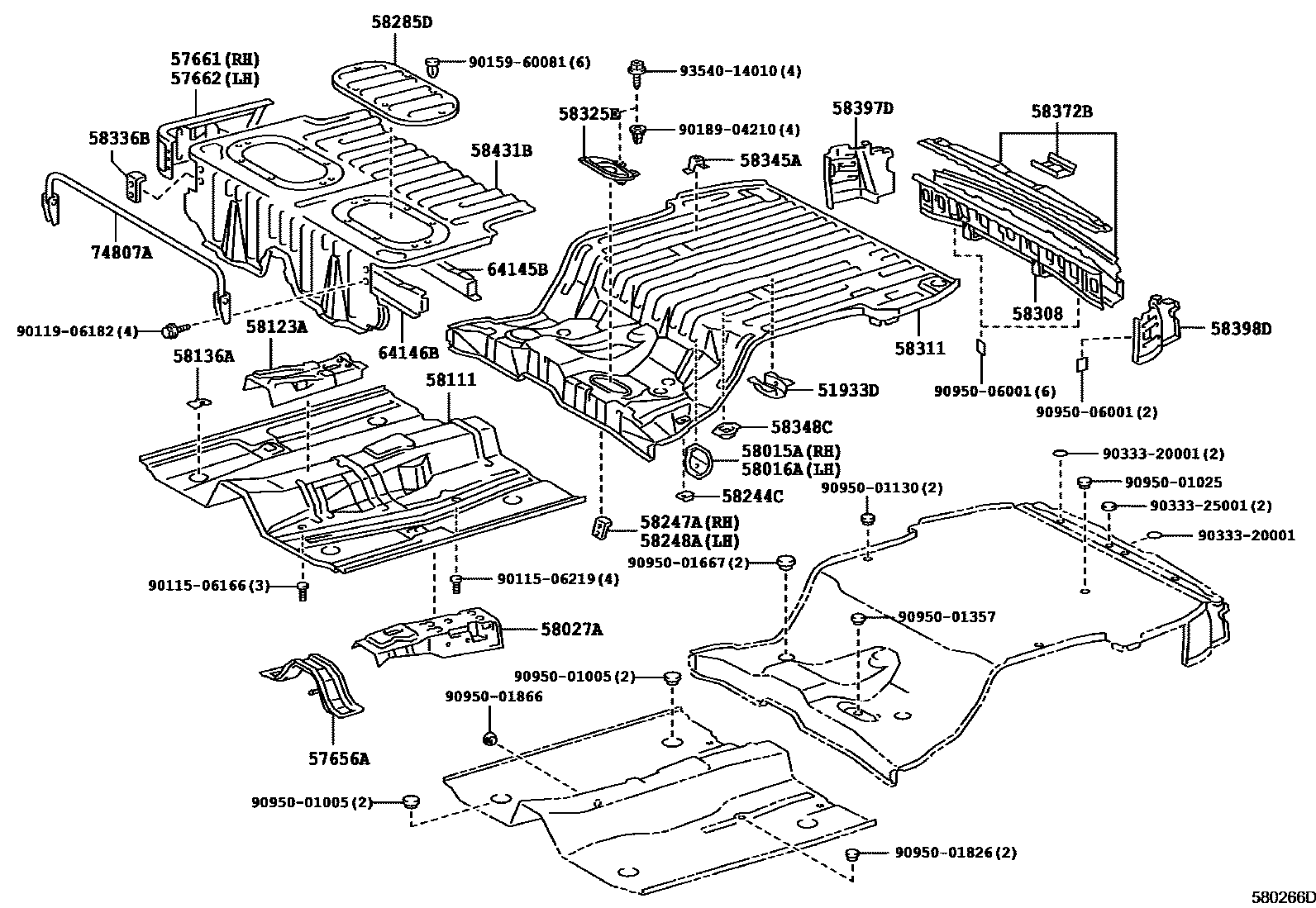

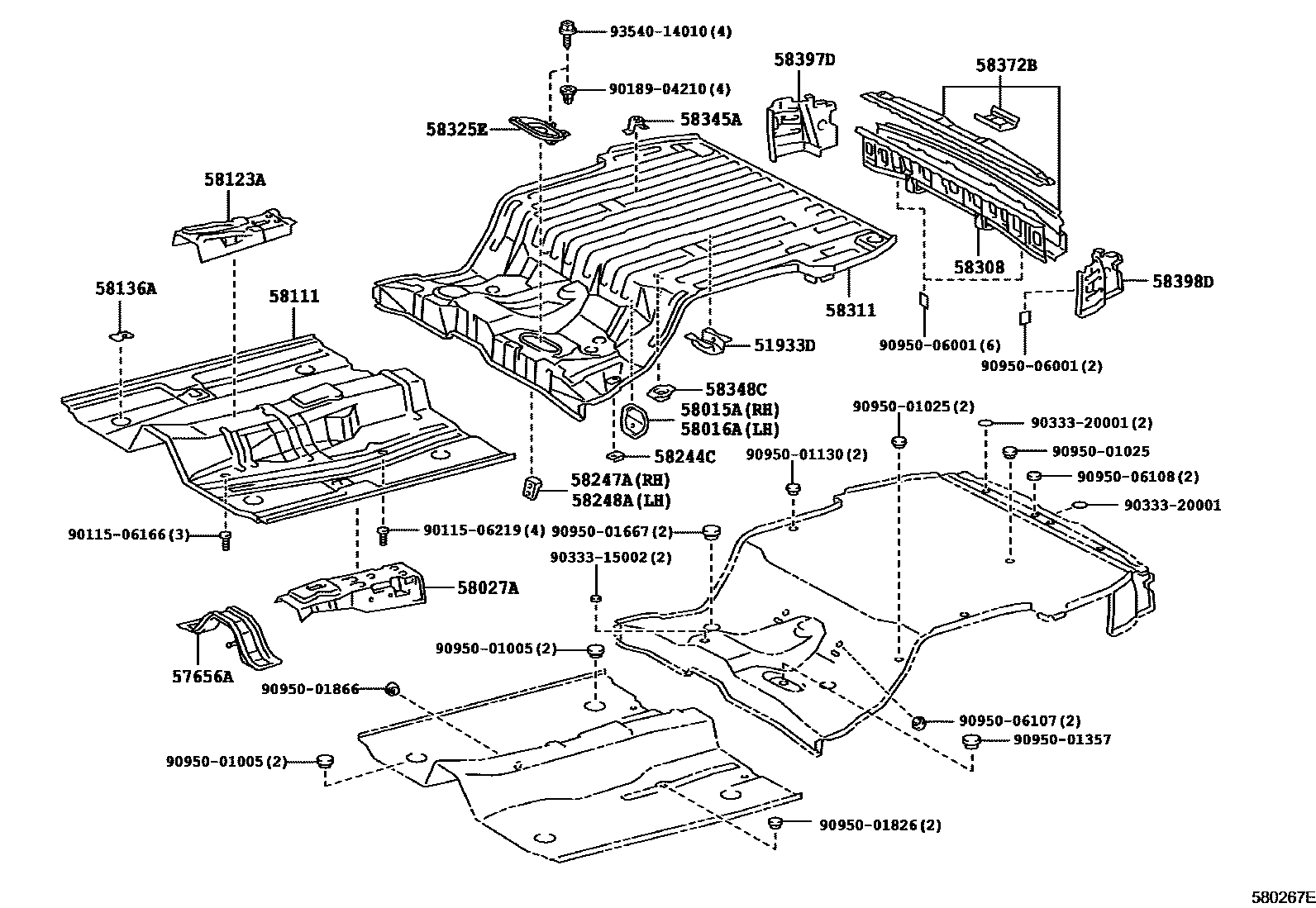

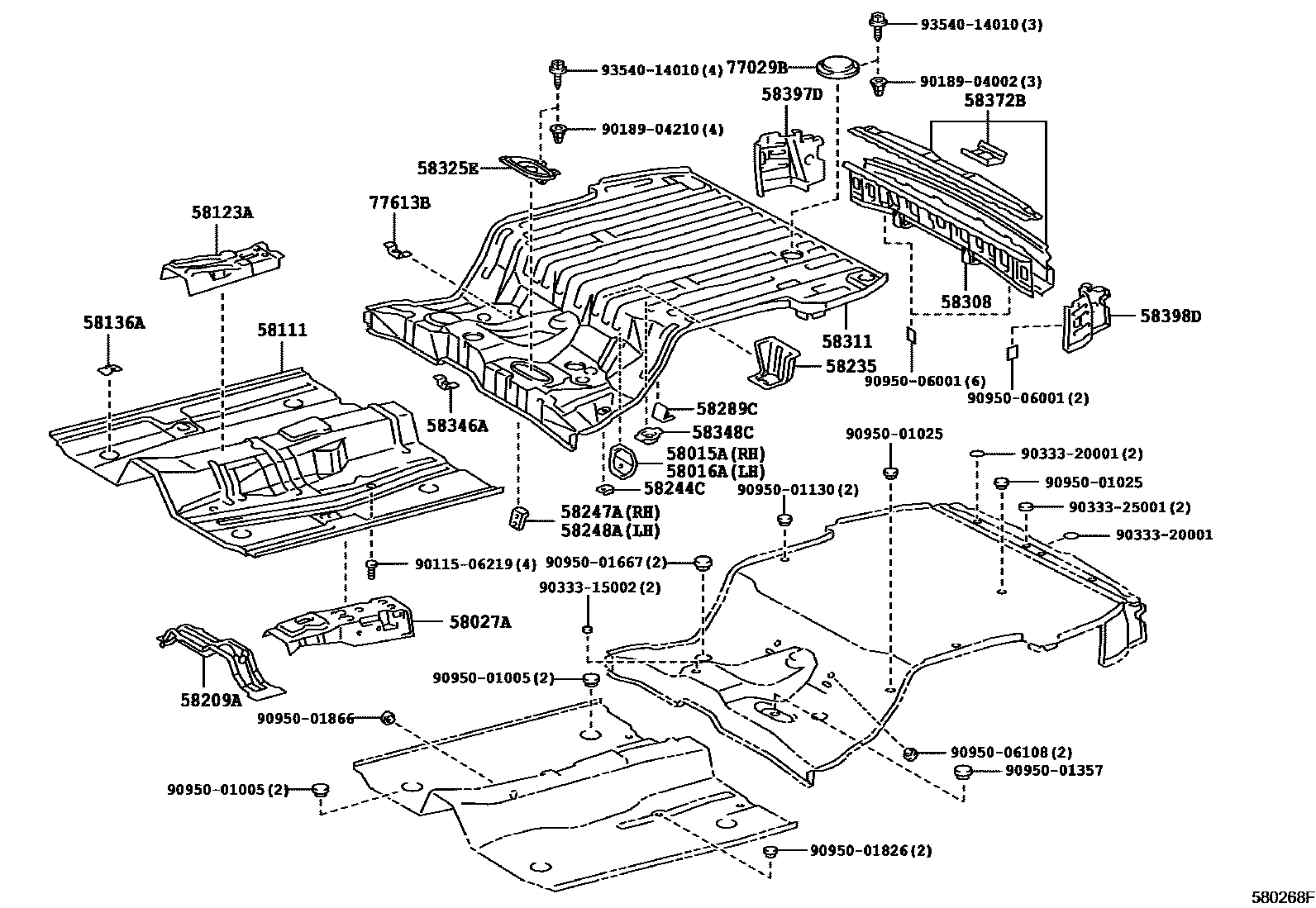

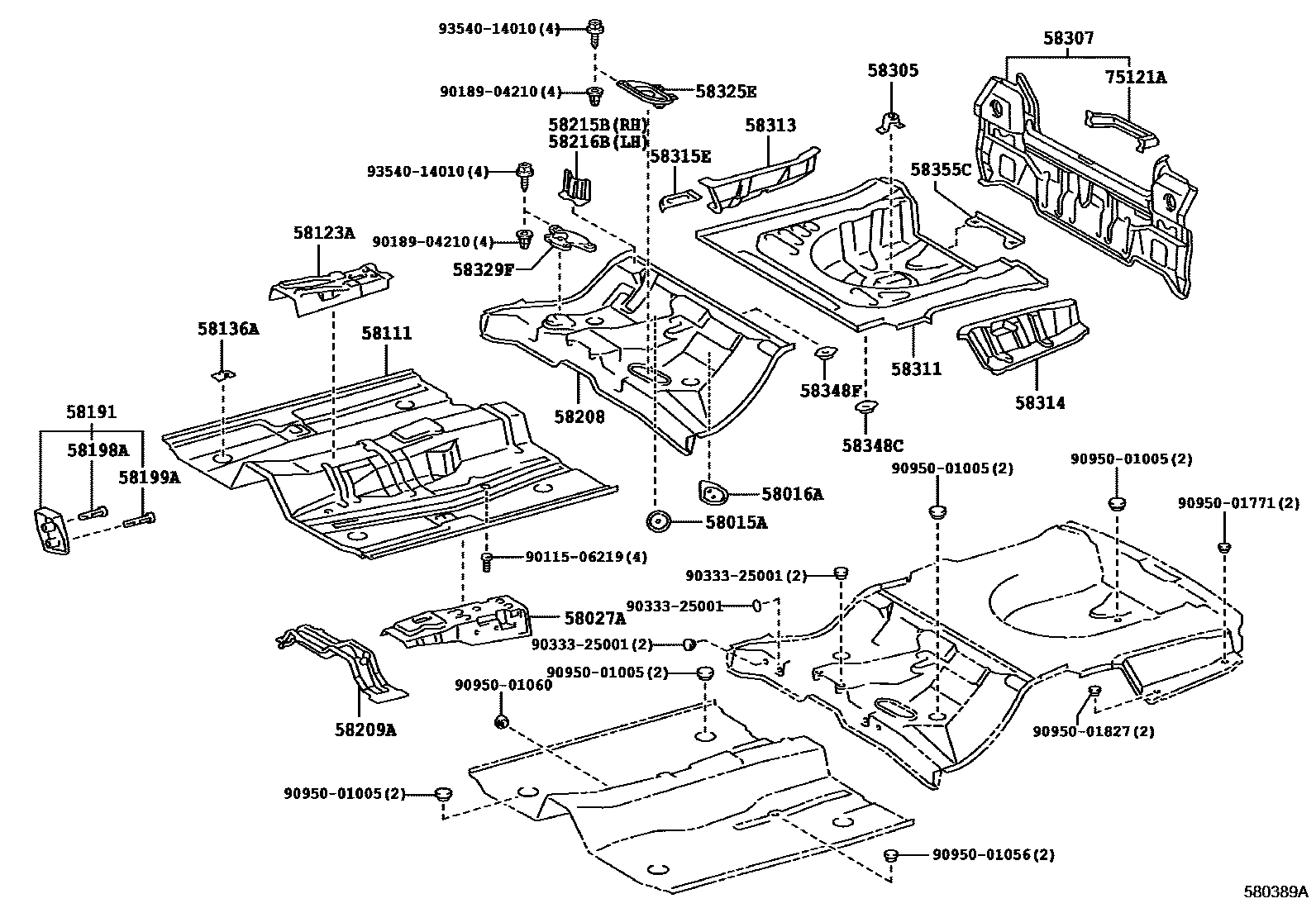

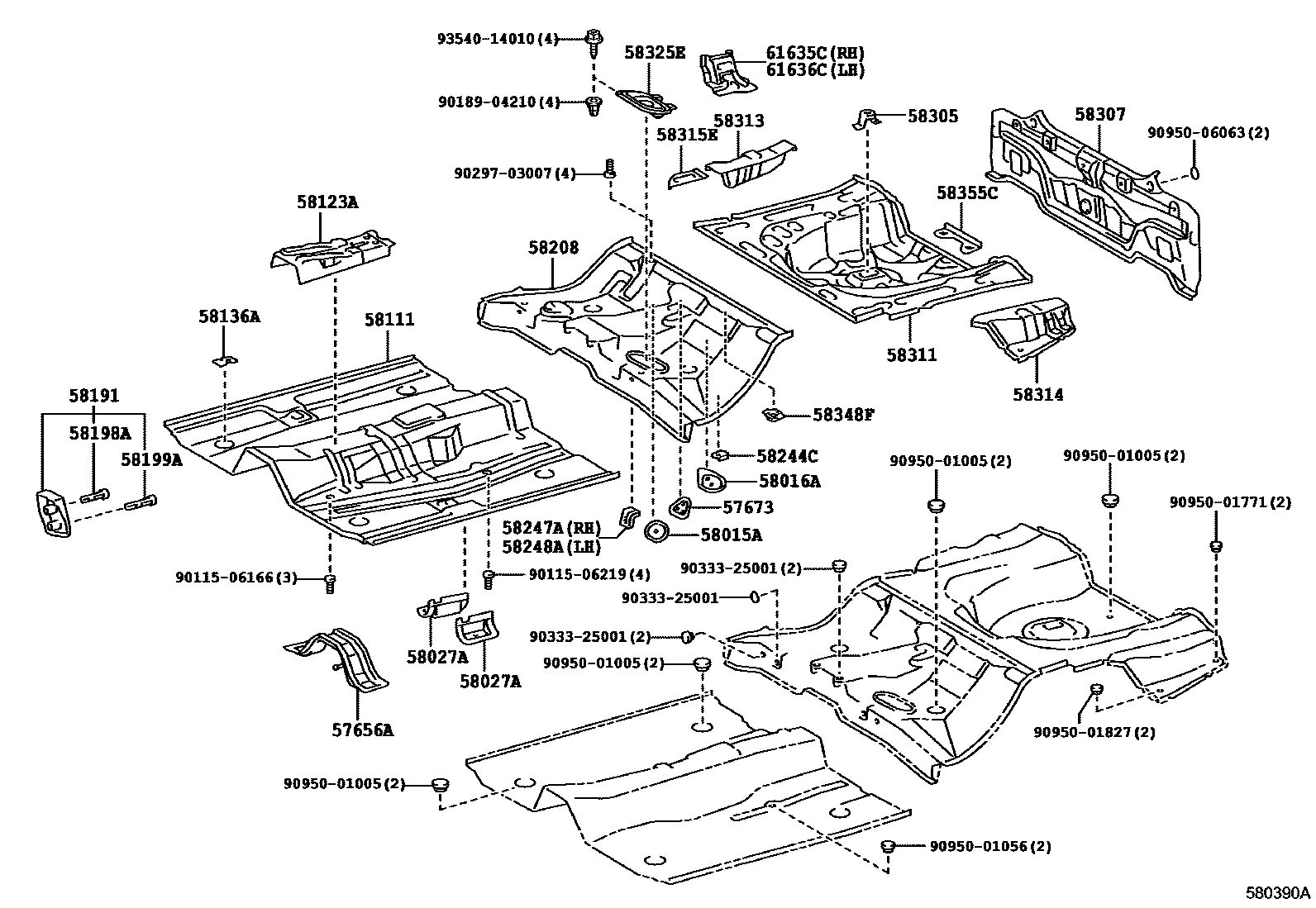

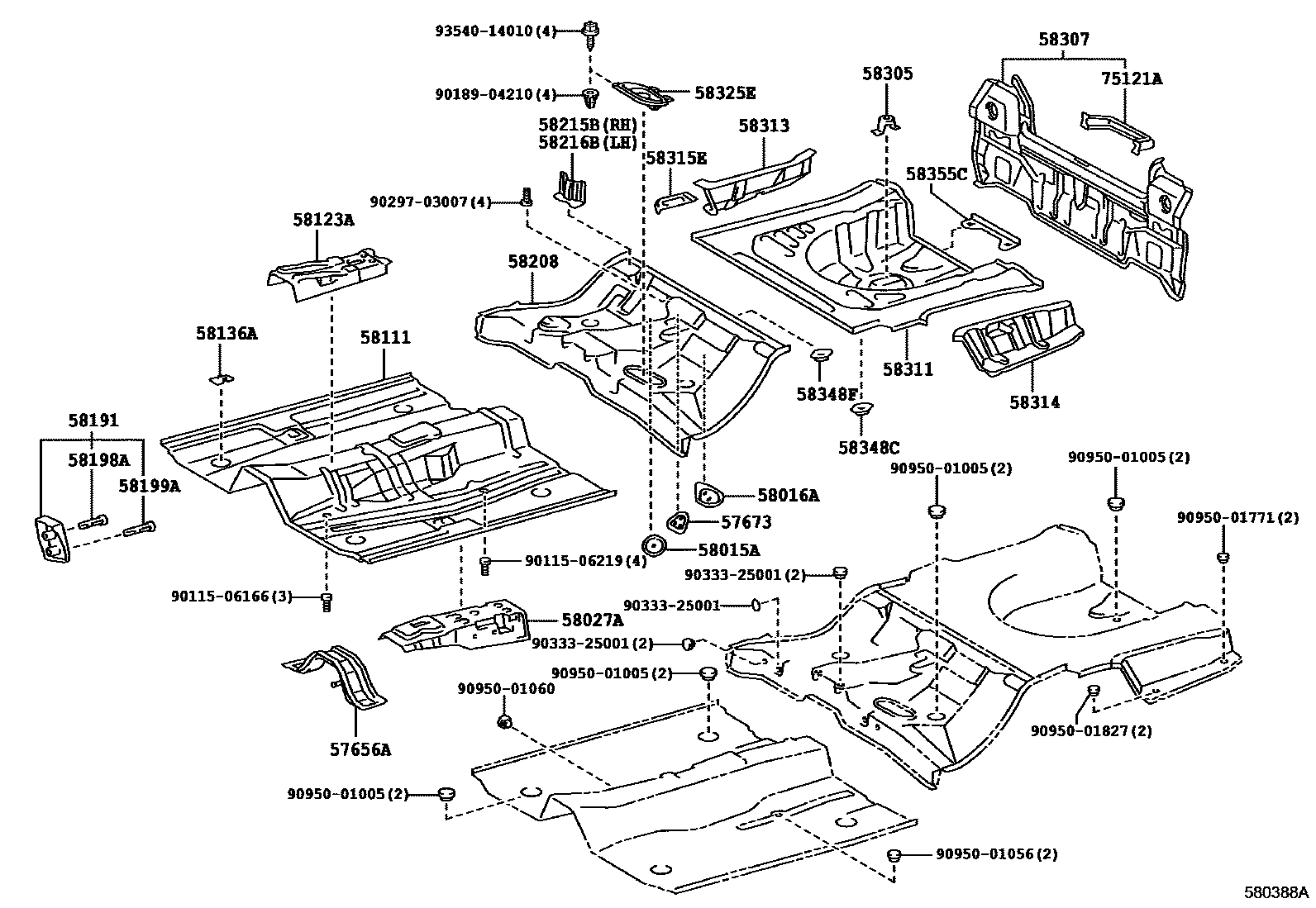

Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 7 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51933D | Spare tire rack block | 51933-13050 |
| 57656A | No. 1 exhaust pipe mounting bracket | 57509-12020 · 57509-12030 · 57656-12060 · 57656-12070 · 57656-12080 |
| 57661 | Rear floor right front side panel | 57661-13020 |
| 57662 | Rear floor left front side panel | 57662-13020 |
| 57673 | Rear seat back hinge mounting bracket | 57673-12070 · 57673-13010 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-12040 · 58015-13020 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-12010 · 58016-13010 |
| 58027A | Seat belt anchor reinforcement sub-assembly | 58027-12120 · 58027-12121 · 58027-12130 · 58027-12131 · 58027-12132 · 58027-12153 · 58027-12160 · 58027-12170 |
| 58111 | front floor pan | 58111-12260 · 58111-12261 · 58111-12262 · 58111-12270 · 58111-12271 · 58111-12272 · 58111-12273 |
| 58123A | shift lever bracket | 58013-12020 · 58013-12030 · 58013-12060 · 58013-12070 |
| 58136A | Front floor access hole cover | 58136-12020 · 58136-12030 |
| 58191 | Front floor footrest | 58191-12110 |
| 58198A | No. 1 footrest clip | 58198-12030 |
| 58199A | Footrest clip No. 2 | 58199-12020 |
| 58208 | central floor base | 58211-12340 · 58211-12350 · 58211-12360 · 58211-12901 · 58211-12902 · 58211-13900 · 58211-13908 · 58211-13909 |
| 58209A | Drive shaft center bracket reinforcement sub-assembly | 58209-12040 |
| 58215B | Rear right seat mounting bracket | 58215-12040 |
| 58216B | Rear left seat mounting bracket | 58216-12040 |
| 58235 | Differential case buffer block mounting bracket | 58205-13020 · 58235-13020 |
| 58244C | Rear right seat cushion mounting bracket | 58244-13030 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-13040 · 58247-13050 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-13040 · 58247-13050 · 58248-12030 |
| 58249A | Rear seat installation reinforcement | 58249-12010 |
| 58285D | Rear floor hole cover | 58285-13020 |
| 58289C | Rear floor brake hose bracket | 58289-13030 · 58289-13040 |
| 58305 | Spare tire clamp bracket sub-assembly | 58305-10011 · 58351-12040 |
| 58307 | Body lower back panel sub-assembly | 58307-1A230 · 58307-1A310 |
| 58308 | Body inner lower back panel sub-assembly | 58308-13110 · 58308-13130 · 58308-13140 · 58308-13150 |
| 58311 | rear floor pan | 58311-12210 · 58311-12220 · 58311-13150 · 58311-13160 · 58311-13190 · 58311-13200 · 58311-13210 |
| 58313 | Rear floor right panel | 58313-12900 · 58313-12902 |
| 58314 | rear floor left panel | 58314-12250 · 58314-12260 |
| 58315E | Rear floor right front side panel extension | 58315-12070 |
| 58316A | Rear floor right rear side panel extension | 58316-13020 |
| 58317C | Rear floor left rear side panel extension | 58317-13010 |
| 58325E | Rear floor access hole cover | 58325-12080 · 58325-12100 |
| 58329F | Rear floor manhole cover No. 2 | 58329-12020 · 58329-12030 |
| 58336B | Rear floor pan reinforcement | 58336-13040 |
| 58345A | Rear floor insulation pad bracket No. 1 | 58345-13030 |
| 58346A | Rear floor insulation pad bracket No. 2 | 58346-13030 |
| 58348C | Rear floor insulation pad bracket No. 3 | 58348-12020 |
| 58348F | Central Floor Insulation Mat Bracket No. 3 | 58348-12020 |
| 58355C | Rear bumper arm bracket | 58355-12040 |
| 58372B | Lower body panel | 58307-13110 · 58372-13080 |
| 58397D | Dust-proof sealing plate at the right end of the rear floor | 58397-13040 · 58397-13050 |
| 58398D | Dust-proof sealing plate at the left end of the rear floor | 58398-13030 · 58398-13040 · 58398-13050 |
| 58416E | No. 1 base plate right bracket | 58416-13040 |
| 58417D | No. 1 base plate left bracket | 58417-13040 |
| 58418D | Bottom plate bracket No. 2 | 58418-13020 |
| 58431B | rear floor front floor | 58431-13050 · 58431-13060 |
| 61635C | Right wheel cover bracket | 61635-12040 · 61635-13110 |
| 61636C | Left side wheel cover bracket | 61636-12050 · 61636-13110 |
| 64145B | Rear floor reinforcement | 64145-13020 |
| 64146B | Rear floor front reinforcement | 64146-13020 |
| 64778A | Spare tire protection device | 64778-12030 |
| 66319B | Rope hook bracket | 66319-13010 · 66319-13020 |
| 74807A | Rear separation lever sub-assembly | 74807-13040 |
| 75121A | Rear license plate bracket | 75121-12030 |
| 77029B | Fuel gauge sensor cover sub-assembly | 77029-13010 |
| 77613B | No. 1 fuel tank strap bracket | 77613-16030 |
