Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 5 images and 2 PNC and OE references.

Toyota COROLLA radiator grille EPC diagram — 530282A
radiator grille — 530282A (199705 – 999999)

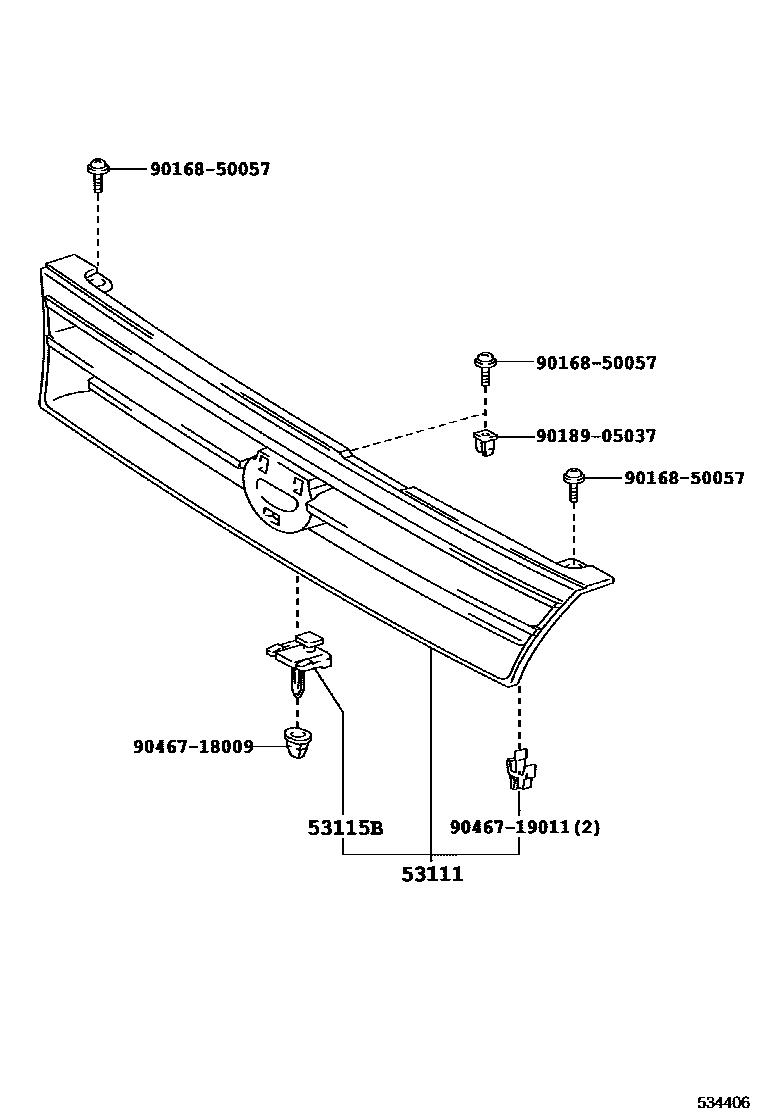

Toyota COROLLA radiator grille EPC diagram — 534406
radiator grille — 534406 (199106 – 199505)

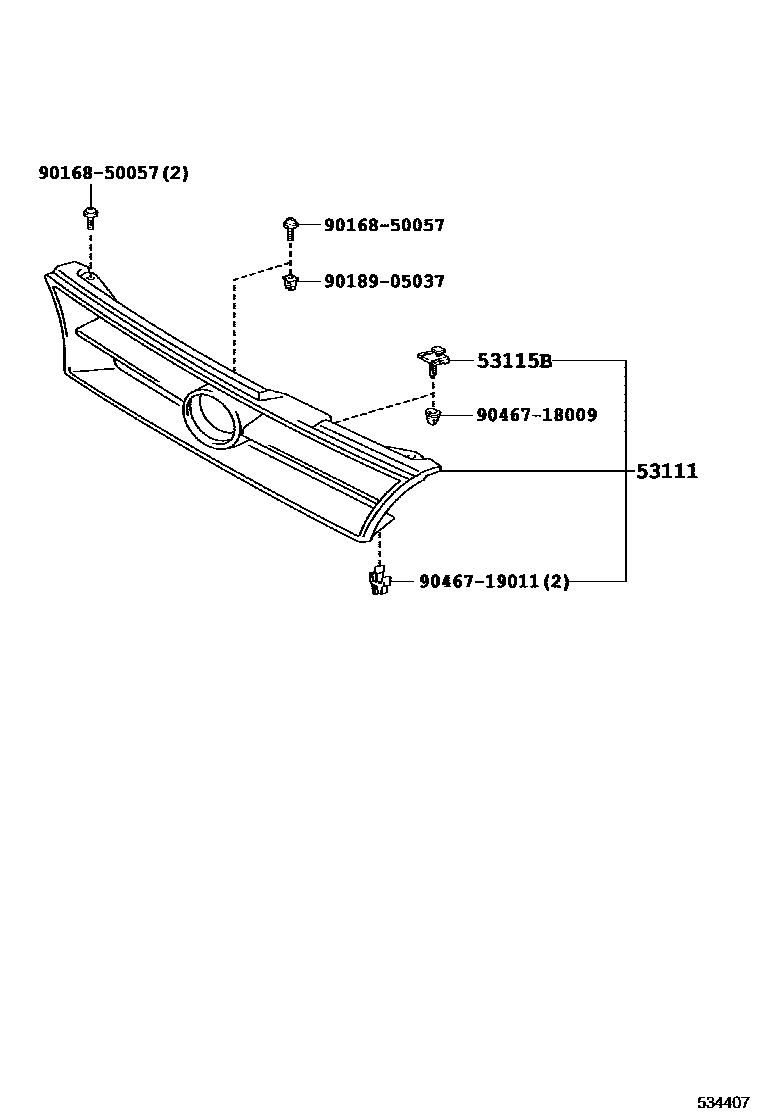

Toyota COROLLA radiator grille EPC diagram — 534407
radiator grille — 534407 (199109 – 999999)

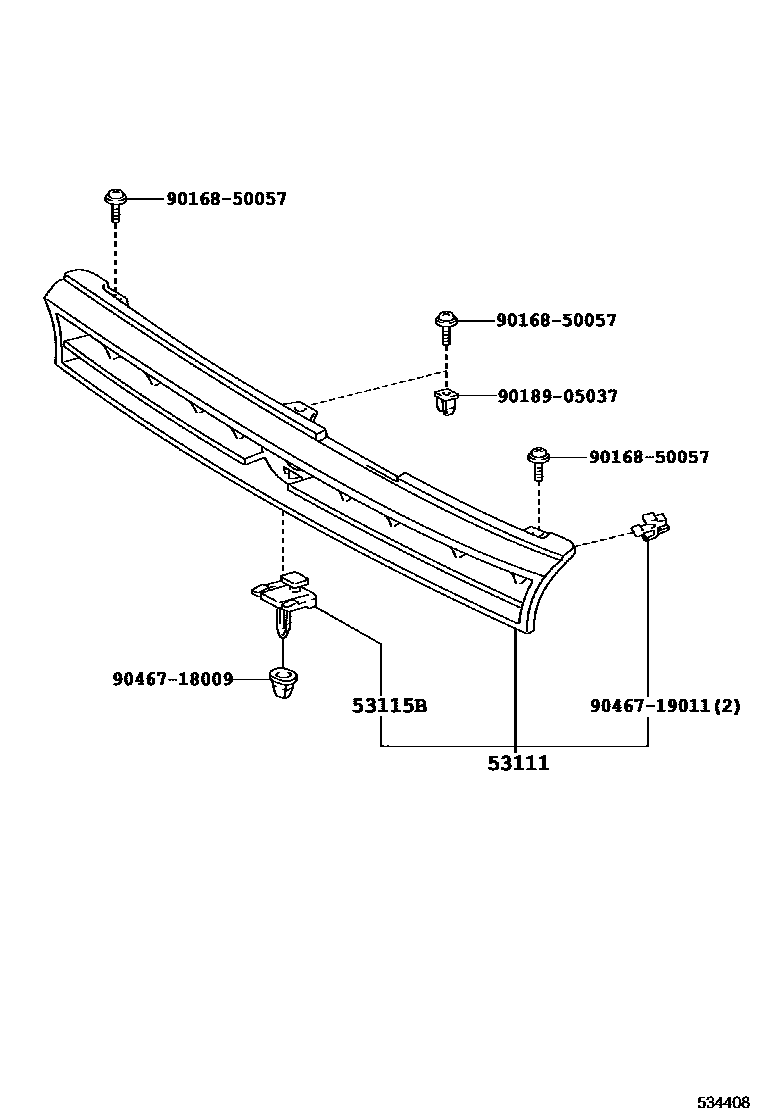

Toyota COROLLA radiator grille EPC diagram — 534408
radiator grille — 534408 (199205 – 199505)

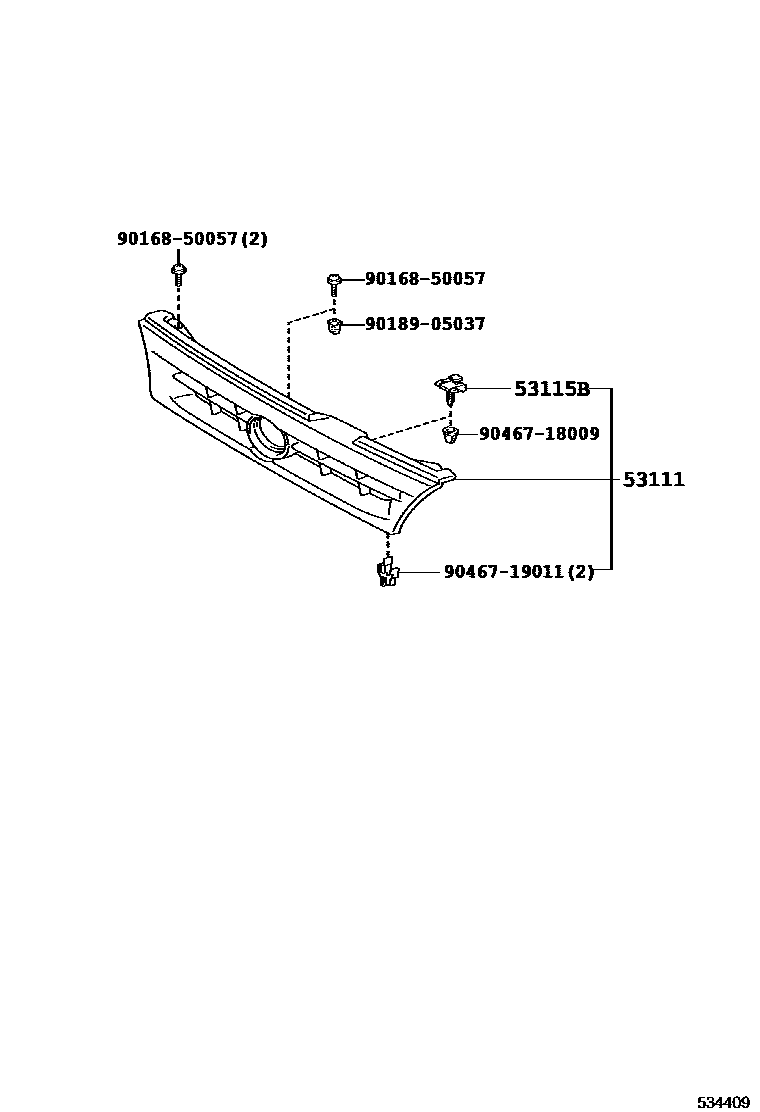

Toyota COROLLA radiator grille EPC diagram — 534409
radiator grille — 534409 (199505 – 199705)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53101-12860 · 53101-12870 · 53101-13050 · 53101-13070 · 53101-13090 · 53101-1A060 · 53101-1A070
53115BRadiator grille bracket53115-16010
