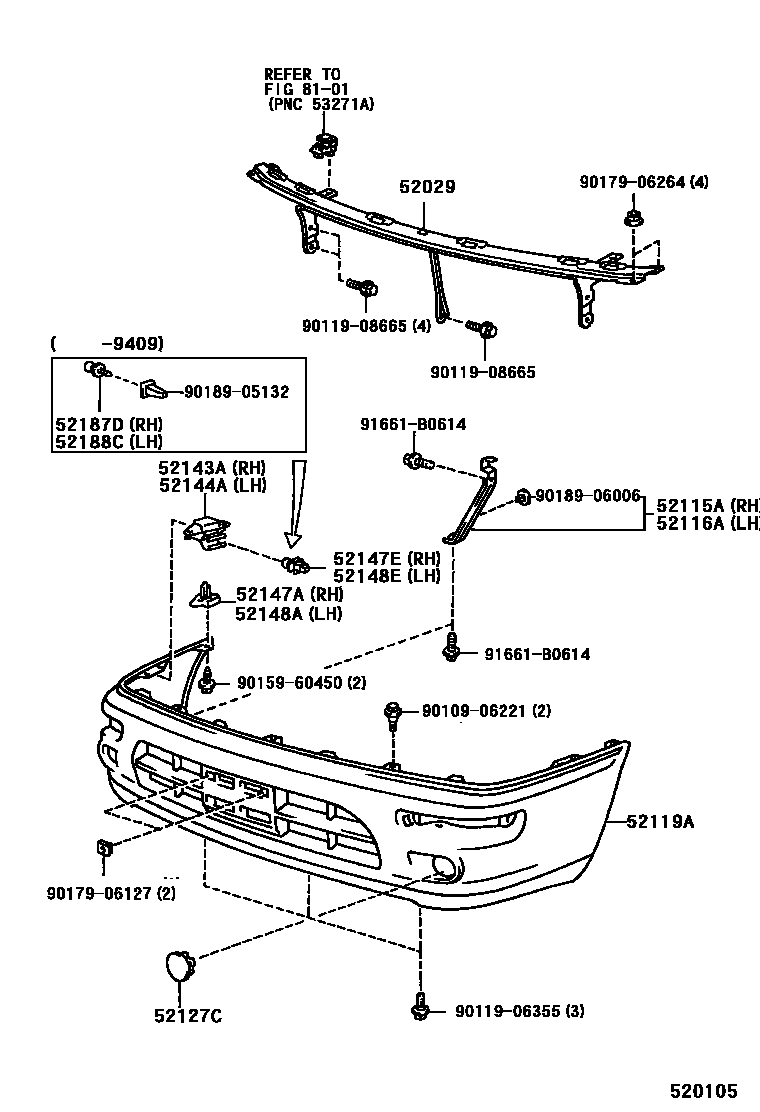

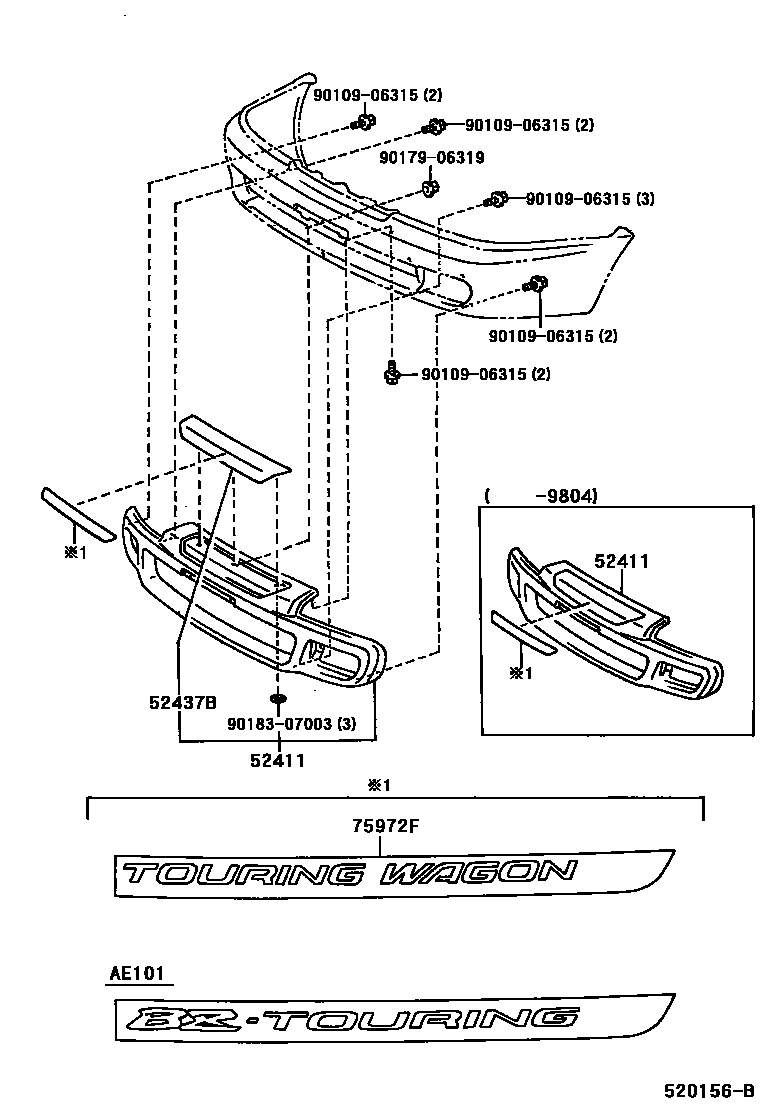

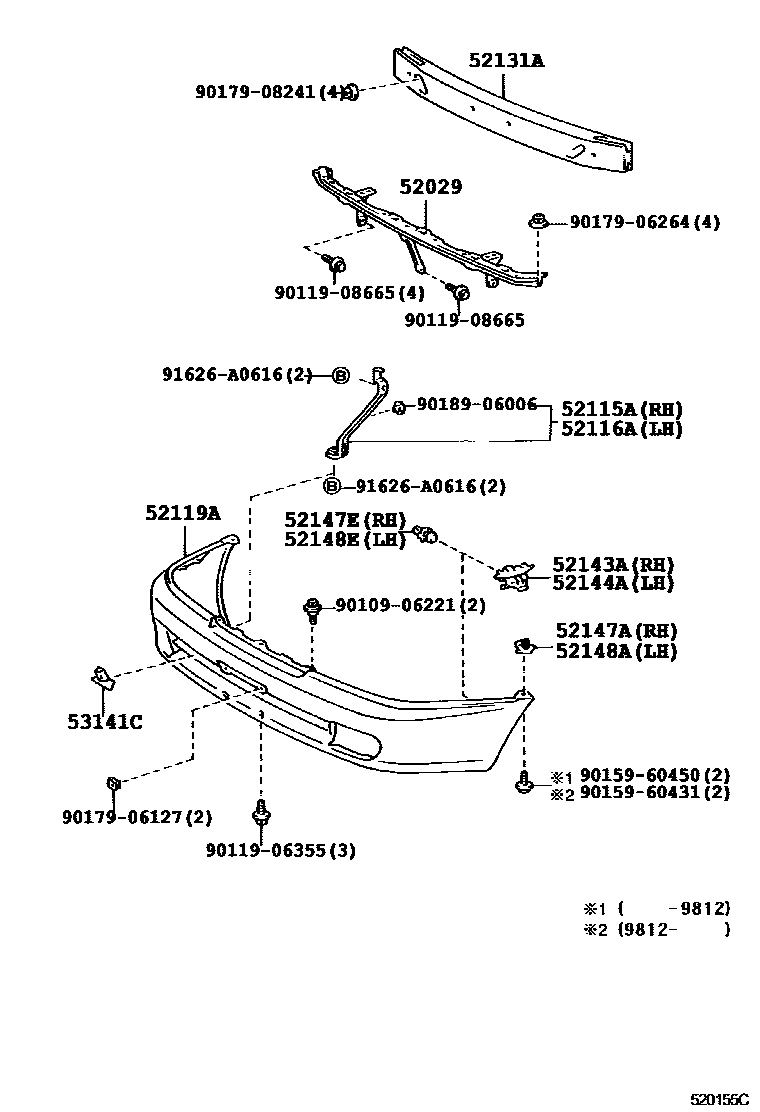

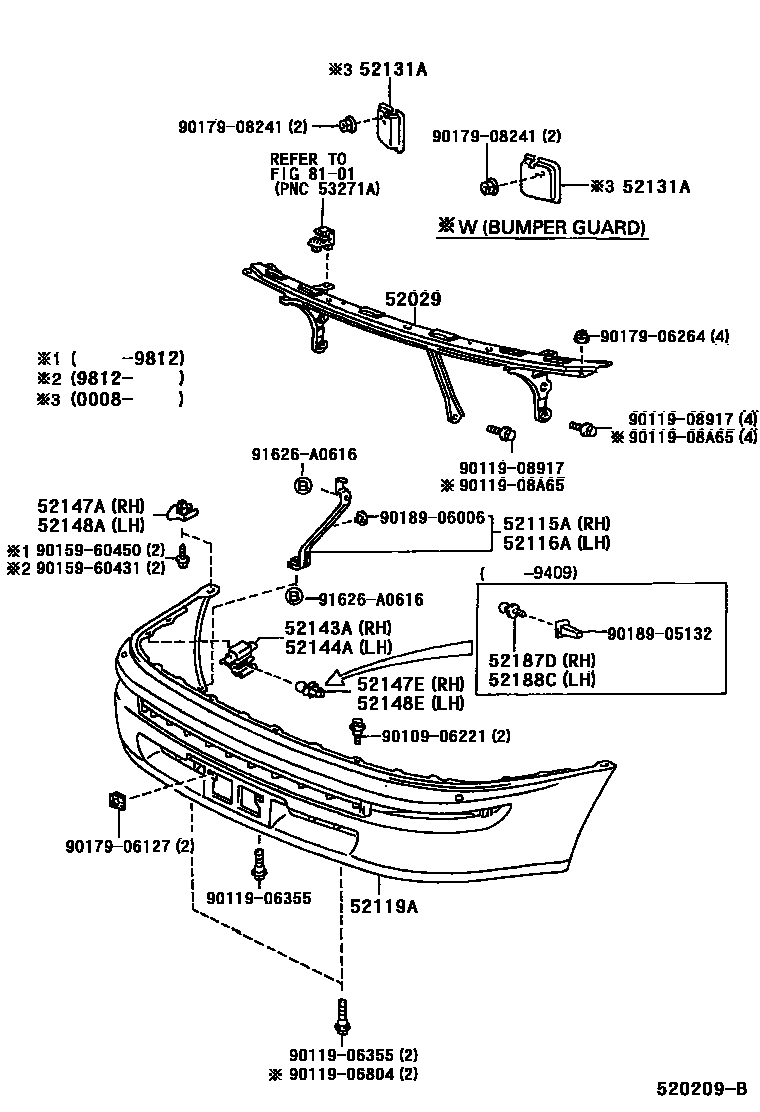

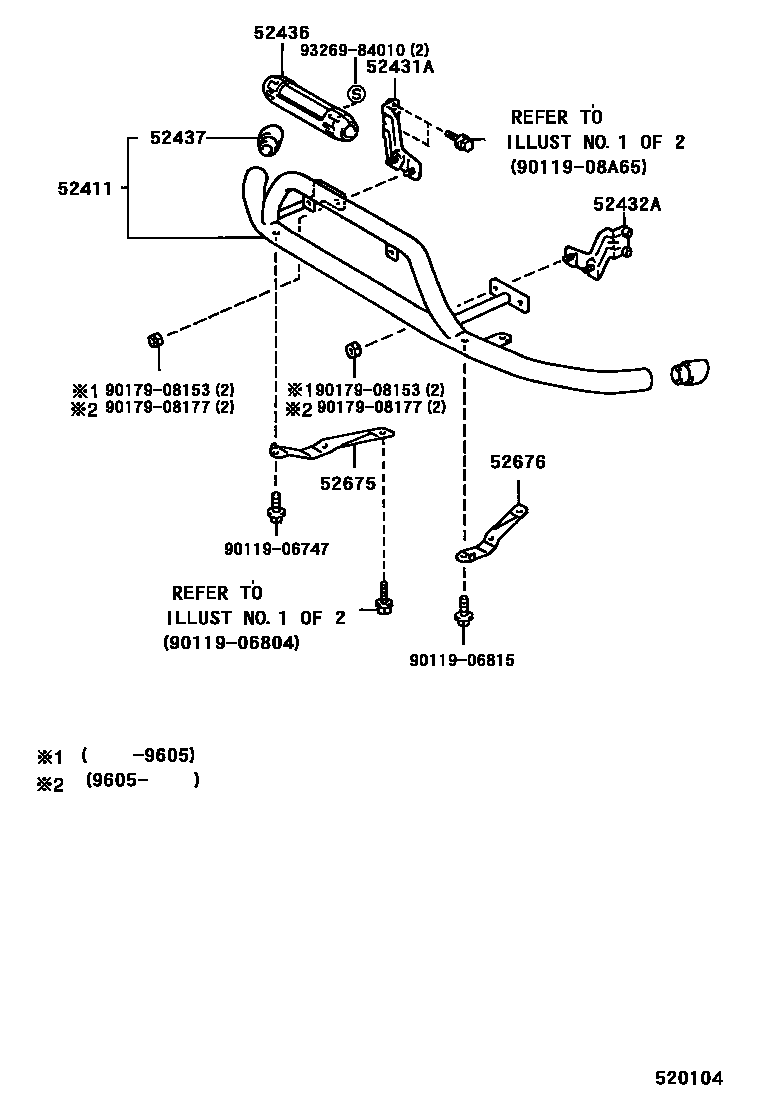

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 5 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-12010 · 52029-12080 · 52029-13010 |
| 52115A | Front bumper right side bracket | 52115-12340 |
| 52116A | Front bumper left bracket | 52116-12270 |
| 52119A | front bumper cover | 52119-1E010 · 52119-1E260 |
| 52127C | Front bumper hole cover | 52127-12120 |
| 52131A | Front bumper reinforcement | 52131-12180 · 52131-13020 · 52132-13010 |
| 52143A | Front bumper inner right arm | 52143-12300 · 52143-12330 · 52143-13020 |
| 52144A | Front bumper inner left arm | 52143-12300 · 52143-12330 · 52143-13020 |
| 52147A | Front bumper stay right side bracket | 52147-12170 · 52147-16080 |
| 52147E | Front bumper right side mounting support | 52148-12130 |
| 52148A | Front bumper stay left bracket | 52147-12170 · 52147-16080 |
| 52148E | Front bumper left side mounting support | 52148-12130 |
| 52187D | Front bumper right positioning guide rod | 52187-12140 |
| 52188C | Front bumper left positioning guide rod | 52187-12140 |
| 52411 | Front bumper anti-collision bar | 52401-13040 · 52401-13050 · 52401-13080 |
| 52431A | Front bumper anti-collision bar right side bracket | 52431-13020 · 52431-13021 |
| 52432A | Front bumper anti-collision bar left bracket | 52432-13020 · 52432-13021 |
| 52436 | Front bumper anti-collision bar protection parts | 52436-13030 · 52436-13040 |
| 52437 | Front bumper right side anti-collision bar cover | 52437-13020 · 52437-13030 |
| 52437B | Front bumper anti-collision bar bottom cover | 52437-13040 |
| 52675 | Front bumper lower right side bracket | 52675-13010 |
| 52676 | Front bumper lower left side bracket | 52676-13010 |
| 75972F | front bumper trim | 75972-13030 · 75972-13040 |
