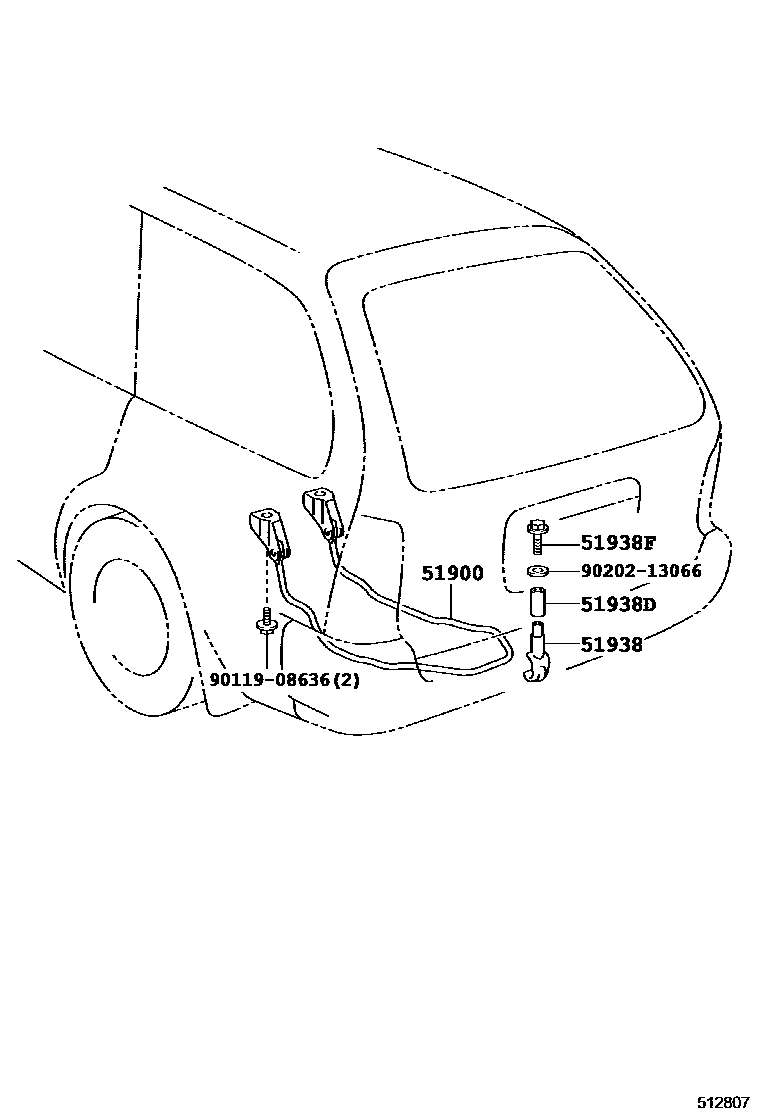

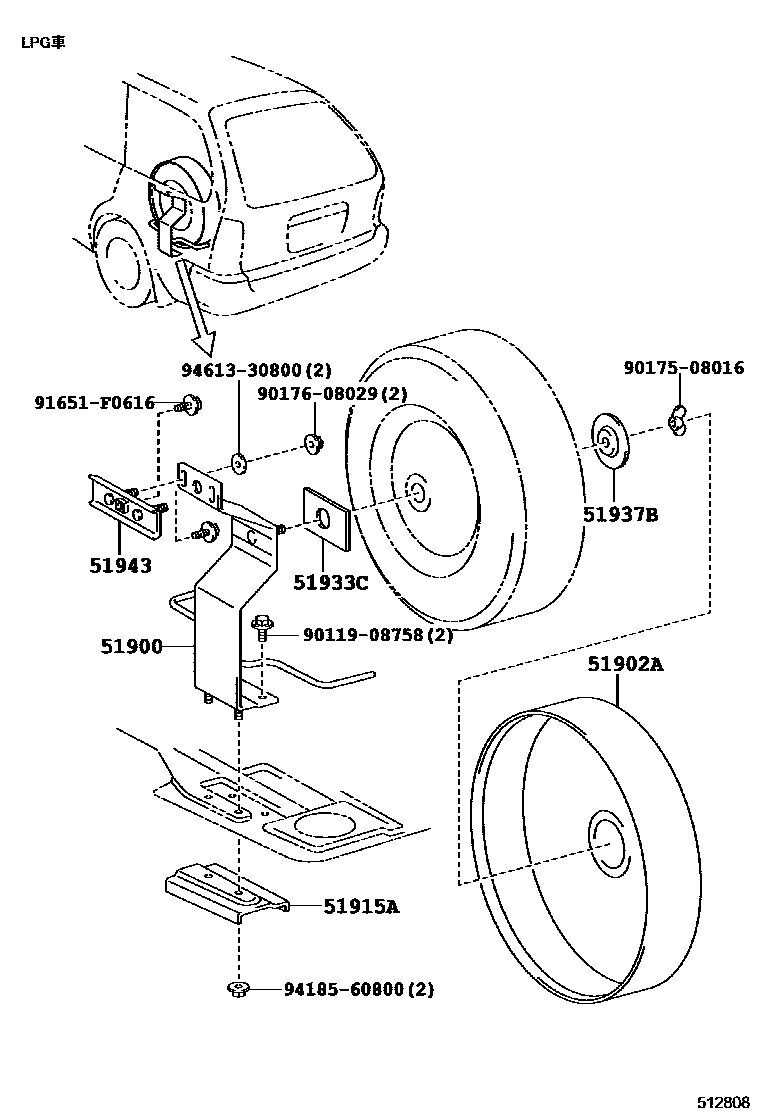

Toyota COROLLA Spare tire rack — Figure 5104
Toyota COROLLA EPC diagram 5104, Spare tire rack, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51900 | Spare tire rack assembly | 51900-12050 · 51900-12060 · 51900-12070 · 51900-13120 · 51900-13130 · 51900-13140 · 51900-13150 · 51900-13160 · 51900-13170 · 51900-17020 · 51931-12010 · 51931-12020 |
| 51902A | Spare tire cover sub-assembly | 51902-13010 |
| 51915A | Spare tire rack base | 51915-13020 |
| 51933C | Spare tire block | 51933-13040 |
| 51937B | Spare tire rack lock plate | 51937-13110 |
| 51938 | Spare tire rack lock | 51938-13040 · 51938-13050 |
| 51938D | Conduit (for spare wheel carrier bolt) | 90440-17060 · 90440-17061 · 90440-17062 |
| 51938F | Bolt (for spare tire carrier lock) | 90119-12181 · 90119-12184 · 90119-12237 |
| 51943 | No. 1 spare tire rack bracket | 51932-13060 |
| 64777E | Spare tire cover clip | 64777-12010 · 64777-12020 |
