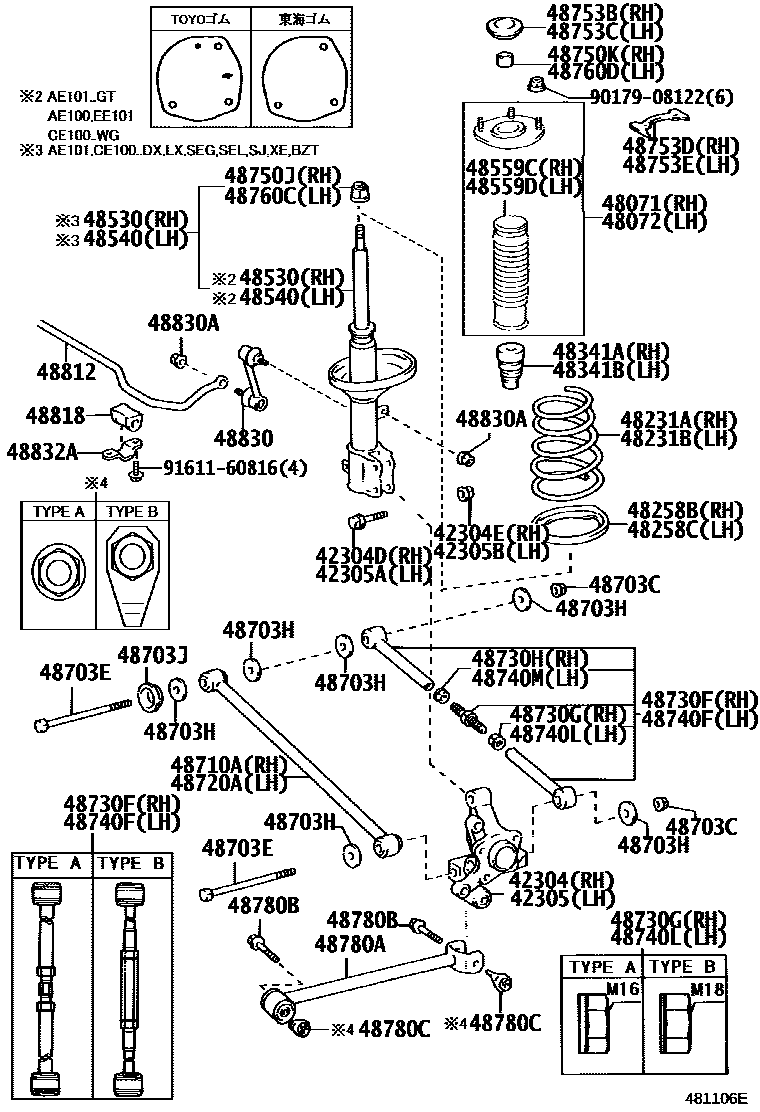

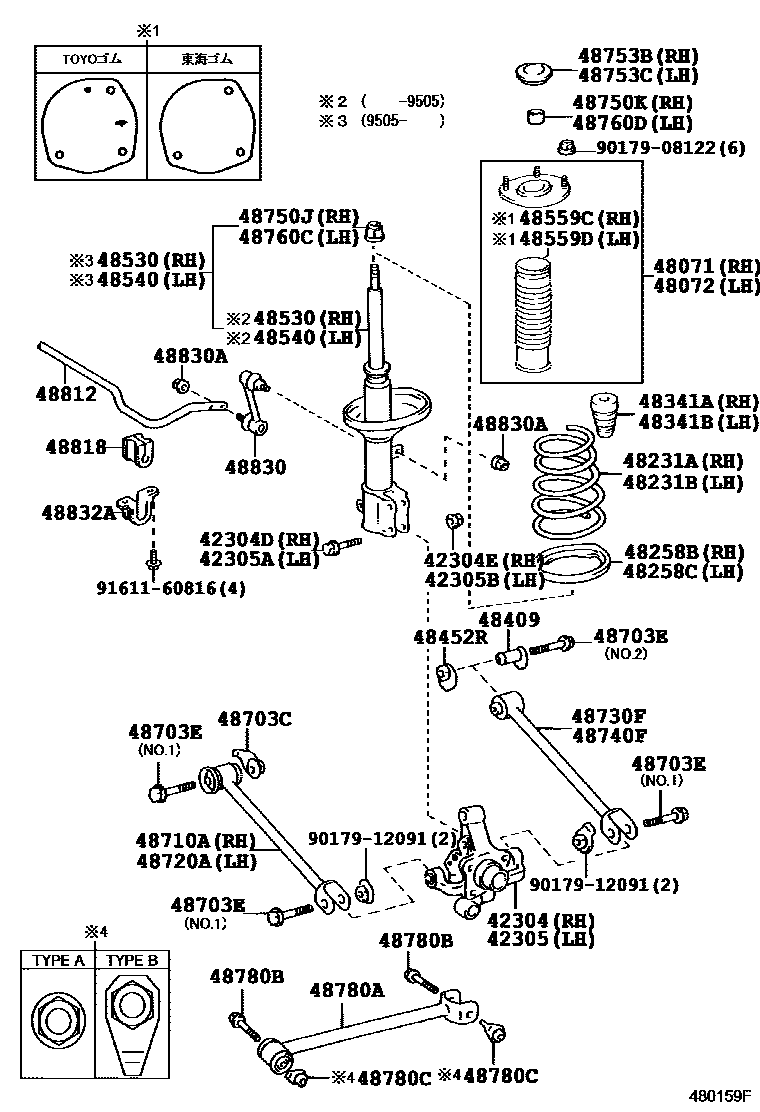

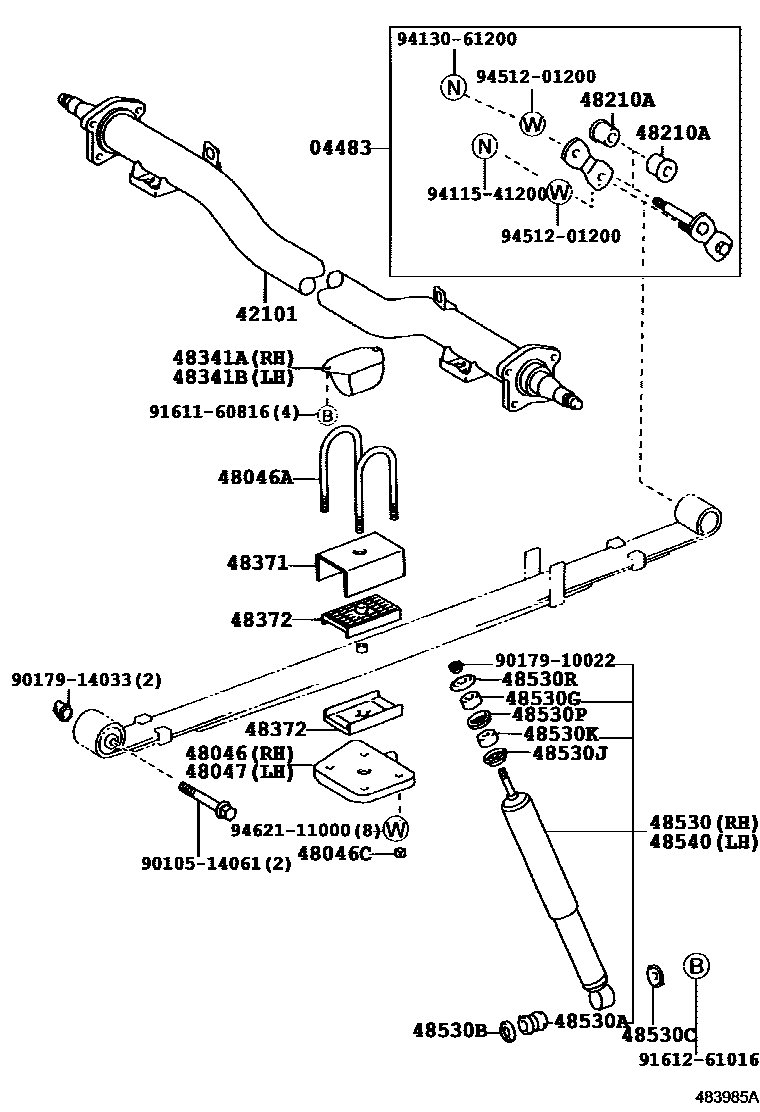

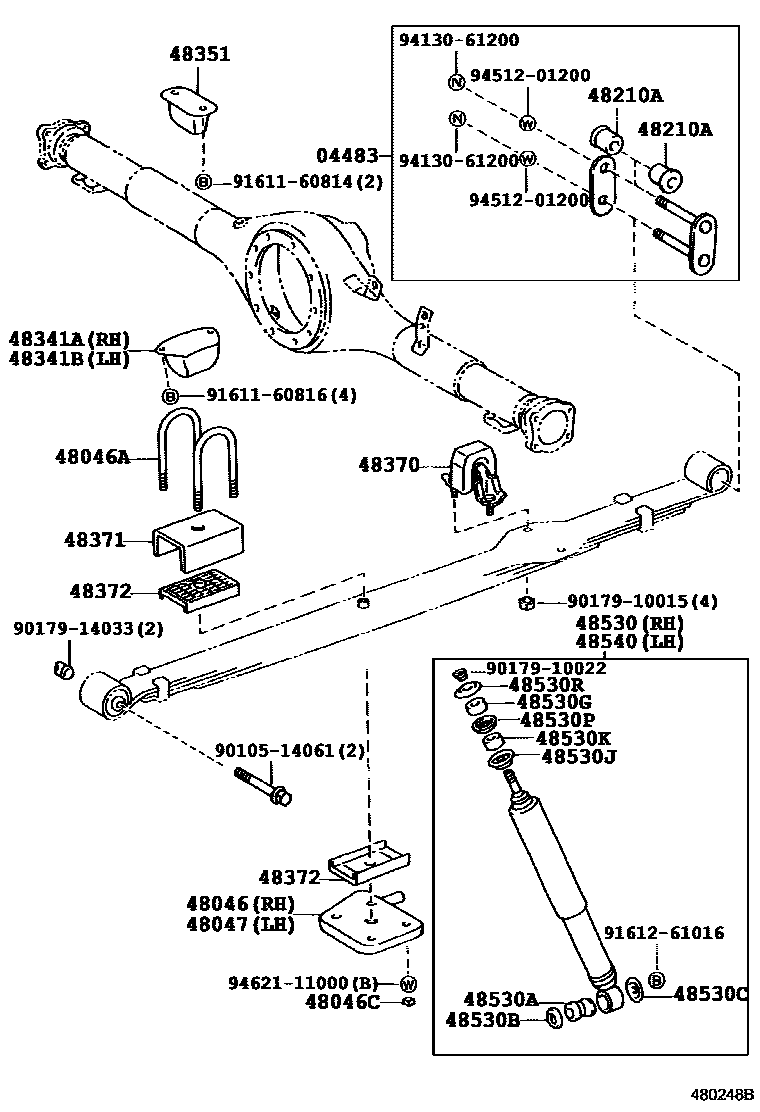

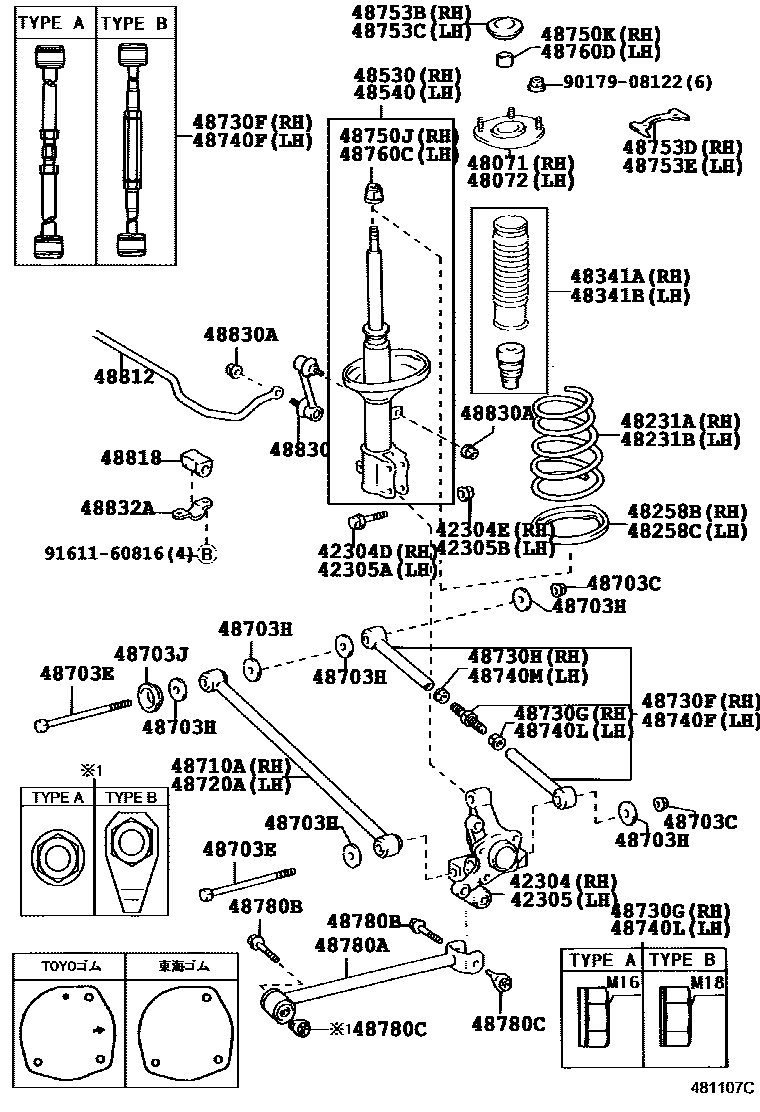

Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804
Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 7 images and 72 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04483 | Rear spring lifting lug assembly | 04483-13020 · 04483-13021 · 04483-13030 · 04483-13031 |
| 42101 | Rear axle tube sub-assembly | 42101-13070 · 42101-13080 · 42101-13081 |
| 42304 | Rear axle right bracket sub-assembly | 42304-12080 · 42304-12090 · 42304-12100 · 42304-12110 · 42304-12120 · 42304-12130 · 42304-12140 · 42304-12170 · 42304-12220 · 42304-12230 |
| 42304D | Bolt (for rear axle right bracket) | 90105-12102 · 90105-15001 |
| 42304E | Nut (for rear axle right bracket) | 90179-12025 · 90179-15001 |
| 42305 | Rear axle left bracket sub-assembly | 42305-12080 · 42305-12090 · 42305-12100 · 42305-12110 · 42305-12120 · 42305-12130 · 42305-12140 · 42305-12170 · 42305-12220 · 42305-12230 |
| 42305A | Bolt (for left rear axle bracket) | 90105-12102 · 90105-15001 |
| 42305B | Nut (for left rear axle bracket) | 90179-12025 · 90179-15001 |
| 48046 | Right spring U-bolt base sub-assembly | 48046-13080 · 48046-13090 |
| 48046A | U-bolt (for rear spring) | 90117-10003 · 90117-10010 |
| 48046C | Nut (for rear spring U-bolt) | 90170-10022 |
| 48047 | Left spring U-bolt base sub-assembly | 48047-13080 · 48047-13090 |
| 48071 | Right rear suspension bearing sub-assembly | 48071-12080 · 48071-12130 · 48071-12140 |
| 48072 | Left rear suspension bearing sub-assembly | 48072-12080 · 48072-12130 · 48072-12140 |
| 48210 | Right rear spring assembly | 48210-13300 · 48210-13320 · 48210-13330 · 48210-13350 |
| 48210A | Upper bushing (for rear spring lug) | 90385-15004 · 90385-15005 |
| 48210C | Bushing (for rear leaf spring) | 90389-12001 · 90389-12015 · 90389-14034 · 90389-14042 |
| 48220 | Left rear spring assembly | 48210-13300 · 48210-13320 · 48210-13330 · 48210-13350 |
| 48231A | Right rear coil spring | 48231-1E090 · 48231-1E110 · 48231-1E170 · 48231-1E250 · 48231-1E260 · 48231-1E330 · 48231-1E580 · 48231-1E600 · 48231-1E700 · 48231-1E820 · 48231-1H190 · 48231-1H270 · 48231-1H330 · 48231-1H380 |
| 48231B | Left rear coil spring | 48231-1E090 · 48231-1E110 · 48231-1E170 · 48231-1E250 · 48231-1E260 · 48231-1E330 · 48231-1E580 · 48231-1E600 · 48231-1E700 · 48231-1E820 · 48231-1H190 · 48231-1H270 · 48231-1H330 · 48231-1H380 |
| 48247 | rear spring center bolt | 48247-13160 · 48247-13250 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-12030 · 48258-12040 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-12030 · 48258-12040 |
| 48284 | Rear spring center bolt nut | 48284-13250 · 94110-40800 |
| 48341A | No. 1 right rear spring buffer block | 48341-12120 · 48341-12130 · 48341-12170 · 48341-12180 · 48341-13090 · 48341-13100 · 48341-13110 · 48341-13120 |
| 48341B | No. 1 left rear spring buffer block | 48341-12120 · 48341-12130 · 48341-12170 · 48341-12180 · 48341-13090 · 48341-13100 · 48341-13110 · 48341-13120 |
| 48351 | Differential case buffer block | 48351-12020 |
| 48370 | Leaf spring dynamic damper assembly | 48370-13010 |
| 48371 | Rear spring pad retainer | 48371-13070 · 48371-13090 |
| 48372 | Rear spring pad | 48372-12020 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-12040 |
| 48452R | No. 2 rear suspension toe adjustment piece | 48452-32020 |
| 48530 | Right rear shock absorber assembly | 48530-12550 · 48530-12710 · 48530-12720 · 48530-12760 · 48530-12780 · 48530-19645 · 48530-19735 · 48530-19845 · 48530-80006 · 48530-80019 · 48531-80072 · 48531-80118 · 48531-80136 · 48531-80181 |
| 48530A | Bushing (for rear shock absorber) | 90385-16001 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03004 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-03012 |
| 48530G | Rear shock absorber No. 1 cushion | 90540-10005 |
| 48530J | No. 1 cushion block (for rear shock absorber) | 90948-02002 |
| 48530K | Rear shock absorber No.2 cushion | 90948-01003 |
| 48530P | No. 2 buffer pad block (for rear shock absorber) | 90948-02007 |
| 48530R | No. 3 cushion block (for rear shock absorber) | 90948-02045 |
| 48540 | Left rear shock absorber assembly | 48531-80072 · 48531-80118 · 48531-80136 · 48531-80181 · 48540-12490 · 48540-12650 · 48540-12660 · 48540-12700 · 48540-12710 · 48540-19095 · 48540-19175 · 48540-19185 · 48540-19226 · 48540-19235 |
| 48559C | Right rear shock absorber No. 1 dust cover | 48559-12070 · 48559-12080 · 48559-12090 |
| 48559D | Left rear shock absorber No. 1 dust cover | 48559-12070 · 48559-12080 · 48559-12090 |
| 48703C | Nut (for rear suspension arm) | 90179-12064 · 90179-12106 · 90179-14019 · 90179-14025 |
| 48703E | Bolts (for rear suspension arms) | 90105-14083 · 90105-14099 · 90119-12150 · 90119-12152 |
| 48703H | Washer No. 1 (for rear suspension arm) | 90201-14017 · 90201-14035 |
| 48703J | Washer No. 2 (for rear suspension arm) | 90209-15002 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-12160 · 48710-12180 · 48710-12190 · 48710-12200 · 48710-12210 · 48710-12230 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-12160 · 48710-12180 · 48710-12190 · 48710-12200 · 48710-12210 · 48710-12230 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-12050 · 48730-12060 · 48730-12070 · 48730-12090 · 48730-12110 · 48730-12120 · 48730-12130 · 48730-12160 · 48730-13020 |
| 48730G | Nut No. 1 (for right rear suspension arm No. 2) | 90179-16022 · 90179-18016 |
| 48730H | No. 2 nut (for right rear suspension No. 2 arm assembly) | 90179-16021 · 90179-18017 |
| 48740F | Left rear suspension No. 2 arm assembly | 48730-12050 · 48730-12060 · 48730-12070 · 48730-12090 · 48730-12110 · 48730-12120 · 48730-12130 · 48730-12160 · 48730-13020 |
| 48740L | Nut No. 1 (for left rear suspension arm No. 2) | 90179-16022 · 90179-18016 |
| 48740M | No. 2 nut (for left rear suspension No. 2 arm assembly) | 90179-16021 · 90179-18017 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 90179-14015 |
| 48750K | Collar (for rear mount to right rear shock absorber) | 90387-15012 · 90387-15027 |
| 48753B | Right rear suspension support cover No. 1 | 48753-12010 · 48753-12050 |
| 48753C | Left rear suspension support cover No. 1 | 48753-12010 · 48753-12050 |
| 48753D | Right rear suspension support cover No. 2 | 48753-12031 · 48753-12080 |
| 48753E | Left rear suspension support cover No. 2 | 48753-12041 · 48753-12080 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 90179-14015 |
| 48760D | Collar (for rear mount to left rear shock absorber) | 90387-15012 · 90387-15027 |
| 48780A | Rear support rod assembly | 48780-12010 · 48780-12020 · 48780-12040 · 48780-12080 · 48780-12090 |
| 48780B | Bolts (for support rods) | 90119-12152 |
| 48780C | Nut (for support rod) | 90179-12062 · 90179-12063 · 90179-12091 |
| 48812 | rear stabilizer bar | 48812-12160 · 48812-12170 · 48812-12180 · 48812-12190 · 48812-12210 · 48812-12220 · 48812-12250 · 48812-12280 |
| 48818 | Rear stabilizer bar bushing | 48818-12130 · 48818-12140 · 48818-12150 · 48818-12160 · 48818-12170 · 48818-12190 · 48818-12200 · 48818-12220 · 48818-20100 · 48818-20110 |
| 48830 | Rear stabilizer link assembly | 48830-12050 · 48830-12060 · 48830-20010 |
| 48830A | Nut (for rear stabilizer link) | 90179-10183 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-12070 · 48832-20030 |
