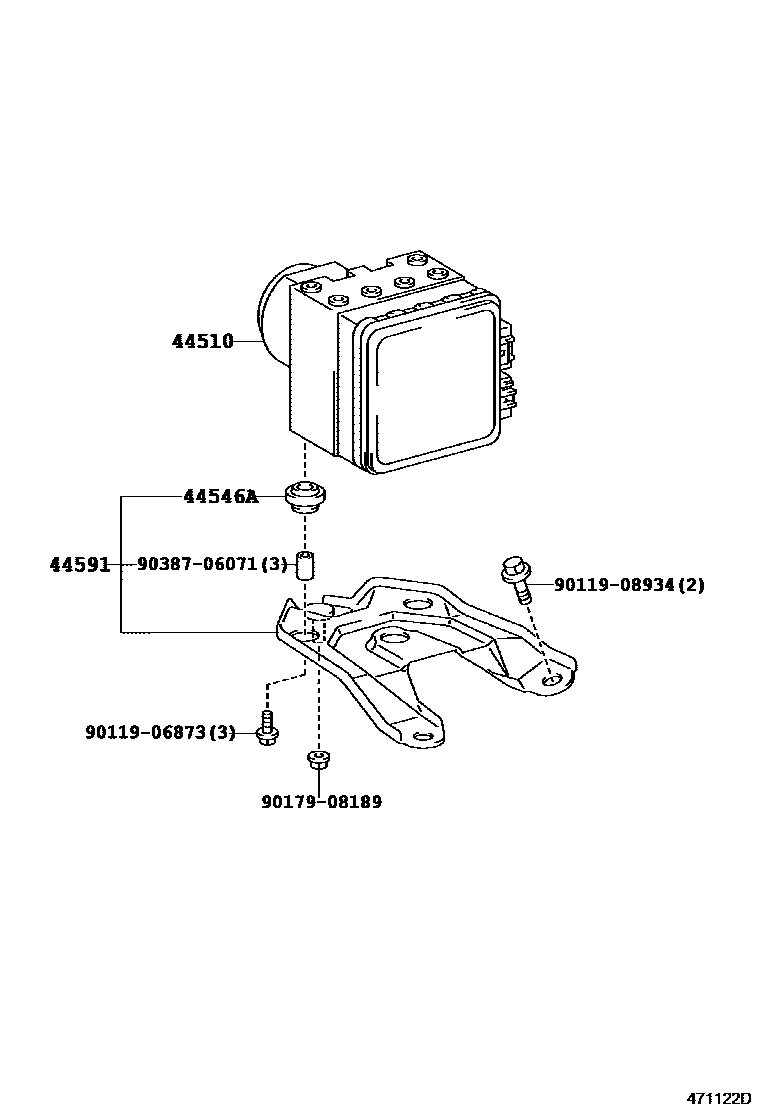

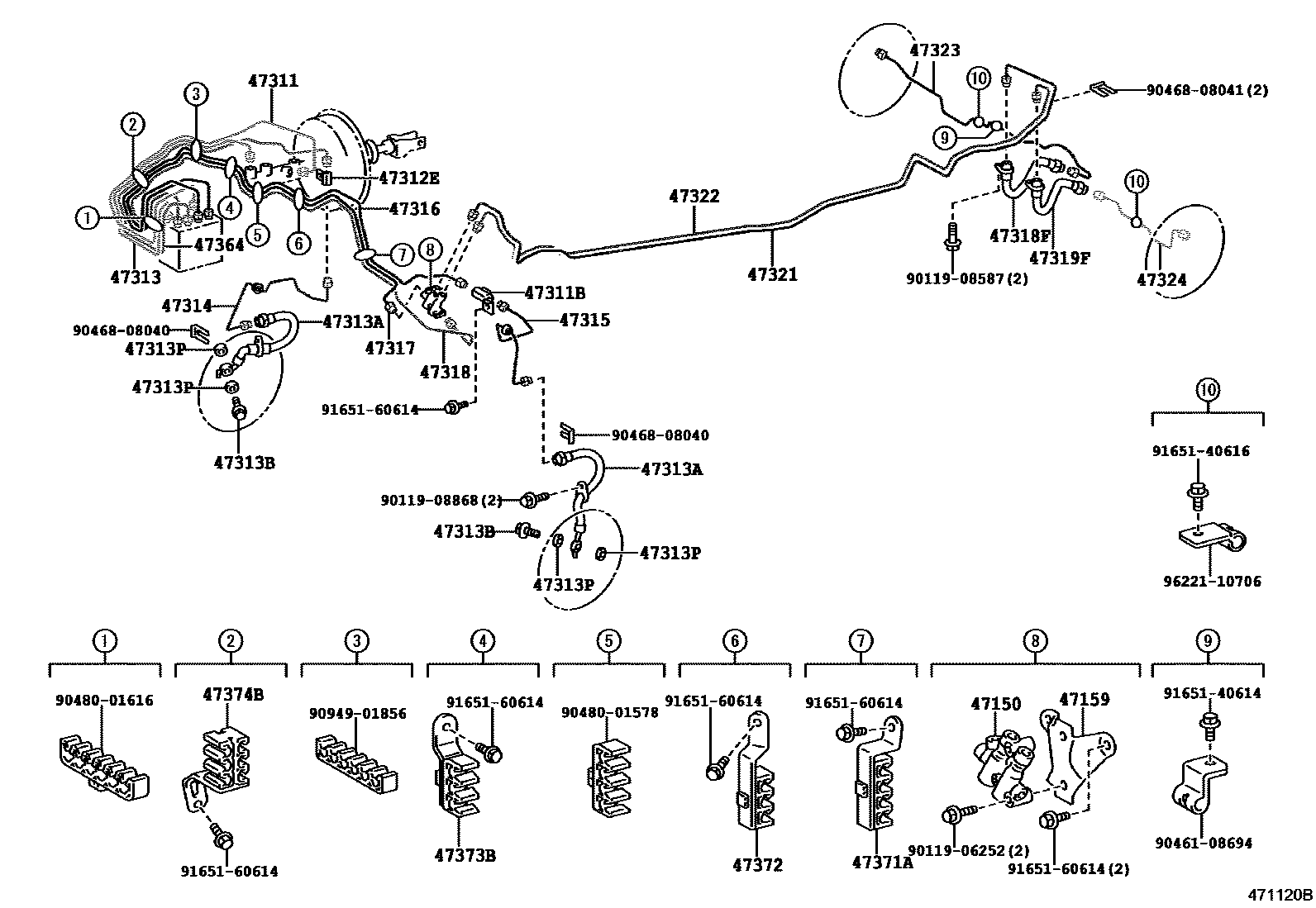

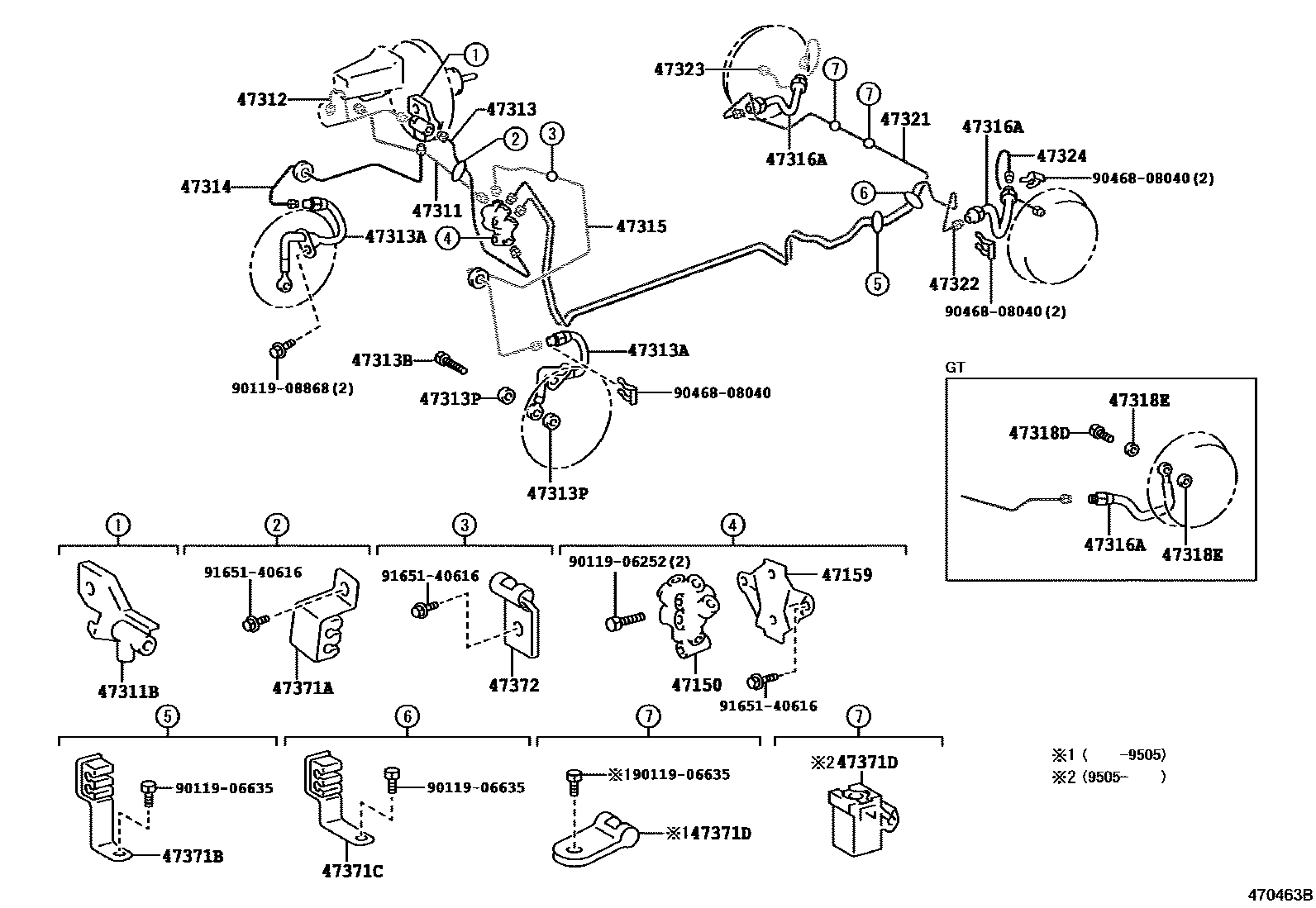

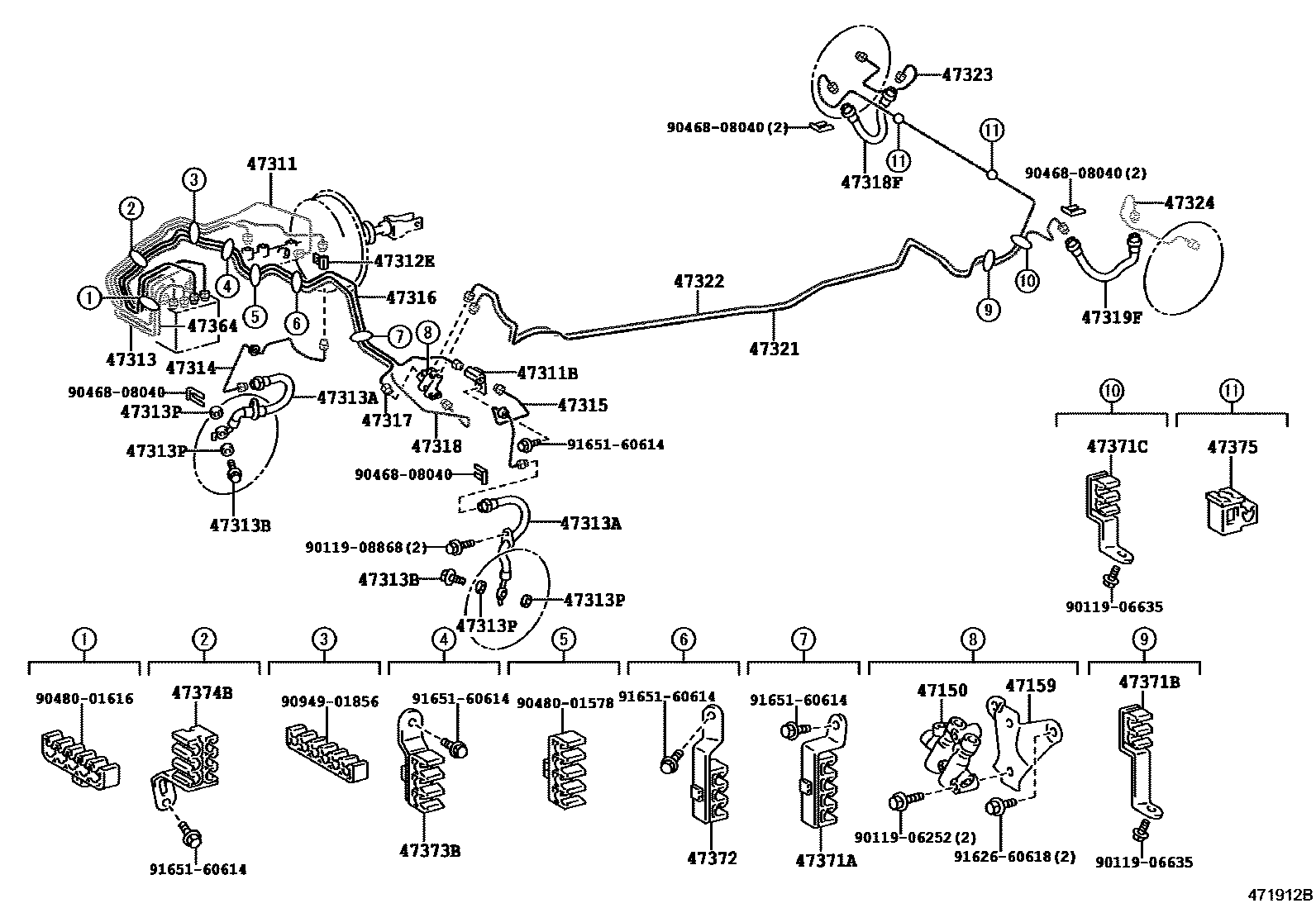

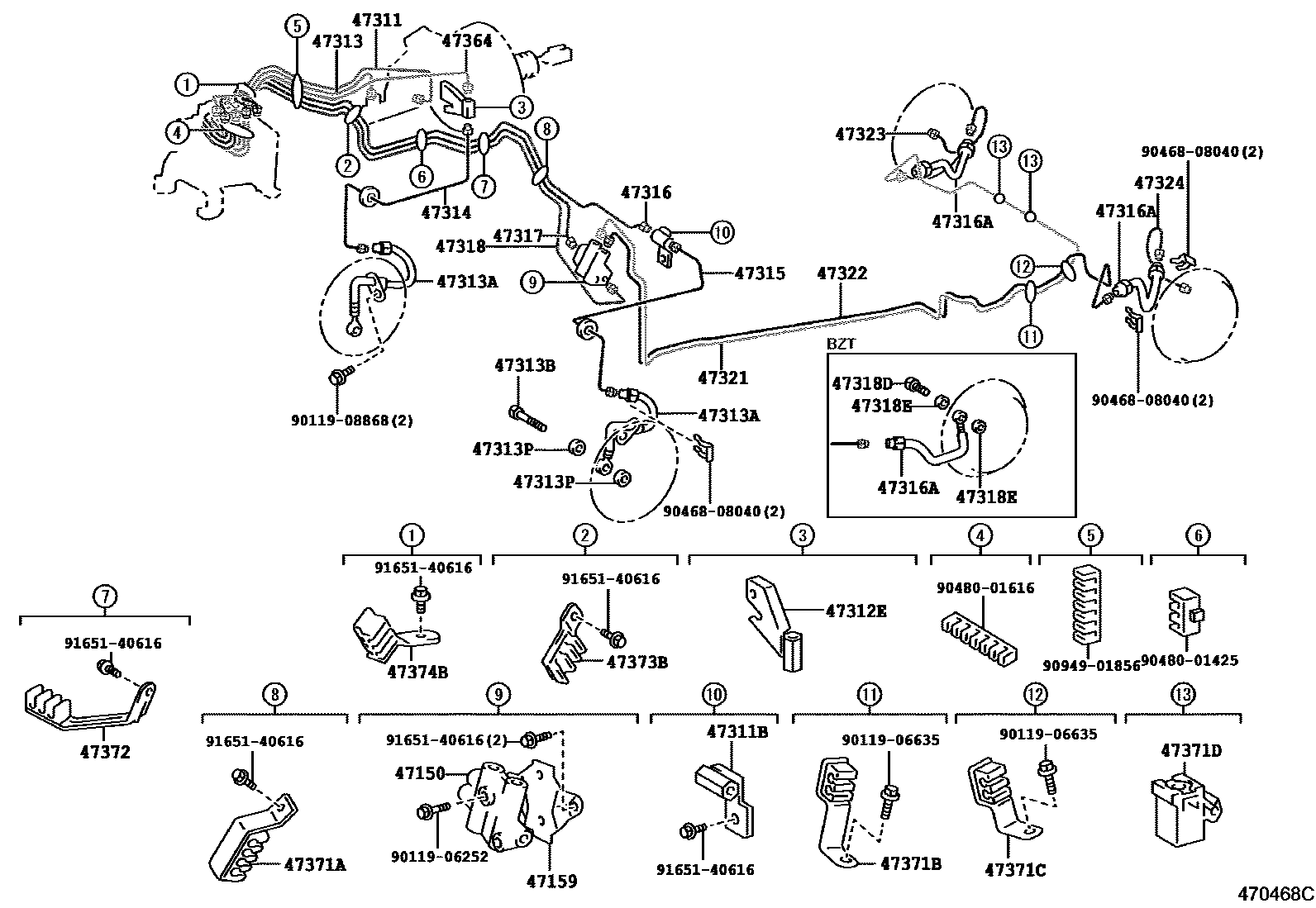

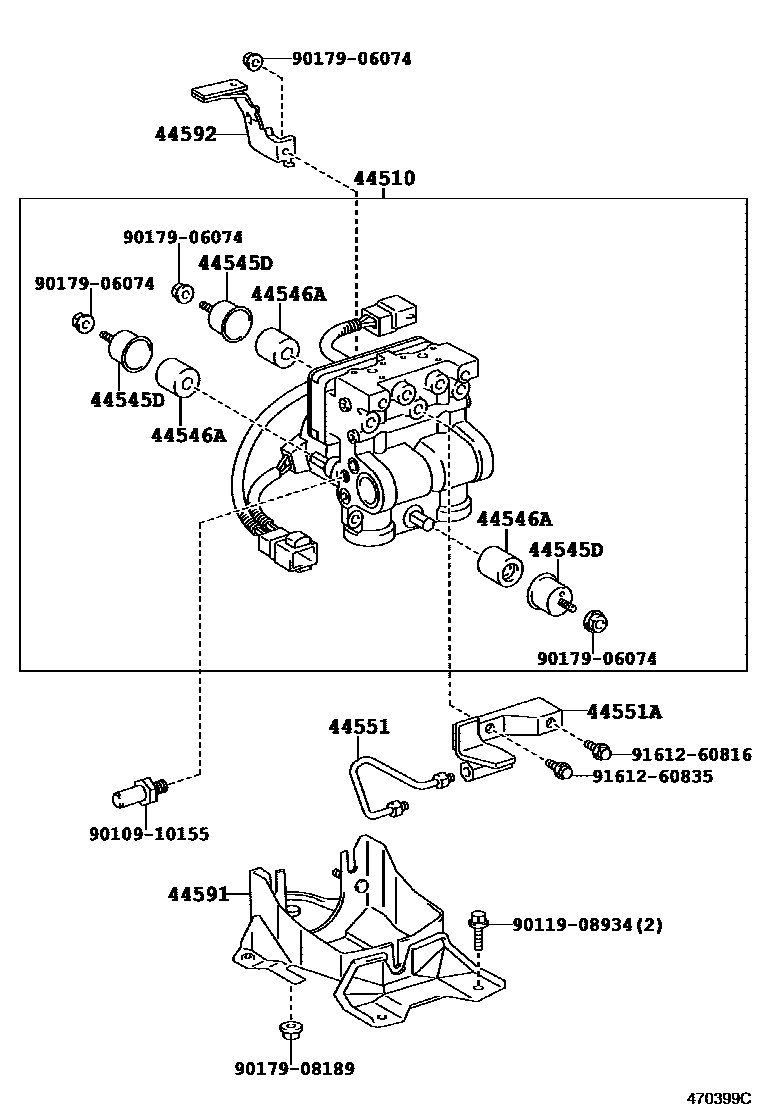

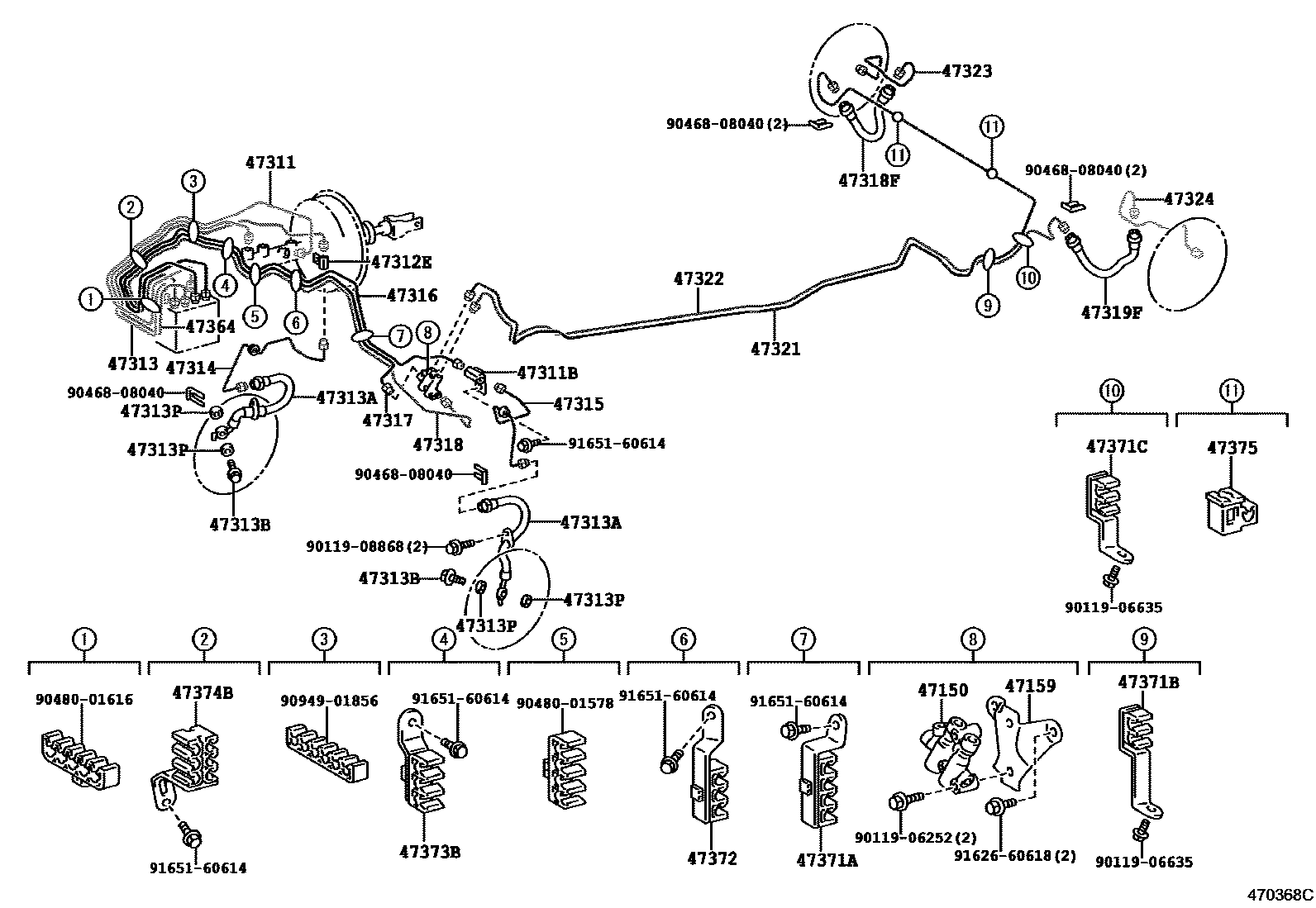

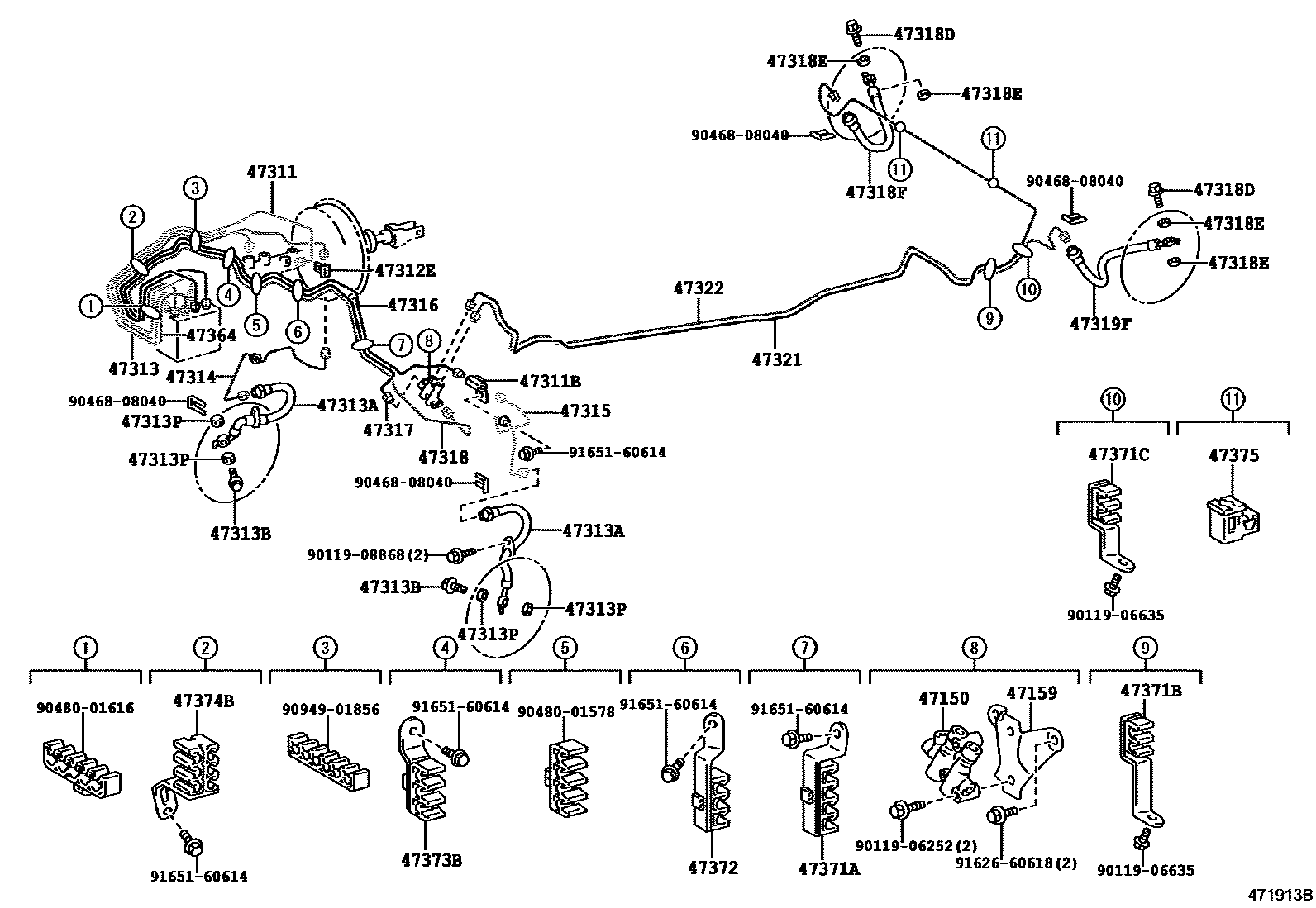

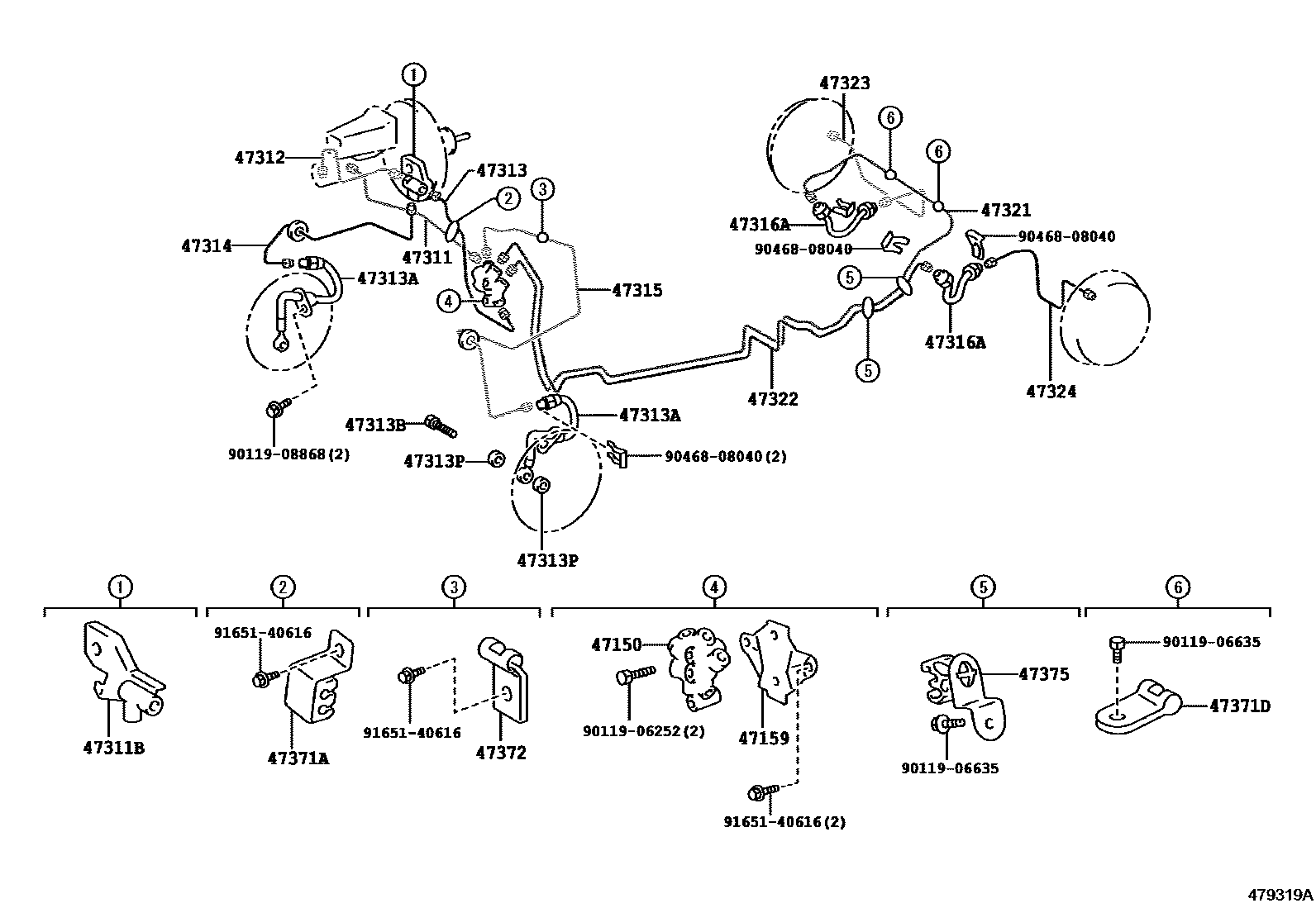

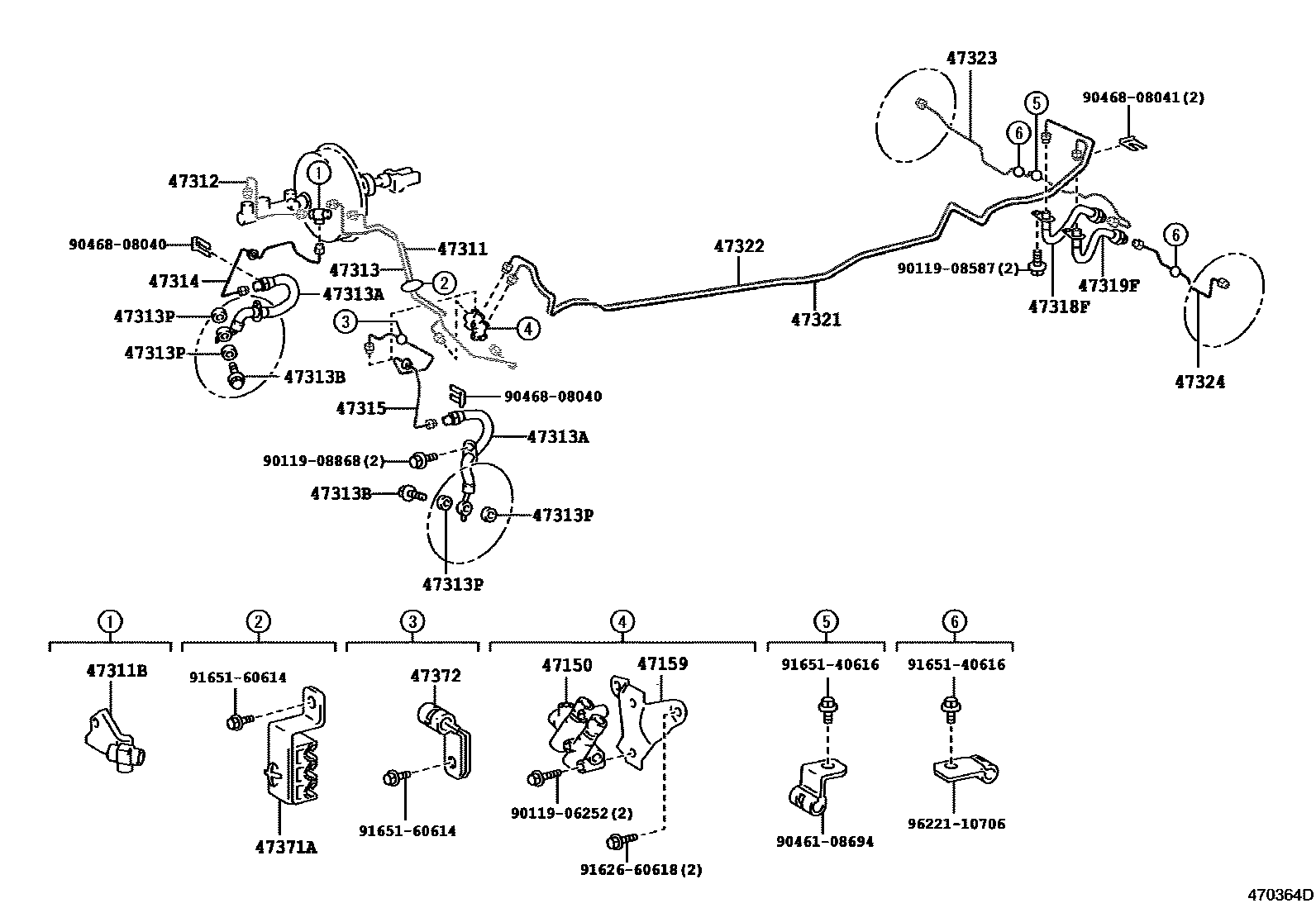

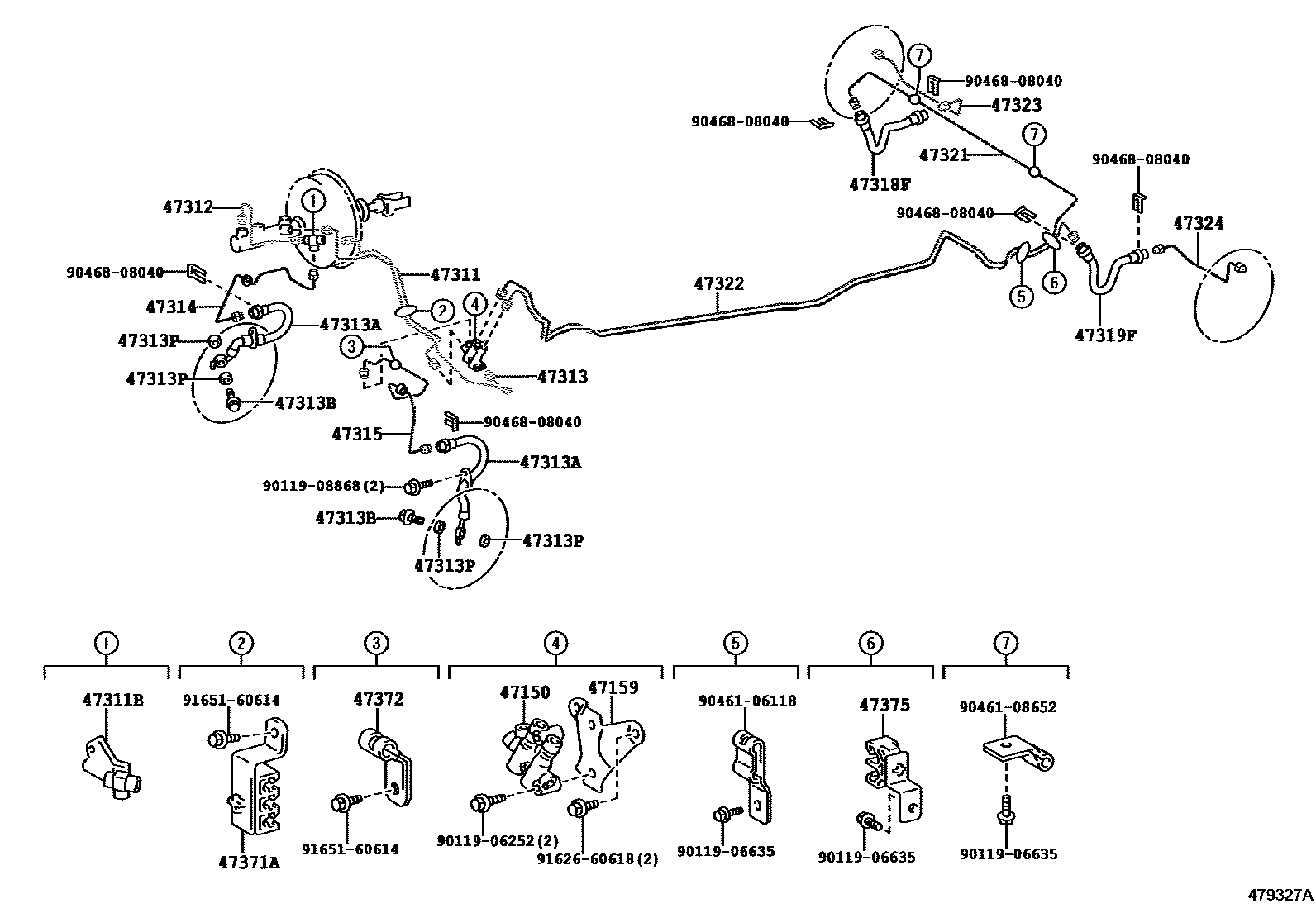

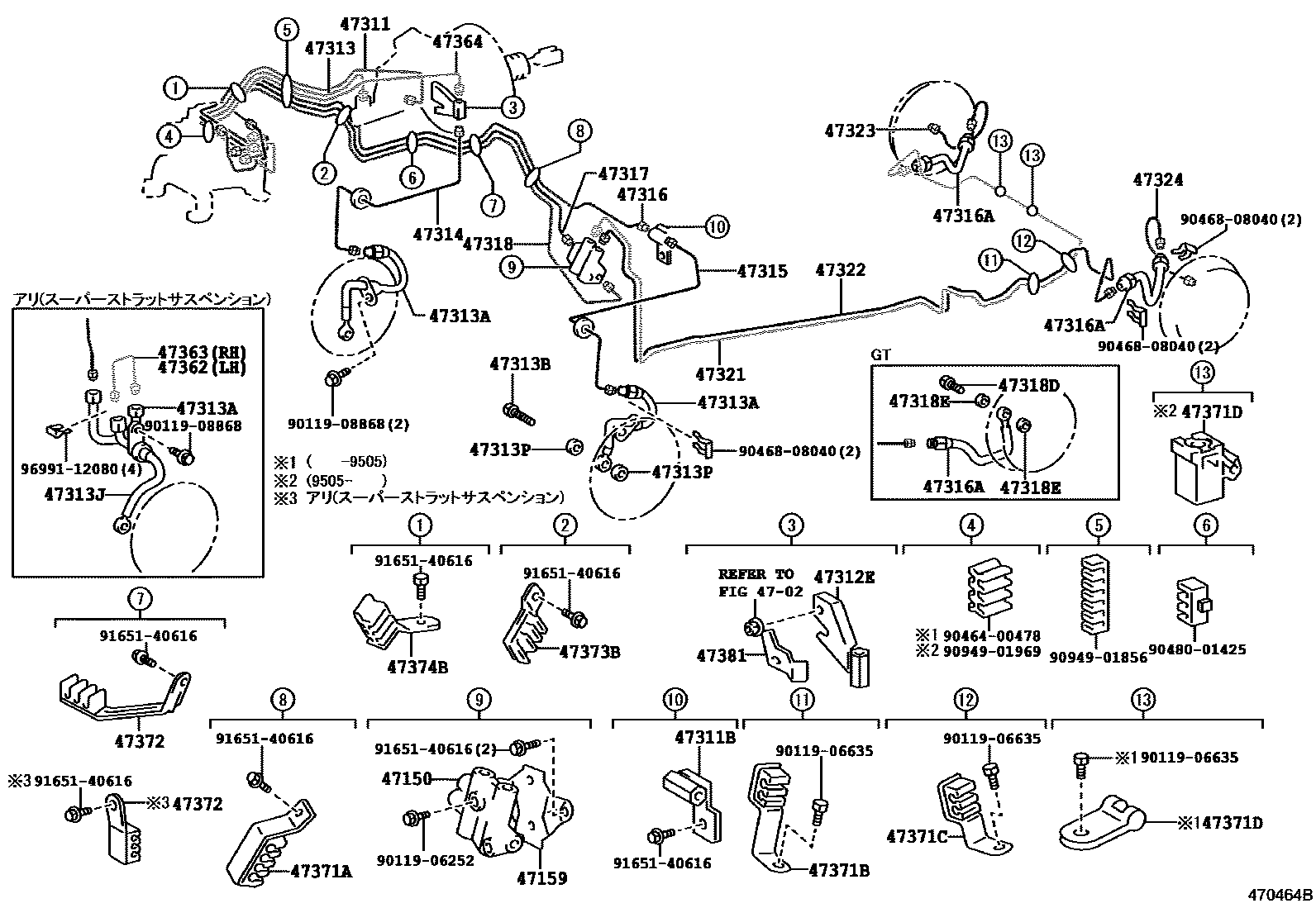

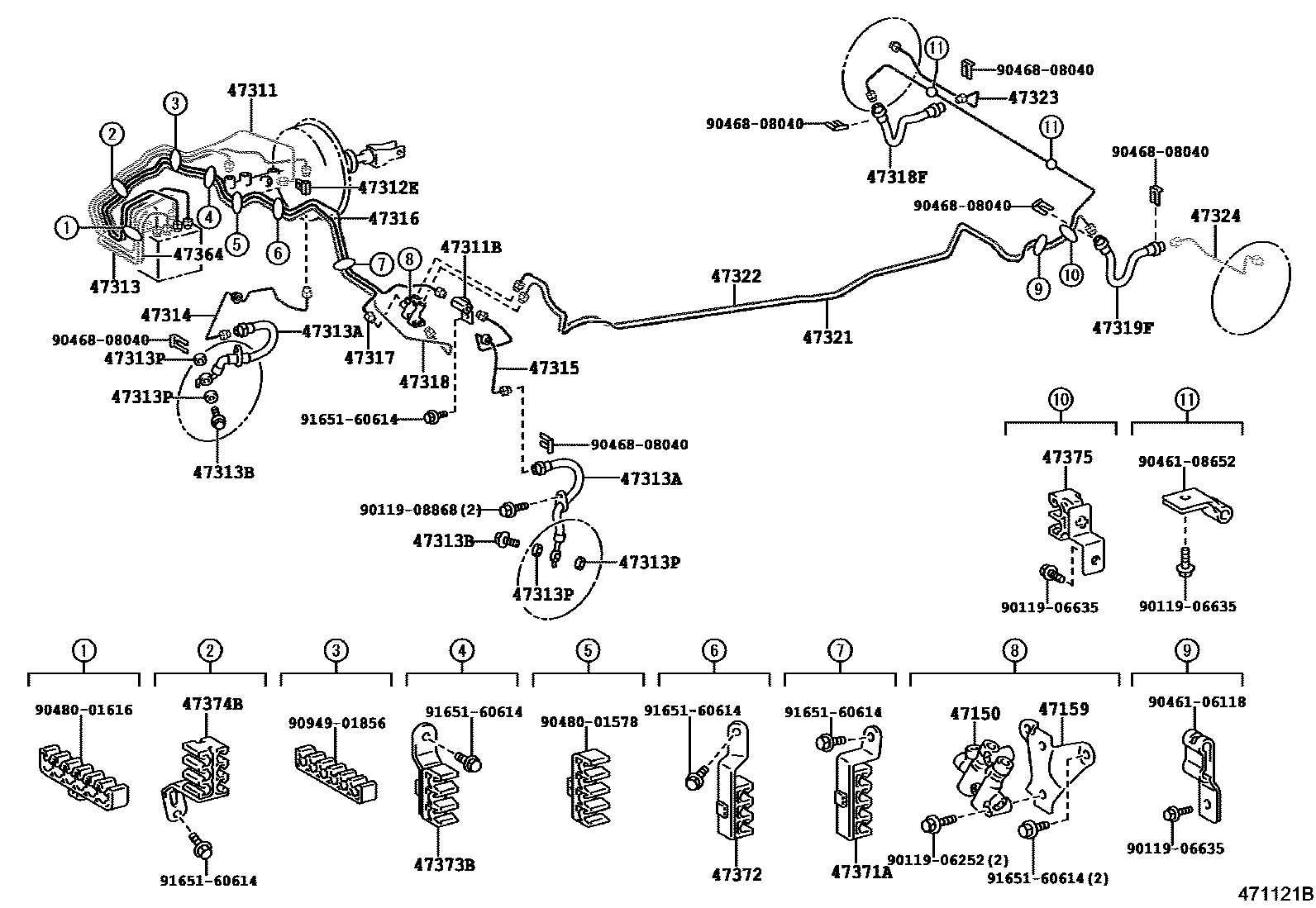

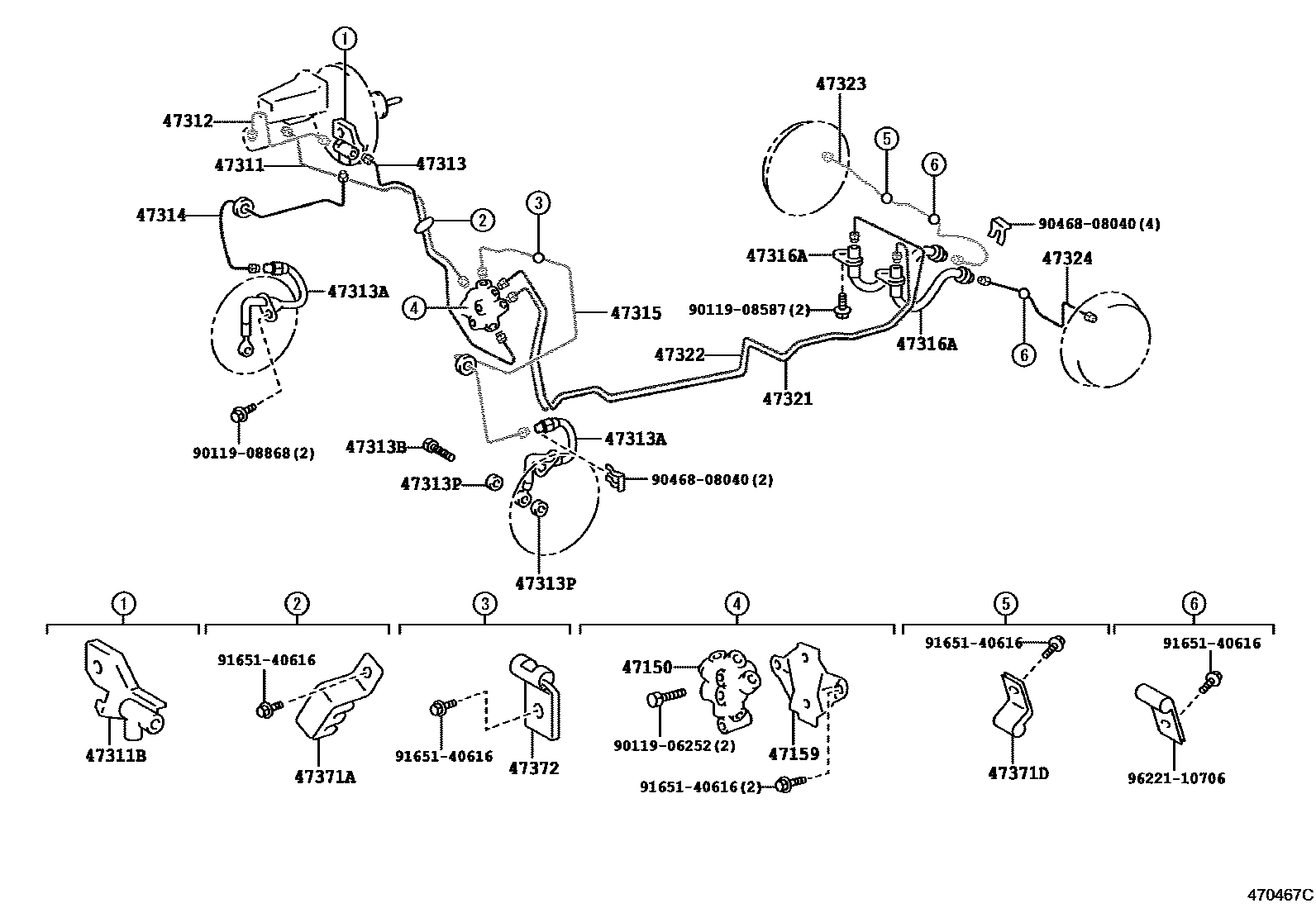

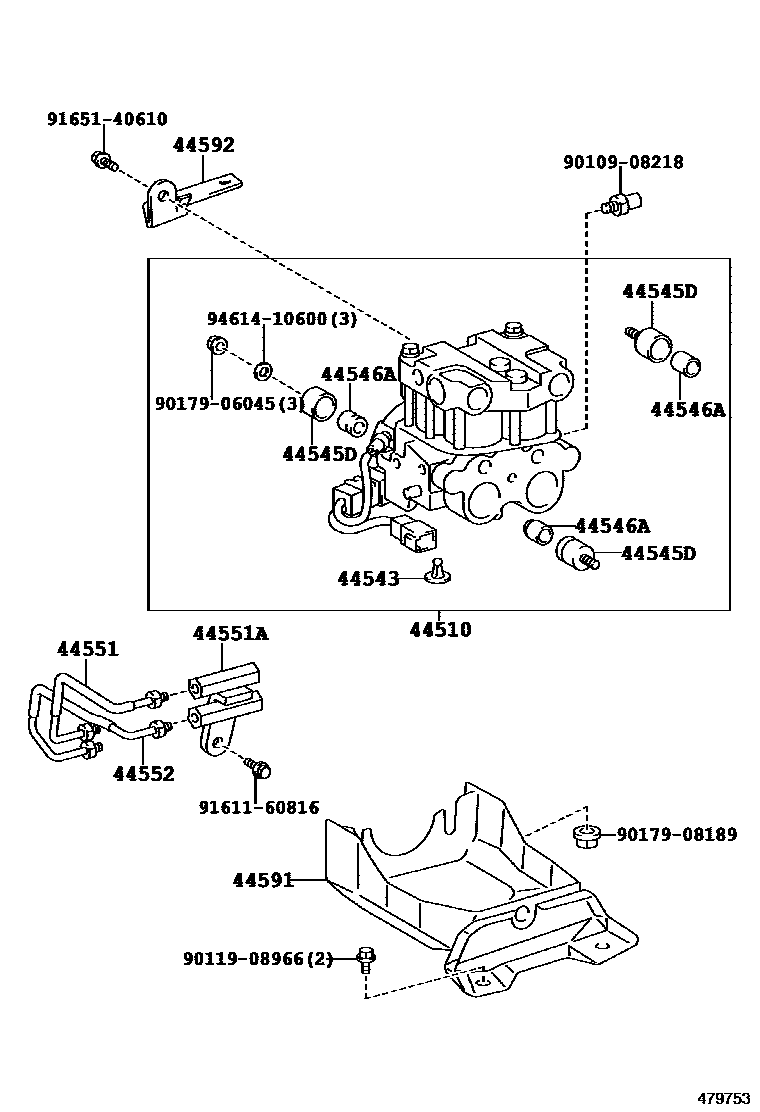

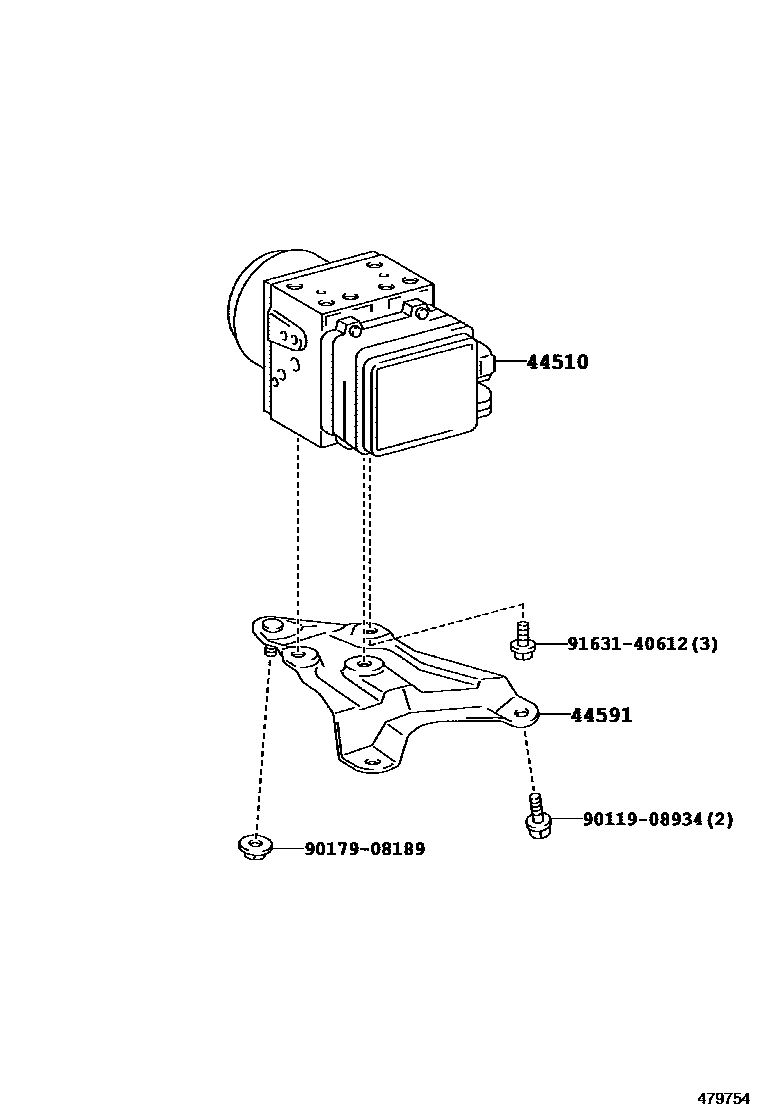

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 16 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-12050 · 44050-12060 · 44510-12020 · 44510-12030 · 44510-12040 · 44510-12050 · 44510-12090 · 44510-12100 · 44510-12160 · 44510-12190 · 44510-12210 |
| 44543 | rubber cap | 44543-12010 |
| 44545D | Brake actuator bolt mount | 44545-12010 |
| 44546A | Brake actuator bolt cushion | 44546-12010 · 44546-12100 |
| 44551 | No. 1 brake actuator pipe | 44551-12031 · 44551-12040 |
| 44551A | Pipe joint No. 1 (for brake actuator) | 90412-10184 · 90904-12006 |
| 44552 | No. 2 brake actuator pipe | 44552-12021 |
| 44591 | No. 1 brake actuator bracket | 44590-12010 · 44590-12030 · 44590-12040 · 44591-12020 · 44591-12030 · 44591-12031 · 44591-12050 |
| 44592 | No. 2 brake actuator bracket | 44592-12010 · 44592-12020 · 44594-12010 |
| 47150 | Proportional valve assembly | 47150-10090 · 47150-12140 · 47150-12150 · 47150-12160 · 47150-12180 · 47150-12200 · 47150-12250 · 47150-12270 · 47150-13020 · 47150-13030 · 47150-16050 · 47150-16060 · 47150-20140 · 47150-20240 · 47150-20250 · 47150-20270 · 47150-20280 |
| 47159 | Proportional valve bracket | 47159-12070 |
| 47311 | No. 1 front brake pipe | 47311-12440 · 47311-12450 · 47311-12460 · 47311-12470 · 47311-12480 · 47311-12500 · 47311-12530 · 47311-12540 · 47311-12550 · 47311-12560 · 47311-12570 · 47311-12580 · 47311-12620 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 47391-12010 · 47391-12030 · 90412-10116 · 90413-10262 |
| 47312 | No. 2 front brake pipe | 47312-12290 · 47312-12310 · 47312-12330 · 47312-12340 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10183 · 90904-12007 |
| 47313 | No. 3 front brake pipe | 47313-12250 · 47313-12260 · 47313-12270 · 47313-12280 · 47313-12290 · 47313-12330 · 47313-12340 · 47313-12350 · 47313-12360 · 47313-12370 · 47313-12380 · 47313-12390 · 47313-12430 |
| 47313A | No. 1 front flexible hose | 90947-02659 · 90947-02660 · 90947-02662 · 90947-02680 · 90947-02681 · 90947-02798 · 90947-02799 · 90947-02802 · 90947-02803 · 90947-02806 · 90947-02910 · 90947-02913 · 90947-02914 · 90947-02917 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 · 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02663 · 90947-02664 · 90947-02807 · 90947-02808 |
| 47313P | Gasket (for front flex hose) | 47389-50020 · 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-12290 · 47314-12320 · 47314-12330 · 47314-12340 · 47314-12360 · 47314-12400 · 47314-12410 |
| 47315 | No. 5 front brake pipe | 47315-12450 · 47315-12460 · 47315-12470 |
| 47316 | No. 6 front brake pipe | 47316-12190 · 47316-12200 · 47316-12210 · 47316-12240 · 47316-12250 · 47316-12270 · 47316-12280 · 47316-12290 · 47316-12320 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02657 · 90947-02658 · 90947-02661 · 90947-02678 · 90947-02740 · 90947-02783 · 90947-02809 · 90947-02830 · 90947-02831 |
| 47317 | No. 7 front brake pipe | 47317-12040 · 47317-12050 · 47317-12060 · 47317-12090 · 47317-12100 · 47317-12120 · 47317-12130 · 47317-12140 · 47317-12170 |
| 47318 | No. 8 front brake pipe | 47318-12180 · 47318-12190 · 47318-12200 · 47318-12230 · 47318-12250 · 47318-12260 · 47318-12270 · 47318-12280 · 47318-12310 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 · 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 · 90430-10074 |
| 47318F | Right rear flexible hose | 90947-02908 · 90947-02909 · 90947-02921 · 90947-02922 · 90947-02923 · 90947-02C41 |
| 47319F | Left rear flexible hose | 90947-02908 · 90947-02909 · 90947-02921 · 90947-02922 · 90947-02923 · 90947-02C41 |
| 47321 | No. 1 rear brake pipe | 47321-12100 · 47321-12110 · 47321-12130 · 47321-12140 · 47321-13060 · 47321-13080 |
| 47322 | No. 2 rear brake pipe | 47322-12260 · 47322-12280 · 47322-12290 · 47322-13100 · 47322-13120 |
| 47323 | No. 3 rear brake pipe | 47323-12240 · 47323-12250 · 47323-13080 · 47323-13082 · 47323-13090 · 47323-13150 |
| 47324 | No. 4 rear brake pipe | 47324-12200 · 47324-12210 · 47324-13080 · 47324-13082 · 47324-13090 · 47324-13150 |
| 47362 | No. 11 front brake pipe | 47362-12010 |
| 47363 | No. 12 front brake pipe | 47363-12010 |
| 47364 | No. 13 front brake pipe | 47364-12010 · 47364-12020 · 47364-12030 · 47364-12040 · 47364-12090 · 47364-12100 · 47364-12110 · 47364-12120 · 47364-12160 |
| 47371A | No. 1 brake pipe clamp | 47371-12090 · 47371-12100 |
| 47371B | No. 6 brake pipe clamp | 47375-12010 · 47375-12040 |
| 47371C | No. 7 brake pipe clamp | 47375-12020 · 47375-12060 |
| 47371D | No. 8 brake pipe clamp | 47371-12150 · 90461-08652 · 90461-08687 · 90461-08694 |
| 47372 | No. 2 brake pipe clamp | 47372-12010 · 47372-12020 · 47372-12060 · 90461-06119 |
| 47373B | No. 3 brake pipe clamp | 47373-12010 · 47373-12020 |
| 47374B | No. 4 brake pipe clamp | 47374-12020 · 47374-12030 |
| 47375 | No. 5 brake pipe clamp | 47371-12150 · 47375-12030 · 90949-01B45 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-12190 |
