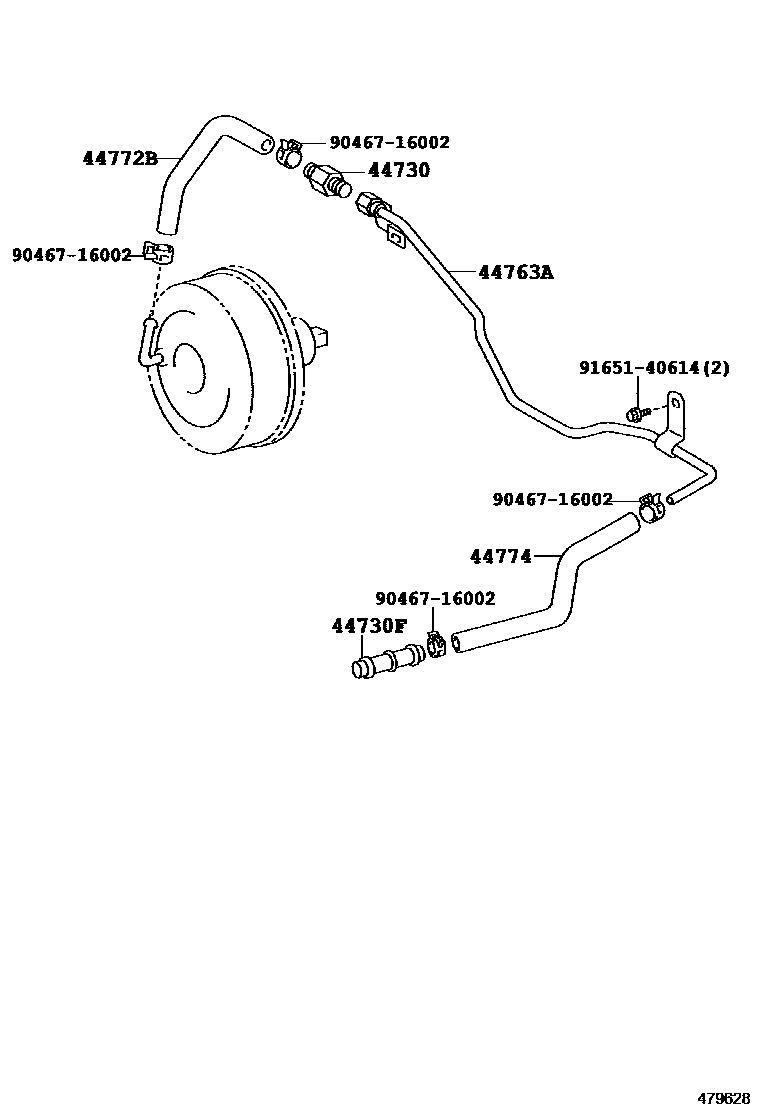

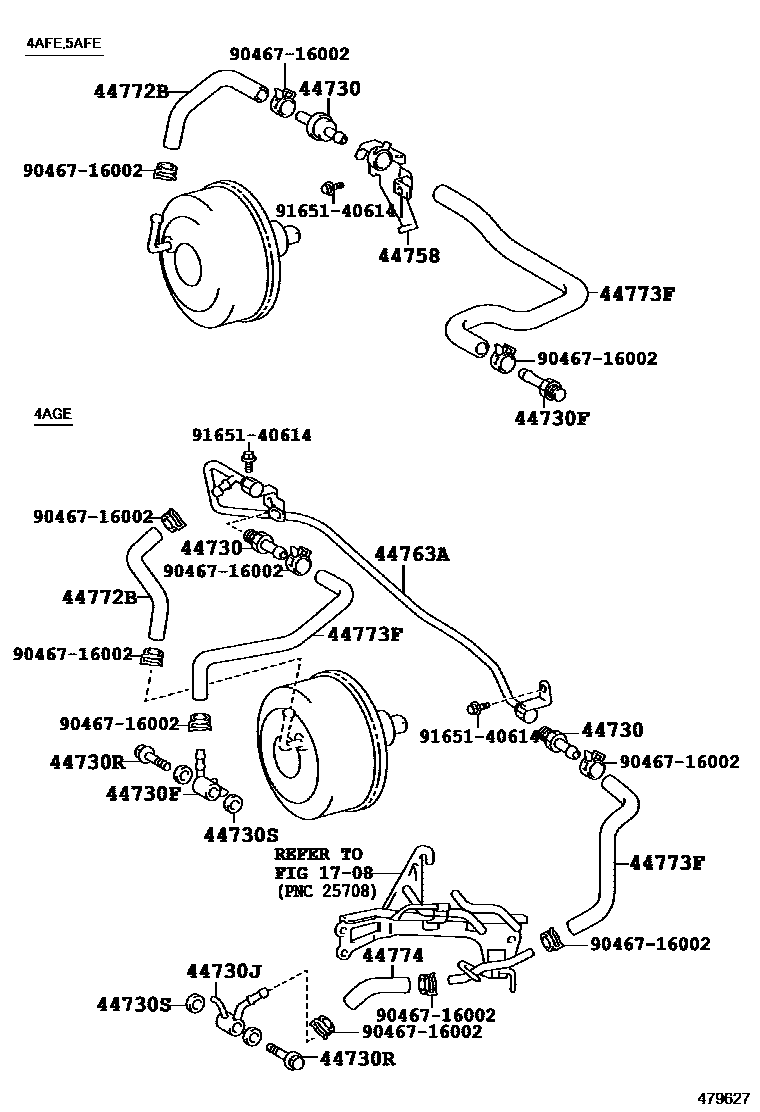

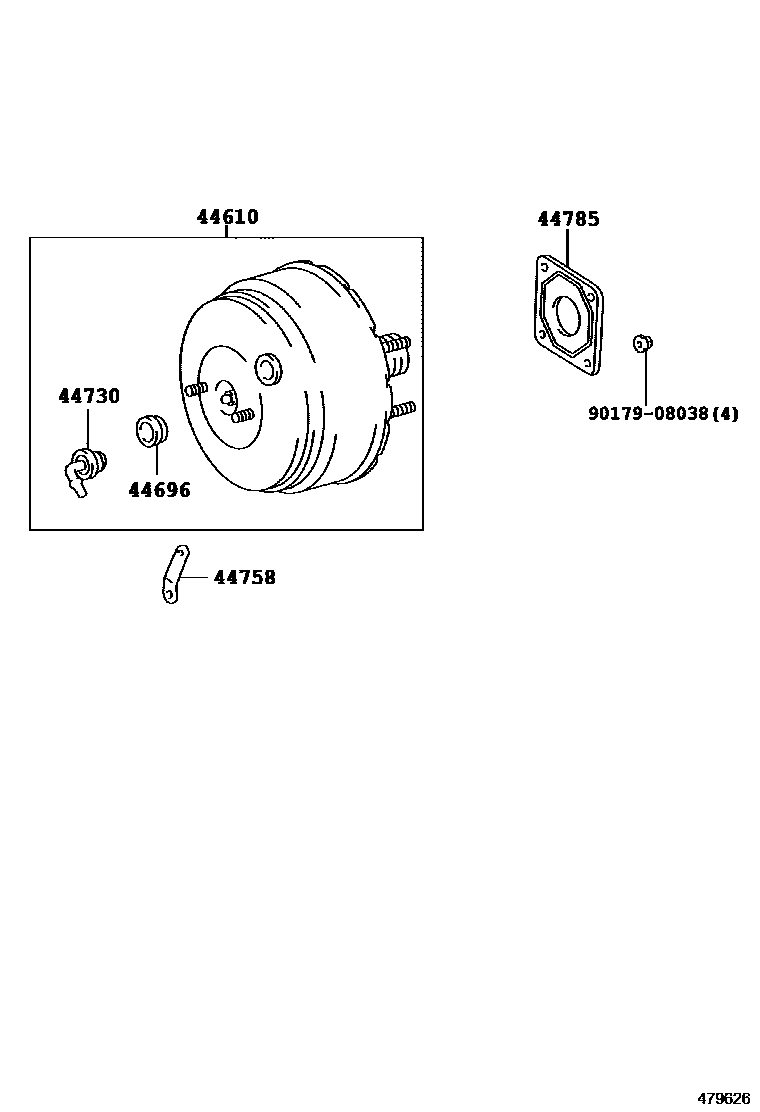

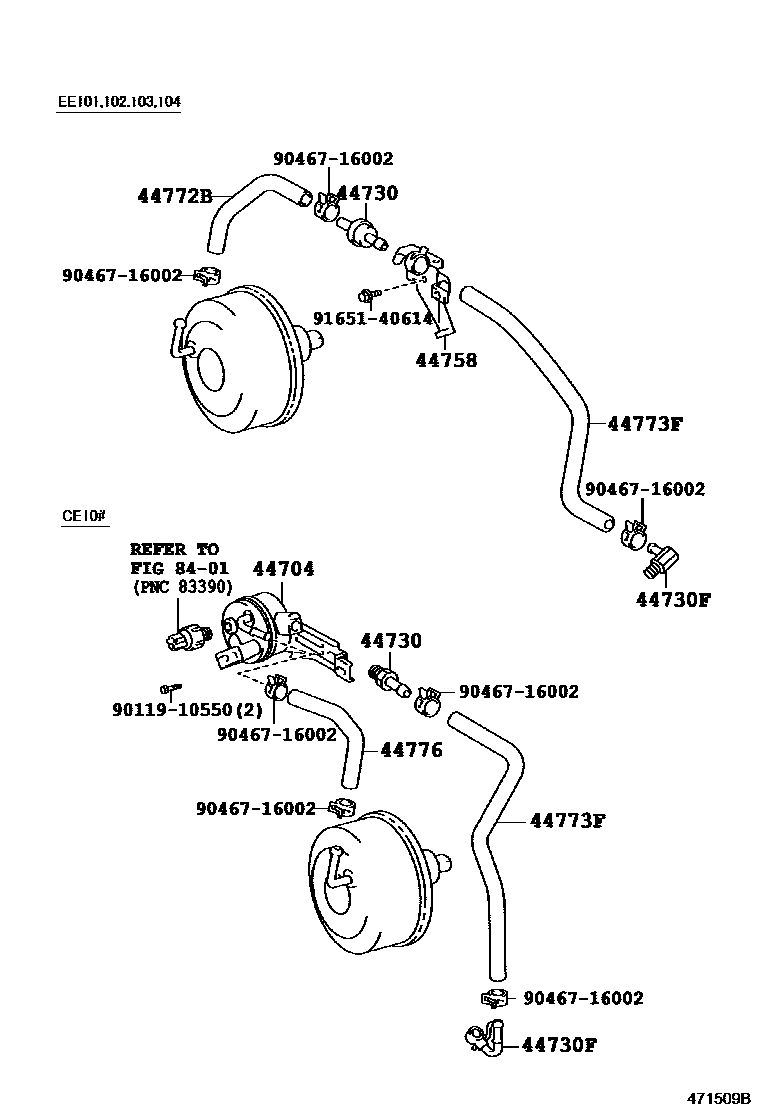

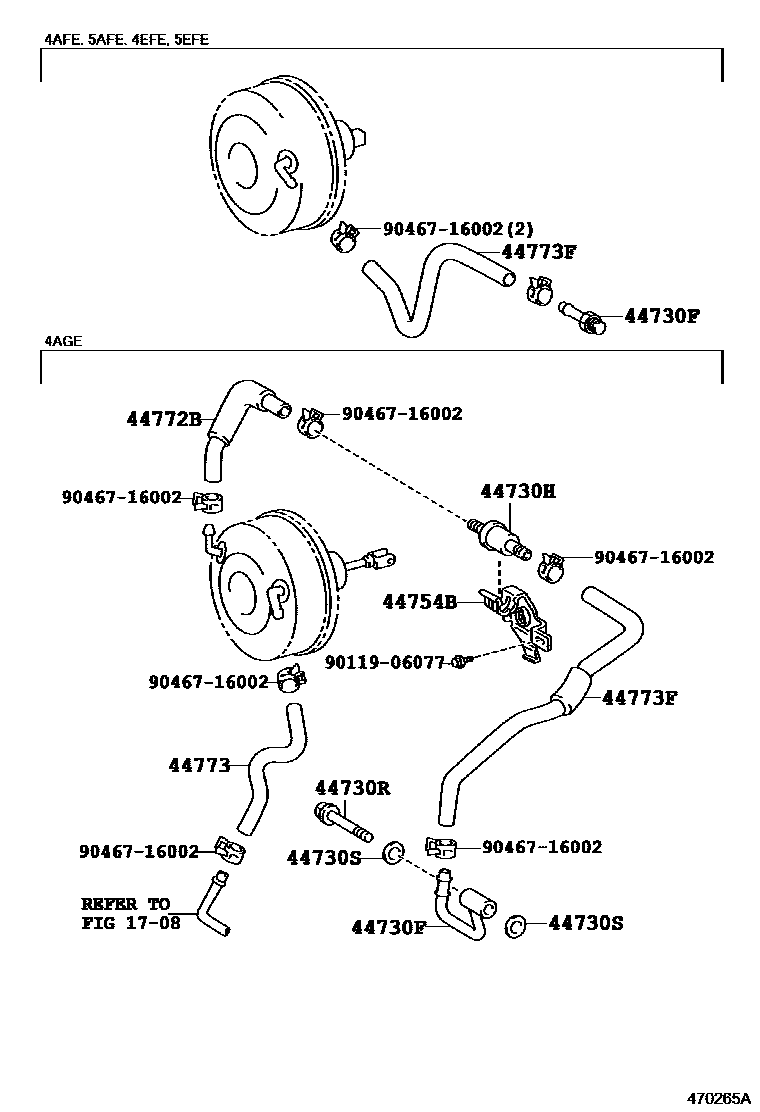

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 6 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-1A050 · 44610-1A070 · 44610-1A140 · 44610-1A200 · 44610-1A230 · 44610-1A250 · 44610-1A260 · 44610-1A270 · 44610-1A290 · 44610-1A310 · 44610-1A330 · 44610-1A340 · 44610-1A350 · 44610-1A360 · 44610-1A380 · 44610-1A390 · 44610-1A400 · 44610-1A410 · 44610-1A420 · 44610-1A430 · 44610-1A630 · 44610-1A770 · 44610-1A780 · 44610-1A810 · 44610-1A820 · 44610-1A830 · 44610-1A840 · 44610-1A850 · 44610-1A860 · 44610-1A870 · 44610-1E040 · 44610-1E050 · 44610-1E060 · 44610-1E230 · 44610-1E250 |
| 44696 | One-way valve seal | 90480-24439 · 90480-24517 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-12060 · 44704-12070 |
| 44730 | Vacuum check valve assembly (for brake) | 44580-22030 · 44730-10010 · 44730-12040 · 44730-12050 · 44730-20100 · 44730-60050 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51034 · 90404-51319 · 90405-09075 · 90405-09080 · 90405-09162 · 90407-51002 |
| 44730H | Vacuum check valve assembly (for vacuum reservoir) | 44730-20120 |
| 44730J | Pipe fitting (for booster vacuum) | 90405-09161 |
| 44730R | Connector bolts (for vacuum hose connectors) | 90401-10054 |
| 44730S | Gasket (for vacuum hose coupling) | 90430-10015 |
| 44731C | brake booster bracket | 44731-12050 |
| 44754B | Vacuum tube holder | 44758-12310 |
| 44758 | Vacuum check valve bracket | 44758-12290 · 44758-12300 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-12190 · 44763-12220 |
| 44772B | Hoses (check valve to brake booster) | 44772-12410 · 44772-12420 · 44772-12430 · 44772-12460 · 44772-12480 · 44772-12530 |
| 44773 | No. 2 vacuum hose | 44773-12631 |
| 44773F | Hoses (connector to check valve) | 44773-12470 · 44773-12500 · 44773-12510 · 44773-12520 · 44773-12530 · 44773-12540 · 44773-12560 · 44773-12580 · 44773-12600 · 44773-12610 · 44773-12640 |
| 44774 | Hoses (joints to connector tubes) | 44774-12300 · 44774-12310 |
| 44776 | brake booster hose | 44776-12070 · 44776-12080 · 44776-12090 · 44776-12120 |
| 44785 | brake booster pad | 44785-12010 · 44785-20020 |
