Toyota COROLLA 叶片泵和储油罐(动力转向) — Figure 4502

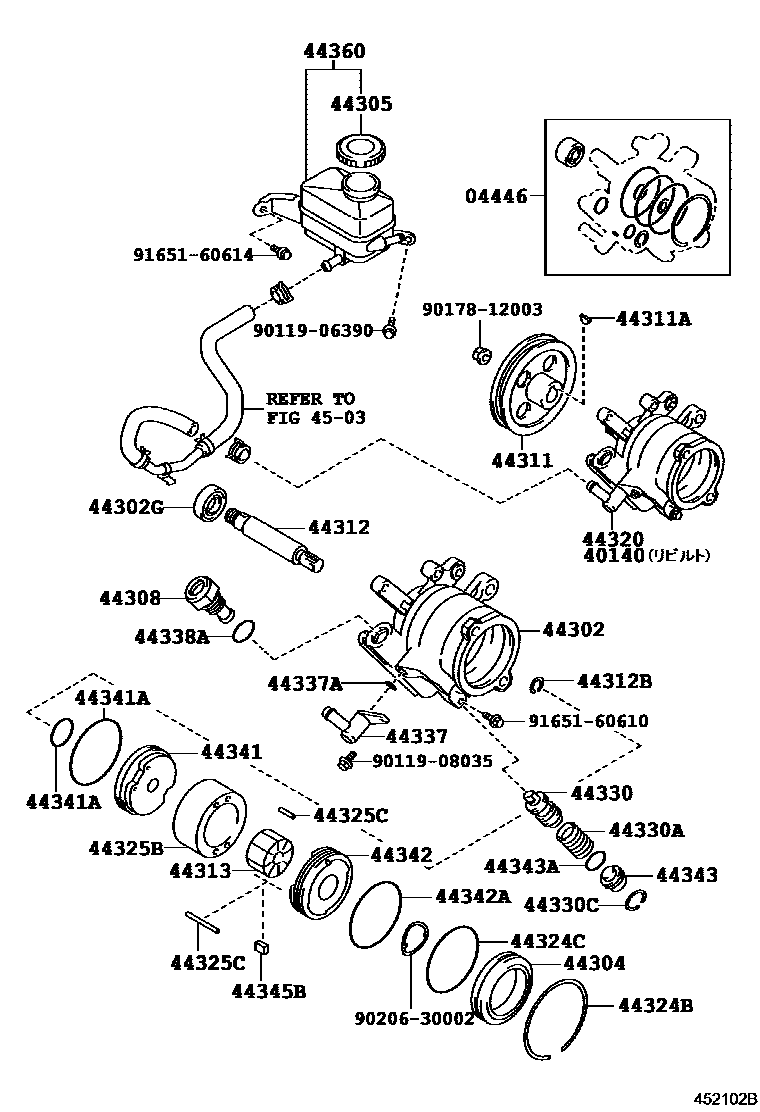

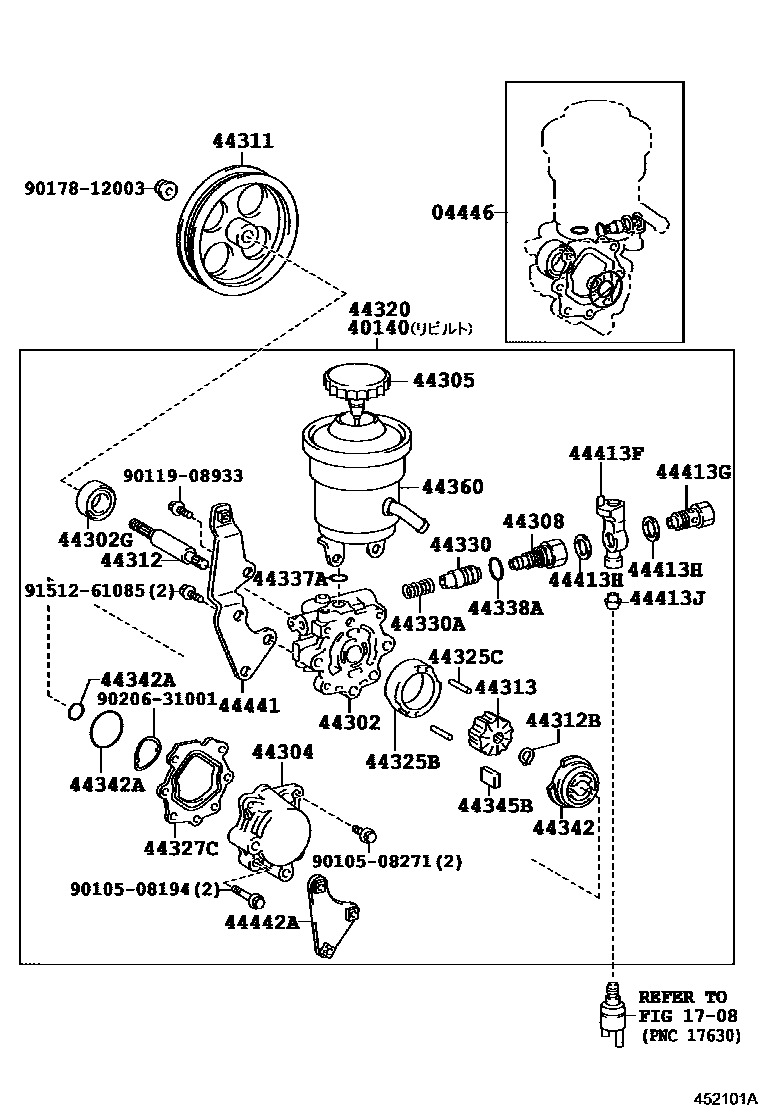

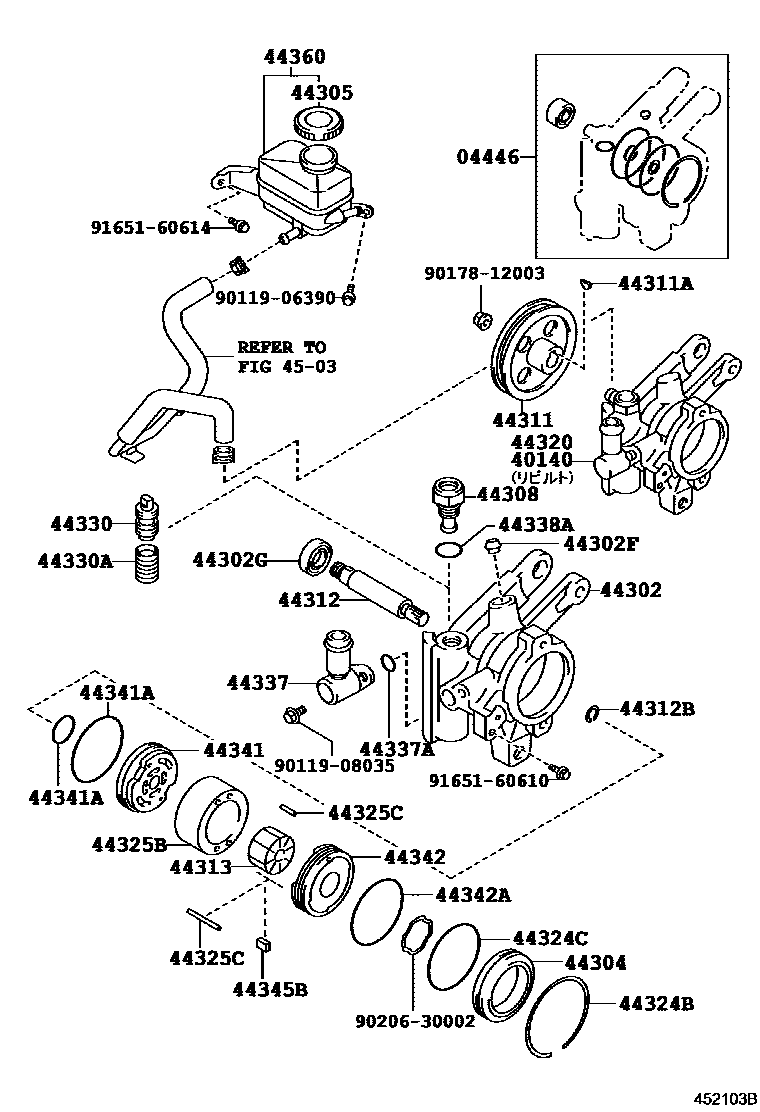

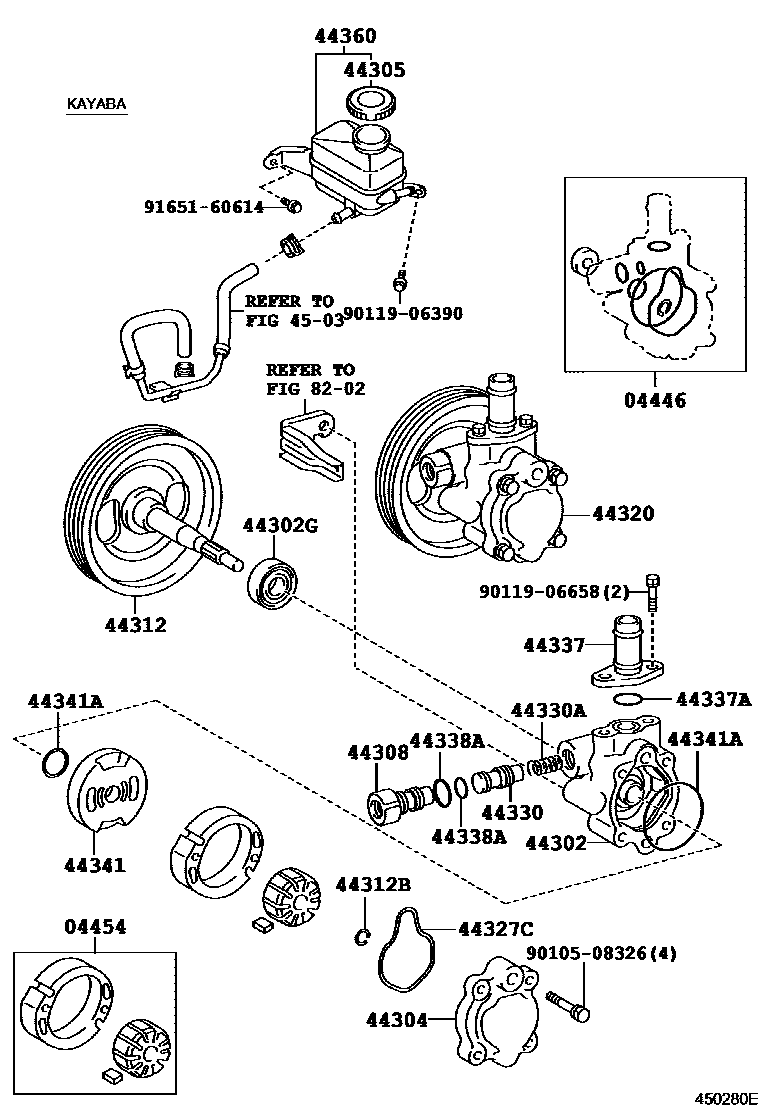

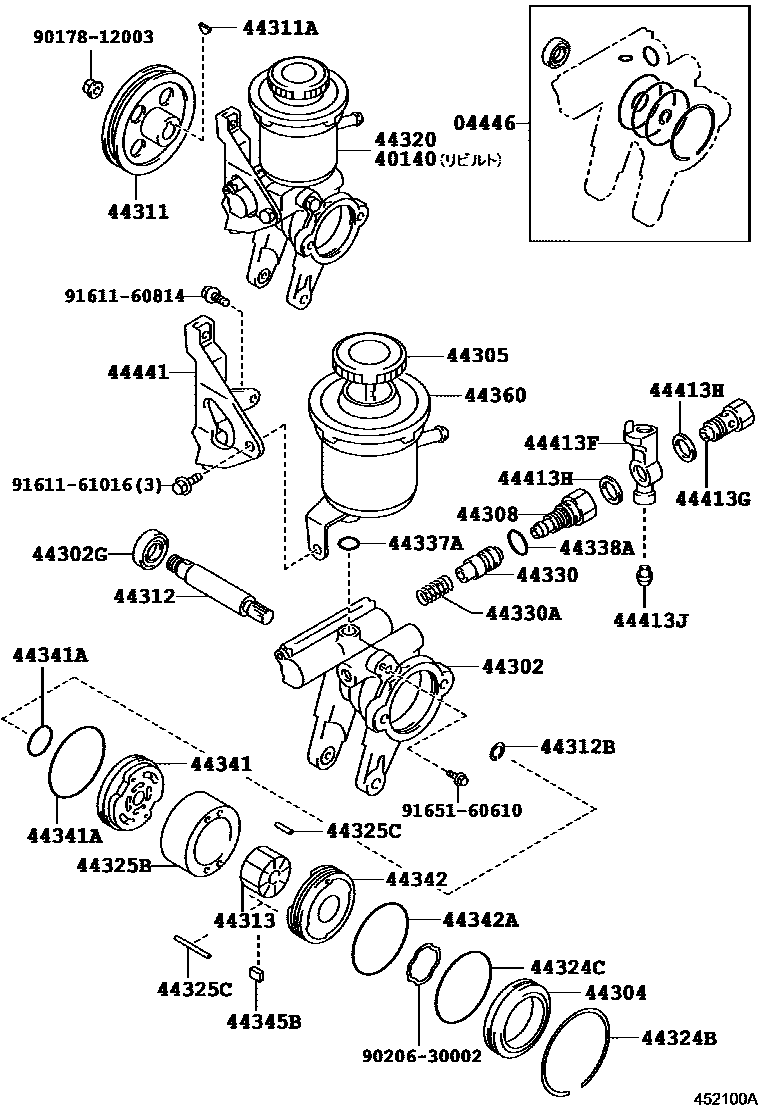

Toyota COROLLA EPC diagram 4502, 叶片泵和储油罐(动力转向), with 5 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-12051 · 04446-12060 · 04446-12070 · 04446-20030 · 04446-20120 · 04446-27011 · 04446-32011 |
| 04454 | Power steering pump blade assembly | 04454-12010 |
| 40140 | Refurbished vane pump assembly | 40140-12212 · 40140-12241 · 40140-12271 · 40140-12310 · 40140-12312 · 40140-12320 · 40140-12331 |
| 44302 | Front vane pump housing sub-assembly | 44302-12041 · 44302-12100 · 44302-12110 · 44302-12150 · 44302-12151 · 44302-12160 |
| 44302F | Joint seat (for vane pump housing) | 90410-05035 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90311-15010 · 90311-18007 · 90311-18015 |
| 44304 | Vane pump rear housing sub-assembly | 44304-12020 · 44304-12021 · 44324-12031 · 44324-26031 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-12030 · 44305-22040 |
| 44308 | Pressure hole connector sub-assembly | 44308-12022 · 44308-12042 · 44308-12050 · 44308-12080 · 44308-12090 · 44308-12100 · 44308-12110 · 44308-12120 · 44308-12130 · 44338-12110 |
| 44311 | vane pump pulley | 44311-12030 · 44311-12040 · 44311-12090 · 44311-12110 · 44311-12130 |
| 44311A | Vane pump pulley key | 90280-05008 |
| 44312 | vane pump shaft | 44303-12010 · 44312-12030 · 44312-32020 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90520-10003 · 90520-10007 |
| 44313 | vane pump rotor | 44313-06010 · 44313-06020 · 44313-06030 · 44313-06040 · 44313-06050 · 44313-22040 · 44313-22050 · 44313-22060 · 44313-22070 · 44313-22080 · 44313-26060 · 44313-26070 · 44313-26080 · 44313-26090 · 44313-26100 |
| 44320 | Vane pump assembly | 44046-12010 · 44310-12310 · 44310-12420 · 44320-12212 · 44320-12241 · 44320-12270 · 44320-12271 · 44320-12310 · 44320-12311 · 44320-12320 · 44320-12330 · 44320-12331 · 44320-12390 |
| 44324B | Hole snap ring (for pump rear housing) | 90521-62002 |
| 44324C | O-ring (for pump rear housing) | 90301-52001 · 90301-53006 |
| 44325B | vane pump cam ring | 44325-12110 · 44325-12120 · 44325-12130 · 44325-12140 · 44325-12150 · 44325-12270 · 44325-12280 · 44325-12290 · 44325-12300 · 44325-12310 |
| 44325C | Direct sales (for vane pump cam rings) | 90250-04047 · 90250-04049 · 90250-04071 |
| 44327C | Vane pump casing gasket | 44327-12030 · 44327-26010 |
| 44330 | Flow control valve assembly | 44330-12071 · 44330-12081 · 44330-12091 · 44330-12101 · 44330-12111 · 44330-12121 · 44330-12131 · 44330-12141 · 44330-12151 · 44330-12161 · 44330-12171 · 44330-12181 · 44330-12311 · 44330-12321 · 44330-12331 · 44330-12341 · 44330-12351 · 44330-12361 · 44330-12490 · 44330-12500 · 44330-12510 · 44330-12520 · 44330-12530 · 44330-12540 · 44330-12550 · 44330-12560 · 44330-12570 · 44330-12580 · 44330-12590 · 44330-12600 · 44330-12610 · 44330-12620 · 44330-20010 · 44330-20020 · 44330-20030 · 44330-20040 · 44330-20050 · 44330-20060 · 44330-20070 · 44330-20080 · 44330-20090 · 44330-20100 · 44330-20110 · 44330-20120 · 44330-32070 · 44330-32080 · 44330-32090 · 44330-32100 · 44330-32110 · 44330-32120 |
| 44330A | Compression spring (for flow control valve) | 90501-12103 · 90501-12141 · 90501-13034 |
| 44330C | Snap ring (for flow control valve) | 96151-01700 |
| 44337 | Power steering suction port connector | 44337-12060 · 44337-12080 · 44337-12090 · 44337-12091 |
| 44337A | O-ring (for power steering oil suction port) | 90301-11010 · 90301-11016 · 90301-12003 · 90301-17008 |
| 44338A | O-ring (for pressure port connector) | 90301-13001 · 90301-17008 · 90301-19003 · 90301-19013 |
| 44341 | Vane pump front cover | 44341-12040 · 44341-12041 · 44341-32010 |
| 44341A | O-ring (for vane pump front cover) | 90301-16004 · 90301-16009 · 90301-25001 · 90301-47004 · 90301-52001 |
| 44342 | Vane pump rear end cover | 44342-26020 · 44342-32010 |
| 44342A | O-ring (for vane pump rear end cover) | 90301-18007 · 90301-47001 · 90301-52001 |
| 44343 | Flow control spring seat | 44343-12010 |
| 44343A | O-ring (for flow control spring seat) | 96711-19014 |
| 44345B | vane pump disc | 44345-12010 · 44345-12020 · 44345-12030 · 44345-12040 · 44345-12050 · 44345-26010 · 44345-26020 · 44345-26030 · 44345-26040 · 44345-26050 |
| 44360 | Vane pump oil storage tank assembly | 44306-12120 · 44306-12160 · 44360-12050 |
| 44413F | No. 2 pressure supply pipe | 44413-12160 |
| 44413G | Joint bolt (for pressure supply pipe No. 2) | 90401-16005 · 90401-16008 · 96341-41603 |
| 44413H | Gasket (for pressure supply pipe No. 2) | 90430-16242 |
| 44413J | Connector seat (for No. 2 pressure supply pipe) | 90410-05035 |
| 44441 | Pump front bracket | 44441-12040 · 44441-12070 |
| 44442A | Vane pump rear bracket | 44442-12020 |
