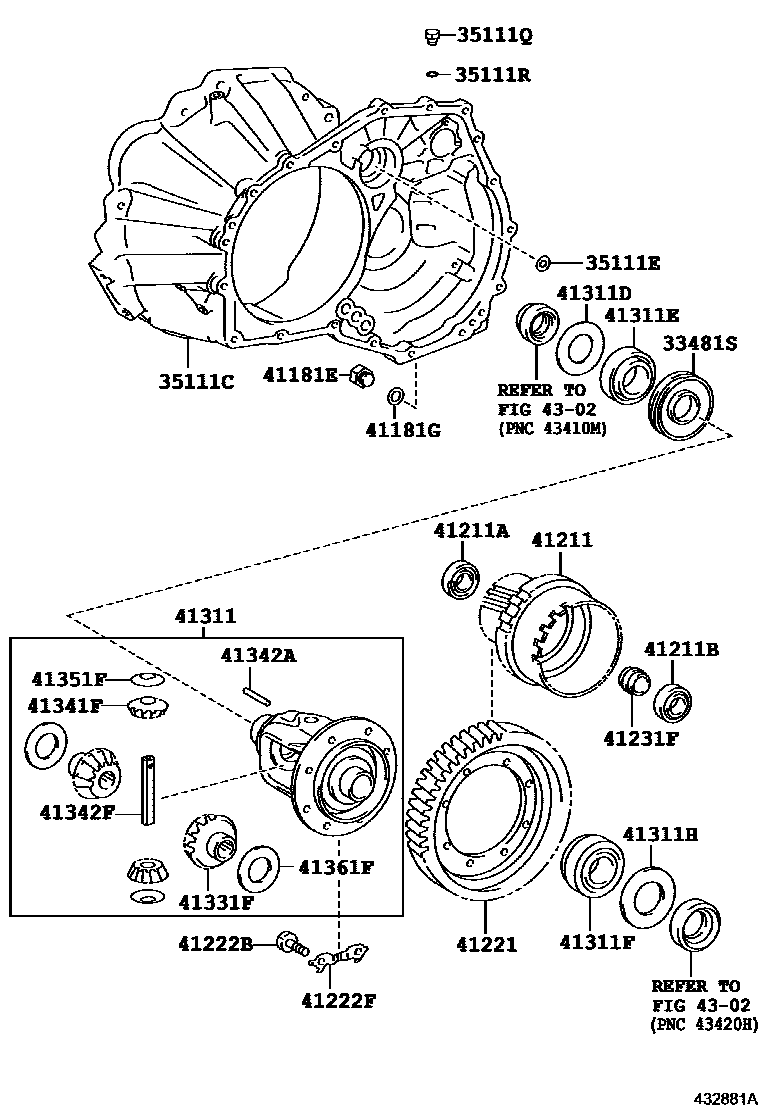

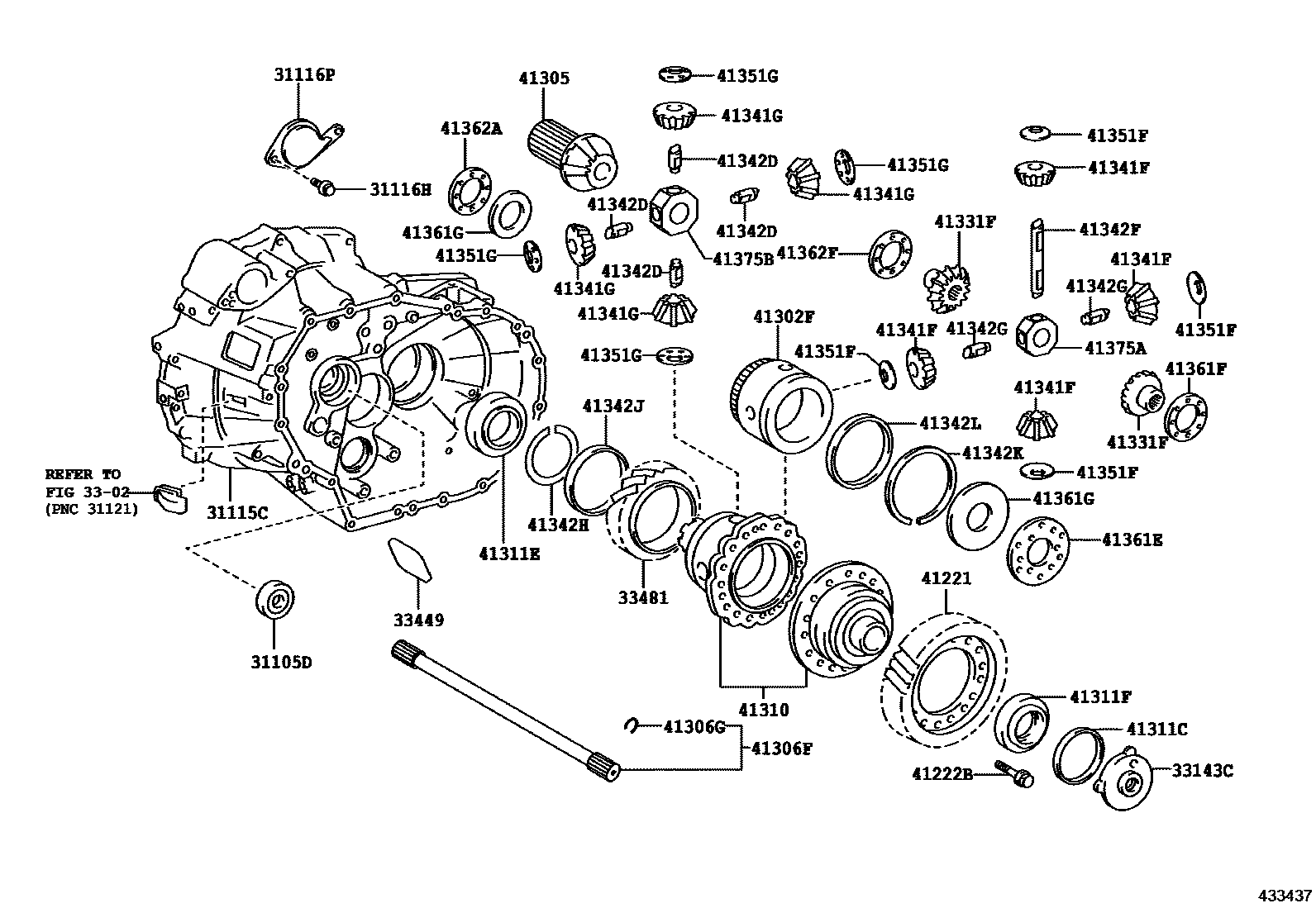

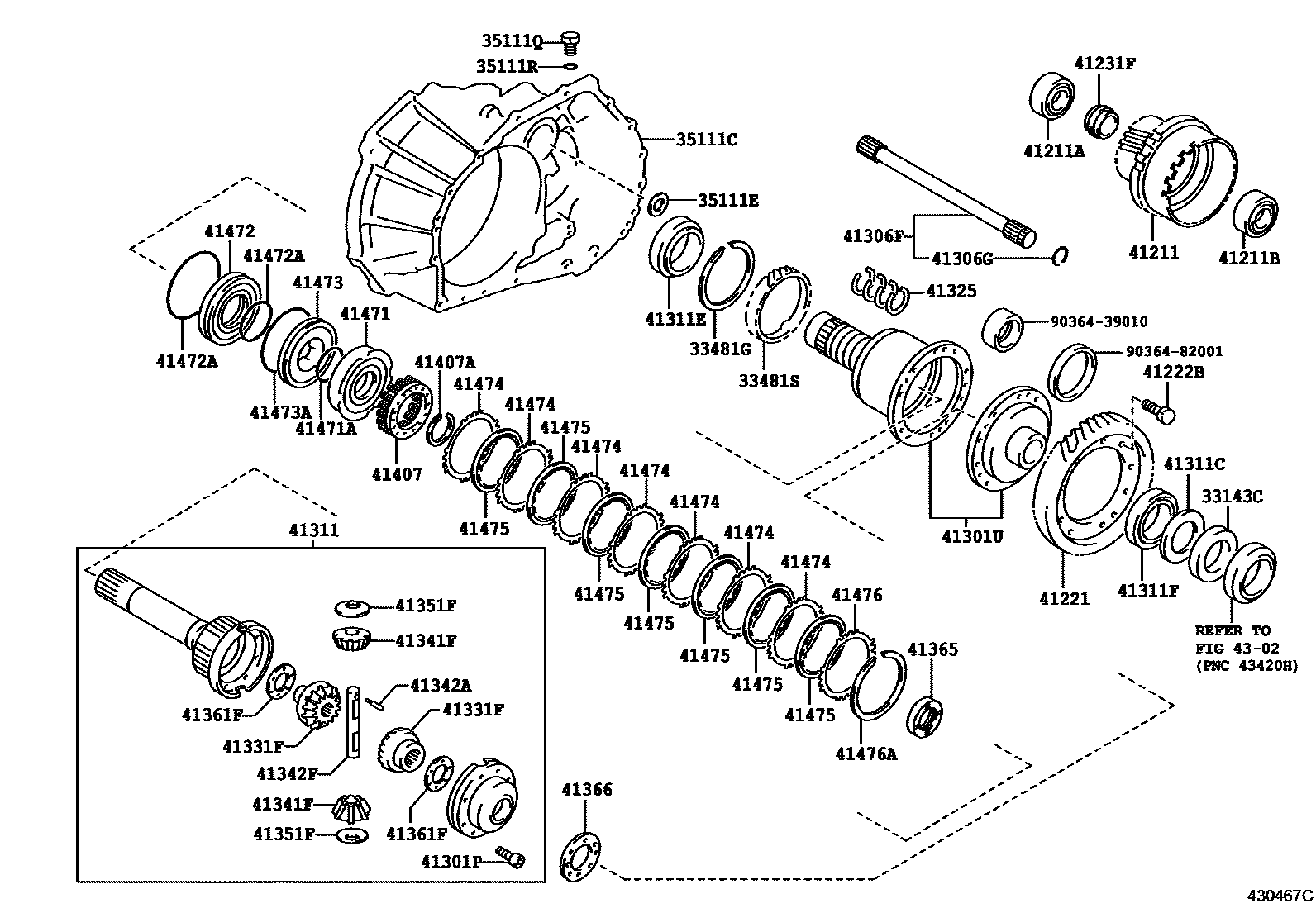

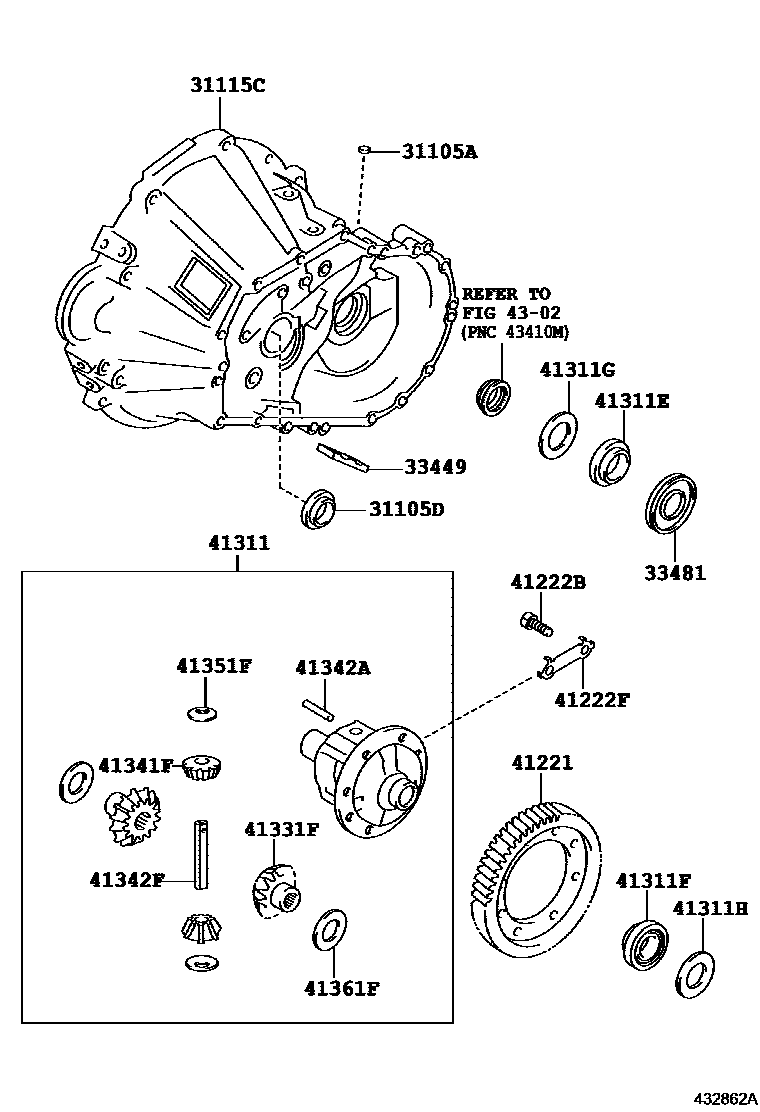

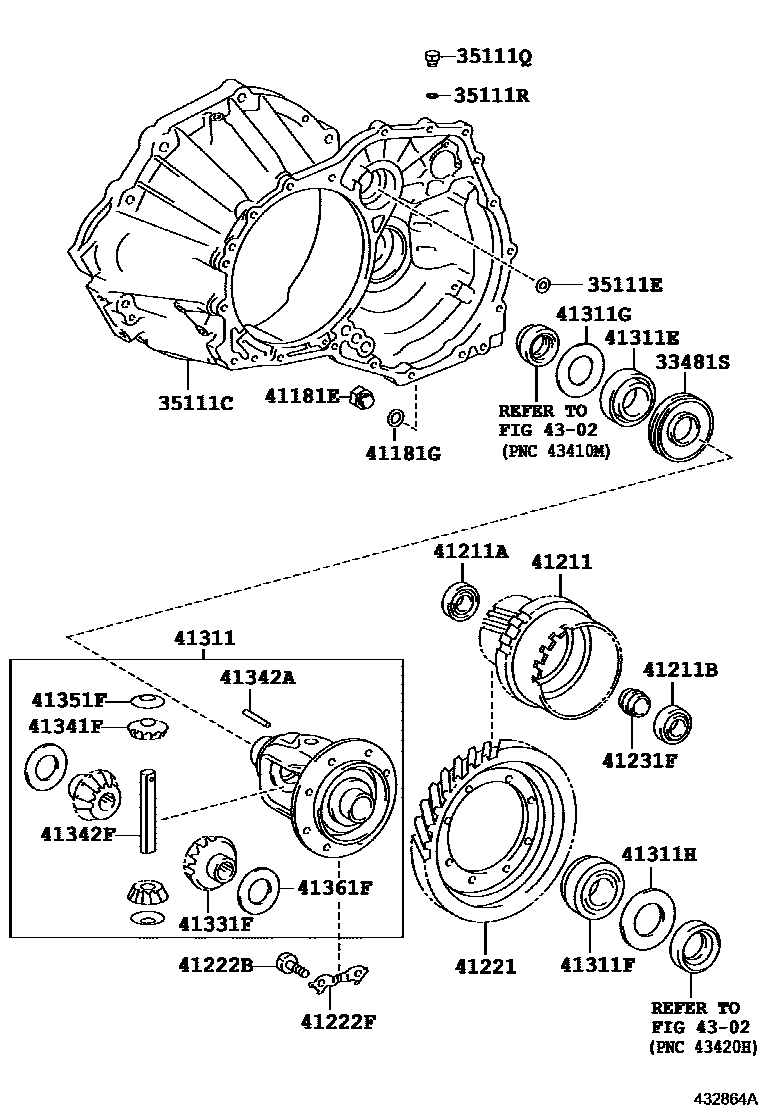

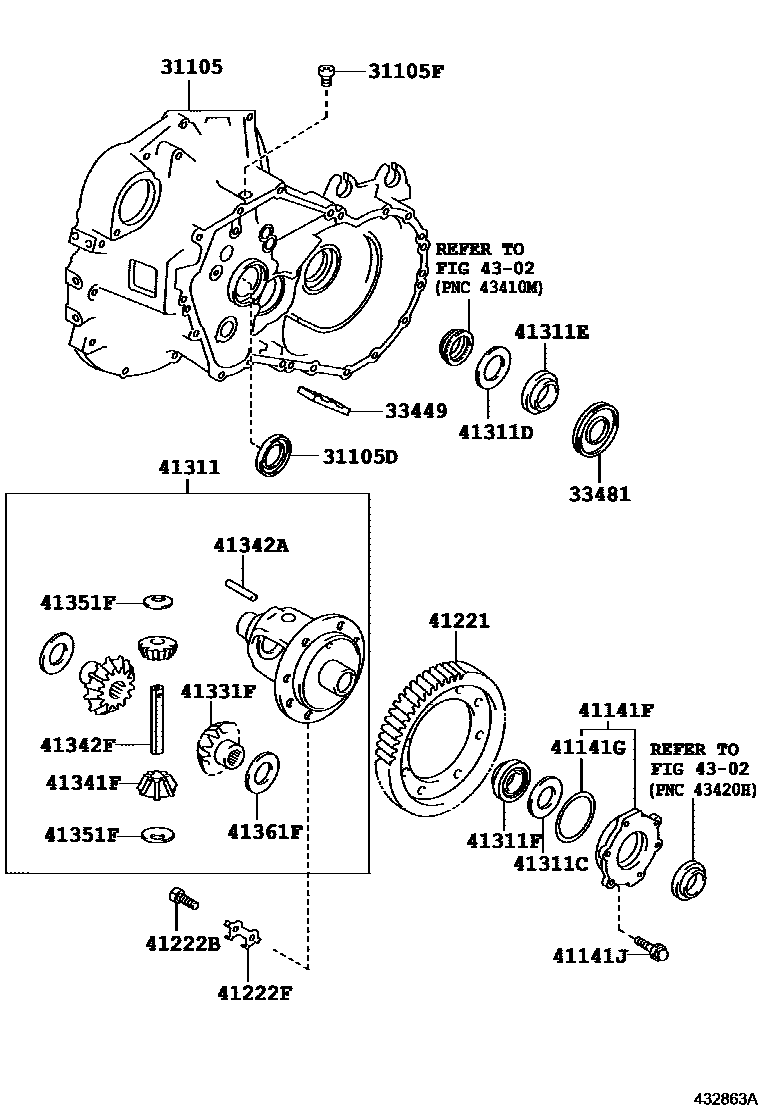

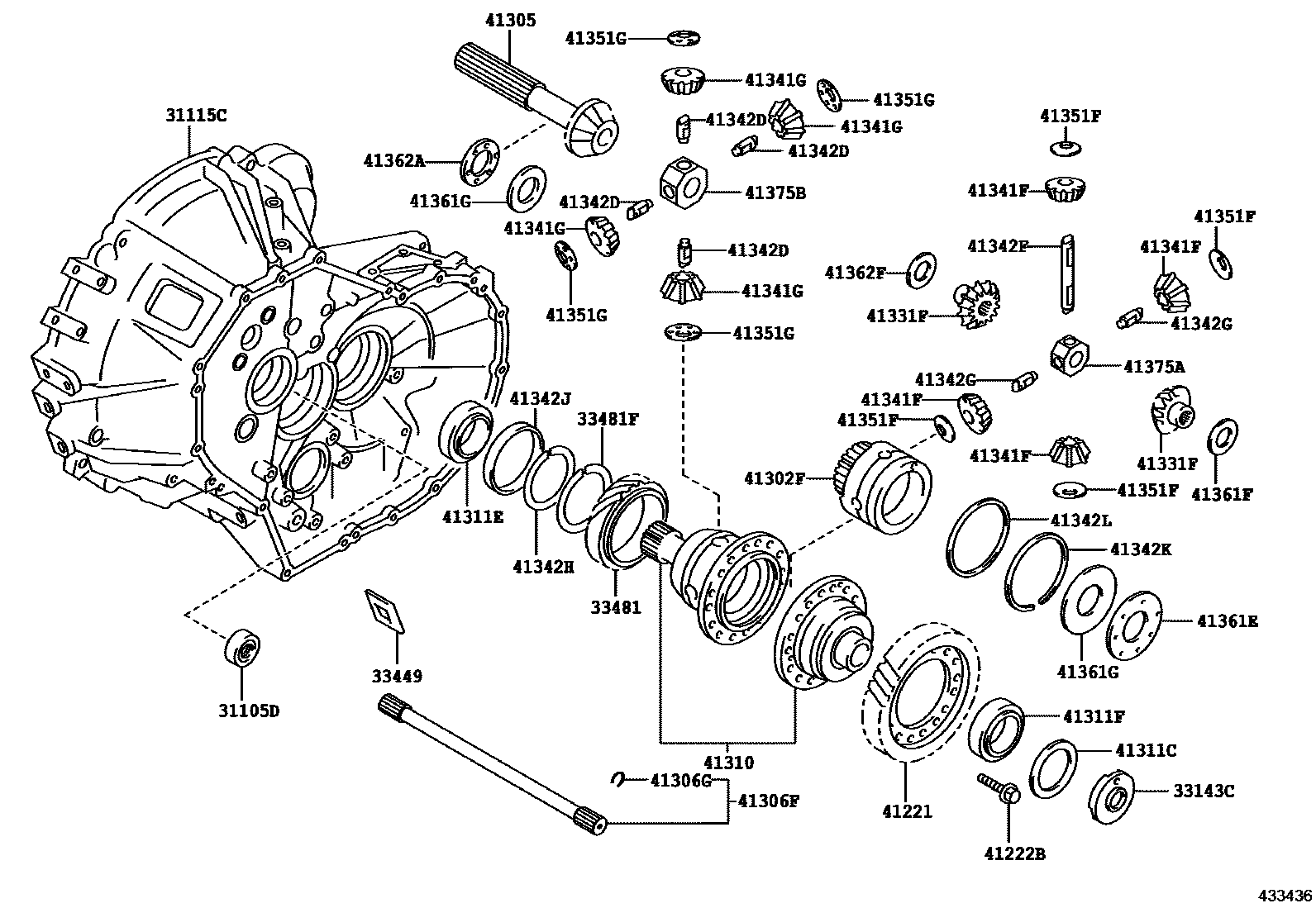

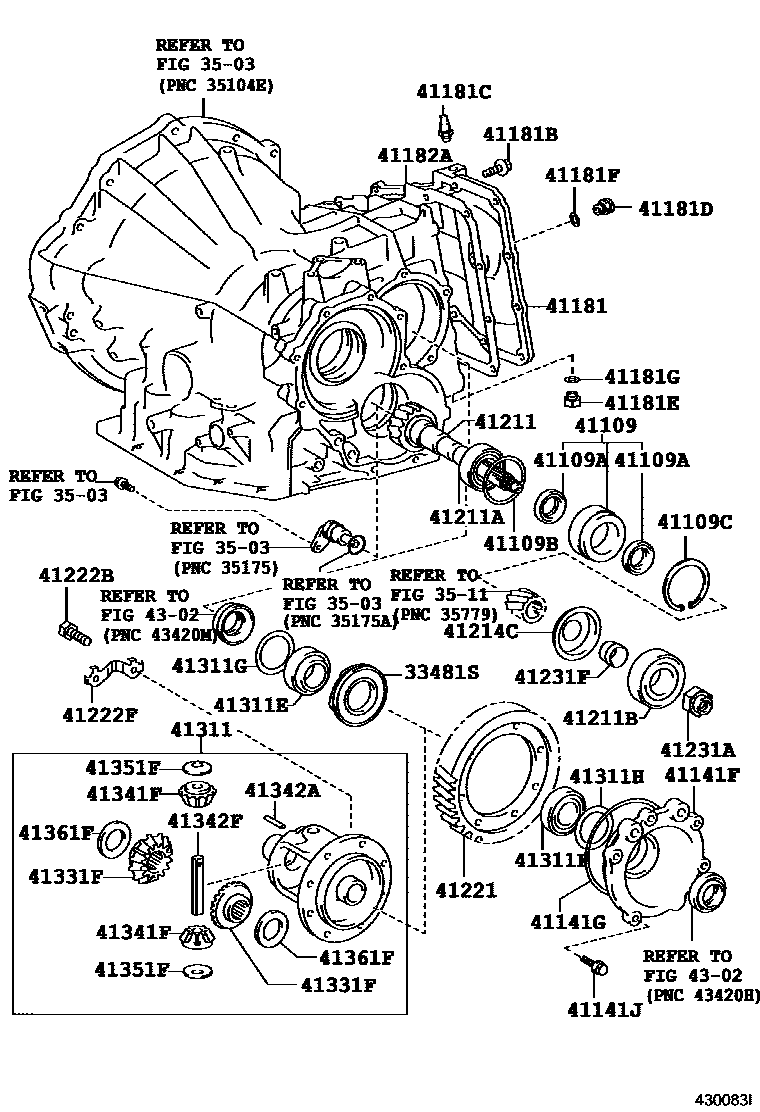

Toyota COROLLA 前桥壳和差速器 — Figure 4301
Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 8 images and 90 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105 | Transmission axle housing sub-assembly (MTM) | 31105-32052 · 31105-32070 · 31105-33020 |
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25011 · 90311-25016 · 90311-30006 |
| 31105F | Screw plug (for transaxle housing) | 90341-10065 |
| 31115C | Front transmission axle housing (MTM) | 31115-12040 · 31115-12060 · 31115-12070 · 31115-12071 · 31115-12072 · 31115-16040 · 31115-16041 · 31115-16042 · 31115-16050 · 31115-16051 · 31115-33010 · 31115-33011 · 31115-33012 · 31115-33013 · 31115-33014 |
| 31116H | Bolts (for front transaxle housing cover) | 91511-41020 · 91622-61025 |
| 31116P | Transmission axle housing cover | 31116-12020 |
| 33143C | Front differential oil baffle | 33143-12010 · 33143-12030 |
| 33449 | derailleur magnet | 33449-12020 · 33449-20010 · 33449-32020 |
| 33481 | Speedometer driving gear (MTM) | 33481-12040 · 33481-12080 · 33481-12090 · 33481-32060 · 33481-42040 · 33481-42041 |
| 33481F | Shaft snap ring (for MTM speedometer driving gear) | 90520-99008 |
| 33481G | Shaft snap ring (for ATM speedometer driving gear) | 90520-99005 |
| 33481S | Speedometer driving gear (ATM) | 33481-12040 · 33481-12050 · 33481-12070 · 33481-32010 |
| 35111C | Transmission axle housing | 35105-12011 · 35105-12012 · 35105-12040 · 35105-12041 · 35105-12050 · 35105-20012 · 35105-20013 · 35105-20014 |
| 35111E | Gasket (for front transaxle housing) | 90210-13002 |
| 35111Q | No. 2 screw plug (for transmission axle housing) | 90341-08001 · 90341-18020 |
| 35111R | O-ring (for transmission axle housing plug No. 2) | 90301-06196 · 90301-15004 |
| 41109 | Differential driving pinion bearing cover sub-assembly | 41109-20011 · 41109-32010 |
| 41109A | Oil seal (for differential drive pinion bearing housing) | 90310-34005 |
| 41109B | O-ring (for differential drive pinion bearing housing) | 90301-65003 |
| 41109C | Hole snap ring (for differential drive pinion bearing housing) | 90521-76002 |
| 41141F | Front differential side bearing retainer | 41101-32010 · 41101-32011 · 41141-12020 · 41141-12021 |
| 41141G | O-ring (for front differential side bearing retainer) | 90301-63004 · 90301-99026 |
| 41141J | Bolt (for front differential side bearing retainer) | 90105-08061 · 91611-60825 |
| 41181 | front differential case cover | 41181-12020 |
| 41181B | Bolts (for securing front differential case cover) | 90119-08369 |
| 41181C | Breather plug (for front differential case cover) | 90930-03031 |
| 41181D | Plug (for front differential oil fill port) | 90341-18006 · 90341-18038 · 90341-18049 |
| 41181E | Screw plug (for front differential drain port) | 90341-10011 · 90341-18021 · 90341-18057 |
| 41181F | Gasket (for front differential oil plug) | 90430-18008 |
| 41181G | Gasket (for front differential drain plug) | 90430-18008 |
| 41182A | Differential case cover gasket | 41182-12010 |
| 41211 | Differential drive pinion | 41206-12010 · 41206-17010 · 41206-17030 · 41206-20030 · 41206-20060 · 41206-20070 · 41211-12160 · 41211-17010 · 41211-20200 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-30020 · 90366-30037 · 90366-30054 · 90366-35013 · 90366-35050 · 90366-35082 · 90366-35084 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-30019 · 90366-30036 · 90366-30053 · 90366-30085 · 90366-40010 |
| 41214C | Front differential drive pinion oil retaining ring | 41214-32010 |
| 41221 | Front differential ring gear | 41221-12160 · 41221-12190 · 41221-12260 · 41221-12261 · 41221-12280 · 41221-12290 · 41221-12291 · 41221-12310 · 41221-12330 · 41221-12340 · 41221-12360 · 41221-12380 · 41221-20200 · 41221-20210 · 41221-20230 · 41221-20300 · 41221-32080 · 41221-32100 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11003 · 90101-11353 · 90105-11040 · 90105-12150 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-12040 · 41222-12050 · 41222-20030 · 41222-32010 |
| 41231A | Drive pinion lock nut | 90179-20004 |
| 41231F | Front differential drive pinion bearing spacer | 41231-12030 · 41231-17010 · 41231-32010 |
| 41301P | Screw (for front differential case) | 90149-80017 |
| 41301U | Front differential ring gear mounting housing sub-assembly | 41301-12140 · 41301-12200 |
| 41302F | Front differential housing sub-assembly | 41302-12030 |
| 41305 | Differential side gear sub-assembly | 41305-12020 · 41305-12030 · 41305-20030 |
| 41306F | Differential side gear countershaft sub-assembly | 41306-12010 · 41306-20010 · 41306-32010 |
| 41306G | Hole snap ring (for differential side gear countershaft) | 90521-26004 |
| 41310 | Differential case assembly | 41310-12080 · 41310-12090 · 41310-20240 · 41310-20250 · 41310-20260 · 41310-42030 · 41310-42040 · 41310-42050 |
| 41311 | front differential case | 41301-12040 · 41301-12041 · 41301-12051 · 41301-12101 · 41301-12120 · 41301-17021 · 41301-20110 · 41301-20112 · 41301-20150 · 41301-32060 · 41301-32061 |
| 41311C | Rear gasket (for front differential case) | 90564-45001 · 90564-45002 · 90564-45003 · 90564-45004 · 90564-45005 · 90564-45006 · 90564-45007 · 90564-45008 · 90564-45009 · 90564-45010 · 90564-45011 · 90564-45012 · 90564-45013 · 90564-45014 · 90564-45015 · 90564-45016 · 90564-45017 · 90564-45018 · 90564-45019 · 90564-76001 · 90564-76002 · 90564-76003 · 90564-76004 · 90564-76005 · 90564-76006 · 90564-76007 · 90564-76008 · 90564-76009 · 90564-76010 · 90564-76011 · 90564-76012 · 90564-76013 · 90564-76014 · 90564-76015 · 90564-76016 · 90564-76017 · 90564-76018 · 90564-77001 · 90564-77004 · 90564-77007 · 90564-77010 · 90564-77011 · 90564-77012 · 90564-77013 · 90564-77014 · 90564-77015 · 90564-77016 · 90564-77017 · 90564-77018 · 90564-77019 · 90564-77020 · 90564-77021 · 90564-77022 · 90564-77023 · 90564-77024 · 90564-77025 · 90564-77026 · 90564-77027 · 90564-77028 · 90564-77029 · 90564-77030 |
| 41311D | Front gasket (for front differential case) | 90564-45011 · 90564-45015 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90080-36101 · 90366-38004 · 90366-38014 · 90366-40016 · 90366-57001 · 90366-67001 · 90368-38002 · 90368-38010 · 90368-40002 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-38014 · 90366-40023 · 90366-40064 · 90366-42001 · 90366-44001 · 90366-50014 · 90366-55028 · 90368-38002 · 90368-38010 |
| 41311G | Front flat washer (for front differential case) | 90201-41002 · 90201-41003 · 90201-41004 · 90201-41005 · 90201-41006 · 90201-41007 · 90201-41008 · 90201-41009 · 90201-41010 · 90201-41011 · 90201-41012 · 90201-41013 · 90201-41014 · 90201-41015 · 90201-41016 · 90201-41017 · 90201-41018 · 90201-41019 · 90201-41020 · 90201-41021 · 90201-41022 · 90201-41023 · 90201-41024 · 90201-41045 · 90560-41002 · 90560-41003 |
| 41311H | Rear flat washer (for front differential case) | 90201-41012 · 90201-41024 · 90201-41025 · 90201-41026 · 90201-41027 · 90201-41028 · 90201-41029 · 90201-41030 · 90201-41031 · 90201-41032 · 90201-41033 · 90201-41034 · 90201-41035 · 90201-41036 · 90201-41039 · 90201-41040 · 90201-41041 · 90201-41042 · 90201-41043 · 90201-41044 · 90201-41046 · 90201-41047 · 90201-41048 · 90201-41049 · 90201-41050 · 90201-41051 · 90201-41052 · 90201-41053 · 90201-41054 · 90201-41055 · 90201-41056 · 90201-41057 · 90201-41058 · 90201-41059 · 90201-41060 · 90201-41061 · 90201-41062 · 90201-41063 · 90201-41064 · 90201-45004 · 90201-45005 · 90201-45006 · 90201-45007 · 90201-45008 · 90201-45009 · 90201-45010 · 90201-45011 · 90201-45012 · 90201-45013 · 90201-45014 · 90201-45015 · 90201-45016 · 90201-45017 · 90201-45018 · 90201-45019 · 90201-45020 · 90201-45021 · 90201-45022 · 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 |
| 41325 | Front differential ring gear mounting housing oil seal ring | 41325-12010 |
| 41331F | Front differential side gear | 41331-12011 · 41331-12030 · 41331-32010 |
| 41341F | Front differential planetary gear | 41341-12030 · 41341-20011 · 41341-30011 |
| 41341G | Center differential planetary gear | 41341-12040 · 41341-42010 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90249-06093 · 90250-06058 |
| 41342D | Center differential planetary gear shaft | 41342-12120 · 41342-42010 · 41342-42030 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-12020 · 41342-12040 · 41342-12060 · 41342-12140 · 41342-20050 · 41342-20060 · 41342-32020 |
| 41342G | No. 2 front differential planetary gear shaft | 41342-12050 |
| 41342H | Shaft snap ring (for center differential planetary gear shaft) | 90520-99007 |
| 41342J | Spacer (for center differential planetary gear shaft) | 90560-99002 |
| 41342K | Shaft snap ring (for front differential planetary gear shaft) | 90520-94001 |
| 41342L | Spacer (for differential planetary gear shaft) | 90560-97001 |
| 41351F | Front differential planetary gear thrust washer | 41351-12010 · 41351-12020 · 41351-32010 |
| 41351G | Center differential planetary gear thrust washer | 41351-12060 · 41351-42010 |
| 41361E | No. 1 center differential side gear thrust washer | 41362-20020 · 41362-20030 · 41362-20040 · 41362-20050 · 41362-20060 · 41362-20070 · 41362-20080 · 41362-20090 · 41362-20100 · 41362-20110 · 41362-20120 · 41362-20130 · 41362-20140 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-12330 · 41361-12340 · 41361-12350 · 41361-12360 · 41361-12370 · 41361-12380 · 41361-12390 · 41361-12400 · 41361-12410 · 41361-12420 · 41361-17010 · 41361-17020 · 41361-17030 · 41361-17040 · 41361-17050 · 41361-17060 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-36001 · 90208-41001 · 90208-48001 |
| 41362A | No. 2 center differential side gear thrust washer | 41362-20150 · 41362-20160 · 41362-20170 · 41362-20180 · 41362-20190 · 41362-20200 · 41362-20210 · 41362-20220 · 41362-20230 · 41362-20240 · 41362-20250 · 41362-20260 · 41362-20270 · 41362-20280 · 41362-20290 · 41362-20300 · 41362-20310 · 41362-20320 · 41362-20330 · 41362-20340 · 41362-20350 · 41362-20360 · 41362-20370 · 41362-20380 · 41362-20390 · 41362-20400 |
| 41362F | No. 2 front differential side gear thrust washer | 41361-12340 · 41361-12350 · 41361-12360 · 41361-12370 · 41361-12380 · 41361-12390 |
| 41365 | No. 1 front differential side gear thrust washer | 41365-12010 |
| 41366 | No. 2 front differential side gear thrust washer | 41366-12010 |
| 41375A | Front differential planetary gear shaft support | 41375-12020 |
| 41375B | Center differential planetary gear shaft support | 41375-12050 · 41375-12051 |
| 41407 | Differential lock piston return spring sub-assembly | 41407-12010 |
| 41407A | Shaft snap ring (for differential lock piston return spring) | 90520-43008 |
| 41471 | No. 1 differential lock clutch piston | 41471-12010 |
| 41471A | O-ring (for No. 1 differential lock clutch piston) | 90301-55004 |
| 41472 | No. 2 differential lock clutch piston | 41472-12010 |
| 41472A | O-ring (for No. 2 differential lock clutch piston) | 90301-46002 · 90301-98001 |
| 41473 | Differential lock clutch piston reaction sleeve | 41473-12010 |
| 41473A | O-ring (for piston reaction sleeve) | 90301-92001 |
| 41474 | Differential lock clutch plate | 41474-12010 |
| 41475 | Differential lock clutch disc | 41475-12010 |
| 41476 | Differential lock clutch flange | 41476-12010 |
| 41476A | Hole snap ring (for differential lock clutch flange) | 90521-99057 |
