Toyota COROLLA 后桥半轴和后桥轮毂 — Figure 4102

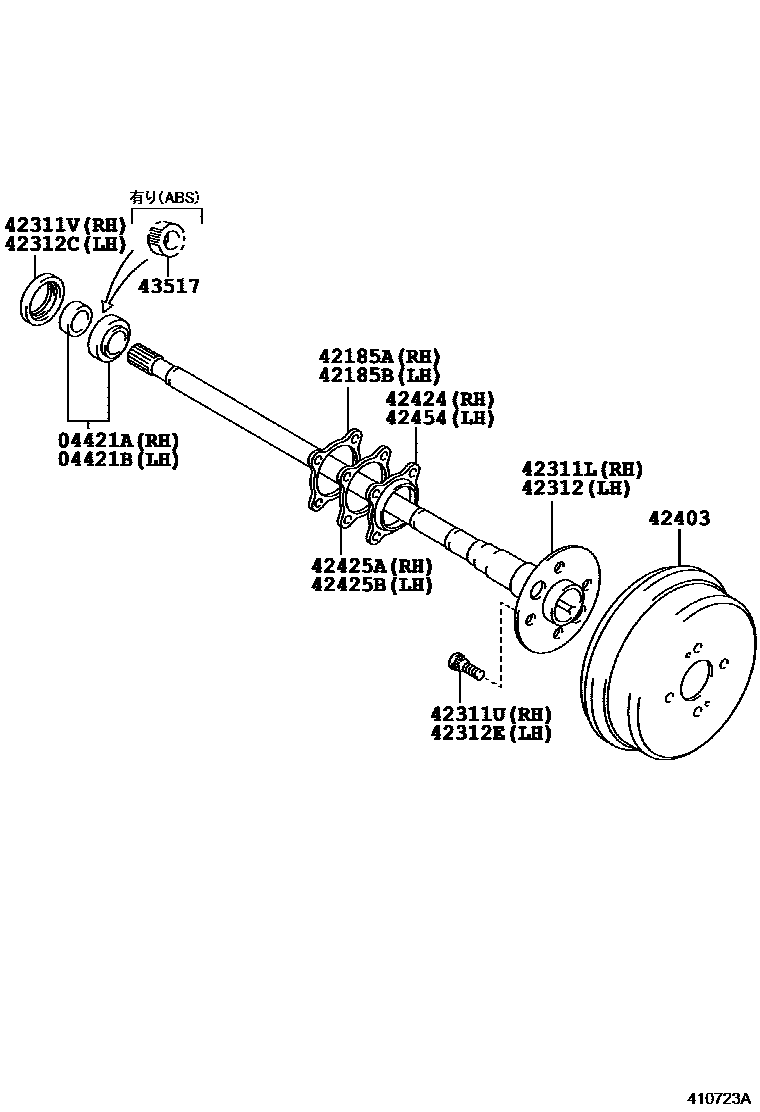

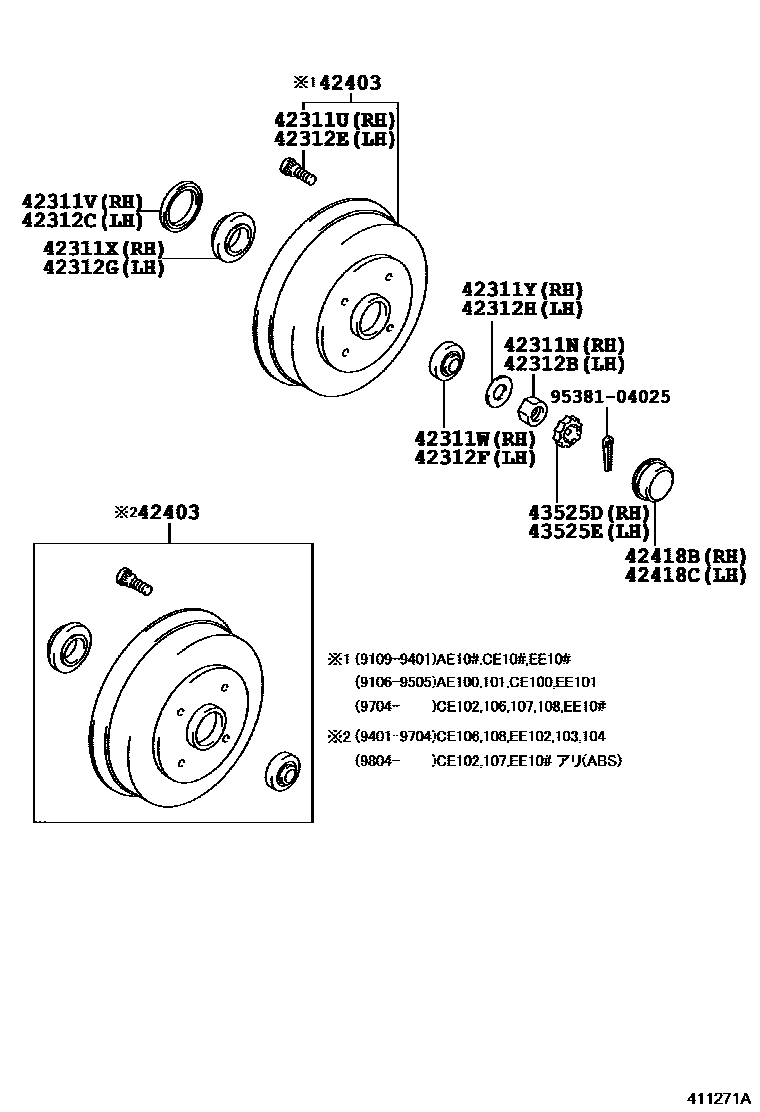

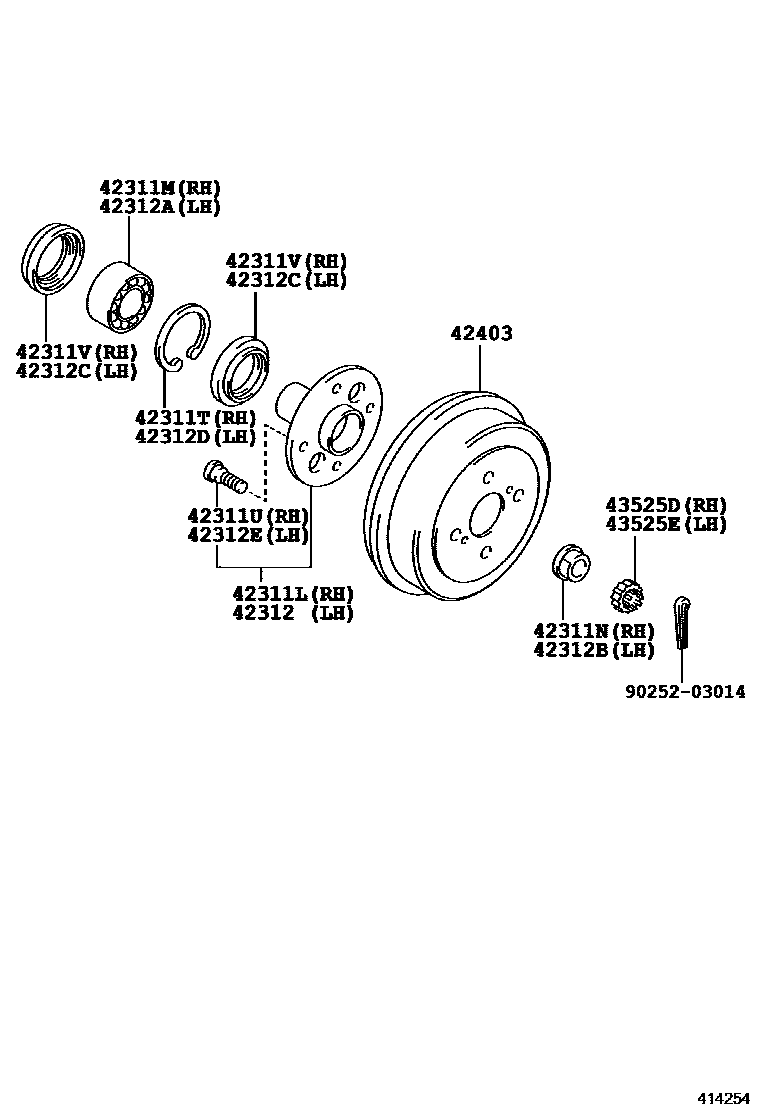

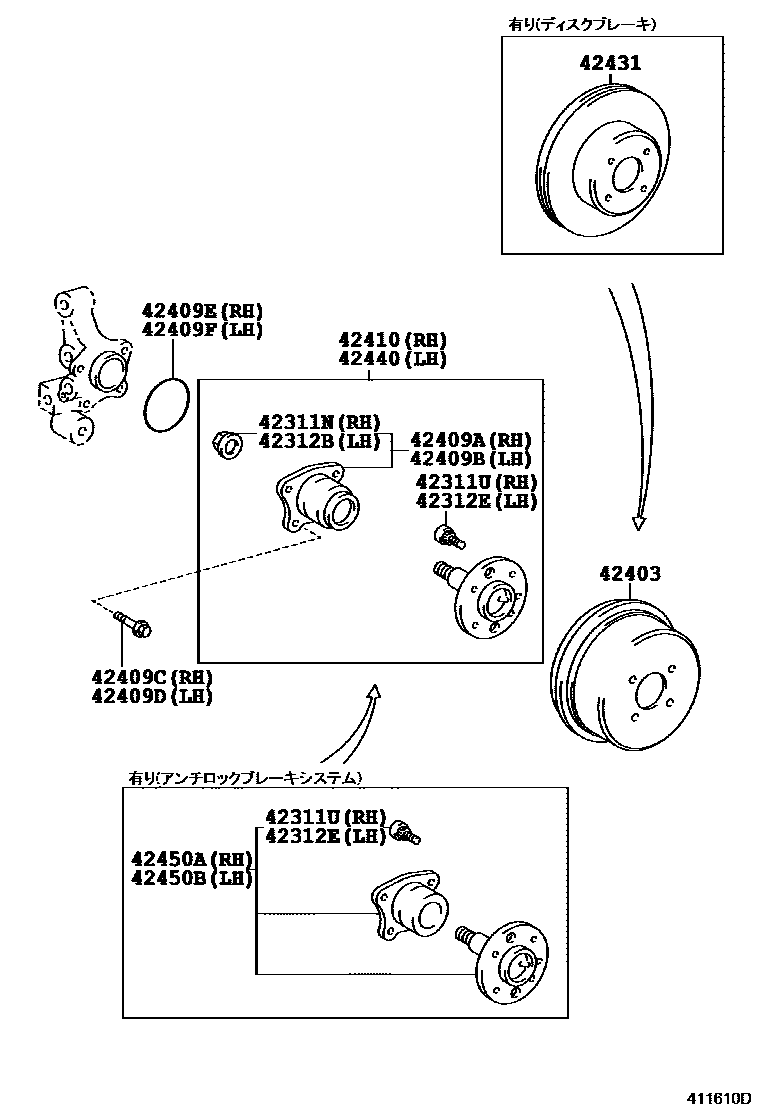

Toyota COROLLA EPC diagram 4102, 后桥半轴和后桥轮毂, with 5 images and 56 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04421A | Rear axle right half shaft bearing assembly | 04421-12020 · 04421-27050 |
| 04421B | Rear axle left half shaft bearing assembly | 04421-12020 · 04421-27050 |
| 04438C | Rear drive shaft dust boot assembly | 04437-32010 · 04438-20290 |
| 04438D | Rear drive shaft inner universal joint dust boot assembly | 04437-14020 · 04438-20240 |
| 42185A | Right rear axle housing end gasket | 42185-14020 |
| 42185B | Left rear axle housing end gasket | 42185-14020 |
| 42311L | Rear axle right half shaft | 42301-12230 · 42311-13030 · 42311-13050 |
| 42311M | Bearing (for rear axle right half shaft) | 90369-38018 |
| 42311N | Nut (for rear axle right half shaft) | 90170-19185 · 90178-22001 · 90179-20017 · 90179-22020 |
| 42311T | Snap ring (for rear axle right half shaft) | 90521-69004 |
| 42311U | Hub bolt (for rear axle right) | 90942-02047 |
| 42311V | Oil seal (for rear axle right half shaft) | 90311-48001 · 90311-52010 · 90311-52059 · 90311-56007 |
| 42311W | Outer bearing (for rear axle right half shaft) | 90080-36075 · 90368-22001 |
| 42311X | Inner bearing (for rear axle right half shaft) | 90080-36072 · 90368-35004 |
| 42311Y | Claw washer (for rear axle right half shaft) | 90214-20005 |
| 42312 | Rear axle left half shaft | 42301-12230 · 42311-13030 · 42311-13050 |
| 42312A | Bearing (for rear axle left half shaft) | 90369-38018 |
| 42312B | Nut (for rear axle left half shaft) | 90170-19185 · 90178-22001 · 90179-20017 · 90179-22020 |
| 42312C | Oil seal (for rear axle left half shaft) | 90311-48001 · 90311-52010 · 90311-52059 · 90311-56007 |
| 42312D | Snap ring (for rear axle left half shaft) | 90521-69004 |
| 42312E | Hub bolt (for left rear axle) | 90942-02047 |
| 42312F | Outer bearing (for rear axle left half shaft) | 90080-36075 · 90368-22001 |
| 42312G | Inner bearing (for rear axle left half shaft) | 90080-36072 · 90368-35004 |
| 42312H | Claw washer (for rear axle left half shaft) | 90214-20005 |
| 42340 | Rear drive shaft assembly | 42340-12010 · 42340-12020 · 42340-12030 · 42340-12040 · 42340-12050 · 42340-12060 · 42340-12061 |
| 42341A | Snap ring (for rear driveshaft) | 90520-23024 |
| 42343 | Outer universal joint end cover | 42343-14010 |
| 42346A | Clamp (for rear drive shaft outer universal joint dust cover) | 42345-14010 · 90949-01078 |
| 42346B | Clamp No. 2 (for the universal joint dust cover on the outside of the rear drive shaft) | 42345-16020 · 42345-16040 · 90949-01076 · 90949-01080 |
| 42347A | Clamp (for rear drive shaft inner universal joint dust cover) | 42345-14010 |
| 42347B | Clamp No. 2 (for the universal joint dust cover on the inside of the rear drive shaft) | 42345-14020 |
| 42350 | Rear drive shaft outer universal joint assembly | 42350-14010 |
| 42370 | Rear drive shaft outer universal joint assembly | 42370-19075 · 42370-19085 · 42370-19125 · 42370-19126 · 42370-19135 · 42370-19136 |
| 42403 | Rear brake drum sub-assembly | 42043-19085 · 42403-20040 · 42403-29015 · 42403-29025 · 42431-12130 · 42431-12140 · 42431-12160 · 42431-20250 |
| 42409A | Rear axle right bearing sub-assembly | 42409-19015 |
| 42409B | Rear axle left bearing sub-assembly | 42409-19015 |
| 42409C | Bolt (for rear axle right bearing) | 90105-10124 · 90105-10404 |
| 42409D | Bolt (for rear axle left bearing) | 90105-10124 · 90105-10404 |
| 42409E | O-ring (for rear axle right bearing) | 90301-61002 |
| 42409F | O-ring (for rear axle left bearing) | 90301-61002 |
| 42410 | Rear axle right hub and bearing assembly | 42410-12090 · 42410-12100 |
| 42418B | Right rear wheel hub grease cap | 42418-13010 · 42418-13011 |
| 42418C | Left rear wheel hub grease cap | 42418-13010 · 42418-13011 |
| 42424 | Rear axle right bearing outer retainer | 42424-14020 |
| 42425A | Rear axle right bearing retainer gasket | 42425-14020 |
| 42425B | Rear axle left bearing retainer gasket | 42425-14020 |
| 42431 | rear brake disc | 42431-12150 · 42431-12170 |
| 42440 | Rear axle left wheel hub and bearing assembly | 42410-12090 · 42410-12100 |
| 42450A | Rear axle right hub and bearing assembly | 42450-12010 · 42450-12020 · 42450-12030 · 42450-12040 |
| 42450B | Rear axle left wheel hub and bearing assembly | 42450-12010 · 42450-12020 · 42450-12030 · 42450-12040 |
| 42451A | No. 1 right rear wheel bearing dust cover | 42451-32010 · 43247-12010 |
| 42451B | No. 1 left rear wheel bearing dust cover | 42451-32010 · 43247-12010 |
| 42454 | Rear axle left bearing outer retainer | 42454-14010 |
| 43517 | Rear anti-skid control rotor | 43517-13010 |
| 43525D | Right rear wheel adjustment lock cover | 43525-20040 · 43525-22010 |
| 43525E | Left rear wheel adjustment lock cover | 43525-20040 · 43525-22010 |
