Toyota COROLLA 后桥壳和差速器 — Figure 4101

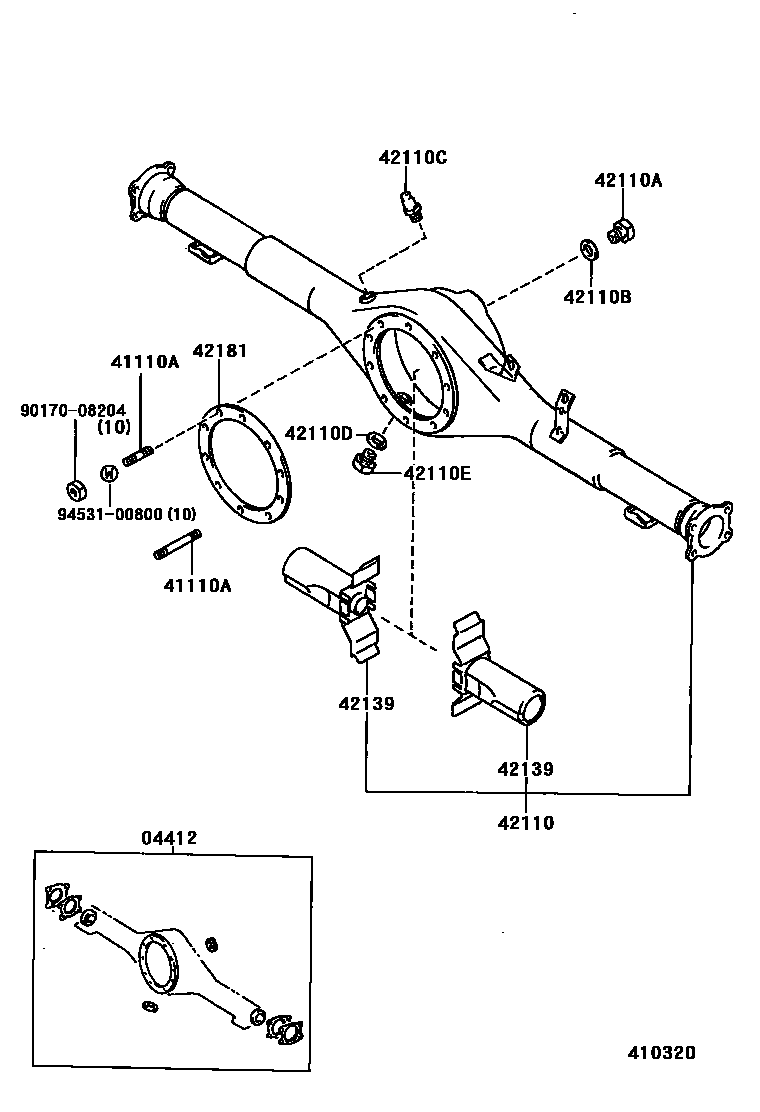

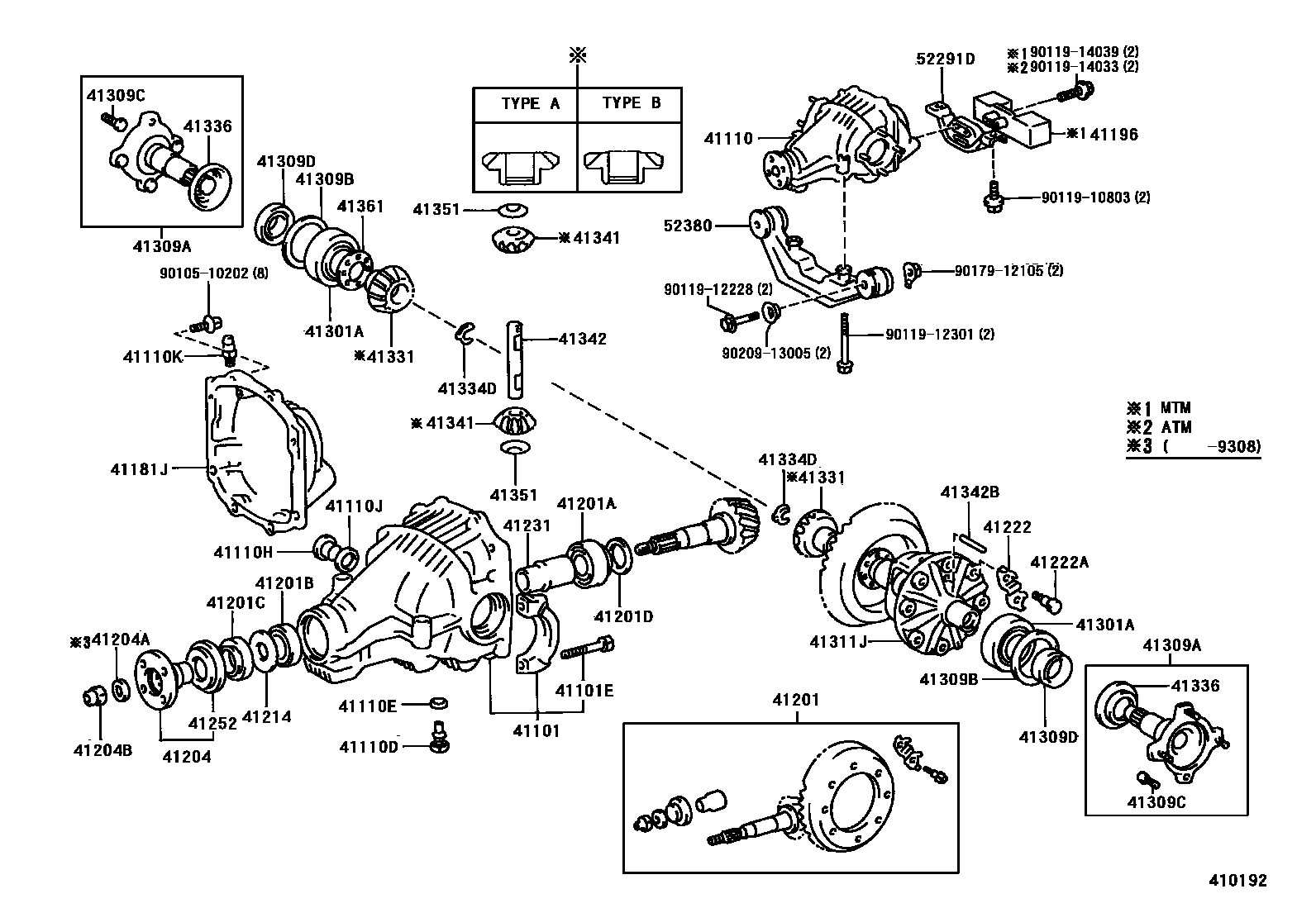

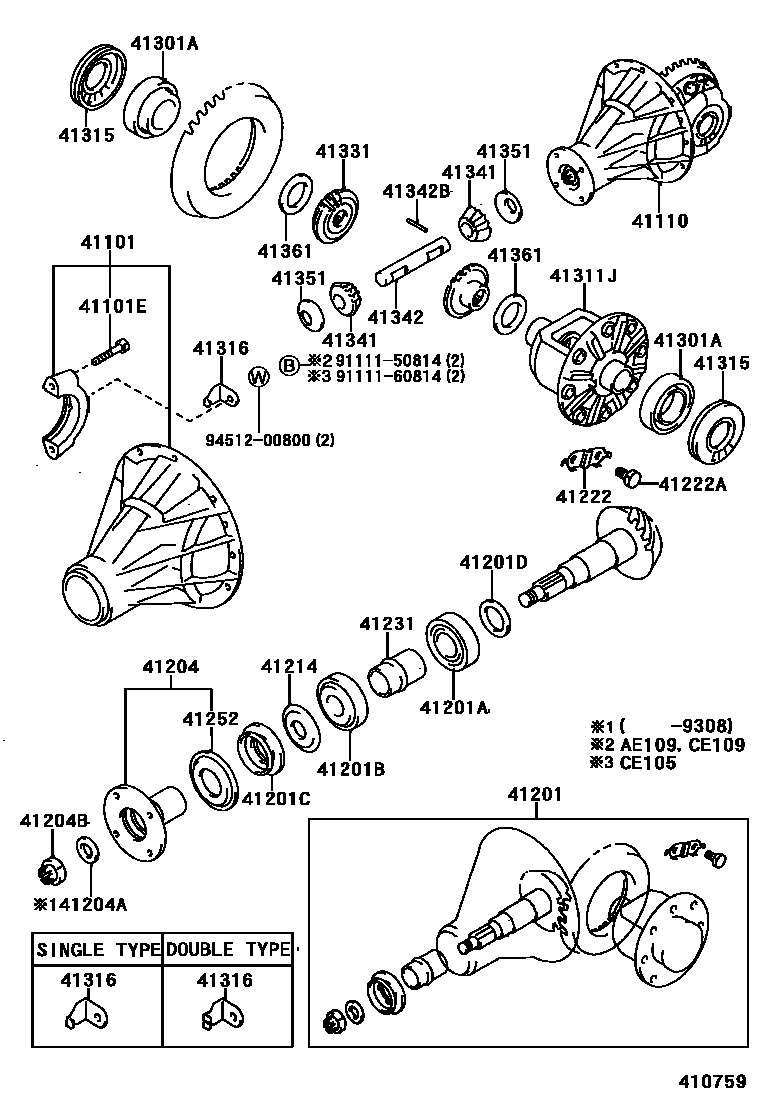

Toyota COROLLA EPC diagram 4101, 后桥壳和差速器, with 3 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04412 | Rear differential carrier gasket assembly | 04412-21010 |
| 41101 | Rear differential bracket sub-assembly | 41101-12040 · 41101-12041 · 41101-12050 |
| 41101E | Bolt (for rear differential case) | 90105-12114 |
| 41110 | Rear differential bracket assembly | 41110-12220 · 41110-12230 |
| 41110A | Bolt No. 1 (for rear differential case assembly) | 90116-08235 · 90116-08236 |
| 41110D | Screw plug (for rear differential drain port) | 90341-18030 · 90341-18035 |
| 41110E | Gasket (for rear differential drain plug) | 12157-10010 |
| 41110H | Plug (for rear differential oil filling port) | 90341-18023 · 90341-18032 |
| 41110J | Gasket (for rear differential oil plug) | 12157-10010 |
| 41110K | Breather plug (for rear differential) | 90930-03129 |
| 41181J | Rear differential case cover | 41181-12030 |
| 41196 | Rear differential power damper | 41196-12010 · 41196-12020 |
| 41201 | Rear differential final drive gear assembly | 41201-29835 · 41201-80025 |
| 41201A | Rear tapered bearing (for rear driving pinion) | 90368-34049 |
| 41201B | Front roller tapered bearing (for rear drive pinion) | 90368-30002 |
| 41201C | Oil seal (for rear differential case) | 90311-38015 · 90311-38019 |
| 41201D | Flat washer (for rear differential drive pinion) | 90201-35396 · 90201-35397 · 90201-35398 · 90201-35399 · 90201-35400 · 90201-35401 · 90201-35402 · 90201-35403 · 90201-35404 · 90201-35435 · 90201-35436 · 90201-35437 · 90201-35438 · 90201-35439 · 90201-35440 · 90201-35516 · 90201-35517 · 90201-35518 · 90564-34001 · 90564-34002 · 90564-34003 · 90564-34004 · 90564-34005 · 90564-34006 · 90564-34007 · 90564-34008 · 90564-34009 · 90564-34010 · 90564-34011 · 90564-34012 · 90564-34013 · 90564-34014 · 90564-34015 · 90564-34016 · 90564-34017 · 90564-34018 · 90564-34019 · 90564-34020 · 90564-34021 · 90564-34022 · 90564-34023 · 90564-34024 · 90564-34025 · 90564-34026 · 90564-34027 · 90564-34028 · 90564-34029 · 90564-34030 · 90564-34031 · 90564-34032 · 90564-34033 · 90564-34034 · 90564-34035 · 90564-34036 · 90564-34037 · 90564-34038 · 90564-34039 · 90564-34040 · 90564-34041 · 90564-34042 |
| 41204 | Rear driving pinion rear coupling flange sub-assembly | 41204-20020 · 41204-48020 |
| 41204A | Flat washer (for rear drive pinion) | 90201-18485 |
| 41204B | Nut (for rear driving pinion) | 90179-18001 · 90179-18020 |
| 41214 | Rear differential drive pinion oil retaining ring | 41214-20020 · 41214-28010 |
| 41222 | Rear differential ring gear fixing bolt locking plate | 41222-28010 |
| 41222A | Bolt (for rear differential ring gear assembly) | 90101-11353 |
| 41231 | Rear differential drive pinion bearing spacer | 41231-22010 |
| 41252 | Dust cover (for rear differential) | 41252-22010 · 41252-48020 |
| 41301A | Bearings (for rear differential housing) | 90368-41001 · 90368-41050 |
| 41309A | Rear differential side gear shaft sub-assembly | 41309-32020 |
| 41309B | Flat washer (for rear differential side gear shaft) | 90201-54001 · 90201-54002 · 90201-54003 · 90201-54004 · 90201-54005 · 90201-54006 · 90201-54007 · 90201-54008 · 90201-54009 · 90201-54010 · 90201-54011 · 90201-54012 · 90201-54013 · 90201-54014 · 90201-54015 · 90201-54016 · 90201-54017 · 90201-54018 · 90201-54019 · 90201-54020 · 90201-54021 · 90201-54022 · 90201-54023 · 90201-54024 · 90201-54025 · 90201-54026 · 90201-54027 · 90201-54028 · 90201-54029 · 90201-54030 · 90201-54031 · 90201-54032 · 90201-54033 · 90201-54034 |
| 41309C | Bolt (for rear differential side gear shaft) | 90114-10028 |
| 41309D | Oil seal (for rear differential side gear shaft) | 90311-35018 · 90311-35032 |
| 41311J | rear differential case | 41311-14031 · 41311-22031 |
| 41315 | Rear differential bearing adjusting nut | 41315-22011 |
| 41316 | Rear differential bearing adjustment nut locking piece | 41316-22011 · 41317-22011 |
| 41331 | rear differential side gear | 41331-22021 · 41331-28010 · 41331-42010 |
| 41334D | Shaft snap ring (for rear differential side gear shaft) | 90520-22012 |
| 41336 | Dust cover (for rear differential side gear shaft) | 41336-14010 |
| 41341 | rear differential pinion | 41341-12030 · 41341-22020 |
| 41342 | Rear differential planetary gear shaft | 41342-22010 |
| 41342B | Direct sales (for rear differential planetary gear shaft) | 90250-04193 |
| 41351 | Rear differential planetary gear thrust washer | 41351-12030 |
| 41361 | No. 1 rear differential half gear thrust washer | 41361-22020 · 41361-22030 · 41361-22040 · 41361-22120 · 41361-22130 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-22170 · 41361-22180 |
| 42110 | Rear axle housing assembly | 42110-13080 · 42110-13120 · 42110-21090 · 42110-21100 |
| 42110A | Screw plug (for rear axle housing oil filling port) | 90341-18006 · 90341-18049 |
| 42110B | Gasket (for rear axle housing oil filling plug) | 12157-10010 |
| 42110C | Breather plug (for rear axle housing) | 90930-03031 |
| 42110D | Gasket (for rear axle housing drain plug) | 12157-10010 |
| 42110E | Screw plug (for rear axle housing oil drain port) | 90341-18057 |
| 42139 | Rear axle housing oil baffle | 42108-14010 |
| 42181 | Rear differential case gasket | 42181-22010 |
| 52291D | Rear differential support beam cushion | 52291-12010 |
| 52380 | Rear differential No. 1 bracket | 52380-12010 · 52380-12020 |
